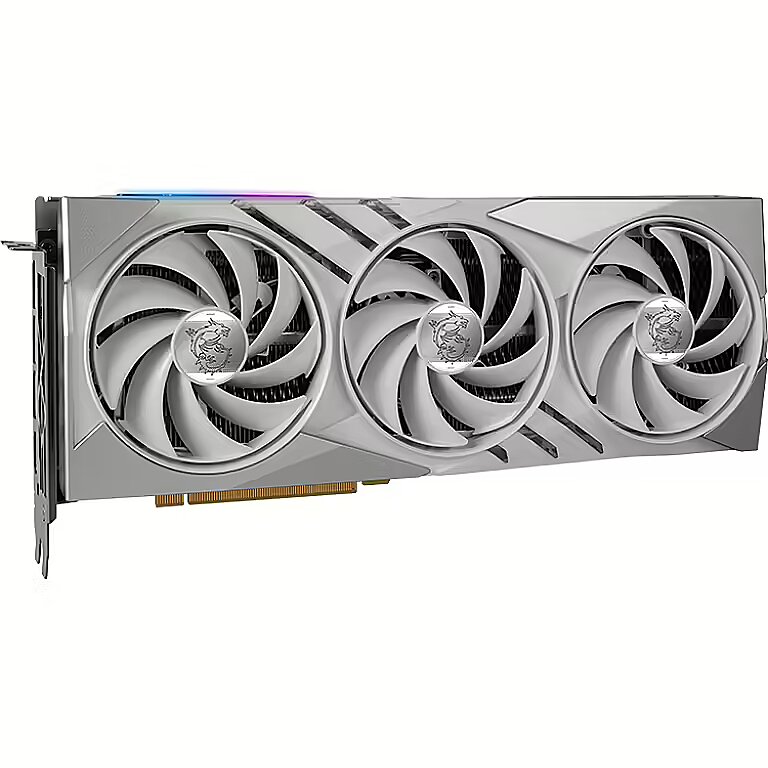

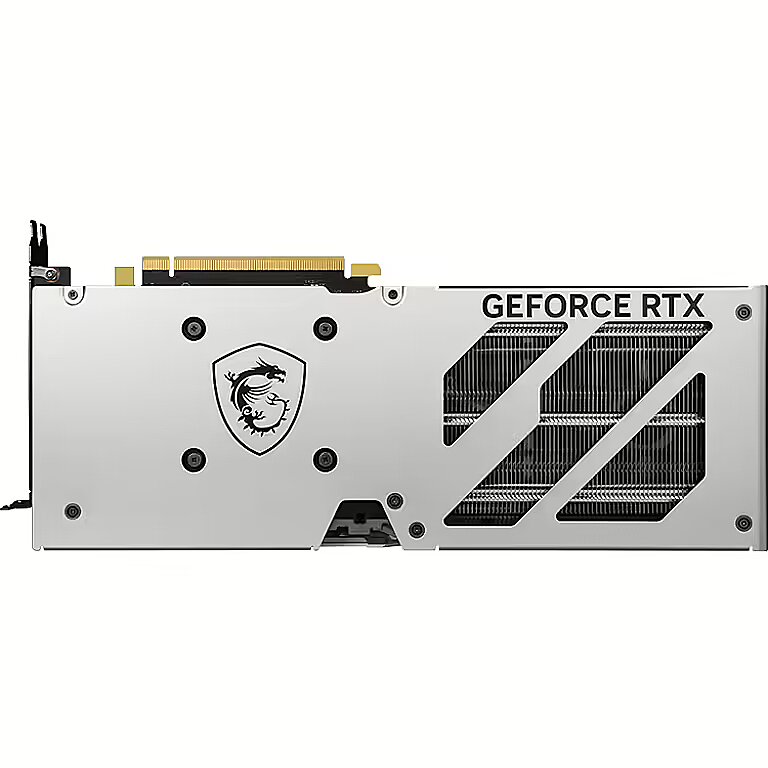

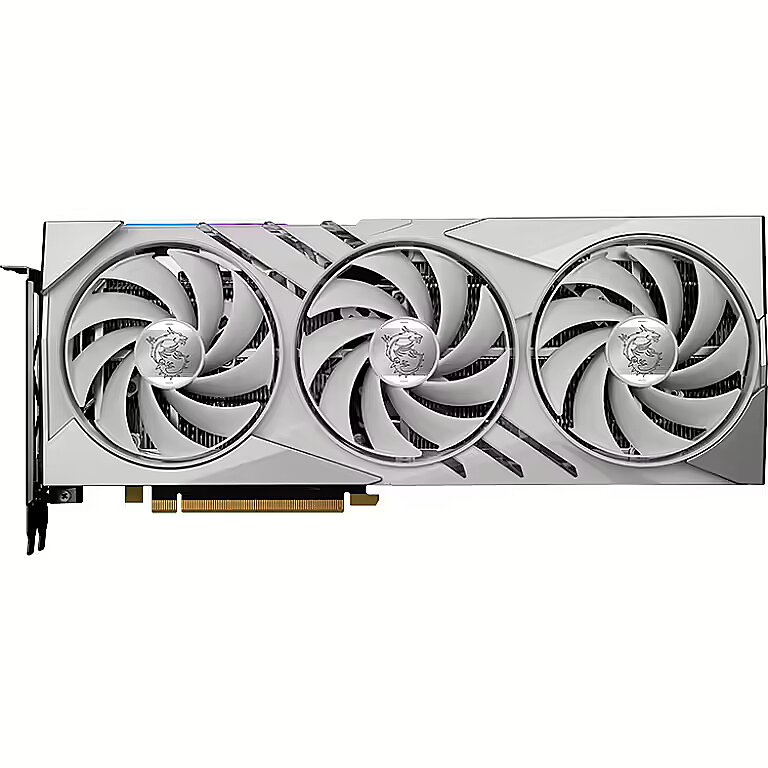

MSI GeForce RTX 4060 Ti, 16GB GDDR6, GAMING X SLIM WHITE (DLSS 3)

Name: MSI GeForce RTX 4060 Ti, 16GB GDDR6, GAMING X SLIM WHITE (DLSS 3)
Brand: MSI
SKU: 993378
Price: 573.84 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 993378 Product code: GEFORCE RTX 4060 TI GAMING X SLIM WHITE 16G

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

GPU model: GeForce RTX 4060 Ti (16GB)
GPU core frequency: 2670 MHz
Power sockets: 1x 8-pin
RAM: 16 GB
Memory type: GDDR6
Cooling: High-End Cooler

Virtual reality

The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.

Basic information

GPU tips GeForce

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : MSI Gaming

GPU model GeForce RTX 4060 Ti (16GB)

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2670 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 3

Length (mm) : 307

Stream processors / CUDA Cores : 4352

PCI-E version : 4.0 x8

Power consumption (TDP) : 165 W

Minimum power supply output : 550 W

Power sockets : 1x 8-pin

Random-access memory (RAM)

RAM 16 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 18000 MHz

Bus width 128 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling High-End Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : Nav

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

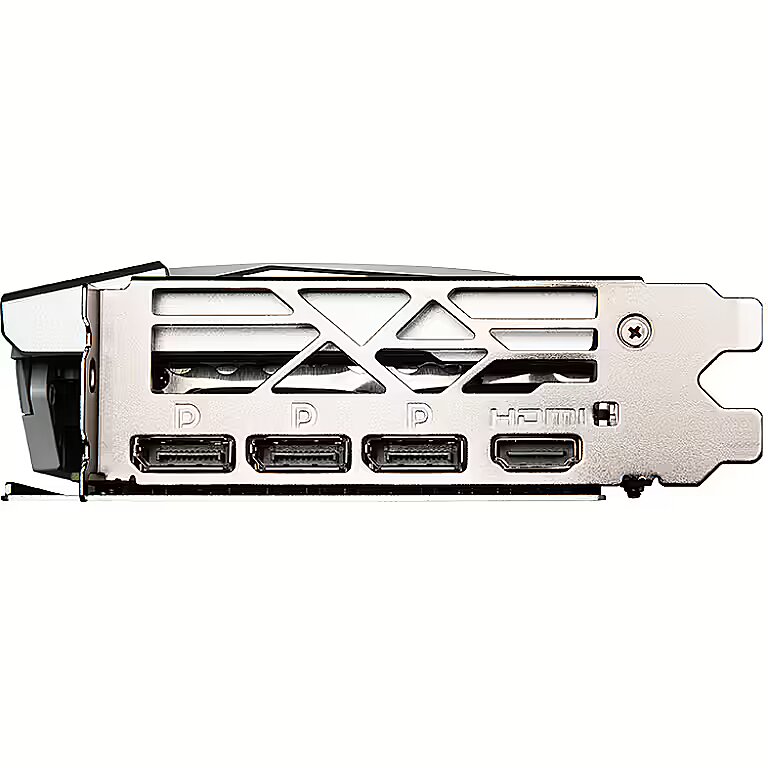

Ports and equipment

HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

More detailed specification

Additional information in manufacturers website MSI GeForce RTX 4060 Ti, 16GB GDDR6, GAMING X SLIM WHITE (DLSS 3)

Brand - MSI
BrandPartCode - GEFORCE RTX 4060 TI GAMING X SLIM WHITE 16G
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4060 Ti 16GB
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - NVIDIA GeForce RTX 4060 Ti
code - V517-001R
CUDA Cores - 4352
Description - GeForce RTX™ 4060 Ti GAMING X SLIM WHITE 16G WITH DLSS 3 Game, stream, create. The GeForce RTX™ 4060 Ti lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio. Boost Clock / Memory Speed 2670 MHz / 18 Gbps 16GB GDDR6 DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) TRI FROZR 3 Thermal Design TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow. Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes. Core Pipe: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes. Airflow Control: Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise. Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world. MSI Center The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Design - Cooling technology - MSI TORX FAN 5.0
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - White
Dimensions - 307 x 125 x 46 mm
DisplayPort Input/Output connectors - 3
ean - 4711377121996
Eans - 4711377121996
EAN_code - 4711377121996
Full Description Line - NVIDIA GeForce RTX 4060 Ti|Graphics memory size 16 GB|GDDR6|128 bit|PCIE 4.0 8x|Memory CLK 18 Gbps|GPU boost clock 2670 MHz|7680x4320|1xHDMI|3xDisplayPort
GPU boost clock - 2670 MHz
Graphic card features - Gaming/HDCP
Graphics connector - PCIE 4.0 8x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
GTIN - 4711377121996
HDMI Input/Output connectors - 1
LongDesc - GAMING UNBOUNDGAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.HASSLE-FREE COMPATIBILITYLightened design is made for those building a gaming rig with space constraints.Powered by GeForce RTX 40 Series and DLSS 3The Ultimate Platform for Gamers and CreatorsElevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.TRI FROZR 3 THERMAL DESIGNStay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.TORX FAN 5.0TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.COPPER BASEPLATEFACING THE HEAT HEAD-ONHeat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.KEEPING THE CORE COOLCore Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.AIRFLOW CONTROLAirflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.ELEVATED DETAILSTake a closer look at the other thermal solution features that help to control temperatures and the noise level.UNRESTRICTED COOLINGA large airflow vent on the backplate allows exhaust air to pass through directly.ZERO FROZRThe fans completely stop when temperatures are relatively low, eliminating all noise.YOUR SUPPORT CHARACTERA bundled support bracket can be attached to your PC case for additional graphics card reinforcement.
LongProductName - NVIDIA GeForce RTX 4060 Ti, 2685MHz, 16GB GDDR6, 128 bit, PCI Express x8 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6, 165W
LongSummaryDescription - MSI GAMING GeForce RTX 4060 Ti X SLIM WHITE 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti, Processor frequency: 2685 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - MSI
Manufacturer_code - V517-001R
Max resolution - 7680x4320
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Memory CLK - 18 Gbps
Model - GeForce RTX 4060 Ti GAMING X SLIM WHITE 16G
Name - MSI GeForce RTX 4060 Ti GAMING X SLIM 16G WHITE, graphics card (black, DLSS 3, 3x DisplayPort, 1x HDMI)
name - MSI GeForce RTX 4060 Ti Gaming X Slim White 16G, 16384 MB GDDR6X
Name - MSI GeForce RTX 4060 Ti GAMING X SLIM WHITE 16GB DLSS 3
Packaging data - Package type - Box
Packaging data - Package weight - 1.64 kg
Performance - AMD FreeSync - No
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express x8 4.0
Power - Minimum system power supply - 550 W
Power - Power consumption (typical) - 165 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Power consumption - 165 Watts
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed - 2670 MHz
Processor - Processor frequency - 2685 MHz
Producer - MSI
ProducerCode - GeForce RTX 4060 Ti GAMING X SLIM WHITE 16G
ProductName - GeForce RTX 4060 Ti GAMING X SLIM WHITE 16G
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 45 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription - Chipset NVIDIA RTX 4060 Ti | 16GB |
ShortSummaryDescription - MSI GAMING GeForce RTX 4060 Ti X SLIM WHITE 16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x8 4.0
Title - MSI GAMING GeForce RTX 4060 Ti X SLIM WHITE 16G NVIDIA 16 GB GDDR6
Unit Box Height - 0.275
Unit Box Length - 0.415
Unit Box Width - 0.1
Unit Brutto Volume - 0.01357 cubm
Unit Gross Weight - 1.86 kg
Unit Net Weight - 0.919 kg
URL - https://www.msi.com/Graphics-Card/GeForce-RTX-4060-Ti-GAMING-X-SLIM-WHITE-16G
Vendor Homepage - www.msi.com/Graphics-Card/GeForce-RTX-4060-Ti-GAMING-X-SLIM-WHITE-16G
Warranty - 36 months
WarrantyInfo -
Weight - 1,64
Weight & dimensions - Depth - 46 mm
Weight & dimensions - Height - 125 mm
Weight & dimensions - Length - 307 mm
Weight & dimensions - Weight - 919 g

Basic information
	This product MSI GeForce RTX 4060 Ti, 16GB GDDR6, GAMING X SLIM WHITE (DLSS 3)	MSI GeForce RTX 4080 SUPER, 16GB GDDR6X, GAMING X SLIM (DLSS 3) + Star Wars Outlaws game as a gift	Asus GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, TUF Gaming White OC (DLSS 3) BTF + Star Wars Outlaws game as a gift	Asus GeForce RTX 4060 Ti, 8GB GDDR6, Dual EVO OC (DLSS 3)	Palit GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, GameRock OmniBlack (DLSS 3) + Star Wars Outlaws game as a gift
Show similar specs. Hide similar specs.	573.84 €	1,184.00 €	1,027.03 €	423.01 €	920.78 €
GPU tips	GeForce	GeForce	GeForce	GeForce	GeForce
GPU series	MSI Gaming	MSI Gaming	Asus BTF	Asus Dual	Palit GameRock
GPU model	GeForce RTX 4060 Ti (16GB)	GeForce RTX 4080 SUPER	GeForce RTX 4070 Ti SUPER	GeForce RTX 4060 Ti (8GB)	GeForce RTX 4070 Ti SUPER
GPU core frequency	2670 MHz	2625 MHz	2670 MHz	2595 MHz	2610 MHz
Number of fans	3	3	3	2	3
Length (mm)	307	322	305	228	330
Stream processors / CUDA Cores	4352	10240	8448	4352	8448
PCI-E version	4.0 x8	4.0 x16	4.0 x16	4.0 x8	4.0 x16
Power consumption (TDP)	165 W	320 W	285 W	160 W	295 W
Minimum power supply output	550 W	850 W	750 W	650 W	750 W
Power sockets	1x 8-pin	1x 16-pin	Asus - BTF	1x 8-pin	1x 16-pin
Random-access memory (RAM)
RAM	16 GB	16 GB	16 GB	8 GB	16 GB
Memory type	GDDR6	GDDR6X	GDDR6X	GDDR6	GDDR6X
Memory type	18000 MHz	23000 MHz	21000 MHz	18000 MHz	21000 MHz
Bus width	128 bit	256 bit	256 bit	128 bit	256 bit
Functionality
Cooling	High-End Cooler	High-End Cooler	High-End Cooler	Standard Cooler	Standard Cooler
Lighting	Nav	RGB	RGB	Nav	Nav
NVIDIA SLI (NVLink) support	Not	Not	Not	Not	Not
VR (Virtual Reality) Ready	Is	Is	Is	Is	Is
Low Profile support	No	No	No	No	No
Ports and equipment
HDMI port	1	1	2	1	1
DisplayPort	3	3	3	3	3
DVI-D port	0	0	0	0	0
DVI-I port	0	0	0	0	0
D-SUB	0	0	0	0	0
Maximum number of screens	4	4	4	4	4
