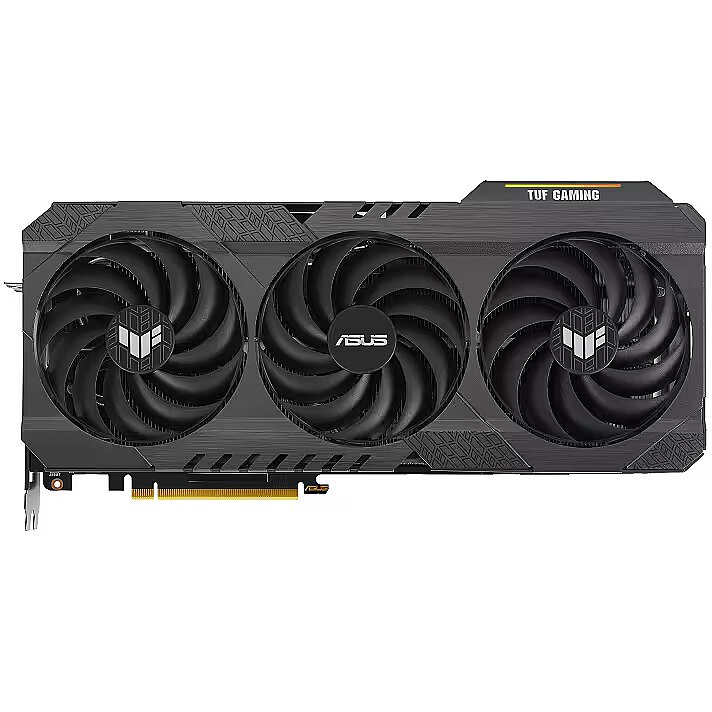

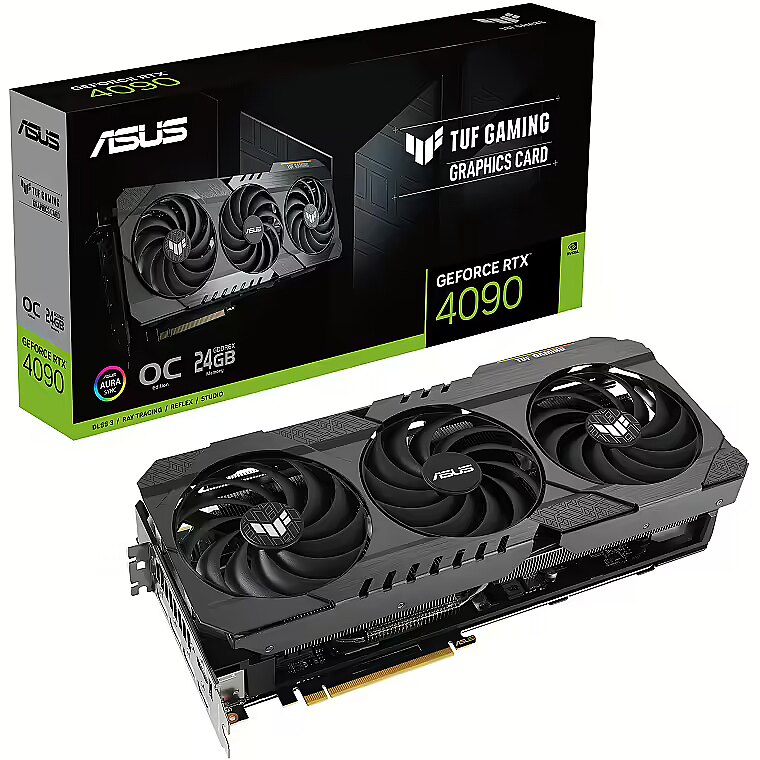

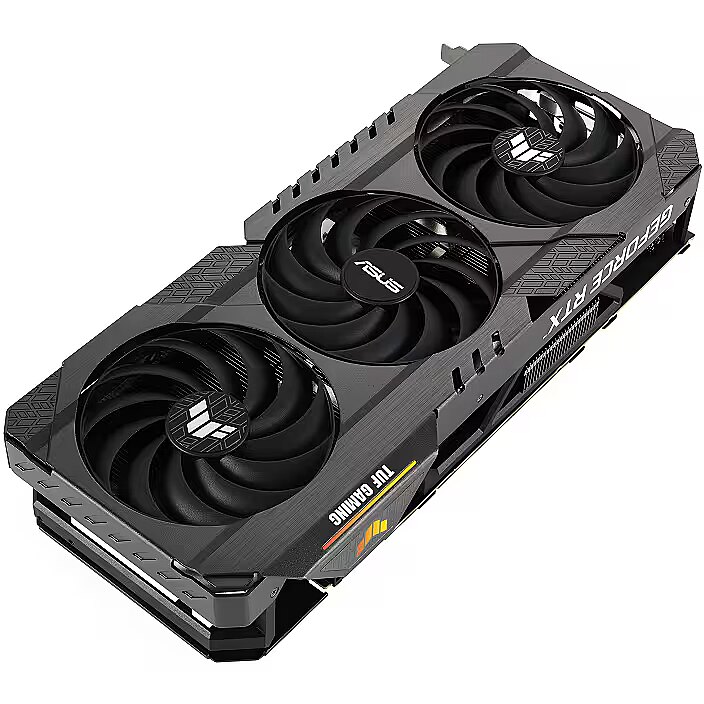

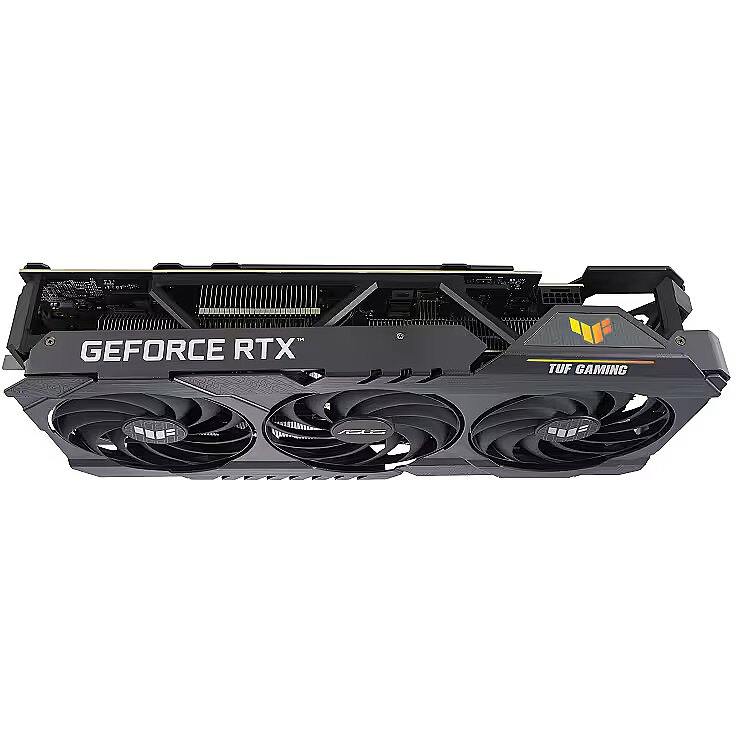

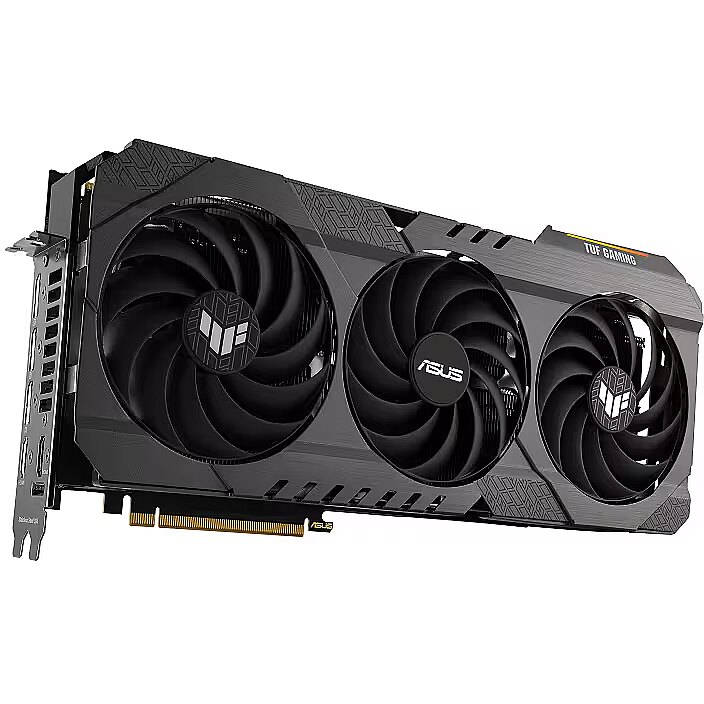

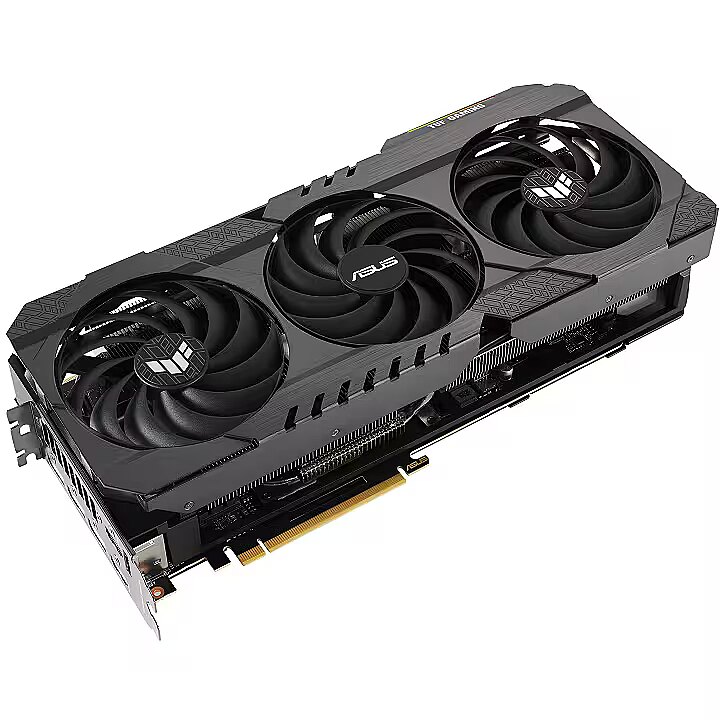

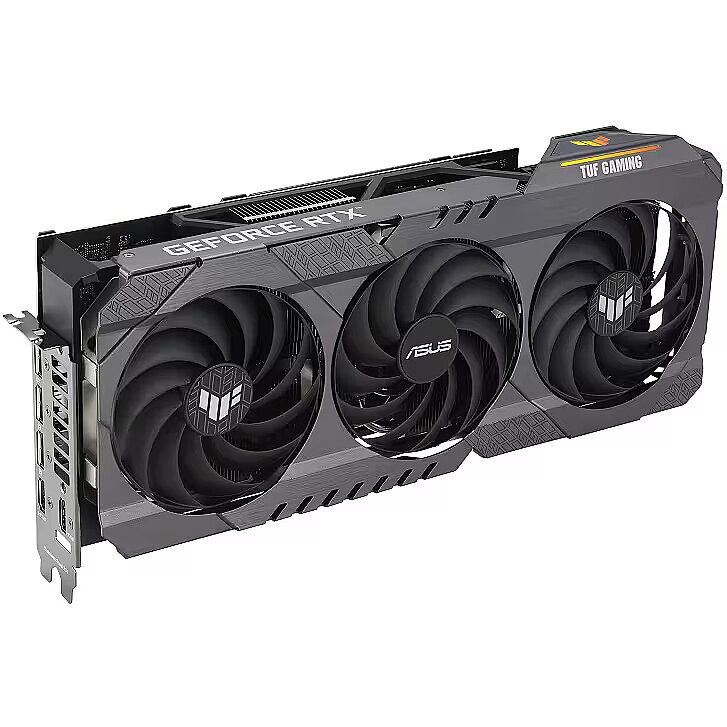

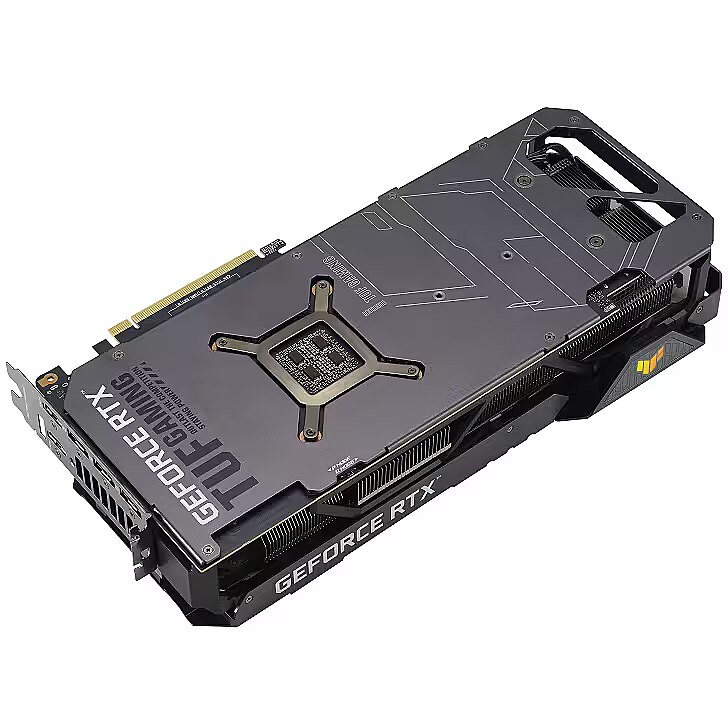

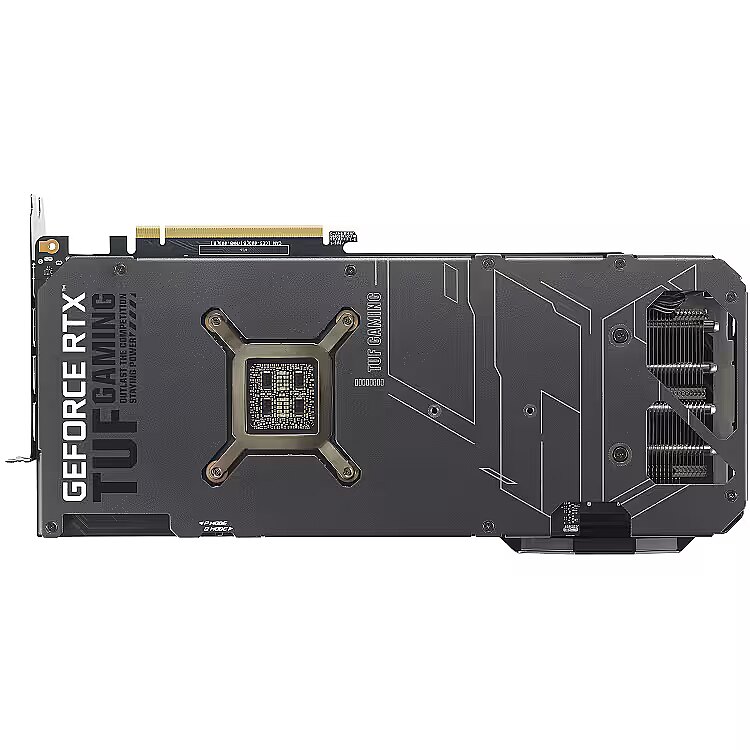

Asus GeForce RTX 4090, 24GB GDDR6X, TUF Gaming OG OC Edition (DLSS 3)

Name: Asus GeForce RTX 4090, 24GB GDDR6X, TUF Gaming OG OC Edition (DLSS 3)
Brand: Asus
SKU: 976302
Price: 2507.89 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

+ As a gift, the game Indiana Jones and the Great Circle

ID: 976302 Product code: TUF-RTX4090-O24G-OG-GAMING

In office 1 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: on Friday, 06.12.2024
Courier delivery 3.99 €: on Friday, 06.12.2024

Main product parameters All parameters

GPU model: GeForce RTX 4090
GPU core frequency: 2565 MHz
Power sockets: 1x 16-pin
RAM: 24 GB
Memory type: GDDR6X
Cooling: High-End Cooler

Description

We offer to buy the graphics card Asus GeForce RTX 4090 with 24 GB GDDR6X RAM.

TheGeForce RTX 4090 video card is the most powerful model of the 2022 NVIDIA Ada architecture, which turned a new page in the PC Gaming category. Thanks to the new SM, RT and Tensor cores, this graphics card delivers up to two times the performance and power efficiency of the best GeForce RTX 30 Series models.

Asus GeForce RTX 4090 features 24 GB GDDR6X RAM and runs at 2565 MHz clock speeds. The video card is especially suitable for those who enjoy gaming in 4K UHD resolution, as the RTX 4090 is 71% faster than the Radeon RX 6950 XT and 59% faster than the GeForce RTX 3090 Ti, which was the performance king until this video card came out.

The Ada Lovelace architecture also proves itself beyond PC gaming. For example, in Blender rendering software, the RTX 4090 outperforms the RTX 3090 Ti by 90%, and a similar picture can be seen in V-Ray, OctaneRender and Redshift.

If you not only play the latest PC games, but are actively involved in game development, you'll get at least a 75% increase in FPS while using Unreal Engine if you replace your current graphics card with a GeForce RTX 4090!

GeForce RTX 4090 Unreal Engine performance

To guarantee compatibility with your system, your PC case must support video cards at least 326mm long and the power supply must be 850 W or more. It is equally important that your computer's CPU is powerful. You'll only get the full performance potential from this Asus GeForce RTX 4090 video card if you use Intel's 13th generation or later Core i7 and Core i9 processors, or AMD's Ryzen 7000 series or later Ryzen 7/Ryzen 9 processors.

Virtual reality

The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.

Basic information

GPU tips GeForce

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Asus TUF Gaming

GPU model GeForce RTX 4090

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2565 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 3

Length (mm) : 326

Stream processors / CUDA Cores : 16384

PCI-E version : 4.0 x16

Power consumption (TDP) : 450 W

Minimum power supply output : 850 W

Power sockets : 1x 16-pin

Random-access memory (RAM)

RAM 24 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6X

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 21000 MHz

Bus width 384 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling High-End Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : RGB

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

Ports and equipment

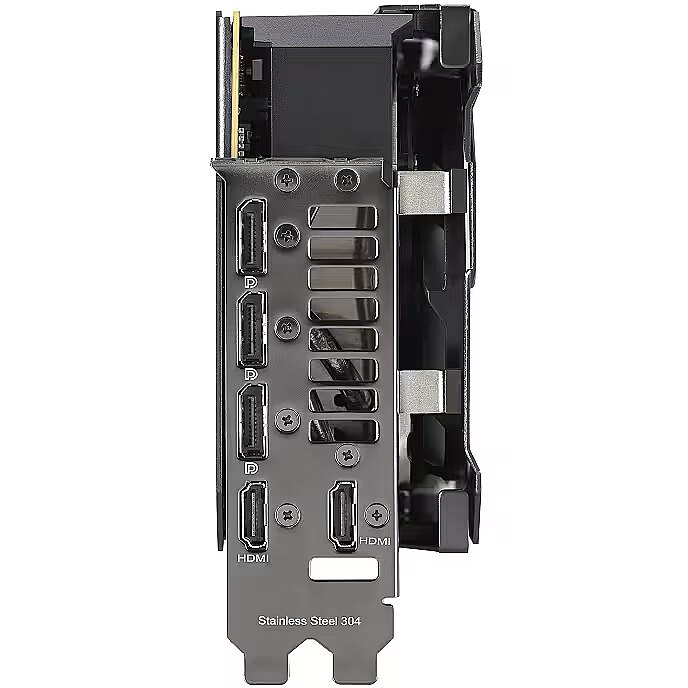

HDMI port 2

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

As a gift, the game Indiana Jones and the Great Circle

Without
Indiana Jones and the Great Circle Premium Edition
View specification

More detailed specification

Additional information in manufacturers website Asus GeForce RTX 4090, 24GB GDDR6X, TUF Gaming OG OC Edition (DLSS 3)

Brand - ASUS
BrandPartCode - 90YV0IY3-M0NA00
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - NVIDIA GeForce RTX 4090
Code - 90YV0IY3-M0NA00
CUDA Cores - 16384
Description - ASUS TUF Gaming GeForce RTX™ 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability - Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing. - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - OC edition: 2595 MHz (OC mode)/ 2565 MHz (Default mode) - Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence - Dual ball fan bearings last up to twice as long as conventional designs - Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable - Auto-Extreme precision automated manufacturing for higher reliability - GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3.2
Design - Product colour - Black
dimensionalWeight - 2455
Dimensions - 325.9 x 140.2 x 62.8 mm
DisplayPort Input/Output connectors - 3
EAN - 4711387225011
Eans - 4711387225011
Full Description Line - NVIDIA GeForce RTX 4090|Graphics memory size 24 GB|GDDR6X|384 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|7680x4320|2xHDMI|3xDisplayPort|Included Accessories 1 x Collection Card1 x Speedsetup Manual1 x Adapter Cable1 x Thank you Card1 x TUF Velcro Hook & Loop
Graphic card features - Gaming/HDCP
Graphics connector - PCIE 4.0 16x
Graphics memory size - 24 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 3,6
GTIN - 4711387225011
HDMI Input/Output connectors - 2
Included Accessories - 1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable
1 x Thank you Card
1 x TUF Velcro Hook & Loop
LongDesc - Built TUFNVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4090.The Ultimate Platform for Gamers and CreatorsPowered by GeForce RTX 40 Series and DLSS 3New Streaming MultiprocessorsUp to 2x performance and power efficiencyFourth-Gen Tensor CoresUp to 4x performance with DLSS 3 vs. brute-force renderingThird-Gen RT CoresUp to 2x ray tracing performanceAXIAL-TECH UPGRADESAir SuperiorityTUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.NEW DIRECTIONWell-maintained FormationThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.3.2-SLOT DESIGNPhase That BlazeA generously sized heatsink efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.LOCK, LOAD, AND LET THE PERFORMANCE FLOWThe GeForce RTX 4090 gloriously presented on a backdrop of low noise and rugged durability.AUTO-EXTREME TECHNOLOGYRELIABILITY BOOSTAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.AURA SYNCLight ‘em Up!Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.GPU Tweak IIIASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloudQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.Free 1 Month of Adobe Creative CloudGet complimentary membership with the purchase of selected ASUS products.*
LongProductName - TUF Gaming GeForce RTX 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability
LongSummaryDescription - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4090. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - ASUS
Manufacturer Code - 90YV0IY3-M0NA00
Manufacturer Name - Asustek
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 24 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 384 bit
Memory > Discrete graphics adapter memory - 24 GB
Memory > Graphics adapter memory type - GDDR6X
Memory bus - 384 bit
Memory CLK - 21 Gbps
Model - TUF-RTX4090-O24G-OG-GAMING
MPN - 90YV0IY3-M0NA00
Name - ASUS GeForce RTX 4090 TUF Gaming OC 24GB OG Edition DLSS 3
Name - Asus TUF GeForce RTX 4090 24GB OG OC Edition Gaming Graphics Card | NVIDIA | 24 GB | GeForce RTX 4090 | GDDR6X | HDMI ports quantity 2 | PCI Express 4.0
Name - RTX 4090 24GB ASUS TUF Gaming OG OC GDDR6X 3Fan TUF-RTX4090-O24G-OG-GAMING
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 326.00 mm
Package features > Gross height (mm) - 63.00 mm
Package features > Gross width (mm) - 141.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 298 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 85 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.7 kg
Packaging data - Package width - 534 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI Express 4.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 16384
Processor - Graphics processor - GeForce RTX 4090
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2565 MHz
Processor - Processor boost clock speed (OC mode) - 2595 MHz
Processor > Graphics processor - GeForce RTX 4090
Processor > Graphics processor family - NVIDIA
Producer - Asus
producerCode - 90YV0IY3-M0NA00
ProducerCode - TUF-RTX4090-O24G-OG-GAMING
productName - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
ProductName - TUF-RTX4090-O24G-OG-GAMING
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 54 cm
Shipping Box Height Shipping/Package Box Dimensions - 27 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.728 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
Short description - ASUS VGA 24GB RTX4090 TUF-O24G-OG-GAMING 3xDP/2xHDMI ASUS TUF-RTX4090-O24G-OG-GAMING
ShortDescription - Chipset NVIDIA RTX 4090 | 24GB
ShortSummaryDescription - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING, GeForce RTX 4090, 24 GB, GDDR6X, 384 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 535
sizeY - 270
sizeZ - 85
Technical details > Gross weight - 0.68 kg
Technical details > Net weight - 0.48 kg
Technical details > Producer - Asus
Technical details > Producer product name - TUF GeForce RTX 4090 24GB OG OC Edition Gaming Graphics Card
Title - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
Unit Box Height - 0.27
Unit Box Length - 0.54
Unit Box Width - 0.09
Unit Brutto Volume - 0.01312 cubm
Unit Gross Weight - 2.73 kg
Unit Net Weight - 2.5 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rtx4090-o24g-og-gaming/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rtx4090-o24g-og-gaming/
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.86
weight - 2755
Weight & dimensions - Depth - 62.8 mm
Weight & dimensions - Height - 140.2 mm
Weight & dimensions - Length - 325.9 mm
Weight & dimensions - Weight - 1.7 kg
