ID: 712874
Product code: GV-N3060GAMING OC-12GD 2.0
In stock >50 units
Warranty: 3 years

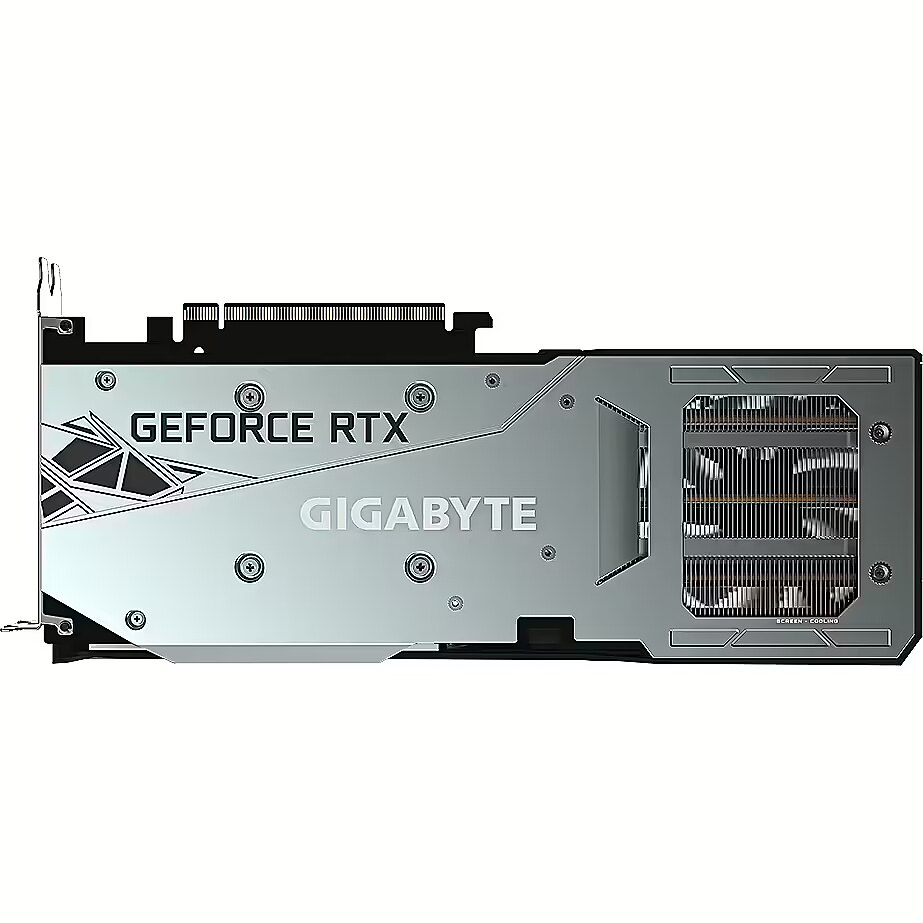

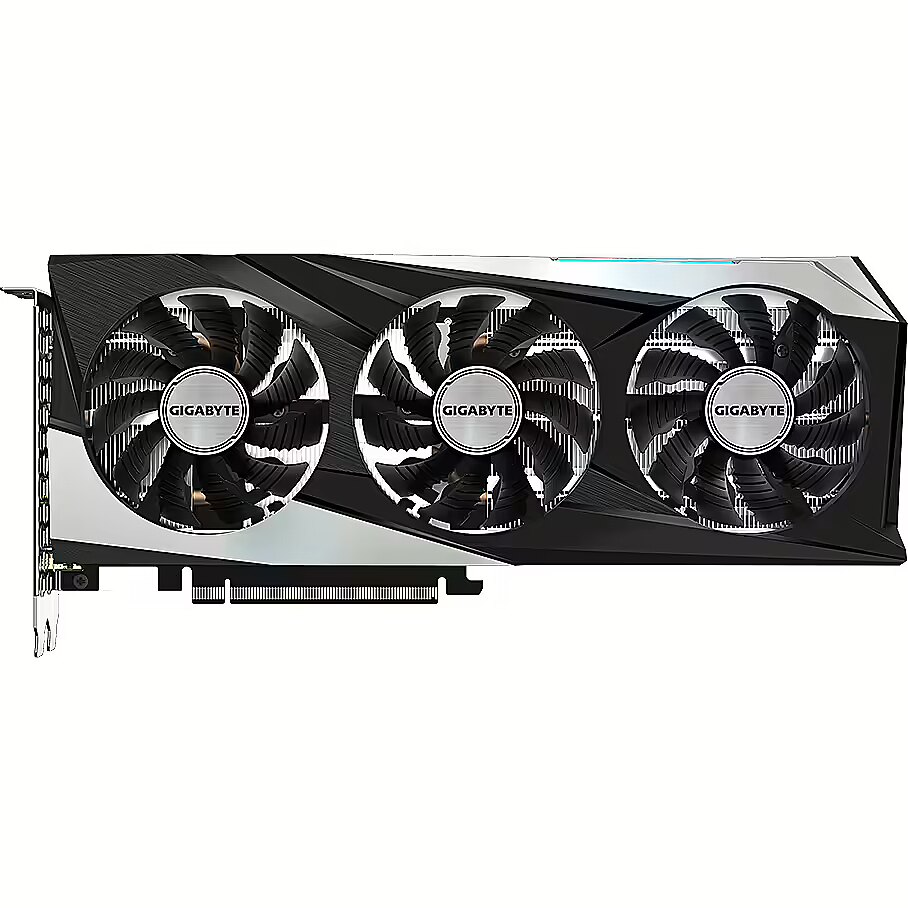

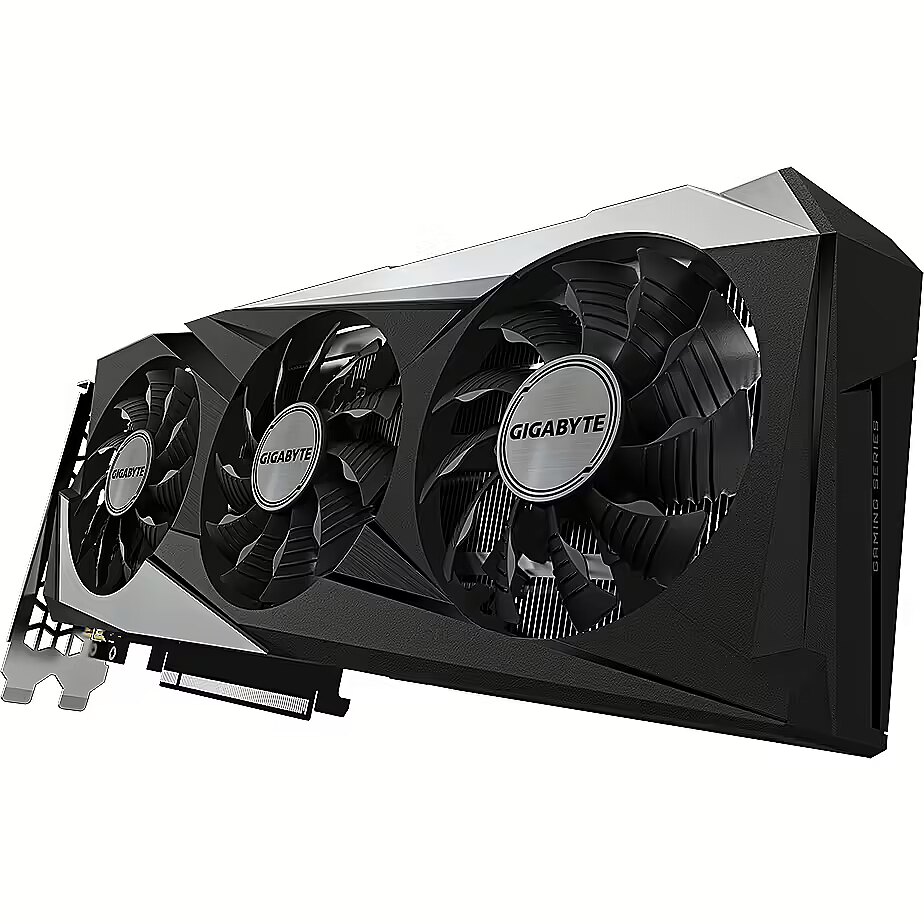

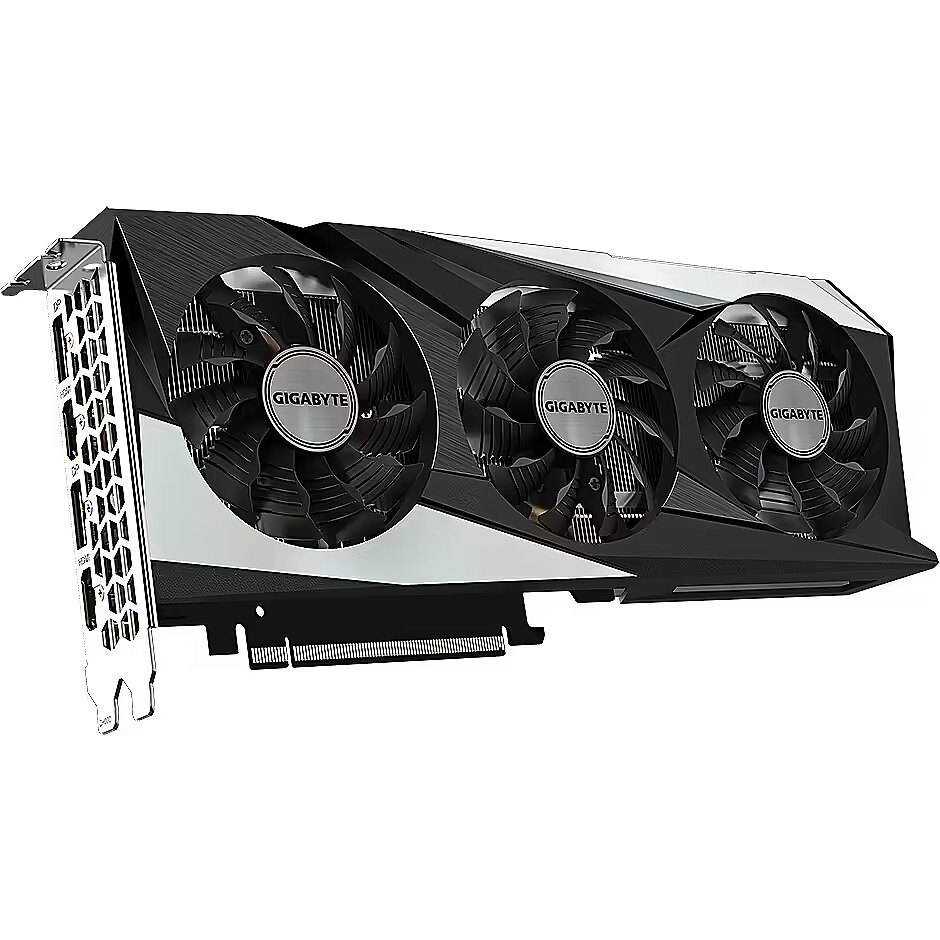

Gigabyte GeForce RTX 3060, 12GB GDDR6, Gaming OC rev. 2.0 (LHR)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 29.11.2024
- Courier delivery 3.99 €: 29.11.2024
Main product parameters All parameters
- GPU model: GeForce RTX 3060
- GPU core frequency: 1837 MHz
- Power sockets: 1x 8-pin
- RAM: 12 GB
- Memory type: GDDR6
- Cooling: High-End Cooler
Description
We offer to buy the graphics card Gigabyte GeForce RTX 3060 with 12 GB GDDR6 RAM.
TheGeForce RTX 3060 is NVIDIA's Ampere microarchitecture graphics card that delivers great performance in the best PC games at 1080p and 2K resolutions. With advanced Ray Tracing and Tensor cores, new streaming multiprocessors and high-speed 12 GB GDDR6 memory at 15000 MHz effective frequency, this card delivers a great balance between low price and high performance.
Launched in February 2021, the GeForce RTX 3060 graphics card is well ahead of its predecessors, the RTX 2060 and GTX 1060. But it doesn't stop there, as the RTX 3060 delivers the same power and even outperforms the GeForce RTX 2070 in several games at a significantly lower - 170 W TDP!
GeForce RTX 3060 performance in PC games
Cyberpunk 2077, Assassin's Creed Valhalla, Control, Watch Dogs: Legion, Hitman 2, Red Dead Redemption 2, Call of Duty: Black Ops Cold War, Metro Exodus - in any of these visually challenging games, the new GeForce RTX 3060 delivers over 60fps in 1080p or Full HD resolution at the highest quality settings. If you turn them down a bit, you can also achieve outstanding performance on 2K or 1440p and even 4K resolution monitors with the GeForce RTX 3060 video card.
NVIDIA DLSS 2.0
DLSS (Deep Learning Super Sampling) is a revolutionary rendering technology that boosts graphics card performance (FPS) by 1.5 times or more while maintaining outstanding image quality, using artificial intelligence (AI) and RTX Tensor cores. DLSS delivers the power boost you need to boost your games' graphics settings and resolution for a breathtaking visual experience. The AI revolution has reached PC gaming!
Discover new horizons of creativity
Take the quality of your work projects to the next level with the GeForce RTX 3060 video card that brings AI overclocking to the best creative applications. This is powered by the NVIDIA Studio platform with tailored drivers and exclusive tools that let you get things done in record time. Whether you're rendering complex 3D scenes, processing 4K video or streaming online at the highest quality, the GeForce RTX 3060 graphics card delivers the level of performance you need to unleash your creativity without limits.
Play like a pro
Be the centre of attention with incredible graphics and smooth, jitter-free online streaming. Next-generation encoding and decoding at thehardware level lets you showcase your best moments in exquisite quality. All-new NVIDIA Broadcast software takes your live broadcasts to the next level with powerful AI capabilities that improve audio and video quality with effects like virtual backgrounds, auto-frame for webcam and microphone noise removal. The GeForce RTX 3060 video card will give you high performance and your viewers the best picture quality!
GeForce Experience
Capture and share video and screenshots, or livestream to friends. Update drivers and optimise game settings. GeForce Experience does it all. It's an integral part of your GeForce graphics card.
NVIDIA G-SYNC
Enjoy smooth, refresh-free gameplay with up to 360Hz refresh rate, HDR and more. GeForce RTX 3060 graphics card combined with a G-SYNC monitor is the ultimate combination for passionate gamers.
NVIDIA Ansel
Turn your screenshots into works of art and impress your friends with the powerful Ansel Photo Mode, which captures 360-degree HDR photos at ultra-high resolution.
Virtual reality
The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.
Basic information
GPU tips
GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Gigabyte Gaming
GPU model
GeForce RTX 3060
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
1837 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 3
Length (mm)
: 282
Stream processors / CUDA Cores
: 3584
PCI-E version
: 4.0 x16
Power consumption (TDP)
: 170 W
Minimum power supply output
: 550 W
Power sockets
: 1x 8-pin
Random-access memory (RAM)
RAM
12 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 15000 MHz
Bus width
192 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: RGB
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No

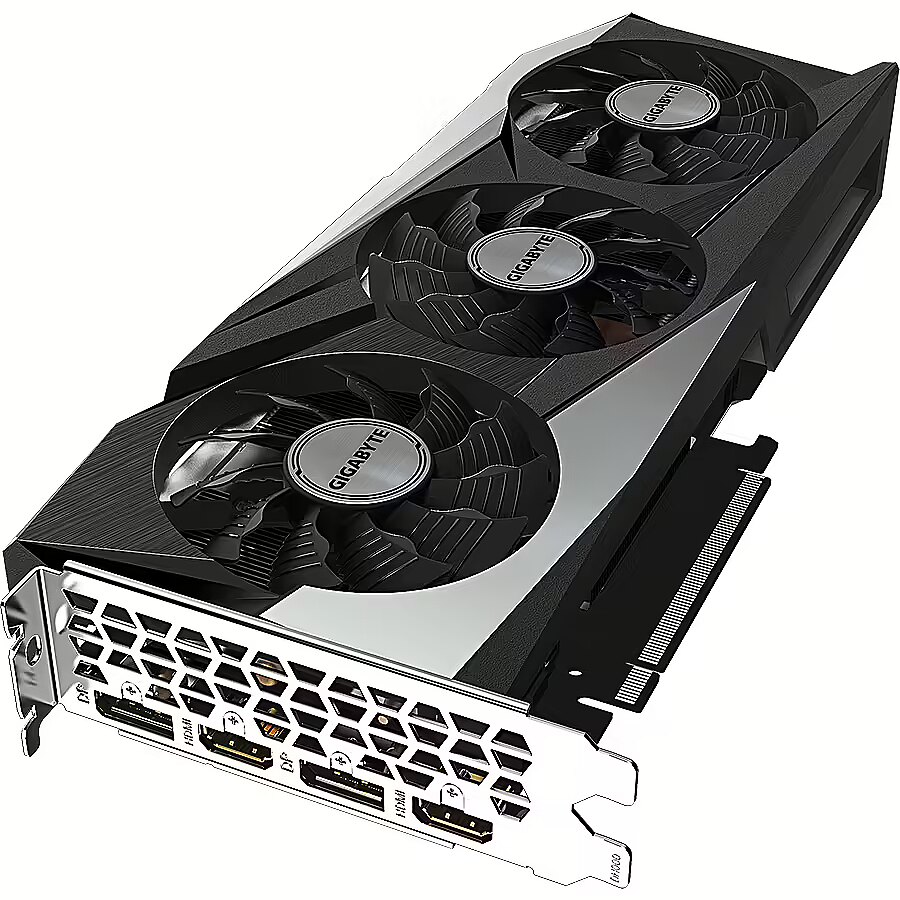

Ports and equipment
HDMI port
2
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
2
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
More detailed specification
Accessories included -
Brand - GIGABYTE
BrandPartCode - GV-N3060GAMING OC-12GD 2.0
Card's length - > 280 mm
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 3060
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - GeForce RTX 3060
Chipset - NVIDIA GeForce RTX 3060
Chipset manufacturer - NVIDIA
Code - GV-N3060GAMING OC-12GD 2.0
code - GV-N3060GAMING OC-12GD 2.0
Cooling - Active
Core Boost frequency - 1837 Hz
Core frequency - 1777 Hz
CUDA Core - 3584
CUDA Cores - 3584
Desc - Mikroshēmu tips: GeForce RTX 3060, Takts frekvence: 1837 MHz, Atmiņas apjoms: 12 GB, Atmiņas veids: GDDR6, Biti: 192 Bit, Takts frekvence atmiņai: 15000 MHz, Interfeisa tips: PCI-Express 4.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 2, Display Port: 2, Garantija: 2 gadi
Description - GeForce RTX™ 3060 GAMING OC 12G (rev. 2.0) NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX™ 3060 Integrated with 12GB GDDR6 192-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans RGB Fusion 2.0 Protection metal back plate Limited Hash Rate version
Description - Karta Graficzna RTX 3060 Gaming OC 2.0 12GB GDDR6 PRZYSPIESZENIE AI DLSS NVIDIA DLSS to przełomowy mechanizm renderowania AI, który zwiększa liczbę klatek na sekundę przy bezkompromisowej jakości obrazu przy użyciu dedykowanych rdzeni tensorowych przetwarzania AI w GeForce RTX. . Dzięki temu masz zapas wydajności na podkręcenie ustawień i rozdzielczości, aby uzyskać niesamowite wrażenia wizualne. Rewolucja AI zawitała do gier. STREAM JAK SZEF Ukradnij pokaz dzięki niesamowitej grafice i płynnemu, pozbawionemu zacinania strumieniowi na żywo. Kodowanie i dekodowanie sprzętowe nowej generacji łączą się, aby pokazać wszystkie najlepsze momenty w najdrobniejszych szczegółach. Zupełnie nowa aplikacja NVIDIA Broadcast zapewnia potężne możliwości sztucznej inteligencji, które poprawiają jakość dźwięku i obrazu dzięki efektom takim jak wirtualne tło, automatyczne kadrowanie kamery internetowej i usuwanie szumów mikrofonu. Dzięki temu możesz dać odbiorcom to, co najlepsze za każdym razem ZWYCIĘSTWO MIERZONE W MILIKONACH NVIDIA Reflex zapewnia najwyższą przewagę nad konkurencją. Najniższe opóźnienie. Najlepsza responsywność. Zasilany przez procesory graficzne z serii GeForce RTX 30 i monitory NVIDIA G-SYNC. Szybciej zdobywaj cele, szybciej reaguj i zwiększaj precyzję celowania dzięki rewolucyjnemu zestawowi technologii do pomiaru i optymalizacji opóźnień systemu w konkurencyjnych grach. PRZYSPIESZENIE AI DLSS NVIDIA DLSS to przełomowy mechanizm renderowania AI, który zwiększa liczbę klatek na sekundę przy bezkompromisowej jakości obrazu przy użyciu dedykowanych rdzeni tensorowych przetwarzania AI w GeForce RTX. . Dzięki temu masz zapas wydajności na podkręcenie ustawień i rozdzielczości, aby uzyskać niesamowite wrażenia wizualne. Rewolucja AI zawitała do gier. RTX. JEST WŁĄCZONY. Poznaj największe współczesne hity, jak nigdy dotąd, dzięki wizualnej wierności ray tracingu w czasie rzeczywistym i najwyższej wydajności technologii DLSS opartej na sztucznej inteligencji ARCHITEKTURA NVIDIA AMPERE Całkowicie nowa architektura NVIDIA Ampere zapewnia najwyższą rozgrywkę dzięki zaawansowanym rdzeniom ray tracing drugiej generacji i rdzeniom tensorowym trzeciej generacji o większej przepustowości. FUNKCJE Multiprocesory strumieniowe NVIDIA Ampere Rdzenie RT drugiej generacji Rdzenie tensorowe trzeciej generacji Zasilany przez GeForce RTX 3060 Zintegrowany z interfejsem pamięci 12 GB GDDR6 192-bit System chłodzenia WINDFORCE 2X z naprzemiennymi wentylatorami wirującymi Unikalne wentylatory łopatkowe o średnicy 100 mm Fuzja RGB 2,0 Tylna płyta ochronna Wersja z ograniczoną szybkością haszowania
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Stainless steel
Design - Product colour - Stainless steel
dimensionalWeight - 1124
dimension depth - 410 mm
dimension height - 235 mm
Dimensions - 282 x 117 x 41 mm
dimension weight - 1250 g
dimension width - 90 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331309312
ean - 4719331309312
EAN - GV-N3060GAMING
Eans - 4719331309312
EAN_code - 4719331309312
Full Description Line - NVIDIA GeForce RTX 3060|Graphics memory size 12 GB|GDDR6|192 bit|PCIE 4.0 16x|Memory clock 15000 MHz|GPU clock 1837 MHz|7680x4320|2xHDMI|2xDisplayPort
GPU clock - 1837 MHz
Graphics card connector - PCI-E 16x ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6
GTIN - 4719331309312
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_75756_1.png
LargeDescHTML -
Link - https://www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-12GD-rev-20/sp#sp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - NVIDIA AMPERE ARCHITECTUREThe all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.RTX. IT’S ON.Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.DLSS AI ACCELERATIONNVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.VICTORY MEASURED IN MILLISECONDSNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.UP YOUR CREATIVE GAMETake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.STREAM LIKE A BOSSSteal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time.DIRECTX 12 ULTIMATEDevelopers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.WINDFORCE 3X COOLING SYSTEMThe WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGAlternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.RGB FUSION 2.0With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.EXTREME DURABILITY AND OVERCLOCKINGThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.AORUS ENGINEThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
LongProductName - 12 GB, GDDR6, 192-bit, PCI-Express 4.0 x16, 1837 MHz core clock, 2xDisplayPort, 2xHDMI, RGB
LongSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC 12G (rev. 2.0). Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060, Processor frequency: 1837 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit, Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - GV-N3060GAMING OC-12GD 2.0
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 360 GB/s
Memory - Memory bus - 192 bit
Memory - Memory clock speed - 15000 MHz
Memory - Number of pipelines - 3
Memory > Discrete graphics adapter memory - 12 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 15000 MHz
Memory bus - 192 bit
Memory bus - 192-bit
Memory clock - 15000 MHz
Memory frequency - 15000 Hz
Memory type - DDR6
Model - GeForce RTX 3060 GAMING OC 12G (rev. 2.0)
MPN - GV-N3060GAMING OC-12GD 2.0
Name - Gigabyte GeForce RTX 3060 Gaming 12GB OC 2.0 LHR
name - GIGABYTE GeForce RTX 3060 Gaming OC 12G LHR, 12288 MB GDDR6
Name - GigaByte GeForce RTX 3060 GAMING OC 12G LHR - 12GB - DisplayPort, 2x HDMI 2.1
Name - Gigabyte GV-N3060GAMING OC-12GD, LHR version NVIDIA 12 GB GeForce RTX 3060 GDDR6 PCI-E 4.0 x 16 Processor frequency 1837 MHz HDMI ports quantity 2 Memory clock speed 15000 MHz
Name - Gigabyte NVIDIA GeForce RTX 3060 Gaming OC 2.0 12GB
name - Graphics card GeForce RTX 3060 Gaming OC 2.0 12GB GDDR6 192bit LHR 2DP/2HDMI
Name - RTX 3060 12GB Gigabyte Gaming OC 2.0 LHR GDDR6 3Fan
Other features - Przepustowość pamięci (GB/s) 360 GB/s Maksymalna rozdzielczość cyfrowa 7680x4320 Formularz PCB ATX Zalecany zasilacz 550W Złącza zasilania 8 pin*1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 408 mm
Package features > Gross depth master carton - 487 mm
Package features > Gross height (mm) - 235 mm
Package features > Gross height master carton - 430 mm
Package features > Gross width (mm) - 90 mm
Package features > Gross width master carton - 470 mm
Package features > Net weight master carton - 12.26 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 170 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 50 g
Package features > Tare weight (kg) - 0.25 kg
Package features > Tare weight master carton - 1.673 kg
Package features > Volume (m3) - 0.0086292 m³
Package features > WEEE tax - No
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
Performance - DirectX version - 12 Ultimate
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express x16 4.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI-E 4.0 x 16
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 3584
Processor - FireStream - No
Processor - Graphics processor - GeForce RTX 3060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 1837 MHz
Processor > Graphics processor - GeForce RTX 3060
Processor > Graphics processor family - NVIDIA
Processor > Processor frequency - 1837 MHz
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N3060GAMING OC-12GD 2.0
ProducerCode - GV-N3060GAMING OC-12GD 2.0
Producer product name - GV-N3060GAMING OC-12GD, LHR version
ProductName - GeForce RTX 3060 GAMING OC 12G (rev. 2.0)
productName - Gigabyte GeForce RTX 3060 GAMING OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.26 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortDescription - Chipset NVIDIA RTX 3060 | 12GB | LHR
ShortSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC 12G (rev. 2.0), GeForce RTX 3060, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express x16 4.0
sizeX - 370
sizeY - 80
sizeZ - 190
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.226 kg
Technical details > Net weight - 0.976 kg
Technical details > Producer - Gigabyte
Technical_details - Type: Graphics card EAN: 4719331309312 Manufacturer No.: GV-N3060GAMING OC-12 Slot: PCIe x16 version 4.0 occupied slots: 2 GPU: NVIDIA GeForce RTX 3060 : NVIDIA GeForce RTX Gaming : 3584 : Microsoft DirectX 12 Ultimate, NVIDIA DLSS, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready-driver, NVIDIA Studio-driver, NVIDIA GPU Boost, Vulkan RT API, OpenGL 4.6 : DirectX 12, OpenGL 4.6 Memory: 12GB (GDDR6) : 192 bits : 15GHz Connections: 2x HDMI version 2.1, 2x Displayport version 1.4 Power supply: 212W : 1x 8-pin (6+2) power connector : min. 550 W Cooling: cooling with fan RGB Default: RGB Fusion Specifics: Yes Operating systems: Linux, Windows 10 Feature: Microsoft DirectX 12 Ultimate, NVIDIA DLSS, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready driver, NVIDIA Studio driver, NVIDIA GPU Boost, Vulkan RT API, OpenGL 4.6 Additional information: Maximum digital resolution: 7680x4320 px Note: Lite Hash Rate Dimensions: Width: 117mm x Height: 41mm x Depth/Length: 282mm Weight: 680 grams
Title - GIGABYTE GAMING GeForce RTX 3060 OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6
Unit Brutto Volume - 0.009348 cubm
Unit Gross Weight - 1.26 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-12GD-rev-20
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-12GD-rev-20#kf
vendpn - GV-N3060GAMING OC-12GD 2.0
Version - Physical Pack
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 12 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,85
Weight - 1.1
weight - 1255
Weight & dimensions - Depth - 282 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Width - 117 mm
Brand - GIGABYTE
BrandPartCode - GV-N3060GAMING OC-12GD 2.0
Card's length - > 280 mm
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 3060
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - GeForce RTX 3060
Chipset - NVIDIA GeForce RTX 3060
Chipset manufacturer - NVIDIA
Code - GV-N3060GAMING OC-12GD 2.0
code - GV-N3060GAMING OC-12GD 2.0
Cooling - Active
Core Boost frequency - 1837 Hz
Core frequency - 1777 Hz
CUDA Core - 3584
CUDA Cores - 3584
Desc - Mikroshēmu tips: GeForce RTX 3060, Takts frekvence: 1837 MHz, Atmiņas apjoms: 12 GB, Atmiņas veids: GDDR6, Biti: 192 Bit, Takts frekvence atmiņai: 15000 MHz, Interfeisa tips: PCI-Express 4.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 2, Display Port: 2, Garantija: 2 gadi
Description - GeForce RTX™ 3060 GAMING OC 12G (rev. 2.0) NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX™ 3060 Integrated with 12GB GDDR6 192-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans RGB Fusion 2.0 Protection metal back plate Limited Hash Rate version
Description - Karta Graficzna RTX 3060 Gaming OC 2.0 12GB GDDR6 PRZYSPIESZENIE AI DLSS NVIDIA DLSS to przełomowy mechanizm renderowania AI, który zwiększa liczbę klatek na sekundę przy bezkompromisowej jakości obrazu przy użyciu dedykowanych rdzeni tensorowych przetwarzania AI w GeForce RTX. . Dzięki temu masz zapas wydajności na podkręcenie ustawień i rozdzielczości, aby uzyskać niesamowite wrażenia wizualne. Rewolucja AI zawitała do gier. STREAM JAK SZEF Ukradnij pokaz dzięki niesamowitej grafice i płynnemu, pozbawionemu zacinania strumieniowi na żywo. Kodowanie i dekodowanie sprzętowe nowej generacji łączą się, aby pokazać wszystkie najlepsze momenty w najdrobniejszych szczegółach. Zupełnie nowa aplikacja NVIDIA Broadcast zapewnia potężne możliwości sztucznej inteligencji, które poprawiają jakość dźwięku i obrazu dzięki efektom takim jak wirtualne tło, automatyczne kadrowanie kamery internetowej i usuwanie szumów mikrofonu. Dzięki temu możesz dać odbiorcom to, co najlepsze za każdym razem ZWYCIĘSTWO MIERZONE W MILIKONACH NVIDIA Reflex zapewnia najwyższą przewagę nad konkurencją. Najniższe opóźnienie. Najlepsza responsywność. Zasilany przez procesory graficzne z serii GeForce RTX 30 i monitory NVIDIA G-SYNC. Szybciej zdobywaj cele, szybciej reaguj i zwiększaj precyzję celowania dzięki rewolucyjnemu zestawowi technologii do pomiaru i optymalizacji opóźnień systemu w konkurencyjnych grach. PRZYSPIESZENIE AI DLSS NVIDIA DLSS to przełomowy mechanizm renderowania AI, który zwiększa liczbę klatek na sekundę przy bezkompromisowej jakości obrazu przy użyciu dedykowanych rdzeni tensorowych przetwarzania AI w GeForce RTX. . Dzięki temu masz zapas wydajności na podkręcenie ustawień i rozdzielczości, aby uzyskać niesamowite wrażenia wizualne. Rewolucja AI zawitała do gier. RTX. JEST WŁĄCZONY. Poznaj największe współczesne hity, jak nigdy dotąd, dzięki wizualnej wierności ray tracingu w czasie rzeczywistym i najwyższej wydajności technologii DLSS opartej na sztucznej inteligencji ARCHITEKTURA NVIDIA AMPERE Całkowicie nowa architektura NVIDIA Ampere zapewnia najwyższą rozgrywkę dzięki zaawansowanym rdzeniom ray tracing drugiej generacji i rdzeniom tensorowym trzeciej generacji o większej przepustowości. FUNKCJE Multiprocesory strumieniowe NVIDIA Ampere Rdzenie RT drugiej generacji Rdzenie tensorowe trzeciej generacji Zasilany przez GeForce RTX 3060 Zintegrowany z interfejsem pamięci 12 GB GDDR6 192-bit System chłodzenia WINDFORCE 2X z naprzemiennymi wentylatorami wirującymi Unikalne wentylatory łopatkowe o średnicy 100 mm Fuzja RGB 2,0 Tylna płyta ochronna Wersja z ograniczoną szybkością haszowania
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Stainless steel
Design - Product colour - Stainless steel
dimensionalWeight - 1124
dimension depth - 410 mm
dimension height - 235 mm
Dimensions - 282 x 117 x 41 mm
dimension weight - 1250 g
dimension width - 90 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331309312
ean - 4719331309312
EAN - GV-N3060GAMING
Eans - 4719331309312
EAN_code - 4719331309312
Full Description Line - NVIDIA GeForce RTX 3060|Graphics memory size 12 GB|GDDR6|192 bit|PCIE 4.0 16x|Memory clock 15000 MHz|GPU clock 1837 MHz|7680x4320|2xHDMI|2xDisplayPort
GPU clock - 1837 MHz
Graphics card connector - PCI-E 16x ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6
GTIN - 4719331309312
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_75756_1.png
LargeDescHTML -
Link - https://www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-12GD-rev-20/sp#sp
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - NVIDIA AMPERE ARCHITECTUREThe all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.RTX. IT’S ON.Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.DLSS AI ACCELERATIONNVIDIA DLSS is groundbreaking AI rendering that boosts frame rates with uncompromised image quality using the dedicated AI processing Tensor Cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The AI revolution has come to gaming.VICTORY MEASURED IN MILLISECONDSNVIDIA Reflex delivers the ultimate competitive advantage. The lowest latency. The best responsiveness. Powered by GeForce RTX 30 Series GPUs and NVIDIA® G-SYNC® monitors. Acquire targets faster, react quicker, and increase aim precision through a revolutionary suite of technologies to measure and optimize system latency for competitive games.UP YOUR CREATIVE GAMETake your creative projects to a new level with GeForce RTX 30 Series GPUs. Delivering AI-acceleration in top creative apps. Backed by the NVIDIA Studio platform of dedicated drivers and exclusive tools. And built to perform in record time. Whether you’re rendering complex 3D scenes, editing 8K video, or livestreaming with the best encoding and image quality, GeForce RTX GPUs give you the performance to create your best.STREAM LIKE A BOSSSteal the show with incredible graphics and smooth, stutter-free live streaming. Next-generation hardware encoding and decoding combine to show off all your best moments in exquisite detail. And the all-new NVIDIA Broadcast app gives you powerful AI capabilities to improve audio and video quality with effects like virtual background, webcam auto frame, and microphone noise removal. So you can give your audience your best—every time.DIRECTX 12 ULTIMATEDevelopers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.WINDFORCE 3X COOLING SYSTEMThe WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGAlternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.RGB FUSION 2.0With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.EXTREME DURABILITY AND OVERCLOCKINGThe graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.AORUS ENGINEThe cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
LongProductName - 12 GB, GDDR6, 192-bit, PCI-Express 4.0 x16, 1837 MHz core clock, 2xDisplayPort, 2xHDMI, RGB
LongSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC 12G (rev. 2.0). Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060, Processor frequency: 1837 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit, Memory clock speed: 15000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer_code - GV-N3060GAMING OC-12GD 2.0
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 360 GB/s
Memory - Memory bus - 192 bit
Memory - Memory clock speed - 15000 MHz
Memory - Number of pipelines - 3
Memory > Discrete graphics adapter memory - 12 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 15000 MHz
Memory bus - 192 bit
Memory bus - 192-bit
Memory clock - 15000 MHz
Memory frequency - 15000 Hz
Memory type - DDR6
Model - GeForce RTX 3060 GAMING OC 12G (rev. 2.0)
MPN - GV-N3060GAMING OC-12GD 2.0
Name - Gigabyte GeForce RTX 3060 Gaming 12GB OC 2.0 LHR
name - GIGABYTE GeForce RTX 3060 Gaming OC 12G LHR, 12288 MB GDDR6
Name - GigaByte GeForce RTX 3060 GAMING OC 12G LHR - 12GB - DisplayPort, 2x HDMI 2.1
Name - Gigabyte GV-N3060GAMING OC-12GD, LHR version NVIDIA 12 GB GeForce RTX 3060 GDDR6 PCI-E 4.0 x 16 Processor frequency 1837 MHz HDMI ports quantity 2 Memory clock speed 15000 MHz
Name - Gigabyte NVIDIA GeForce RTX 3060 Gaming OC 2.0 12GB
name - Graphics card GeForce RTX 3060 Gaming OC 2.0 12GB GDDR6 192bit LHR 2DP/2HDMI
Name - RTX 3060 12GB Gigabyte Gaming OC 2.0 LHR GDDR6 3Fan
Other features - Przepustowość pamięci (GB/s) 360 GB/s Maksymalna rozdzielczość cyfrowa 7680x4320 Formularz PCB ATX Zalecany zasilacz 550W Złącza zasilania 8 pin*1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 408 mm
Package features > Gross depth master carton - 487 mm
Package features > Gross height (mm) - 235 mm
Package features > Gross height master carton - 430 mm
Package features > Gross width (mm) - 90 mm
Package features > Gross width master carton - 470 mm
Package features > Net weight master carton - 12.26 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 170 pc(s)
Package features > Paper/Pasteboard - 200 g
Package features > Plastic (No PET) - 50 g
Package features > Tare weight (kg) - 0.25 kg
Package features > Tare weight master carton - 1.673 kg
Package features > Volume (m3) - 0.0086292 m³
Package features > WEEE tax - No
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
Performance - DirectX version - 12 Ultimate
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express x16 4.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI-E 4.0 x 16
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 3584
Processor - FireStream - No
Processor - Graphics processor - GeForce RTX 3060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 1837 MHz
Processor > Graphics processor - GeForce RTX 3060
Processor > Graphics processor family - NVIDIA
Processor > Processor frequency - 1837 MHz
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N3060GAMING OC-12GD 2.0
ProducerCode - GV-N3060GAMING OC-12GD 2.0
Producer product name - GV-N3060GAMING OC-12GD, LHR version
ProductName - GeForce RTX 3060 GAMING OC 12G (rev. 2.0)
productName - Gigabyte GeForce RTX 3060 GAMING OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 41 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.26 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortDescription - Chipset NVIDIA RTX 3060 | 12GB | LHR
ShortSummaryDescription - GIGABYTE GAMING GeForce RTX 3060 OC 12G (rev. 2.0), GeForce RTX 3060, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express x16 4.0
sizeX - 370
sizeY - 80
sizeZ - 190
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.226 kg
Technical details > Net weight - 0.976 kg
Technical details > Producer - Gigabyte
Technical_details - Type: Graphics card EAN: 4719331309312 Manufacturer No.: GV-N3060GAMING OC-12 Slot: PCIe x16 version 4.0 occupied slots: 2 GPU: NVIDIA GeForce RTX 3060 : NVIDIA GeForce RTX Gaming : 3584 : Microsoft DirectX 12 Ultimate, NVIDIA DLSS, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready-driver, NVIDIA Studio-driver, NVIDIA GPU Boost, Vulkan RT API, OpenGL 4.6 : DirectX 12, OpenGL 4.6 Memory: 12GB (GDDR6) : 192 bits : 15GHz Connections: 2x HDMI version 2.1, 2x Displayport version 1.4 Power supply: 212W : 1x 8-pin (6+2) power connector : min. 550 W Cooling: cooling with fan RGB Default: RGB Fusion Specifics: Yes Operating systems: Linux, Windows 10 Feature: Microsoft DirectX 12 Ultimate, NVIDIA DLSS, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready driver, NVIDIA Studio driver, NVIDIA GPU Boost, Vulkan RT API, OpenGL 4.6 Additional information: Maximum digital resolution: 7680x4320 px Note: Lite Hash Rate Dimensions: Width: 117mm x Height: 41mm x Depth/Length: 282mm Weight: 680 grams
Title - GIGABYTE GAMING GeForce RTX 3060 OC 12G (rev. 2.0) NVIDIA 12 GB GDDR6
Unit Brutto Volume - 0.009348 cubm
Unit Gross Weight - 1.26 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-12GD-rev-20
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N3060GAMING-OC-12GD-rev-20#kf
vendpn - GV-N3060GAMING OC-12GD 2.0
Version - Physical Pack
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 12 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,85
Weight - 1.1
weight - 1255
Weight & dimensions - Depth - 282 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Width - 117 mm
