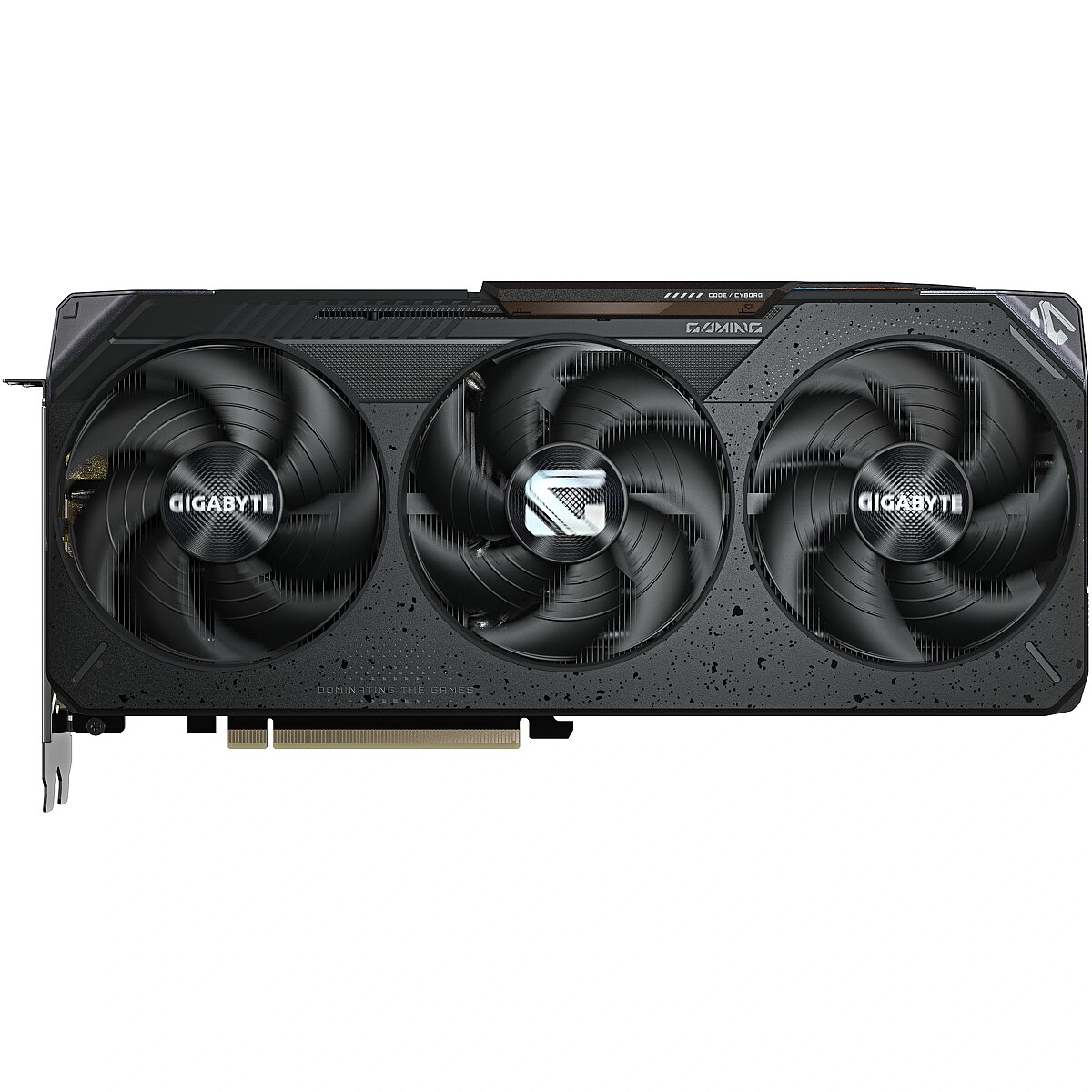

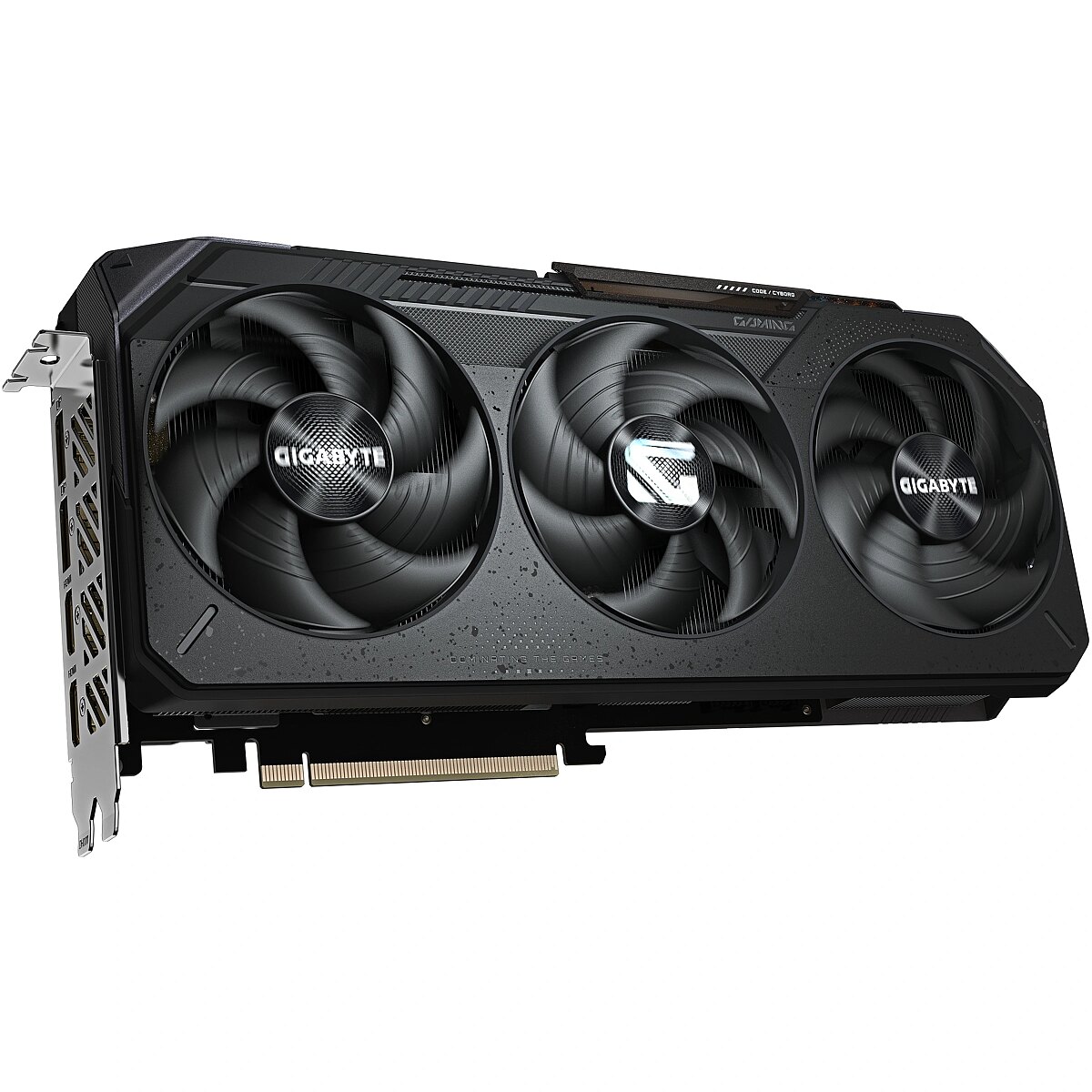

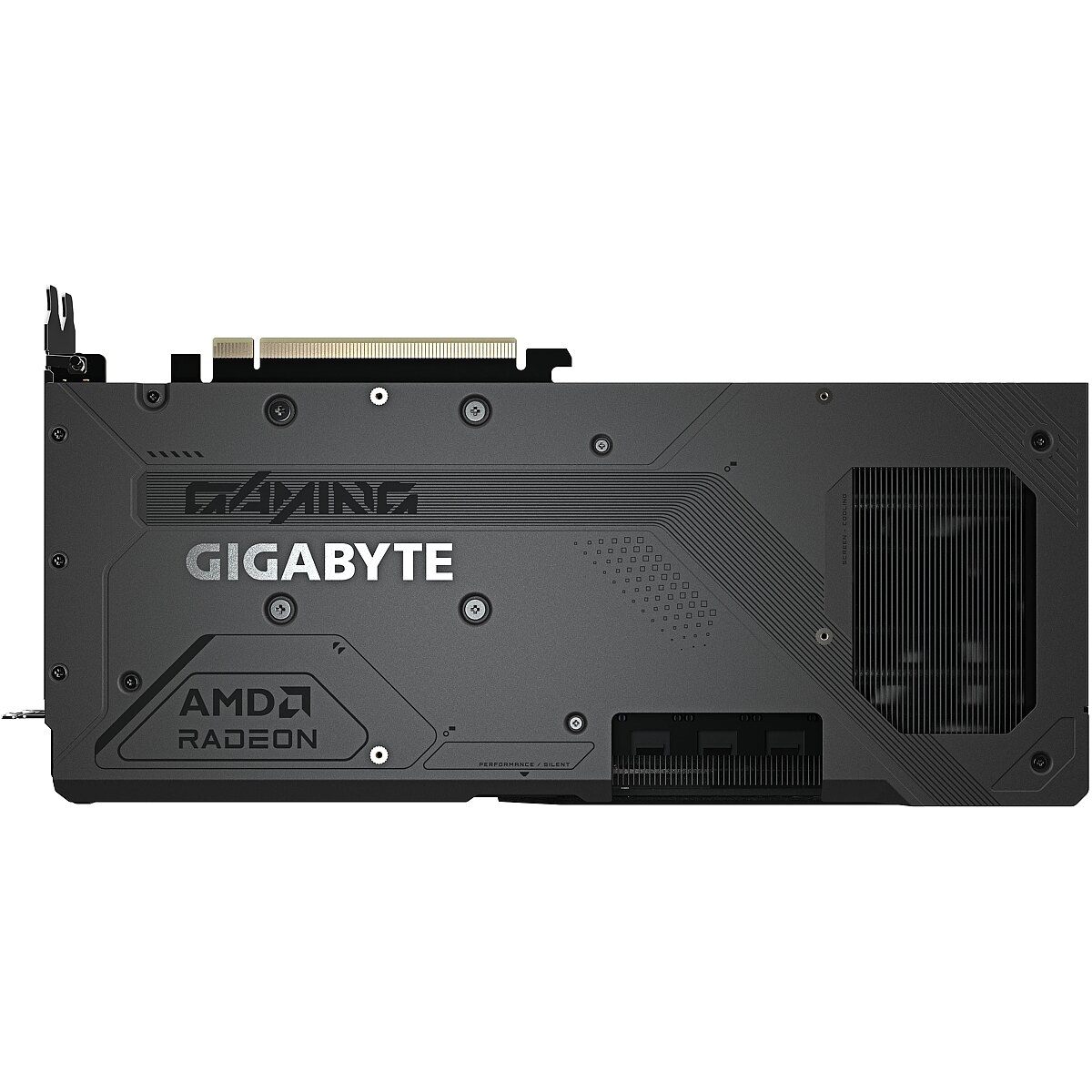

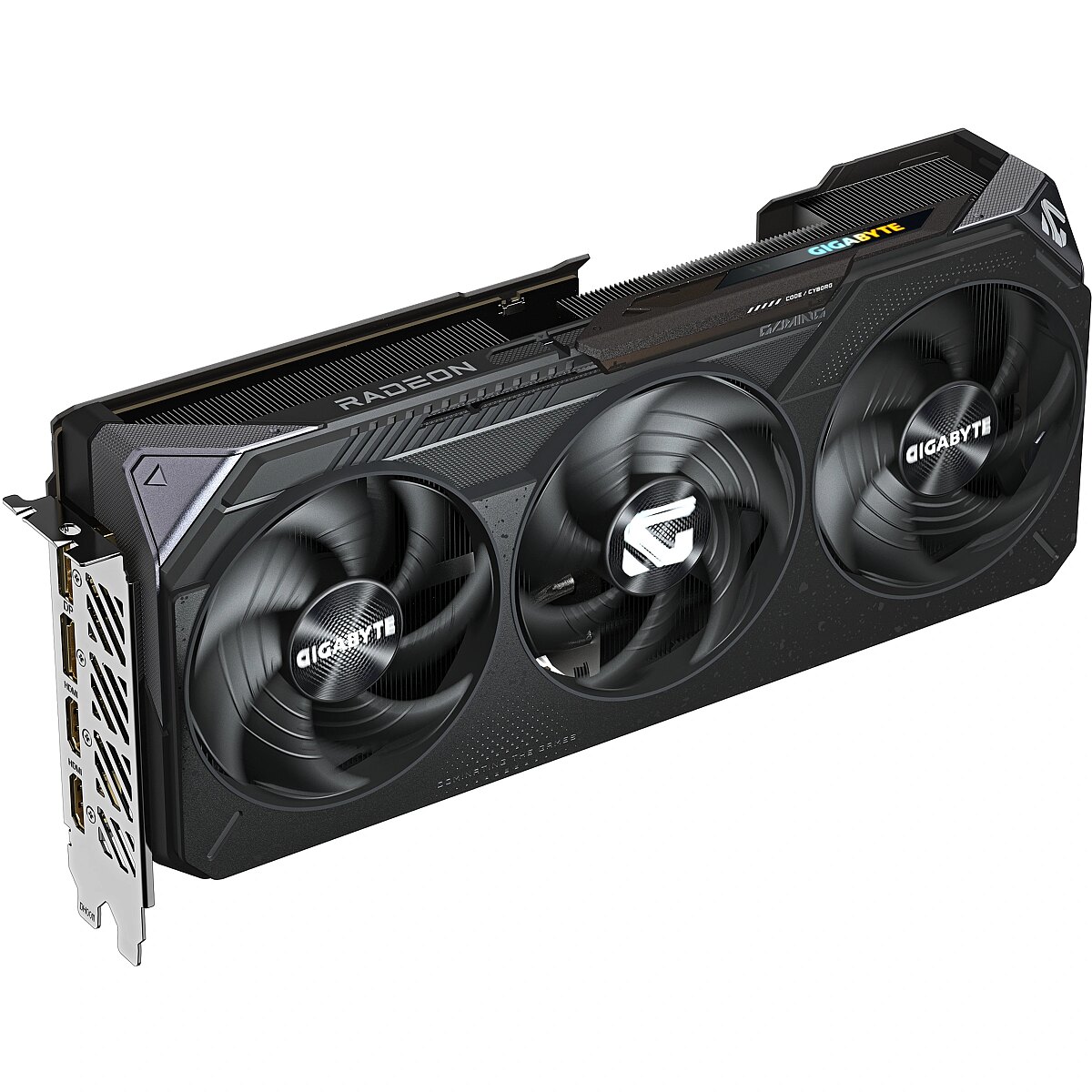

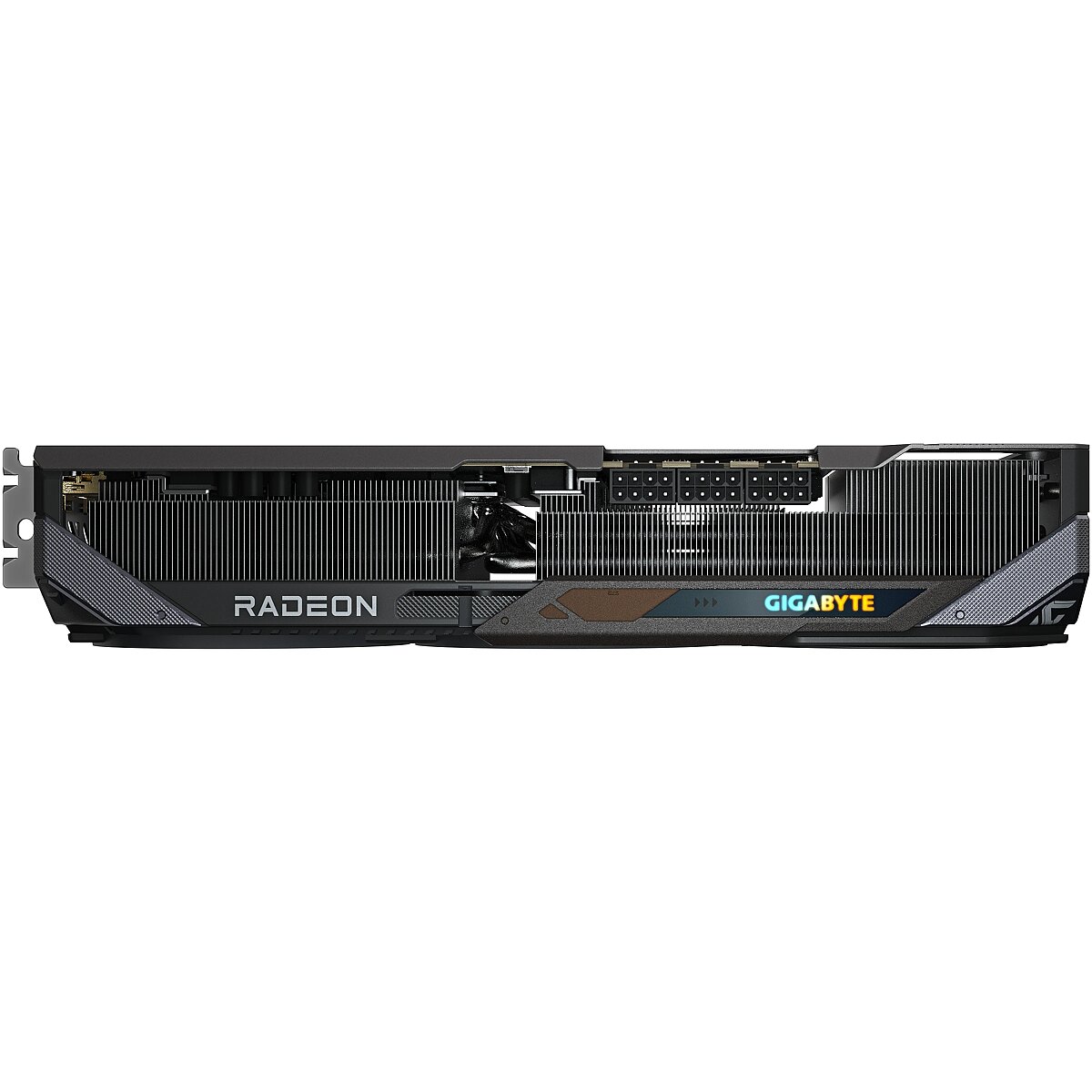

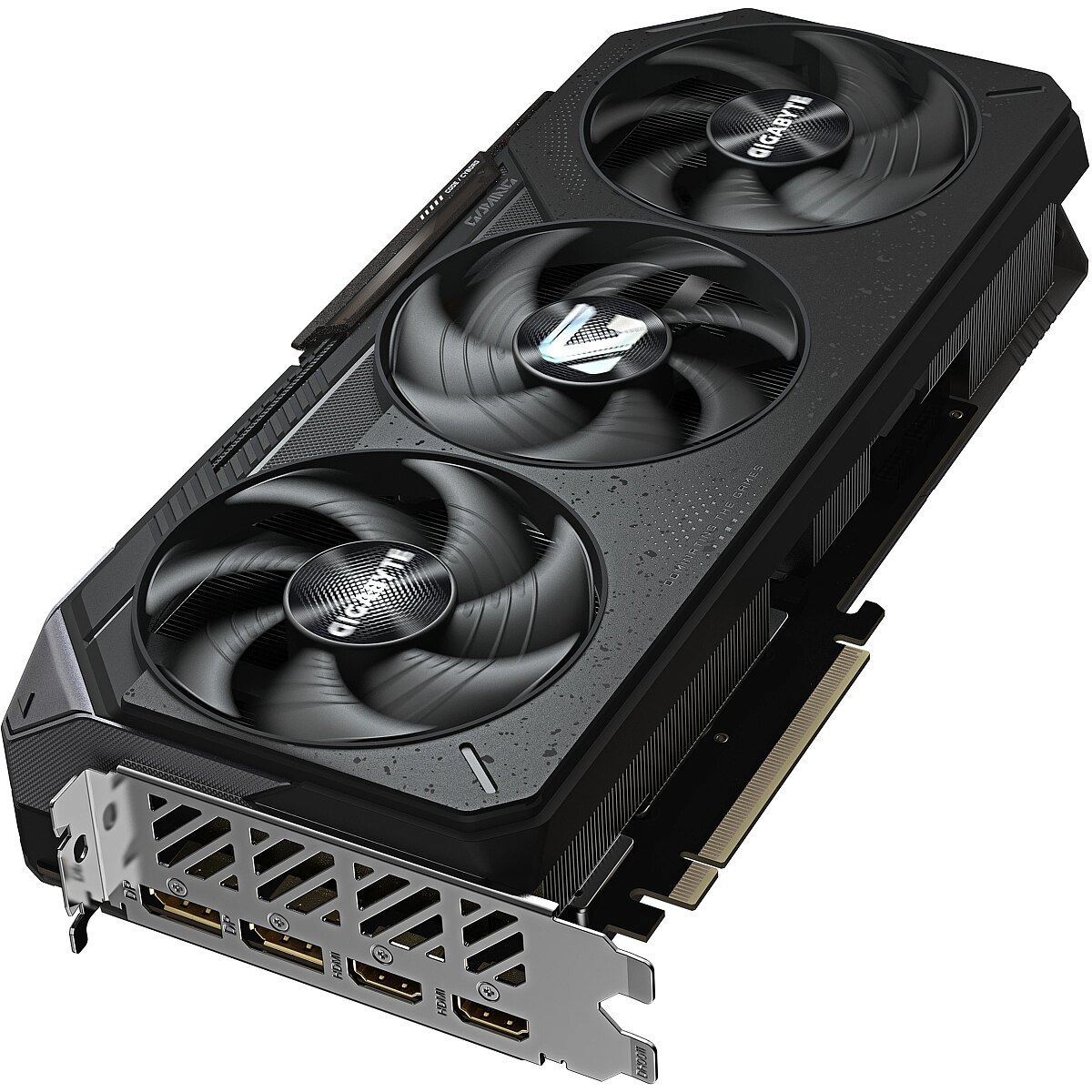

Gigabyte Radeon RX 9070 XT, 16GB GDDR6, GAMING OC

Name: Gigabyte Radeon RX 9070 XT, 16GB GDDR6, GAMING OC
Brand: Gigabyte
SKU: 1198526
Price: 1007.65 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1198526 Product code: GV-R9070XTGAMING OC-16GD

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

GPU model: Radeon RX 9070 XT
GPU core frequency: 3060 MHz
Power sockets: 3x 8-pin
RAM: 16 GB
Memory type: GDDR6
Cooling: High-End Cooler

Similar Products

Basic information
	This product Gigabyte Radeon RX 9070 XT, 16GB GDDR6, GAMING OC	Asus Radeon RX 9070, 16GB GDDR6, Prime OC	Sapphire Radeon RX 7700 XT, 12GB GDDR6, PULSE	Gigabyte GeForce RTX 4060 Ti, 16GB GDDR6, WindForce OC (DLSS 3)	Sapphire Radeon RX 7900 XT, 20GB GDDR6, NITRO+ Vapor-X
Show similar specs. Hide similar specs.	1,007.65 €	849.99 €	467.46 €	551.84 €	843.78 €
GPU tips	Radeon	Radeon	Radeon	GeForce	Radeon
GPU series	Gigabyte Gaming	Asus Prime	Sapphire Pulse	Gigabyte Windforce	Sapphire Nitro
GPU model	Radeon RX 9070 XT	Radeon RX 9070	Radeon RX 7700 XT	GeForce RTX 4060 Ti (16GB)	Radeon RX 7900 XT
GPU core frequency	3060 MHz	Not indicated	2171 MHz	2565 MHz	2220 MHz
Number of fans	3	3	2	2	3
Length (mm)	288	312	280	201	320
Stream processors / CUDA Cores	4096	3584	3456	4352	5376
PCI-E version	5.0 x16	5.0 x16	4.0 x16	4.0 x16	4.0 x16
Power consumption (TDP)	300 W	220 W	245 W	165 W	368 W
Minimum power supply output	850 W	650 W	700 W	500 W	750 W
Power sockets	3x 8-pin	2x 8-pin	2x 8-pin	1x 8-pin	3x 8-pin
Random-access memory (RAM)
RAM	16 GB	16 GB	12 GB	16 GB	20 GB
Memory type	GDDR6	GDDR6	GDDR6	GDDR6	GDDR6
Memory type	20000 MHz	20000 MHz	18000 MHz	18000 MHz	20000 MHz
Bus width	256 bit	256 bit	192 bit	128 bit	320 bit
Functionality
Cooling	High-End Cooler	Standard Cooler	Standard Cooler	Standard Cooler	High-End Cooler
Lighting	RGB	Nav	Nav	Nav	RGB
NVIDIA SLI (NVLink) support	Not	Not	Not	Not	Not
VR (Virtual Reality) Ready	Is	Is	Is	Is	Is
Low Profile support	No	No	No	No	No
Ports and equipment
HDMI port	2	1	2	2	2
DisplayPort	2	3	2	2	2
DVI-D port	0	0	0	0	0
DVI-I port	0	0	0	0	0
D-SUB	0	0	0	0	0
Maximum number of screens	4	4	4	4	4

Description

We offer to buy the graphics card Gigabyte Radeon RX 9070 XT with 16 GB GDDR6 RAM.

Basic information

GPU tips Radeon

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Gigabyte Gaming

GPU model Radeon RX 9070 XT

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 3060 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 3

Length (mm) : 288

Stream processors / CUDA Cores : 4096

PCI-E version : 5.0 x16

Power consumption (TDP) : 300 W

Minimum power supply output : 850 W

Power sockets : 3x 8-pin

Random-access memory (RAM)

RAM 16 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 20000 MHz

Bus width 256 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling High-End Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : RGB

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

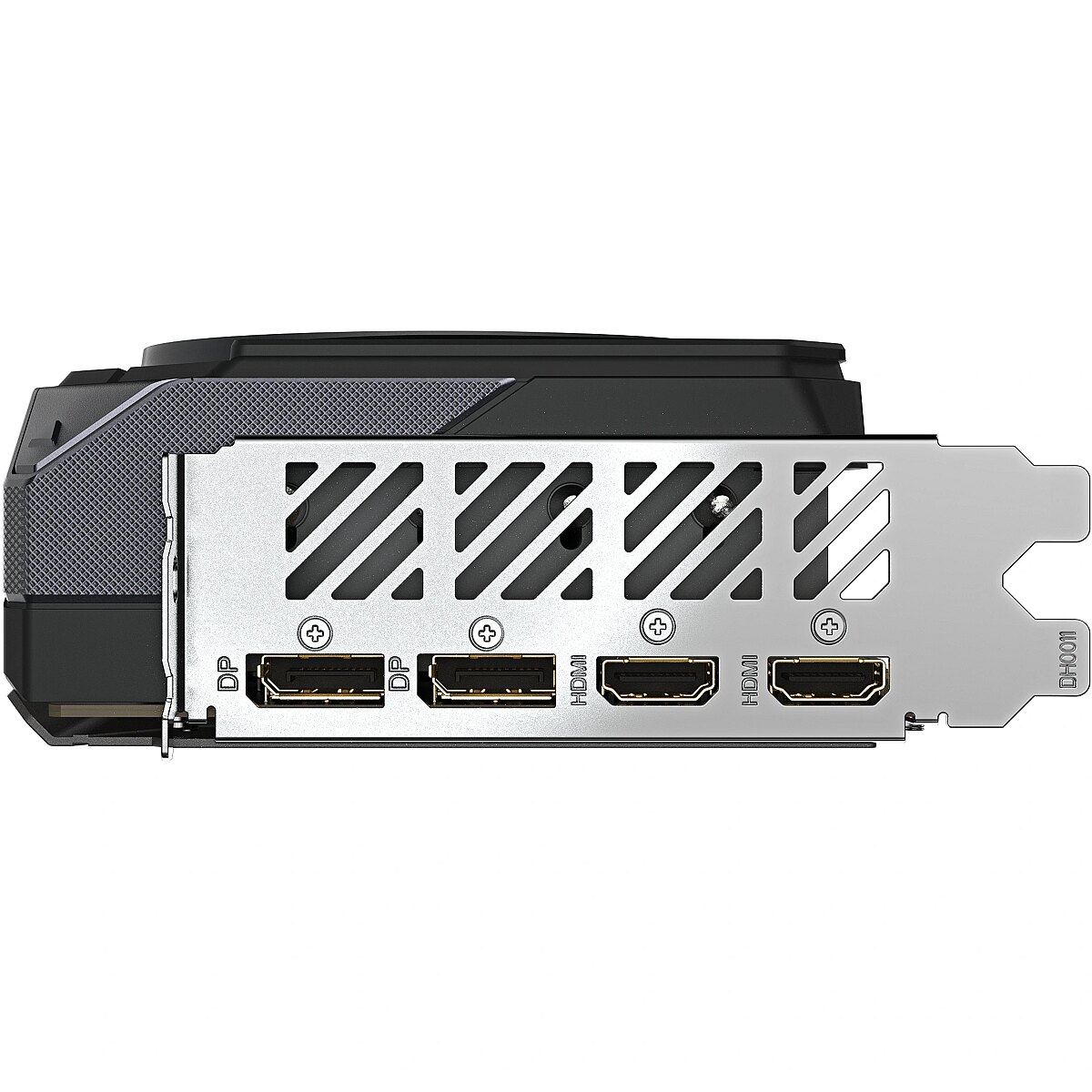

Ports and equipment

HDMI port 2

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 2

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

More detailed specification

Additional information in manufacturers website Gigabyte Radeon RX 9070 XT, 16GB GDDR6, GAMING OC

Brand - GIGABYTE
BrandPartCode - GV-R9070XTGAMING OC-16GD
Card's length - > 280 mm
Category - Graphics Cards
Category Code - VGP
Chipset - AMD Radeon RX 9070 XT
Cooling system - Triple slot Fansink
Description - Radeon™ RX 9070 XT GAMING OC 16G Powered by Radeon™ RX 9070 XT Integrated with 16GB GDDR6 256bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel RGB Lighting Dual BIOS (Performance / Silent) Reinforced structure
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.7
Design - Product colour - Black
dimensionalWeight - 1812
Dimensions - 288 x 132 x 56 mm
DisplayPort Input/Output connectors - 2
Full Description Line - AMD Radeon RX 9070 XT|Graphics memory size 16 GB|GDDR6|256 bit|PCIE 5.0 16x|Memory CLK 20 Gbps|7680x4320|Cooling Triple slot Fansink|2xHDMI|2xDisplayPort|Included Accessories Quick guide
Graphic card features - Gaming/Overclock Edition
Graphics connector - PCIE 5.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
GTIN - 0889523047569
GTIN - 889523047569
GTIN - 4719331355524
HDMI Input/Output connectors - 2
Included Accessories -
Quick guide
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
LongProductName - Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD
LongSummaryDescription - GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD. Graphics processor family: AMD, Graphics processor: Radeon RX 9070 XT, Processor frequency: 3060 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit, Memory clock speed: 20000 MHz. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 20000 MHz
Memory bus - 256 bit
Memory CLK - 20 Gbps
Model - GV-R9070XTGAMING OC-16GD
Packaging data - Package depth - 488 mm
Packaging data - Package height - 425 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.88 kg
Packaging data - Package width - 470 mm
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Performance - Warranty period - 3 year(s)
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 3x 8-pin
Power connectors - 8+8+8 pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9070 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 3060 MHz
producerCode - GV-R9070XTGAMING OC-16GD
productName - Karta graficzna Gigabyte Radeon RX 9070 XT GAMING OC 16GB
ProductName - Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 49.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 53 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 18.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 47.5 cm
ShortSummaryDescription - GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD, Radeon RX 9070 XT, 16 GB, GDDR6, 256 bit, 20000 MHz, PCI Express 5.0
sizeX - 406
sizeY - 93
sizeZ - 240
Stream processors - 4096
Title - GIGABYTE Radeon RX 9070 XT GAMING OC 16G Graphics Card - 16GB GDDR6, 256bit, PCI-E 5.0, 3060 MHz Core Clock, 2 x DisplayPort, 2 x HDMI, GV-R9070XTGAMING OC-16GD
Unit Brutto Volume - 0.01246 cubm
Unit Gross Weight - 1.88 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/
Vendor Homepage - www.gigabyte.com/us/Graphics-Card/GV-R9070XTGAMING-OC-16GD#kf
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 1730
Weight & dimensions - Depth - 56 mm
Weight & dimensions - Height - 132 mm
Weight & dimensions - Length - 288 mm
Weight & dimensions - Weight - 1.26 kg
