ID: 1194021
Product code: GV-N507TGAMING OC-16GD
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

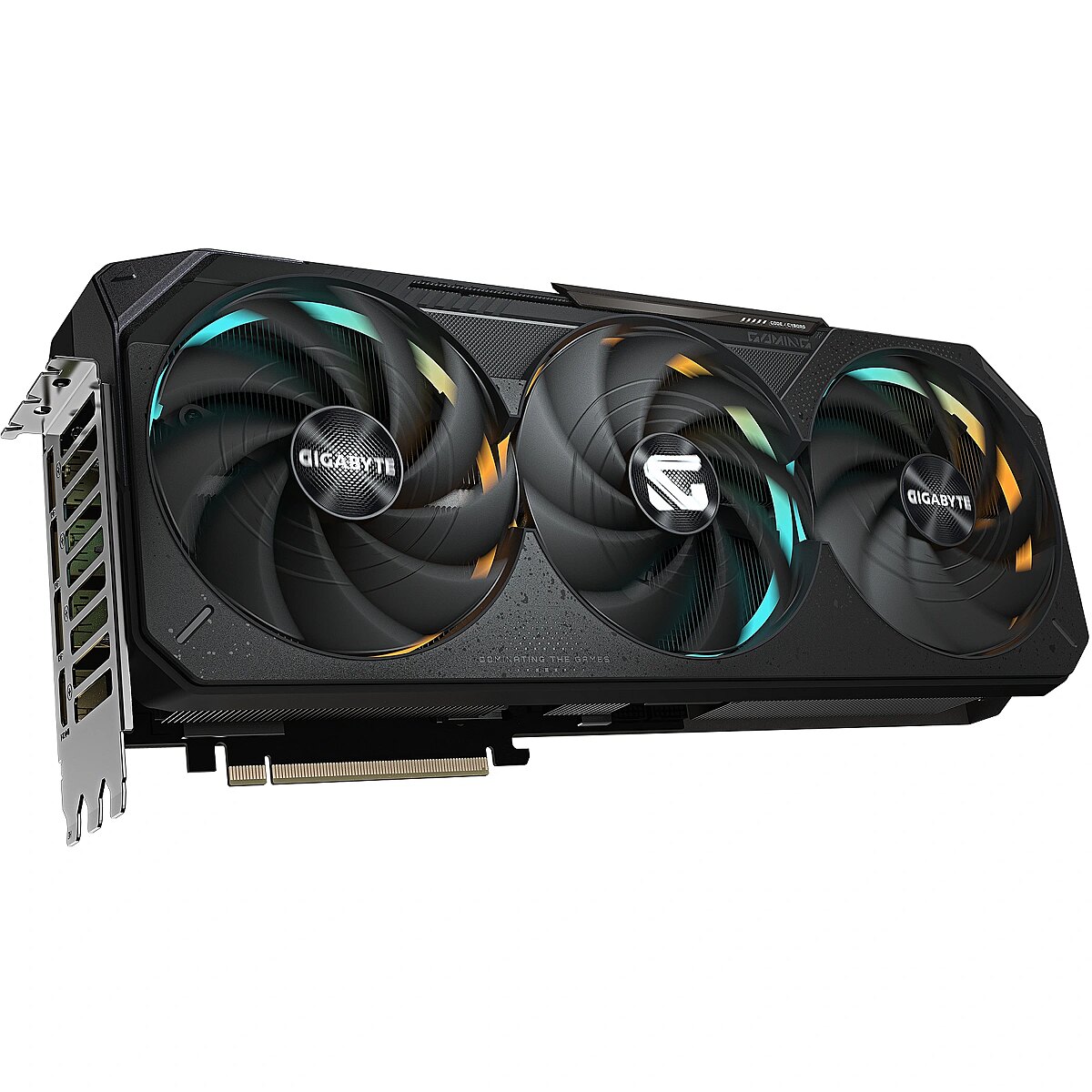

Gigabyte GeForce RTX 5070 Ti, 16GB GDDR7, GAMING OC (DLSS 4)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 28.03.2025
- Delivery to Omniva parcel locker 1.99 €: 28.03.2025
- Courier delivery 3.99 €: 28.03.2025
Main product parameters All parameters
- GPU model: GeForce RTX 5070 Ti
- GPU core frequency: 2588 MHz
- Power sockets: 1x 16-pin
- RAM: 16 GB
- Memory type: GDDR7
- Cooling: High-End Cooler
Description
We offer to buy the graphics card Gigabyte GeForce RTX 5070 Ti with 16 GB GDDR7 RAM.
Virtual reality
The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.
Basic information
GPU tips
GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Gigabyte Gaming
GPU model
GeForce RTX 5070 Ti
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
2588 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 3
Length (mm)
: 340
Stream processors / CUDA Cores
: 8960
PCI-E version
: 5.0 x16
Power consumption (TDP)
: 300 W
Minimum power supply output
: 750 W
Power sockets
: 1x 16-pin
Random-access memory (RAM)
RAM
16 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR7
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 28000 MHz
Bus width
256 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
High-End Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: RGB
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No
Ports and equipment
HDMI port
1
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
3
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
More detailed specification
Brand - GIGABYTE
BrandPartCode - GV-N507TGAMING OC-16GD
Card's length - > 280 mm
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
Category Code - VGP
Chipset - NVIDIA GeForce RTX 5070 Ti
Code - GV-N507TGAMING OC-16GD
Desc - Mikroshēmu tips: Nvidia GeFroce RTX 5070 Ti, Takts frekvence: 2455 MHz, Atmiņas apjoms: 16 GB, Atmiņas veids: GDDR7, Biti: 256 Bit, Takts frekvence atmiņai: 28000 MHz, Interfeisa tips: PCI-Express 5.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 1, Display Port: 3, Garantija: 2 gadi
Description - GeForce RTX™ 5070 Ti GAMING OC 16G - Powered by the NVIDIA Blackwell architecture and DLSS 4 - Powered by GeForce RTX™ 5070 Ti - Integrated with 16GB GDDR7 256bit memory interface - WINDFORCE cooling system - Hawk fan - Server-grade thermal conductive gel - RGB Halo - Dual BIOS (Performance / Silent) - Reinforced structure - Versatile VGA holder - 4 years warranty (Online registration required)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2
Design - Product colour - Black
dimensionalWeight - 2875
Dimensions - L=340 W=140 H=70 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331355562
Full Description Line - NVIDIA GeForce RTX 5070 Ti|Graphics memory size 16 GB|GDDR7|256 bit|PCIE 5.0 16x|GPU boost clock 2588 MHz|7680x4320|1xHDMI|3xDisplayPort|Included Accessories 1. VGA manual2. Warranty notice3. 1x 12V-2x6 to 3x PCIe 8pin adapter4. Versatile VGA holder5. Versatile VGA holder manual
GPU boost clock - 2588 MHz
Graphic card features - Gaming/Overclock Edition
Graphics connector - PCIE 5.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR7
Gross Weight Kg - 2,11
GTIN - 4719331355562
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_124240_1.png
Included Accessories - 1. VGA manual
2. Warranty notice
3. 1x 12V-2x6 to 3x PCIe 8pin adapter
4. Versatile VGA holder
5. Versatile VGA holder manual
LargeDescHTML -
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
LongProductName - GeForce RTX 5070 Ti GAMING OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TGAMING OC-16GD
LongSummaryDescription - GIGABYTE GeForce RTX 5070 Ti GAMING OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TGAMING OC-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5070 Ti, Processor frequency: 2588 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR7, Memory bus: 256 bit, Memory clock speed: 30000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer Code - GV-N507TGAMING OC-16GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bandwidth (max) - 28 GB/s
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 30000 MHz
Memory bus - 256 bit
Model - GV-N507TGAMING OC-16GD
Name - Videokarte Gigabyte GeForce RTX 5070 Ti GAMING OC 16G
Packaging content - Cables included - Power
Packaging data - Package depth - 427 mm
Packaging data - Package height - 105 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3 kg
Packaging data - Package width - 264 mm
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Warranty period - 4 year(s)
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express x16 5.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power - Thermal Design Power (TDP) - 300 W
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 8960
Processor - Graphics processor - GeForce RTX 5070 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2588 MHz
producerCode - GV-N507TGAMING OC-16GD
ProductName - GeForce RTX 5070 Ti GAMING OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TGAMING OC-16GD
productName - GIGABYTE GeForce RTX 5070 Ti GAMING OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TGAMING OC-16GD
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 65.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 50 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 15.52 kg
Shipping Box Width Shipping/Package Box Dimensions - 33.5 cm
Short description - GIGA VGA 16GB RTX5070TI GAMING-OC-16G 3xDP/HDMI GeForce RTX 5070 Ti GAMING OC 16G
ShortSummaryDescription - GIGABYTE GeForce RTX 5070 Ti GAMING OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TGAMING OC-16GD, GeForce RTX 5070 Ti, 16 GB, GDDR7, 256 bit, 7680 x 4320 pixels, PCI Express x16 5.0
sizeX - 443
sizeY - 275
sizeZ - 118
Title - GIGABYTE GeForce RTX 5070 Ti GAMING OC 16G Graphics Card - 16GB GDDR7, 256bit, PCI-E 5.0, 2588 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N507TGAMING OC-16GD
Unit Box Height - 0.27
Unit Box Length - 0.44
Unit Box Width - 0.11
Unit Brutto Volume - 0.02194 cubm
Unit Gross Weight - 3.1 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N507TGAMING-OC-16GD#kf
Warranty - 36 months
WarrantyInfo - 4 years
warrantyLength - 36
warrantyType - G
weight - 2672
Weight & dimensions - Depth - 70 mm
Weight & dimensions - Height - 142 mm
Weight & dimensions - Length - 342 mm
Weight & dimensions - Weight - 2 kg
