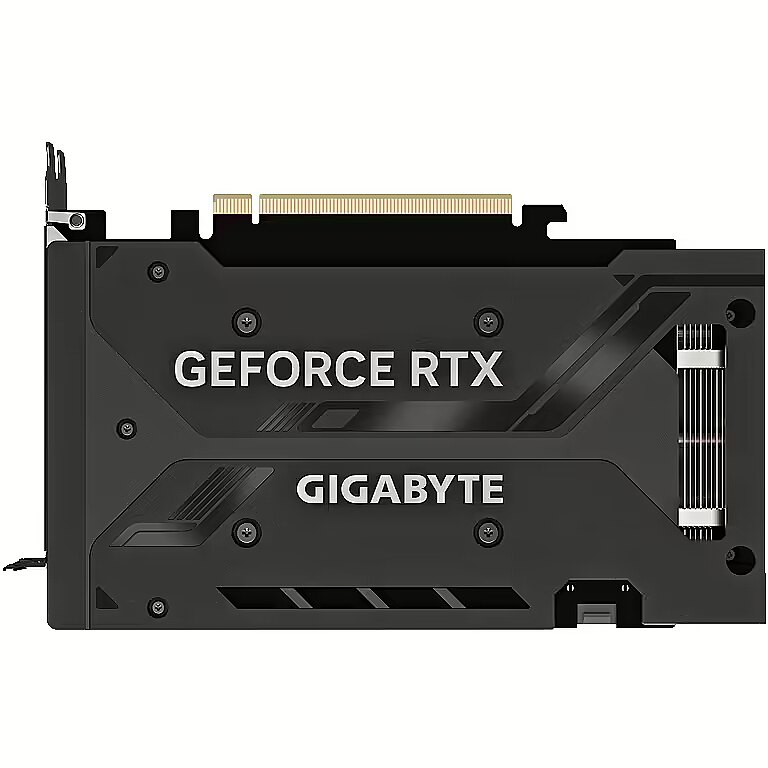

Gigabyte GeForce RTX 4070, 12GB GDDR6, WindForce 2X OC V2 (DLSS 3)

Name: Gigabyte GeForce RTX 4070, 12GB GDDR6, WindForce 2X OC V2 (DLSS 3)
Brand: Gigabyte
SKU: 1140619
Price: 603.3 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

+ As a gift, the game Indiana Jones and the Great Circle

ID: 1140619 Product code: GV-N4070WF2OCV2-12GD

In stock >50 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: 29.11.2024
Courier delivery 3.99 €: 29.11.2024

Main product parameters All parameters

GPU model: GeForce RTX 4070
GPU core frequency: 2490 MHz
Power sockets: 1x 8-pin
RAM: 12 GB
Memory type: GDDR6
Cooling: Standard Cooler

Description

We offer to buy the graphics card Gigabyte GeForce RTX 4070 with 12 GB GDDR6 RAM.

Spring 2023 brought a long-awaited event as GeForce RTX 4070 graphics cards went on sale on 13 April, making the RTX 40 Series' unique technologies such as DLSS 3 and others available to a much wider audience thanks to their democratic pricing. Gigabyte GeForce RTX 4070 is undisputedly the best choice for PC gaming enthusiasts who play at 1440p or 2K resolution, where the performance of the Ada architecture RTX 4070 outperforms even the well-known and popular RTX 3080!

Gigabyte GeForce RTX 4070 graphics core clock frequency is 2490 MHz, while 12 GB GDDR6 memory beats at 20000 MHz. The power consumption of the given video card is only 200 W, which is a third less than the already mentioned and power-equivalent GeForce RTX 3080 and Radeon RX 6800 XT, which once again proves the impressive efficiency of the RTX 4070!

When choosing Gigabyte a GeForce RTX 4070, we recommend pairing it with at least a 12th generation Core i5 or better from Intel or a 5000 series or newer Ryzen 5/7/9 CPU from AMD. Thanks to its excellent energy efficiency, the power requirements for the PSU are very democratic, as this RTX 4070 is fully sufficient for 650 W PSUs.

Virtual reality

The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.

Basic information

GPU tips GeForce

GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.

GPU series : Gigabyte Windforce

GPU model GeForce RTX 4070

This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.

The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.

The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.

For making the choice easier for our customers TopPC.ee has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".

GPU core frequency 2490 MHz

GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.

Number of fans : 2

Length (mm) : 201

Stream processors / CUDA Cores : 5888

PCI-E version : 4.0 x16

Power consumption (TDP) : 200 W

Minimum power supply output : 650 W

Power sockets : 1x 8-pin

Random-access memory (RAM)

RAM 12 GB

The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.

Currently 1GB is the optimum capacity of the video memory.

Memory type GDDR6

The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.

Memory type : 20000 MHz

Bus width 192 bit

The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.

Functionality

Cooling Standard Cooler

Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.

Lighting : Nav

NVIDIA SLI (NVLink) support : Not

VR (Virtual Reality) Ready : Is

Low Profile support : No

Ports and equipment

HDMI port 1

HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.

DisplayPort 3

DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

DVI-D port : 0

DVI-I port : 0

D-SUB 0

D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.

Maximum number of screens : 4

As a gift, the game Indiana Jones and the Great Circle

Without
Indiana Jones and the Great Circle Premium Edition
View specification

More detailed specification

Additional information in manufacturers website Gigabyte GeForce RTX 4070, 12GB GDDR6, WindForce 2X OC V2 (DLSS 3)

Accessories included -
Brand - GIGABYTE
BrandPartCode - GV-N4070WF2OCV2-12GD
Card's length - 200 to 240 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4070
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - GeForce RTX 4070
Chipset - NVIDIA GeForce RTX 4070
Chipset manufacturer - NVIDIA
CnCode CnCode - 84718000
code - GV-N4070WF2OCV2-12GD
Code - GV-N4070WF2OCV2-12GD
Cooling - Active
Cooling system - Dual Slot Fansink
Core frequency - 2490 MHz
CUDA Core - 5888
CUDA Cores - 5888
Description -
Description - GeForce RTX™ 4070 WINDFORCE 2X OC V2 12G - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4070 - Integrated with 12GB GDDR6 192-bit memory interface - WINDFORCE Cooling System - Protection back plate CORE CLOCK 2490 MHz (Reference Card: 2475 MHz)
Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Illumination - Yes
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
dimensionalWeight - 832
dimension depth - 70 mm
dimension height - 210 mm
Dimensions - 48,4 x 122,3 x 201 mm
Dimensions - 201 x 122.3 x 48.4 mm
dimension weight - 940 g
dimension width - 300 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331355005
ean - 4719331355005
Eans - 4719331355005
Full Description Line - NVIDIA GeForce RTX 4070|Graphics memory size 12 GB|GDDR6|192 bit|PCIE 4.0 16x|Memory CLK 20 Gbps|GPU clock 2490 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort|Included Accessories Quick guide
GPU clock - 2490 MHz
Graphic card features - Gaming
Graphics card connector - PCI-E 8x ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6
Gross Weight Kg - 1,95
GTIN - 4719331355005
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - Quick guide
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
LongProductName - GeForce RTX 4070 WINDFORCE 2X OC V2 12G Graphics Card - 12GB GDDR6, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4070WF2OCV2-12GD
LongSummaryDescription - GIGABYTE GeForce RTX 4070 WINDFORCE 2X OC V2 12G Graphics Card - 12GB GDDR6, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4070WF2OCV2-12GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070, Processor frequency: 2490 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit, Memory clock speed: 20000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - Gigabyte
Manufacturer Code - GV-N4070WF2OCV2-12GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bandwidth (max) - 20 GB/s
Memory - Memory bus - 192 bit
Memory - Memory clock speed - 20000 MHz
Memory > Discrete graphics adapter memory - 12 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 2490 MHz
Memory bus - 192 bit
Memory bus - 192-bit
Memory CLK - 20 Gbps
Memory frequency - 20 Gbps
Memory type - DDR6
Model - GeForce RTX 4070
Model - GV-N4070WF2OCV2-12GD
MPN - GV-N4070WF2OCV2-12GD
Name - Gigabyte GeForce RTX 4070 WINDFORCE 2 OCV2 12GB DLSS 3
name - GIGABYTE GeForce RTX 4070 Windforce 2X OC V2 12G, 12288 MB GDDR6
Name - Gigabyte GV-N4070WF2OCV2-12GD | NVIDIA | 12 GB | GeForce RTX 4070 | GDDR6 | HDMI ports quantity 1 | Memory clock speed 2490 MHz
name - Graphics card GeForce RTX 4070 WINDFORCE 2X OC V2 12GB GDDR6 192bit
Name - RTX 4070 12GB Gigabyte Windforce 2X OC V2 GDDR6
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 354.00 mm
Package features > Gross height (mm) - 75.00 mm
Package features > Gross width (mm) - 174.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 187 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 90.00 g
Package features > Tare weight (kg) - 0.69 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Bundled software - GIGABYTE CONTROL CENTER
Packaging content - User guide - Yes
Packaging data - Package depth - 295 mm
Packaging data - Package height - 65 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.02 kg
Packaging data - Package width - 210.5 mm
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Performance - Warranty period - 3 year(s)
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express x16 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 1x 8-pin
Power - Thermal Design Power (TDP) - 200 W
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 5888
Processor - Graphics processor - GeForce RTX 4070
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor frequency - 2490 MHz
Processor > Graphics processor - GeForce RTX 4070
Processor > Graphics processor family - NVIDIA
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N4070WF2OCV2-12GD
ProducerCode - GV-N4070WF2OCV2-12GD
ProductName - GeForce RTX 4070 WINDFORCE 2X OC V2 12G Graphics Card - 12GB GDDR6, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4070WF2OCV2-12GD
productName - GIGABYTE GeForce RTX 4070 WINDFORCE 2X OC V2 12G Graphics Card - 12GB GDDR6, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4070WF2OCV2-12GD
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 69.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 31.5 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 20.29 kg
Shipping Box Width Shipping/Package Box Dimensions - 43.5 cm
ShortDescription - Chipset NVIDIA RTX 4070 | 12GB GDDR6 |
Short description - GIGA VGA 12GB RTX4070 WINDFORCE OC V2 12G 3xDP/HDMI GeForce RTX 4070 WINDFORCE 2X OC V2 12G
ShortSummaryDescription - GIGABYTE GeForce RTX 4070 WINDFORCE 2X OC V2 12G Graphics Card - 12GB GDDR6, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4070WF2OCV2-12GD, GeForce RTX 4070, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express x16 4.0
sizeX - 298
sizeY - 215
sizeZ - 65
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.95 kg
Technical details > Net weight - 1.26 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - GV-N4070WF2OCV2-12GD
Title - GIGABYTE GeForce RTX 4070 WINDFORCE 2X OC V2 12G Graphics Card - 12GB GDDR6, 192bit, PCI-E 4.0, 2490MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4070WF2OCV2-12GD
Unit Box Height - 0.065
Unit Box Length - 0.3
Unit Box Width - 0.21
Unit Brutto Volume - 0.004762 cubm
Unit Gross Weight - 1.01 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N4070WF2OCV2-12GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N4070WF2OCV2-12GD#kf
vendpn - GV-N4070WF2OCV2-12GD
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 12 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
Weight - 0.97
weight - 948
Weight & dimensions - Depth - 48.4 mm
Weight & dimensions - Height - 122.3 mm
Weight & dimensions - Length - 201 mm
Weight & dimensions - Weight - 620 g
