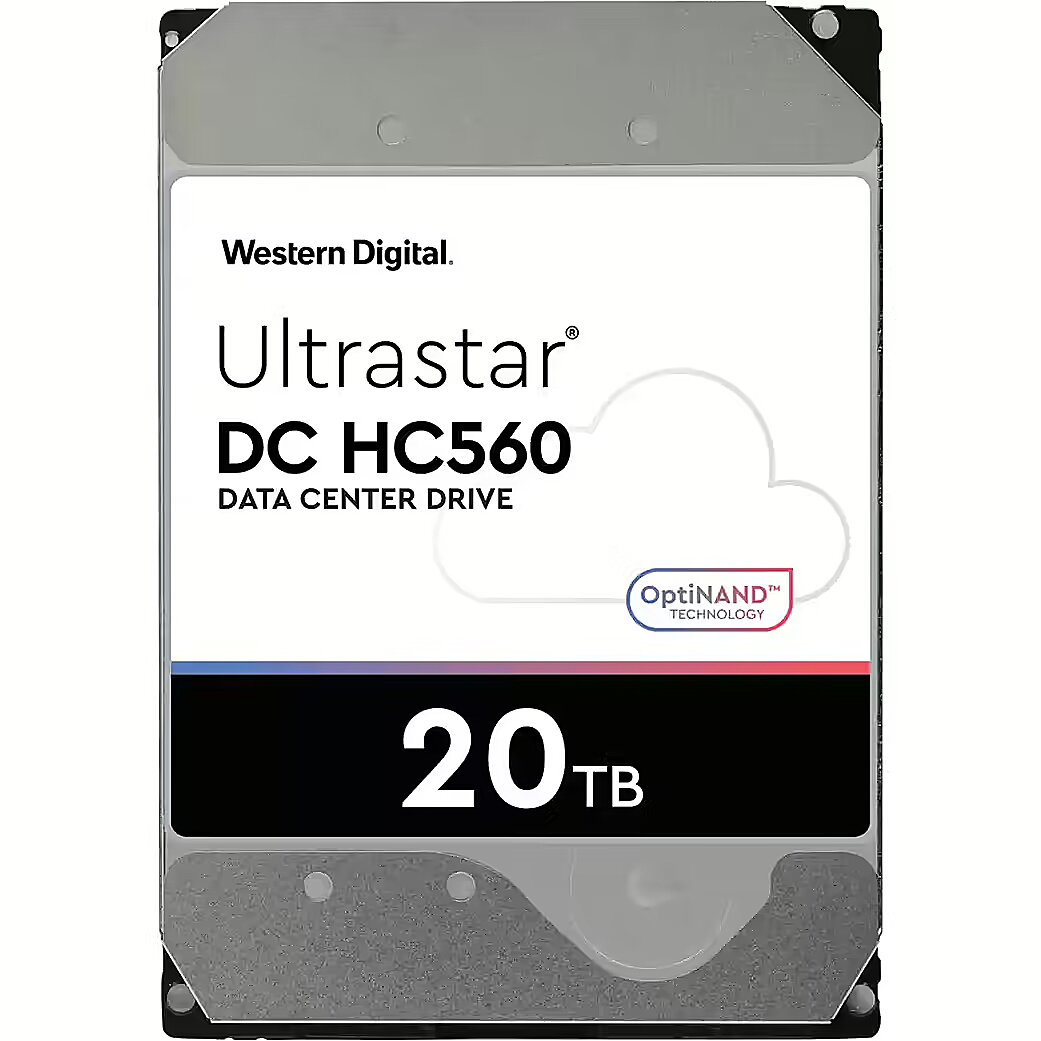

Western Digital 20TB, 7200rpm, 512MB, SATAIII, Ultrastar DC HC560, SE

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 914973 Product code: 0F38785
In stock 19 units
Warranty: 3 years
508.38 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: on Monday, 09.12.2024
  • Courier delivery 3.99 €: on Monday, 09.12.2024
Main product parameters All parameters
  • Capacity: 20 TB
  • Data Interface: SATA III
  • Spindle rotation speed: 7200 rpm
  • Data buffer: 512 MB
All parameters
Capacity 20 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use : Server
Data Interface SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed 7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer 512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - ULTRSTAR DC HC560 20TB 3.5
ARTIKEL2 - SATAINT SE 512MB 7200 WUH722020B
Average Rotational Delay - 4.16 ms
Box Weight Brutto (kg) - 13.8 kg
Breite - 0.16
Buffer memory size - 512 MB
Category - Root/Electronics/PC parts/Hard drives
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Depth (mm) - 147 mm
Description - Western Digital Ultrastar DC HC560 HDD 20TB
Device Location - Plug-in Module
dimensionalWeight - 72
Dimensions - 26.1x101.6x147mm
EAN - 8032976149034
EANCode -
Eans - 8592978389734
External Data Bit Rate - 6 Gbps
Features - HDD capacity - 20 TB
Features - HDD interface transfer rate - 12 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - Interface - SATA
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Form Factor - 3,5"
Form Factor - 3.5"
Full Description Line - Ultrastar DC HC560|WUH722020BLE6L4|20TB|SATA|Buffer 512 MB|7200 rpm|3,5"
Gewicht - 0.74
Gross Weight Kg - 0,65
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
Hard Drive Features - 24/7HelioSeal TechnologyConventional Magnetic Recording (CMR)
HDD Capacity - 20TB
HDD Family name - Ultrastar DC HC560
Height (mm) - 26.1 mm
HERSTELLER - WESTERN DIGITAL
Hoehe - 0.05
HSTNUMMER - 0F38785
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/221027160026547339.jpg
Laenge - 0.21
Manufacturer - Western Digital
Manufacturer Code - 0F38785
Manufacturer Name - Western Digital
Maximum Non-Operating Ambient Temperature - 70 °C
Maximum Operating Ambient Temperature - 60 °C
Maximum Supply Voltage - 12 V
Mean Time Between Failures - 2500000 hr
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 5 °C
Minimum Supply Voltage - 5 V
Model name - WUH722020BLE6L4
MPN - 0F38785
Name - 20TB WD Ultrastar DH HC560 7200RPM 512MB Ent.
Name - Western Digital Ultrastar DC HC560 20TB
Nominal Weight - 0.69 kg
Non-Recoverable Errors - 1 per 10^15
Operational conditions - Non-operating shock - 250 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 50 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.7 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package Type - Box
Packs in Box - 20
Pack Weight Brutto (kg) - 0.695 kg
Pack Weight Netto (kg) - 0.69 kg
Pieces in pack - 1
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 6.1 W
Power - Power consumption (typical) - 9.3 W
Producer - WD
producerCode - 0F38785
ProducerCode - 0F38785
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=220914063441201688&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - WUH722020BLE6L4
ProductDescription - HDD Server WD/HGST ULTRASTAR DC HC560 (3.5’’, 20TB, 512MB, 7200 RPM, SATA 6Gb/s, 512E SE NP3), SKU: 0F38785
productName - WESTERN DIGITAL HDD ULTRASTAR 20TB SATA 0F38785
productSize - Normal
ProductType - HDD Server
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Rotational Speed - 7200 rpm
Rotation speed - 7200 rpm
SATA Interface - Yes
Sector Capacity - 512 B
Shipping Box Depth Shipping/Package Box Dimensions - 14.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.674 kg
Shipping Box Width Shipping/Package Box Dimensions - 2.5 cm
ShortDescription - 3.5" | 20TB | SATA600 | 7200RPM |
Short description - WD HD3.5" SATA3-Raid 20TB WUH722020BLE6L4 (Di)
sizeX - 145
sizeY - 100
sizeZ - 25
Stck_Kart - 20
Stck_Pal - 300
Storage Capacity - 20 TB
Storno - N
Supports Data Channel - SATA III-600
Unit Brutto Volume - 0.0003625 cubm
Unit Gross Weight - 0.674 kg
Unit Net Weight - 0.67 kg
Vendor - WESTERN DIGITAL
Vendor Homepage - www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-dc-hc560-hdd#0F38755
Warranty - 60L months
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0.67
weight - 680
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 690 g
Weight & dimensions - Width - 101.6 mm
Width (mm) - 101.6 mm
