ID: 892971
Product code: 0F48155
In stock 19 units
Warranty: 3 years

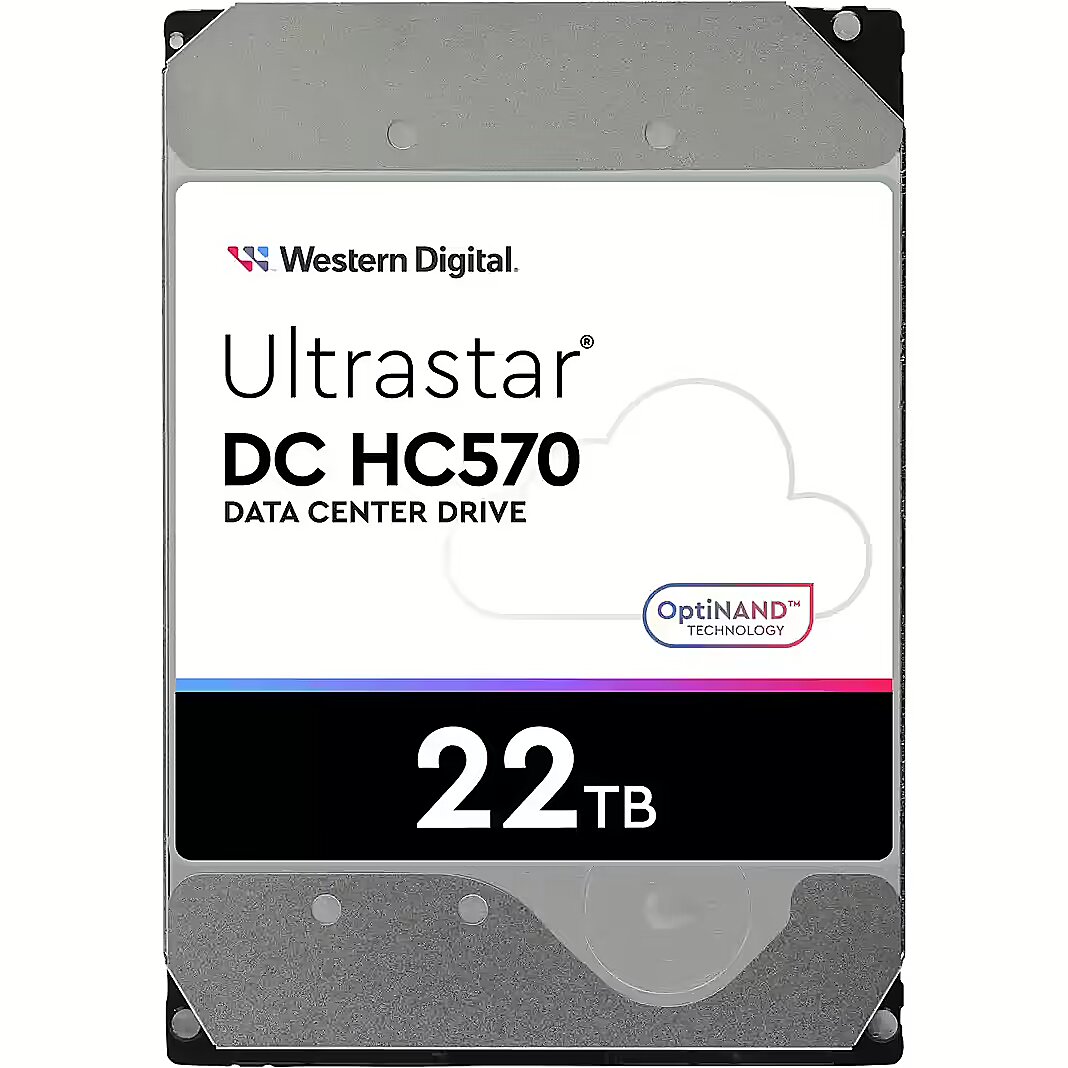

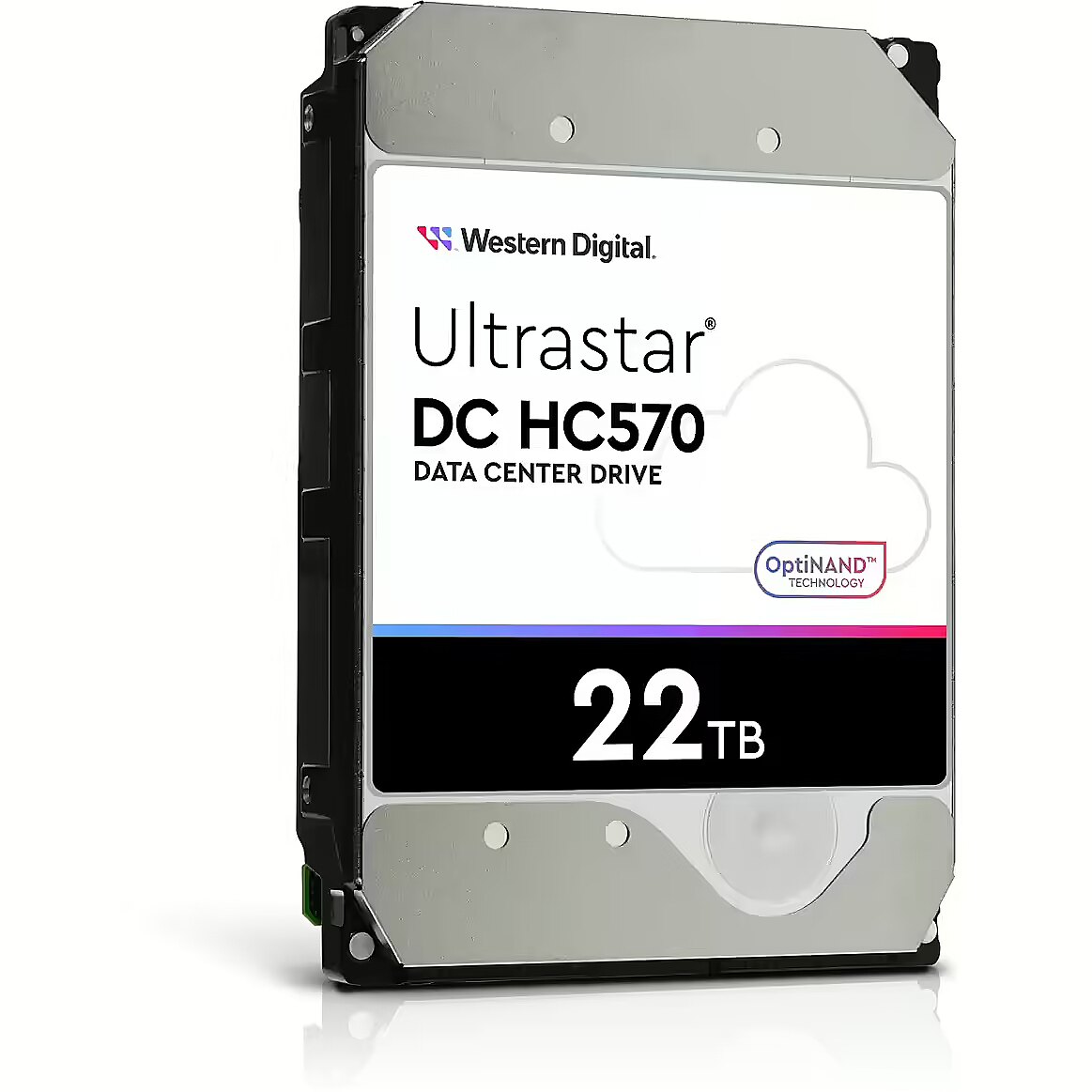

Western Digital 22TB, 7200rpm, 512MB, SATAIII, Ultrastar DC HC570, SE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Monday, 09.12.2024
- Courier delivery 3.99 €: on Monday, 09.12.2024
Main product parameters All parameters
- Capacity: 22 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 512 MB
Description
Dateks offers to buy the Western Digital hard disc with 22 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
22 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - ULTRASTAR DC HC570 22TB 3.5SATA
ARTIKEL2 - 512MB 7200RPM 512E SE NP3 DC
Breite - 0.16
Buffer memory size - 512 MB
Category - Root/Electronics/PC parts/Hard drives
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
Description - The explosive growth of data from AI/ML, 5G networks, IoT, connected vehicles, and more is fueling growth in data centers. HDD innovation drives the ability to capture, store, analyze, and protect much of this data. Higher-capacity HDDs deliver higher data density, enabling data center expansion and efficiency.
dimensionalWeight - 153
Dimensions - 26.1x101.6x147mm
EAN - 8717306635523
EANCode -
Eans - 8717306635523
EAN_code - 8717306635523
Features - 24/7 operation - Yes
Features - Average latency - 4.16 ms
Features - Component for - PC
Features - HDD capacity - 22 TB
Features - HDD interface transfer rate - 12 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 277 MiB/s
Features - Interface - SATA III
Features - Mean time between failures (MTBF) - 2.5 h
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Features - Workload rate limit - 550 TB/year
Form Factor - 3,5"
Full Description Line - Ultrastar DC HC570|22TB|SATA|Buffer 512 MB|7200 rpm|3,5"
Gewicht - 0.72
Gross Weight Kg - 0,65
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
HDD Capacity - 22TB
HDD Family name - Ultrastar DC HC570
HERSTELLER - WESTERN DIGITAL
Hoehe - 0.05
HSTNUMMER - 0F48155
Laenge - 0.21
Manufacturer - Western Digital
Manufacturer Code - 0F48155
Manufacturer Name - Western Digital
Manufacturer_code - 0F48155
MPN - 0F48155
Name - 22TB WD ULTRASTAR DH HC570 7200RPM 512MB
Name - WD Ultrastar DC HC570 22TB, hard drive (SATA 6 Gb/s, 3.5", SE)
Name - Western Digital Ultrastar DC HC570 22TB
Operational conditions - Non-operating shock - 200 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 40 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.7 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Power - Operating voltage - 5 / 12 V
Producer - WD
producerCode - 0F48155
ProducerCode - 0F48155
productName - Western Digital HDD Ultrastar 22TB SATA 0F48155
productSize - Normal
Rotation speed - 7200 rpm
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 14.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 2.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.65 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
ShortDescription - 3.5" | 22TB | SATA600 | 7200RPM |
Short description - WD HD3.5" SATA3-Raid 22TB WUH722222ALE6L4 (Di)
sizeX - 150
sizeY - 102
sizeZ - 50
Stck_Kart - 20
Stck_Pal - 180
Storno - N
Unit Box Height - 0.025
Unit Box Length - 0.145
Unit Box Width - 0.1
Unit Brutto Volume - 0.0003625 cubm
Unit Gross Weight - 0.65 kg
Unit Net Weight - 0.6 kg
Vendor Homepage - www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-dc-hc570-hdd#0F48155
Warranty - 60L months
warrantyLength - 60
warrantyType - G
Weight - 0,65
Weight - 0.66
weight - 655
Weight & dimensions - Depth - 26 mm
Weight & dimensions - Height - 147 mm
Weight & dimensions - Weight - 670 g
Weight & dimensions - Width - 101.6 mm
