ID: 826112
Product code: ST20000VE002
Can be ordered 29 units Availability: 14 days after order approval
Warranty: 3 years

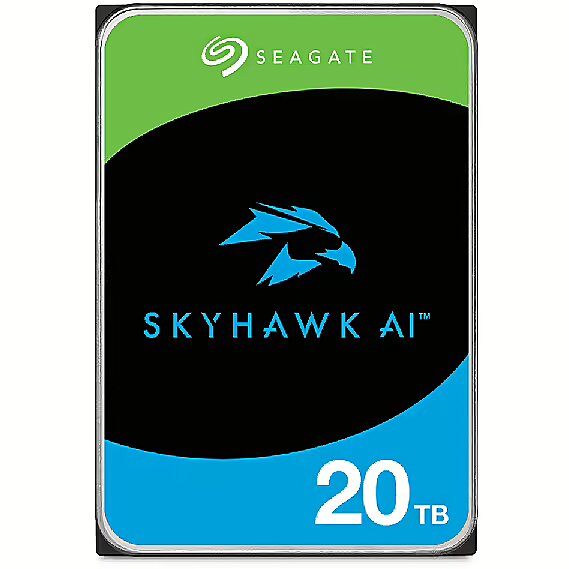

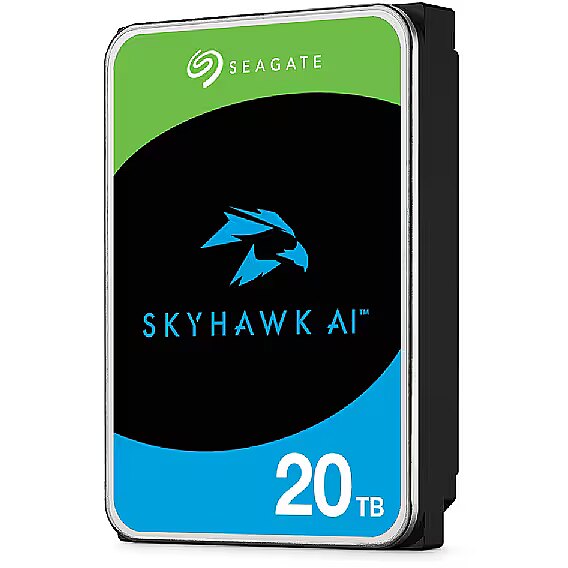

Seagate 20TB, 256MB, SATAIII, SkyHawk AI, CMR, Helium
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 20.12.2024
- Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
- Capacity: 20 TB
- Data Interface: SATA III
- Spindle rotation speed: Nav informācijas
- Data buffer: 256 MB
Description
Dateks offers to buy the Seagate hard disc with 20 TB data capacity, SATA III connection, 7200 rpm rotation speed and 256 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
20 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Surveillance
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
Nav informācijas
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
256 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - SKYHAWK AI 20TB 5YRS WARRANTY
ARTIKEL2 - 3.5IN 6GB/S SATA 256MB 24X7
Brand - Seagate
BrandPartCode - ST20000VE002
Buffer - 256 MB
Buffer memory size - 256 MB
Bytes per Sector - 512 Bytes/sector
Category - Internal Hard Drives
Category Code - HDU
CnCode CnCode - 84717050
Color - Not applicable
Depth - 146.99 mm
Depth Unit Dimensions - 146.99 mm
Description - Seagate® SkyHawk™ AI 20 TB is a video-optimised drive designed for NVRs, with artificial intelligence (AI) for edge applications.
Description - SkyHawk AI The video-optimised SkyHawk AI drive is designed for AI-enabled DVRs for network edge applications.
dimensionalWeight - 94
dimension depth - 26 mm
dimension height - 145 mm
dimension weight - 683 g
dimension width - 100 mm
Discs/Heads - 10/20
Disk type - HDD
Drive type - Internal
ean - 8719706427579
EANCode - 8719706427579
Features - Component for - Surveillance system
Features - HDD capacity - 20 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 260 MiB/s
Features - Interface - Serial ATA III
Features - Maximum number of cameras supported - 64
Features - Mean time between failures (MTBF) - 2000000 h
Features - Number of AI channels - 32
Features - Rotational Vibration (RV) sensors - Yes
Features - Start/stop cycles - 600000
Features - Storage drive buffer size - 256 MB
Features - Type - HDD
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^15 bits read
Form Factor - 3,5"
Form factor (width) - 3,5'' (LFF)
Full Description Line - SkyHawk AI|20TB|SATA 3.0|Buffer 256 MB|7200 rpm|Discs/Heads 10/20|3,5"
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
GTIN - 0763649169926
GTIN - 763649169926
GTIN - 8719706427579
guarantee - 60
guarantee_type - normal
HDD capacity - 20 TB
HDD Capacity - 20TB
HDD Family name - SkyHawk AI
HDD interface - SATA
Height - 26.11 mm
Height Unit Dimensions - 26.11 mm
HERSTELLER - SEAGATE
HSTNUMMER - ST20000VE002
Logistics data - Harmonized System (HS) code - 84717050
Logistics data - Master (outer) cases per pallet - 40 pc(s)
Logistics data - Products per master (outer) case - 20 pc(s)
Logistics data - Products per pallet layer - 8 pc(s)
LongDesc - A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.SkyHawk AIDesigned for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.SkyHawk24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.Drive Health and Data RecoveryWhen integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
LongProductName - 20 TB, 3.5", SATA III, 32 AI Channels
LongSummaryDescription - Seagate SkyHawk AI 20 TB. HDD capacity: 20 TB, HDD speed: 7200 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III
Model - SkyHawk AI
name - SkyHawk AI drive 20TB 3,5 256MB ST20000VE002
Operational conditions - Operating temperature (T-T) - 0 - 65 °C
Other features -
Other features - Maximum number of cameras supported - 64
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 3.5 W
Power - Power consumption (standby) - 1 W
Power - Power consumption (typical) - 7.72 W
Power - Start-up current - 2 A
producer - Seagate
producerCode - ST20000VE002
productName - Seagate SkyHawk AI 20 TB 3.5" Serial ATA III
ProductName - SkyHawk AI 20 TB
productSize - Normal
Rotational Speed - 7200 RPM
Rotation speed - 7200 rpm
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 15 cm
Shipping Box Height Shipping/Package Box Dimensions - 10 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.683 kg
Shipping Box Width Shipping/Package Box Dimensions - 2.5 cm
ShortSummaryDescription - Seagate SkyHawk AI 20 TB, 20 TB, 7200 RPM, 256 MB, 3.5", Serial ATA III
sizeX - 105
sizeY - 150
sizeZ - 30
Stck_Kart - 20
Stck_Pal - 20
Storno - Y
Title - Seagate SkyHawk AI 20 TB internal hard drive 7200 RPM 256 MB 3.5" Serial ATA III
Unit Box Height - 0.1
Unit Box Length - 0.15
Unit Box Width - 0.025
Unit Brutto Volume - 0.000375 cubm
Unit Gross Weight - 0.683 kg
Unit Net Weight - 0.68 kg
URL - https://www.seagate.com/gb/en/products/surveillance-drives/skyhawk-hard-drive/
Vendor Homepage - www.seagate.com/gb/en/products/surveillance-drives/skyhawk-hard-drive/
vendpn - ST20000VE002
Warranty - 60L months
WarrantyInfo - 5 years
warrantyLength - 60
warrantyType - G
Weight - 0.68 kg
weight - 682
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 680 g
Weight & dimensions - Width - 101.8 mm
Width - 101.85 mm
Width Unit Dimensions - 101.85 mm
