ID: 599232
Product code: 0F38462
In stock 10 units
Warranty: 3 years

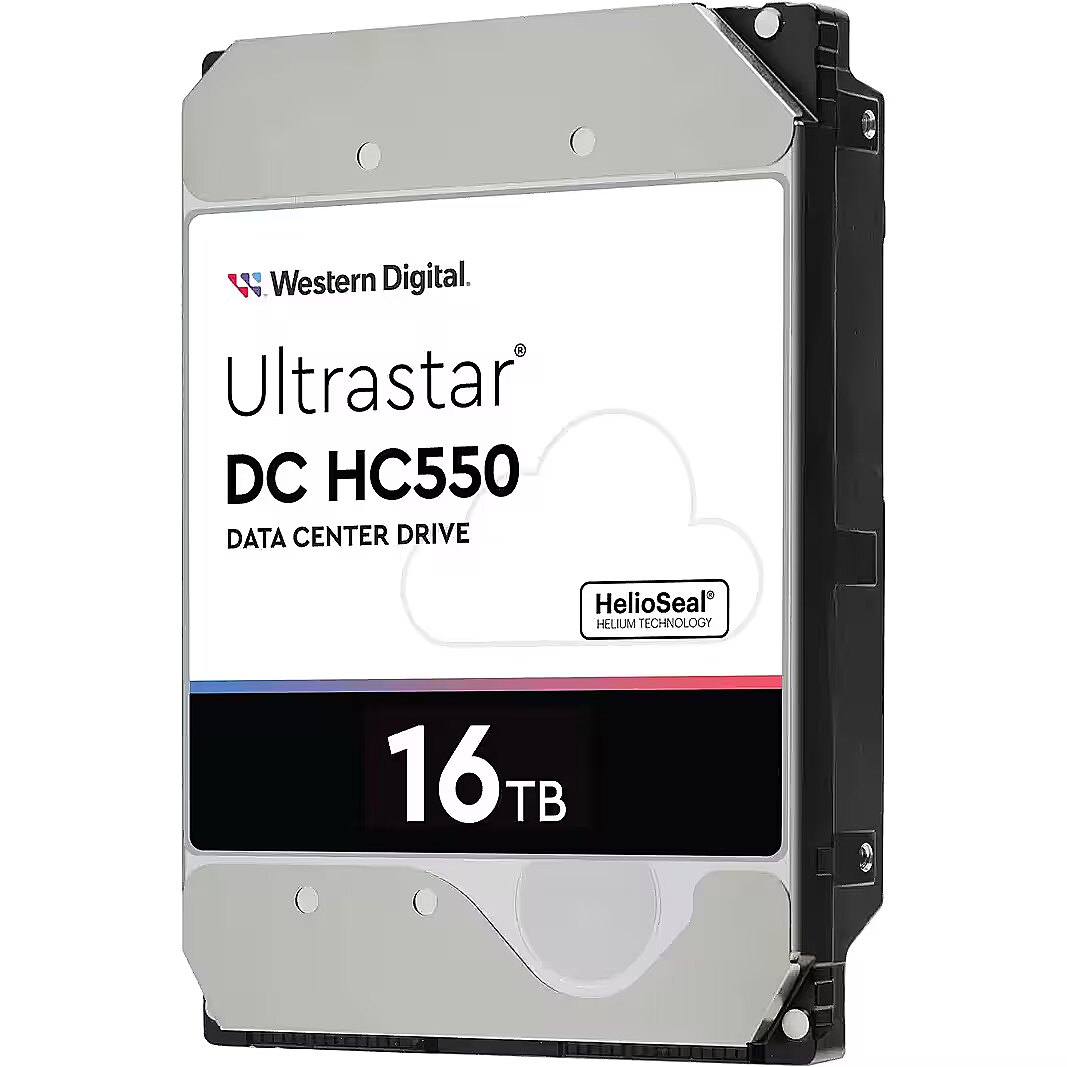

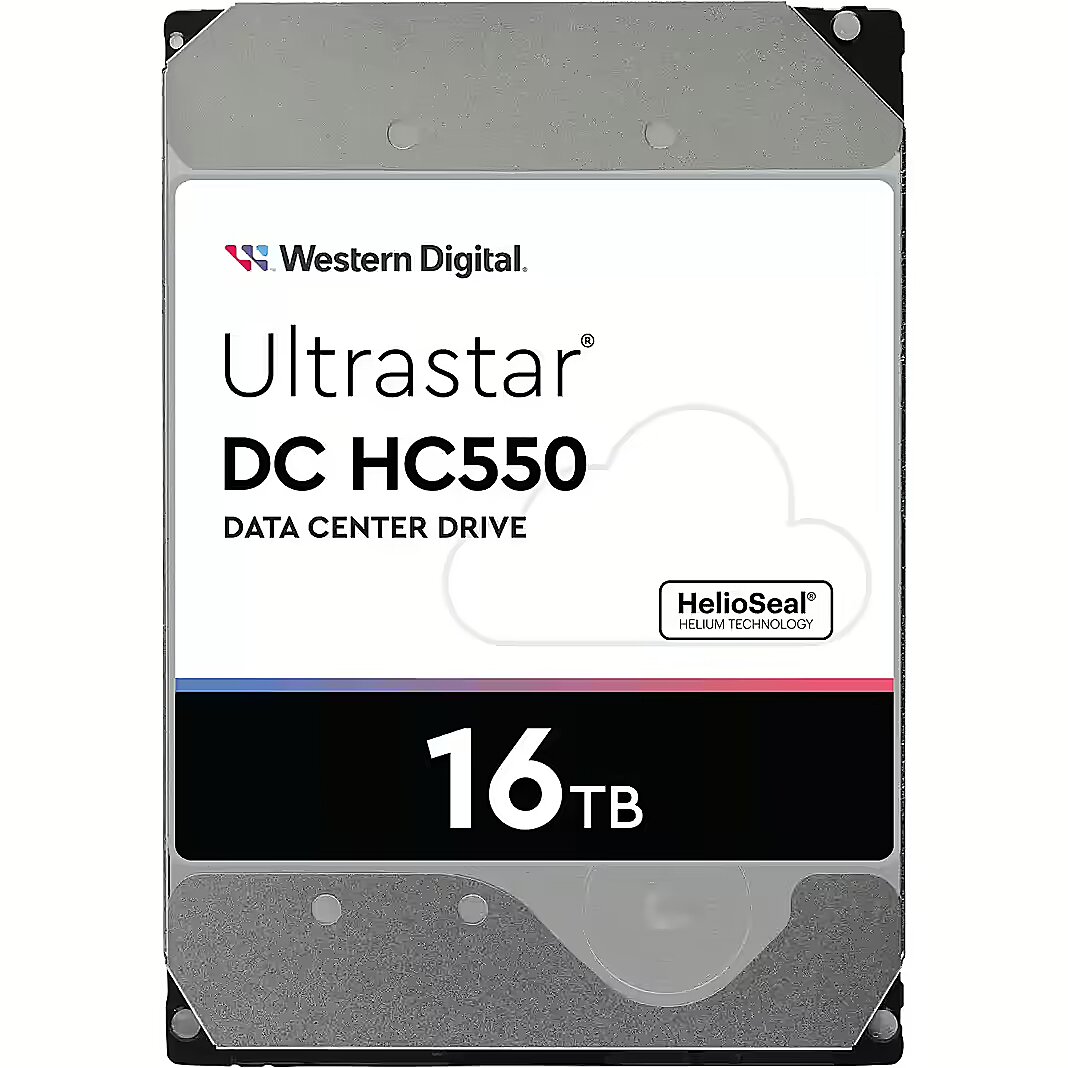

Western Digital 16TB, 7200rpm, 512MB, SATAIII, Ultrastar DC HC550, SE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Monday, 09.12.2024
- Courier delivery 3.99 €: on Monday, 09.12.2024
Main product parameters All parameters
- Capacity: 16 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 512 MB
Description
Dateks offers to buy the Western Digital hard disc with 16 TB data capacity, SATA III connection, 7200 rpm rotation speed and 512 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
16 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
512 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - ULTRSTAR DC HC550 16TB 3.5 SATA
ARTIKEL2 - SE 512MB 7200 WUH721816ALE6L4
Average Rotational Delay - 4.16 ms
Average Seek - 4.16 ms
Box Weight Brutto (kg) - 13.8 kg
Breite - 0.16
Buffer memory size - 512 MB
Bytes per Sector - 256 Bytes/sector
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Depth (mm) - 147 mm
Description - Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a new class of HDDs. 18TB capacity is achieved by combining technologies that improve areal density working together with technologies that improve performance and reduce power consumption. • The first HDD in the industry to harness Energy-Assisted Magnetic Recording (EAMR) technology improves writability and therefore increases areal density. • The industry’s first Triple Stage Actuator (TSA) enhances head-positioning accuracy, delivering better performance and increased areal density. • HelioSeal® technology is the foundation for Western Digital’s high capacity HDDs and this is the 6th generation of HelioSeal product. Western Digital has shipped >65 million HelioSeal products to date
Device Location - Internal
dimensionalWeight - 128
EAN - 8717306633314
EANCode - 0718037835570
External Data Bit Rate - 6 Gbps
Features - Average latency - 4.16 ms
Features - Component for - Server/workstation
Features - HDD average transfer rate - 600 MB/s
Features - HDD capacity - 16 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 267 MiB/s
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 2500000 h
Features - Read seek time - 7.5 ms
Features - Start/stop cycles - 600000
Features - Storage drive buffer size - 512 MB
Features - Type - HDD
Form Factor - 3,5"
Form Factor - 3.5"
Full Description Line - Ultrastar DC HC550|WUH721816ALE6L4|16TB|SATA 3.0|Buffer 512 MB|7200 rpm|Average Seek 4.16 ms|3,5"
Gewicht - 0.73
Gross Weight Kg - 0,65
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
Hard Drive Features - 24/7TCOptimizedHelioSeal Technology
HDD Capacity - 16TB
HDD Family name - Ultrastar DC HC550
Height (mm) - 26.1 mm
HERSTELLER - WESTERN DIGITAL
Hoehe - 0.05
HSTNUMMER - 0F38462
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220505160011077723.jpg
Installed Cache Memory Storage Capacity - 512 MB
Laenge - 0.21
Manufacturer - Western Digital
Manufacturer Code - 0F38462
Manufacturer Name - Western Digital
Maximum Non-Operating Ambient Temperature - 70 °C
Maximum Operating Ambient Temperature - 60 °C
Maximum Power Consumption - 6.5 W
Maximum Supply Voltage - 12 V
Mean Time Between Failures - 2500000 hr
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 5 °C
Minimum Supply Voltage - 5 V
Model name - WUH721816ALE6L4
MPN - 0F38462
Name - 16TB HGST ULTRASTAR WUH721816ALE6L4 DC HC550 Ent.
Nominal Weight - 0.69 kg
Non-Recoverable Errors - 1 per 10^15
Operational conditions - Non-operating shock - 300 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 70 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package Type - Box
Packaging data - Storage drive adapter included - No
Packs in Box - 20
Pack Weight Brutto (kg) - 0.69 kg
Pack Weight Netto (kg) - 0 kg
Pieces in pack - 1
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.5 W
Power - Power consumption (typical) - 6 W
producerCode - 0F38462
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=200709060016004351&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - WUH721816ALE6L4
ProductDescription - HDD Server WD/HGST ULTRASTAR DC HC550 (3.5’’, 16TB, 512MB, 7200 RPM, SATA 6Gb/s, 512N SE NP3), SKU: 0F38462
productName - Western Digital Ultrastar 0F38462 3.5" 16000 GB Serial ATA III
productSize - Normal
ProductType - HDD Server
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Rotational Speed - 7200 rpm
Rotation speed - 7200 rpm
SATA 3.0 Interface - Yes
Sector Capacity - 512 B
Shipping Box Depth Shipping/Package Box Dimensions - 49 cm
Shipping Box Height Shipping/Package Box Dimensions - 20 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 14.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
Shock Tolerance Operating - 50G @ 2ms
Shock Tolerance Storage - 250G @ 2ms
Short description - WD HD3.5" SATA3-Raid 16TB WUH721816ALE6L4 (Di)
sizeX - 160
sizeY - 100
sizeZ - 40
Start / Stop Cycles - 600000
Stck_Kart - 20
Stck_Pal - 700
Storage Capacity - 16 TB
Storno - Y
Supports Data Channel - SATA III-600
Unit Box Height - 0.15
Unit Box Length - 0.025
Unit Box Width - 0.1
Unit Brutto Volume - 0.001421 cubm
Unit Gross Weight - 0.72 kg
Unit Net Weight - 0.45 kg
Vendor - WESTERN DIGITAL
Vendor Homepage - www.westerndigital.com/products/data-center-drives/ultrastar-dc-hc500-series-hdd
Vibration Tolerance Operating - 0.67G @ 5-500Hz
Vibration Tolerance Storage - 1.04G @ 2-200Hz
Warranty - 60L months
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - FPO Number
Weight - 0.68
weight - 680
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 690 g
Weight & dimensions - Width - 101.6 mm
Width (mm) - 101.6 mm
