ID: 437196
Product code: 0B42266
In stock 6 units
Warranty: 3 years

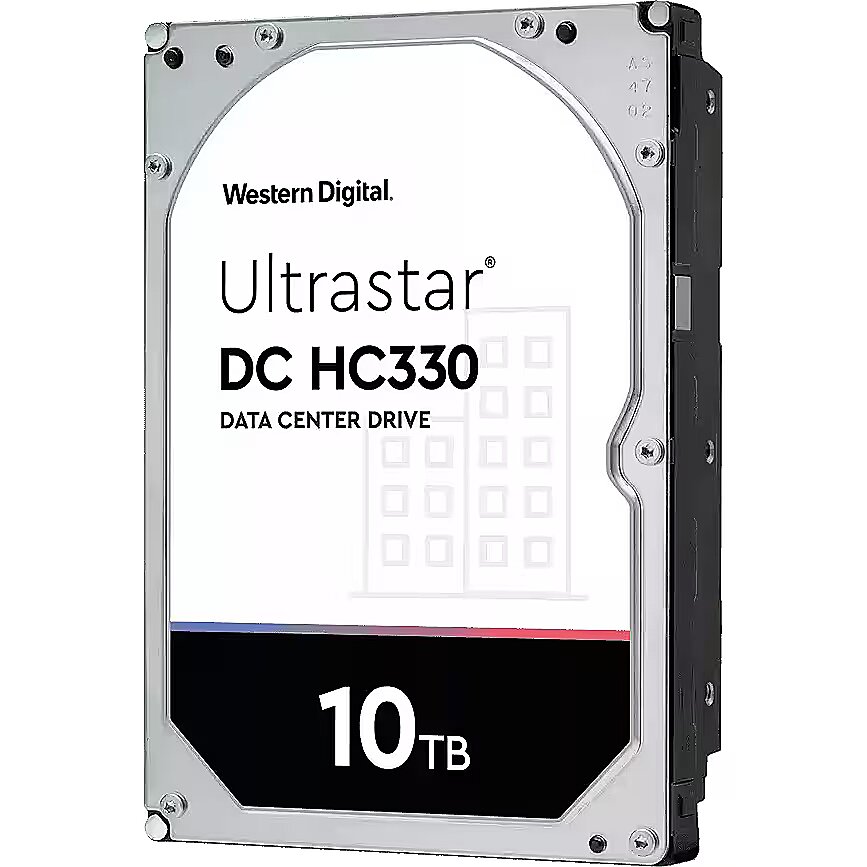

Western Digital 10TB, 7200rpm, 256MB, SATAIII, Ultrastar DC HC330, SE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Thursday, 28.11.2024
- Courier delivery 3.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
- Capacity: 10 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 256 MB
Description
Dateks offers to buy the Western Digital hard disc with 10 TB data capacity, SATA III connection, 7200 rpm rotation speed and 256 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
10 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
256 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - ULTRASTAR DC HC330 10TB SATA
ARTIKEL2 - 3.5IN 7200RPM - WUS721010ALE6L4
Box Weight Brutto (kg) - 15 kg
Buffer memory size - 256 MB
Bytes per Sector - 512 Bytes/sector
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Depth (mm) - 147 mm
Description - Western Digital Ultrastar. Offering Mid Capacity Drives. The Western Digital Ultrastar DC HC330-series provides low to mid-capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Economical Capacities and Fast Data Access Key Requirements for HDDs in the Data Center IT managers need to offer storage tiers as they deploy purpose-built solutions to meet their on-prem, off-prem & cloud storage requirements. While helium filled drives enable the highest capacities, air-filled drives offer important benefits. With a lower TCA (total cost of acquisition), legacy options, and higher access density (IOPs/TB), they are the perfect choice for maintaining a desired level of performance while allowing customers to tailor budgets to meet their needs. The Western Digital Ultrastar DC HC300-Series help to address data center requirements by providing capacities from 4 TB to 10 TB while increasing performance over prior generations. They are designed for a variety of applications including traditional storage arrays, rack-mounted storage enclosures and server-based distributed storage systems, as well as distributed and scalable computing, including block and file storage architectures. They are offered at 7,200 RPM with either 6 Gb/s SATA or 12 Gb/s SAS interface in Advanced Format 4Kn and 512e format. A 512n option is also available on 4 TB models to support legacy systems with native 512-byte block sizes. Technology Innovation Delivers Efficiency and Performance for Traditional and Legacy Systems WD Ultrastar DC SAS and SATA HC3000-Series are based on a proven and cost-efficient air-based HDD platform design, with Conventional Magnetic Recording (CMR) technology in a 3.5-inch large form factor. These HDDs leverage common hardware and firmware while featuring a second-generation, dual-stage microactuator to enhance head positioning accuracy for better drive performance. Write performance gains are also supported by Western Digital’s media cache architecture, a disk-based caching technology that provides a large cache area on the disk, improving reliability and data integrity. Finally, the addition of a flash-based non-volatile cache (NVC) on both SATA and SAS models helps improve write performance.
Device Location - Internal
dimensionalWeight - 75
Dimensions - 101.6 x 147.0 x 26.1 mm
EAN - 8032976141199
EAN - 8592978184841
EANCode -
External Data Bit Rate - 6 Gbps
Features - 24/7 operation - Yes
Features - Average latency - 4.16 ms
Features - HDD capacity - 10 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - HDD sustained transfer rate - 260 MiB/s
Features - Interface - Serial ATA III
Features - Mean time between failures (MTBF) - 2000000 h
Features - Noise level (idle) - 3.4 dB
Features - Read seek time - 8 ms
Features - Start/stop cycles - 600000
Features - Storage drive buffer size - 256 MB
Features - Type - HDD
Features - Write seek time - 8.6 ms
Form Factor - 3,5"
Form Factor - 3.5"
Full Description Line - Ultrastar DC HC330|WUS721010ALE6L4|10TB|SATA|Buffer 256 MB|7200 rpm|3,5"
Gross Weight Kg - 0,65
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
Hard Drive Features - 24/7Dual Stage ActuatorHelioSeal TechnologyDynamic Fly Height TechnologyEnhanced Rotational Vibration Safeguard (RVS)
HDD Capacity - 10TB
HDD Family name - Ultrastar DC HC330
Height (mm) - 26.1 mm
HERSTELLER - WESTERN DIGITAL
HSTNUMMER - 0B42266
Image - https://content.it4profit.com/pimg/s/resize/800x800x800x800/220504160015681600.jpg
Installed Cache Memory Storage Capacity - 256 MB
Internal Data Bit Rate - 273 MB/sec
Manufacturer - Western Digital
Manufacturer Code - 0B42266
Manufacturer Name - Western Digital
Maximum Non-Operating Ambient Temperature - 70 °C
Maximum Operating Ambient Temperature - 60 °C
Maximum Power Consumption - 6.9 W
Mean Time Between Failures - 2500000 hr
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 5 °C
Minimum Power Consumption - 5 W
Model name - WUS721010ALE6L4
MPN - 0B42266
Name - 10TB WUS721010ALE6L4 WD Ultrastar DC HC330 Ent.
Nominal Weight - 0.66 kg
Non-Recoverable Errors - 1 per 10^15
Operational conditions - Non-operating shock - 250 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 70 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package Type - Box
Packs in Box - 20
Pack Weight Brutto (kg) - 0.75 kg
Pack Weight Netto (kg) - 0 kg
Pieces in pack - 1
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 8 W
producerCode - 0B42266
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=191114124414553417&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - WUS721010ALE6L4
ProductDescription - HDD Server WD/HGST ULTRASTAR DC HC330 (3.5’’, 10TB, 256MB, 7200 RPM, SATA 6Gb/s, 512N SE), SKU: 0B42266
productName - Western Digital Ultrastar DC HC330 3.5" 10000 GB Serial ATA III
productSize - Normal
ProductType - HDD Server
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Rotational Speed - 7200 rpm
Rotation speed - 7200 rpm
SATA Interface - Yes
Sector Capacity - 512 B
Shipping Box Depth Shipping/Package Box Dimensions - 15 cm
Shipping Box Height Shipping/Package Box Dimensions - 10.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.739 kg
Shipping Box Width Shipping/Package Box Dimensions - 2.5 cm
Shock Tolerance Operating - 70G @ 2ms
Shock Tolerance Storage - 300G @ 2ms
Short description - WD HD3.5" SATA3-Raid 10TB WUS721010ALE6L4 (Di)
sizeX - 100
sizeY - 150
sizeZ - 25
Start / Stop Cycles - 600000
Stck_Kart - 20
Stck_Pal - 100
Storage Capacity - 10 TB
Storno - Y
Supports Data Channel - SATA III-600
Unit Box Height - 0.105
Unit Box Length - 0.15
Unit Box Width - 0.025
Unit Brutto Volume - 0.0003938 cubm
Unit Gross Weight - 0.739 kg
Unit Net Weight - 0.73 kg
Vendor - WESTERN DIGITAL
Vendor Homepage - www.westerndigital.com/products/data-center-drives/ultrastar-dc-hc300-series-hdd
Warranty - 60L months
warrantyLength - 60
Warranty Products returnable - Yes
Warranty Term (month) - 60 month(s)
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0.74
weight - 690
Weight & dimensions - Depth - 26.1 mm
Weight & dimensions - Height - 147 mm
Weight & dimensions - Weight - 750 g
Weight & dimensions - Width - 101.6 mm
Width (mm) - 101.6 mm
