ID: 156573
Product code: 0F30146
In stock 4 units
Warranty: 3 years

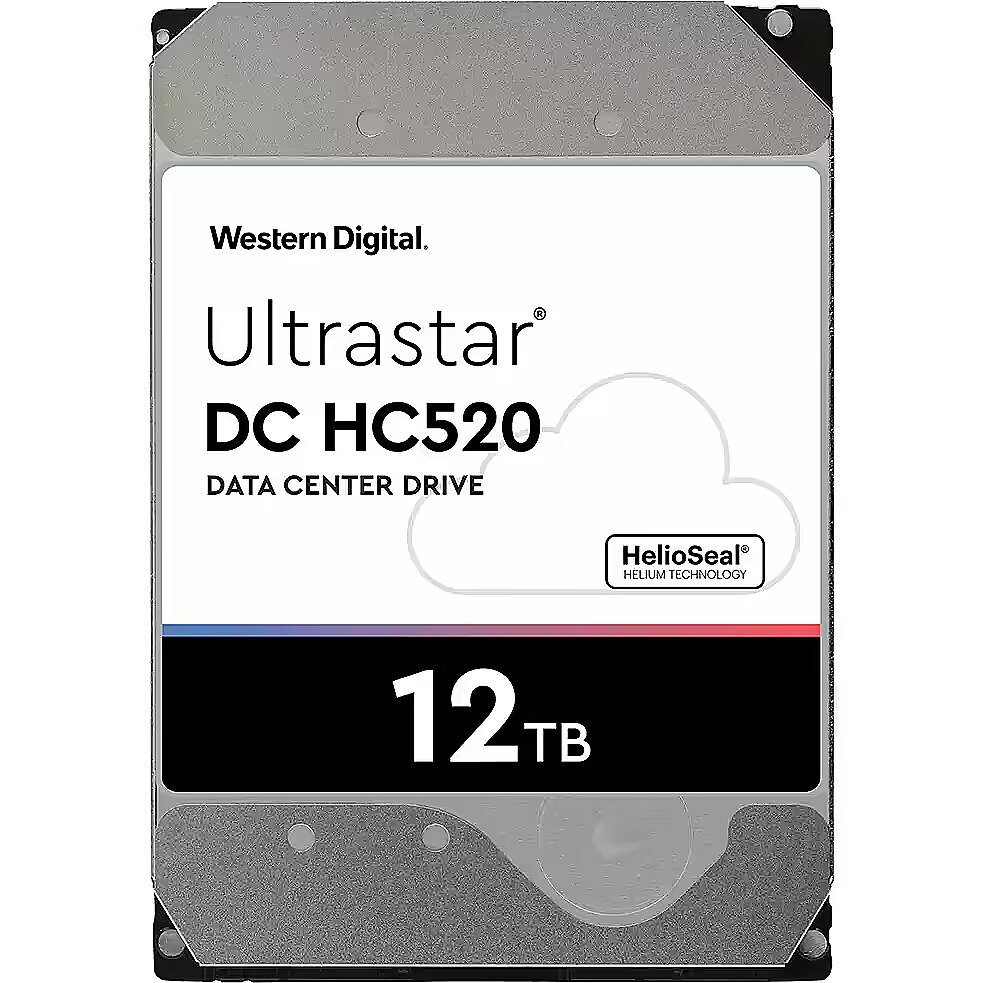

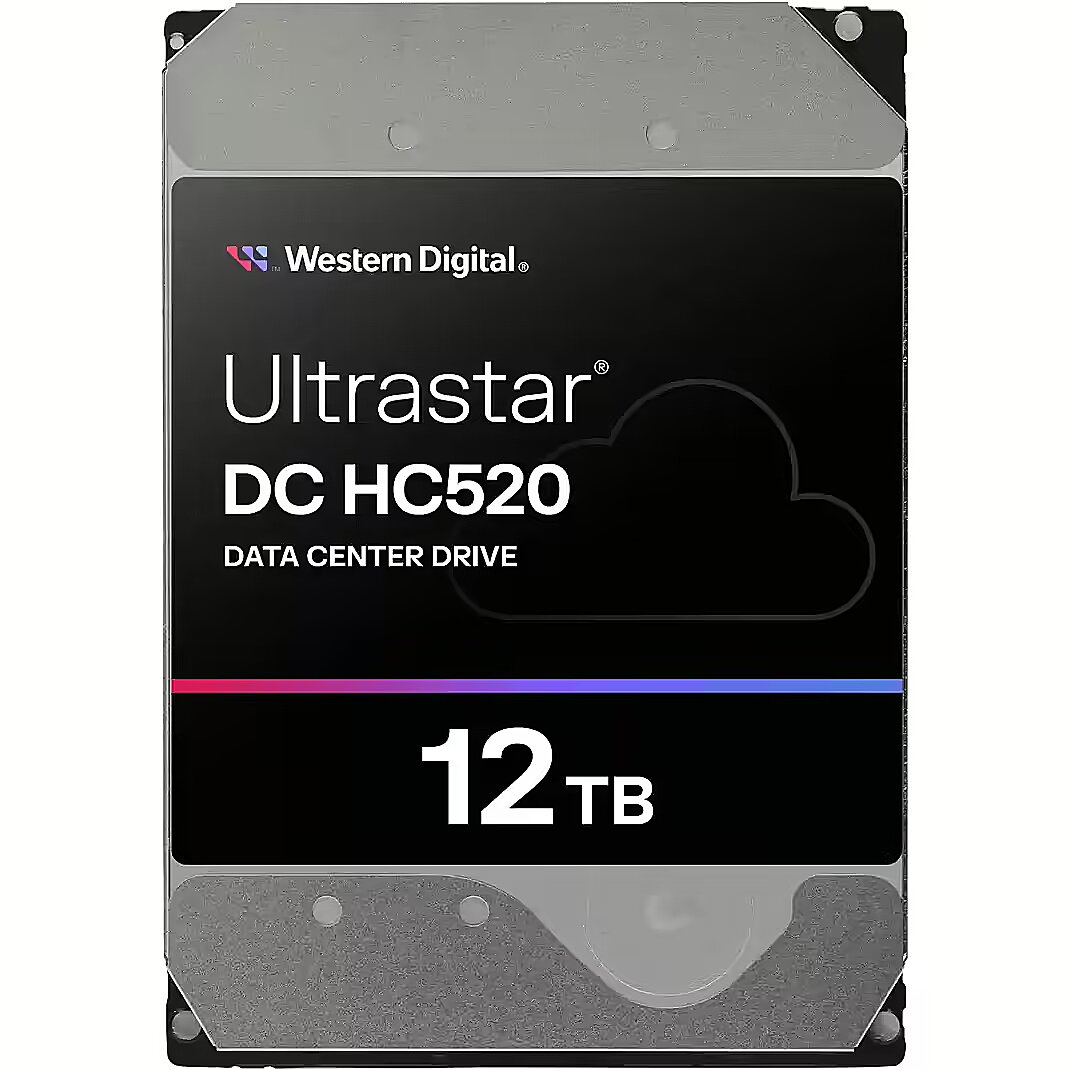

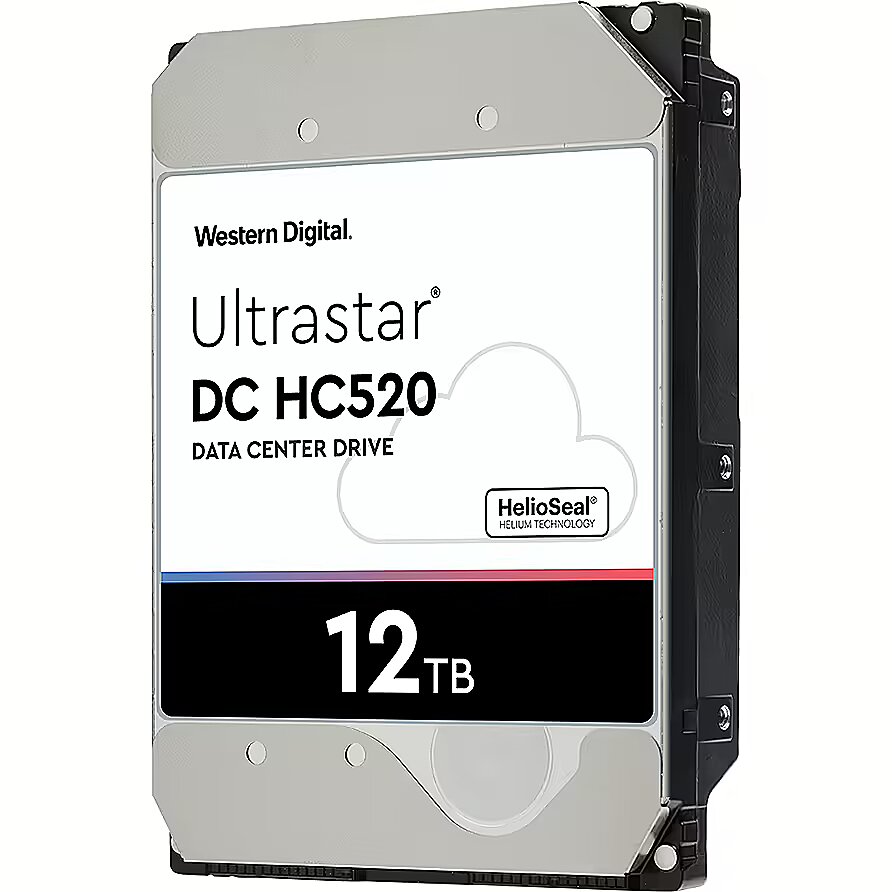

Western Digital 12TB, 7200rpm, 356MB, SATAIII, Ultrastar DC HC520, SE
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
- Courier delivery 3.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Capacity: 12 TB
- Data Interface: SATA III
- Spindle rotation speed: 7200 rpm
- Data buffer: 356 MB
Description
Dateks offers to buy the Hitachi hard disc with 12 TB data capacity, SATA III connection, 7200 rpm rotation speed and 256 MB cache memory.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
This hard disc has SATAIII connection. SATAIII, or SATA 6GB/s is the latest generation data transmission connection found in the most modern computers for ensuring sufficient SSD discs data flow exceeding the SATAII possibilities. The speed of the cache memory of hard discs can sometimes exceed also the SATAII passage possibilities because in essence this cache memory is a small size SDD disc (~64 Mb). Therefore, when the relevant port is available on the motherboard it is advisable to select the SATAIII disc.
Thanks to the 7200 rpm rotation speed of magnetic discs this hard disc provides the optimum fast operation in the data search and transmission. 7200 rpm is the classic standard for the universal application both for the maintenance of the operating system and applications and the data archiving.
All parameters
Capacity
12 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Use
: Server
Data Interface
SATA III
The connection of the HDD to the computer. The current industry standard is SATA connection. IDE connection is available with older computers. Prior to buying the HDD you should verify whether the motherboard has a free connection slot and the support for the chosen disc capacity.
Spindle rotation speed
7200 rpm
The HDD rotations. The HDDs of most desktop computers have 7200rpm and this has already become the industry standard. If you want to achieve a higher speed you should buy the HDD of 10000rpm. The operation noise, temperature and power consumption of 10000rpm HDDs are much higher than these of the 7200rpm HDDs parameters, therefore, prior to buying a 10000rpm HDD you should verify the compliance of the enclosure, power supply unit and the cooling with the technical requirements of this HDD.
Data buffer
356 MB
Data buffer is a high-speed memory built-in the HDD and allowing the disc to receive data at a smooth speed irrespective of the level of loading the physical memory of the disc at the particular time. If you work with a high number of small volume files (documents, photos, etc.) we recommend to buy an HDD with 8Mb or higher data buffer.
More detailed specification
ARTIKEL1 - ULTRASTAR HE12 12TB SATA 512E
ARTIKEL2 - SE HUH721212ALE604
Average Rotational Delay - 4.12 ms
Average Seek - 8 ms
Average Seek Time - 8 ms
Box Weight Brutto (kg) - 13.2 kg
Buffer memory size - 256 MB
Bytes per Sector - 512 Bytes/sector
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
Depth (mm) - 147 mm
Description - - Highest Capacity – 12TB PMR HDD, drop-in ready for capacity workloads - Low Power – 54% lower idle watts/TB than 8TB air-filled drives - More Reliable – Highest MTBF rating for an HDD at 2.5M hours
Device Location - Internal
dimensionalWeight - 60
Dimensions - 26.1x101.6x147mm
EAN - 0829686005204
EAN - 8717306638999
EANCode - 0829686005204
EAN_code - 0829686005204
External Data Bit Rate - 6 Gbps
Features - Average latency - 4.16 ms
Features - Bytes per sector - 512
Features - HDD capacity - 12 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - Mean time between failures (MTBF) - 2500000 h
Features - Read seek time - 8 ms
Features - Storage drive buffer size - 256 MB
Features - Write seek time - 8.6 ms
Form Factor - 3,5"
Form Factor - 3.5"
Full Description Line - Ultrastar DC HC520|HUH721212ALE604|12TB|SATA 3.0|Buffer 256 MB|7200 rpm|Average Seek 8 ms|3,5"
Gewicht - 0.7
Gross Weight Kg - 0,65
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
Hard Drive Features - 24/7HelioSeal Technology
HDD Capacity - 12TB
HDD Family name - Ultrastar DC HC520
Height (mm) - 26.1 mm
HERSTELLER - WESTERN DIGITAL
HSTNUMMER - 0F30146
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220504160015350687.jpg
Installed Cache Memory Storage Capacity - 256 MB
Manufacturer - Western Digital
Manufacturer Code - 0F30146
Manufacturer Name - Western Digital
Manufacturer_code - 0F30146
Maximum Operating Ambient Temperature - 60 °C
Maximum Power Consumption - 7.2 W
Maximum Seek Time - 8.6 ms
Maximum Supply Voltage - 12 V
Mean Time Between Failures - 2500000 hr
Minimum Operating Ambient Temperature - 5 °C
Minimum Power Consumption - 5.3 W
Minimum Supply Voltage - 5 V
Model name - HUH721212ALE604
MPN - 0F30146
Name - 12TB WD Ultrastar HUH721212ALE604 Ent. *Bring-In-Warranty*
Name - WD Ultrastar DC HC520 12 TB - SATA - 3.5
Nominal Supply Voltage - 5 V
Nominal Weight - 0.66 kg
Non-Recoverable Errors - 1 per 10^15
Operational conditions - Non-operating shock - 300 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 70 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package Type - Box
Packaging data - Storage drive adapter included - No
Packs in Box - 20
Pack Weight Brutto (kg) - 0.66 kg
Pack Weight Netto (kg) - 0 kg
Pieces in pack - 1
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.3 W
Power - Power consumption (typical) - 7.2 W
producerCode - 0F30146
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=170530061938430168&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - HUH721212ALE604
ProductDescription - Western Digital Ultrastar DC HDD Server HE12 (3.5’’, 12TB, 256MB, 7200 RPM, SATA 6Gb/s, 512E SE) SKU: 0F30146
productName - Western Digital Ultrastar He12 3.5" 12000 GB Serial ATA III
productSize - Normal
ProductType - HDD Server
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Rotational Speed - 7200 rpm
Rotation speed - 7200 rpm
SATA 3.0 Interface - Yes
SATA III - 1
Shipping Box Depth Shipping/Package Box Dimensions - 14.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 2.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.64 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
Short description - WD HD3.5" SATA3-Raid 12TB HUH721212ALE604 (Di)
sizeX - 145
sizeY - 105
sizeZ - 20
Stck_Kart - 20
Stck_Pal - 20
Storage Capacity - 12 TB
Storno - Y
Supports Data Channel - SATA III-600
Typical Operating Noise Level - 36 dB
Unit Box Height - 0.025
Unit Box Length - 0.145
Unit Box Width - 0.1
Unit Brutto Volume - 0.0003625 cubm
Unit Gross Weight - 0.64 kg
Unit Net Weight - 0.63 kg
Vendor - WESTERN DIGITAL
Vendor Homepage - https://www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-dc-hc520-hdd?sku=0F29531
Warranty - 60L months
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 month(s)
warrantyType - G
Warranty Validation Criteria - Serial Number
Weight - 0,64
Weight - 0.63
weight - 660
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 660 g
Weight & dimensions - Width - 101.6 mm
Width (mm) - 101.6 mm
ARTIKEL2 - SE HUH721212ALE604
Average Rotational Delay - 4.12 ms
Average Seek - 8 ms
Average Seek Time - 8 ms
Box Weight Brutto (kg) - 13.2 kg
Buffer memory size - 256 MB
Bytes per Sector - 512 Bytes/sector
Category 1 - Festplatten
Category 2 - Interne Festplatten
Category Code - HES
Category_1 - Hard Drives and Pendrives
Category_2 - Internal Hard Drives - SATA - 3.5 inch
Depth (mm) - 147 mm
Description - - Highest Capacity – 12TB PMR HDD, drop-in ready for capacity workloads - Low Power – 54% lower idle watts/TB than 8TB air-filled drives - More Reliable – Highest MTBF rating for an HDD at 2.5M hours
Device Location - Internal
dimensionalWeight - 60
Dimensions - 26.1x101.6x147mm
EAN - 0829686005204
EAN - 8717306638999
EANCode - 0829686005204
EAN_code - 0829686005204
External Data Bit Rate - 6 Gbps
Features - Average latency - 4.16 ms
Features - Bytes per sector - 512
Features - HDD capacity - 12 TB
Features - HDD interface transfer rate - 6 Gbit/s
Features - HDD size - 3.5"
Features - HDD speed - 7200 RPM
Features - Mean time between failures (MTBF) - 2500000 h
Features - Read seek time - 8 ms
Features - Storage drive buffer size - 256 MB
Features - Write seek time - 8.6 ms
Form Factor - 3,5"
Form Factor - 3.5"
Full Description Line - Ultrastar DC HC520|HUH721212ALE604|12TB|SATA 3.0|Buffer 256 MB|7200 rpm|Average Seek 8 ms|3,5"
Gewicht - 0.7
Gross Weight Kg - 0,65
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Hard Drive Sata
Hard Drive Features - 24/7HelioSeal Technology
HDD Capacity - 12TB
HDD Family name - Ultrastar DC HC520
Height (mm) - 26.1 mm
HERSTELLER - WESTERN DIGITAL
HSTNUMMER - 0F30146
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220504160015350687.jpg
Installed Cache Memory Storage Capacity - 256 MB
Manufacturer - Western Digital
Manufacturer Code - 0F30146
Manufacturer Name - Western Digital
Manufacturer_code - 0F30146
Maximum Operating Ambient Temperature - 60 °C
Maximum Power Consumption - 7.2 W
Maximum Seek Time - 8.6 ms
Maximum Supply Voltage - 12 V
Mean Time Between Failures - 2500000 hr
Minimum Operating Ambient Temperature - 5 °C
Minimum Power Consumption - 5.3 W
Minimum Supply Voltage - 5 V
Model name - HUH721212ALE604
MPN - 0F30146
Name - 12TB WD Ultrastar HUH721212ALE604 Ent. *Bring-In-Warranty*
Name - WD Ultrastar DC HC520 12 TB - SATA - 3.5
Nominal Supply Voltage - 5 V
Nominal Weight - 0.66 kg
Non-Recoverable Errors - 1 per 10^15
Operational conditions - Non-operating shock - 300 G
Operational conditions - Non-operating vibration - 1.04 G
Operational conditions - Operating shock - 70 G
Operational conditions - Operating temperature (T-T) - 5 - 60 °C
Operational conditions - Operating vibration - 0.67 G
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package Type - Box
Packaging data - Storage drive adapter included - No
Packs in Box - 20
Pack Weight Brutto (kg) - 0.66 kg
Pack Weight Netto (kg) - 0 kg
Pieces in pack - 1
Power - Operating voltage - 5 / 12 V
Power - Power consumption (idle) - 5.3 W
Power - Power consumption (typical) - 7.2 W
producerCode - 0F30146
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=170530061938430168&THEME=asbis&LANG=lv
ProductCategory - Cietie diski
ProductCode - HUH721212ALE604
ProductDescription - Western Digital Ultrastar DC HDD Server HE12 (3.5’’, 12TB, 256MB, 7200 RPM, SATA 6Gb/s, 512E SE) SKU: 0F30146
productName - Western Digital Ultrastar He12 3.5" 12000 GB Serial ATA III
productSize - Normal
ProductType - HDD Server
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Rotational Speed - 7200 rpm
Rotation speed - 7200 rpm
SATA 3.0 Interface - Yes
SATA III - 1
Shipping Box Depth Shipping/Package Box Dimensions - 14.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 2.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.64 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
Short description - WD HD3.5" SATA3-Raid 12TB HUH721212ALE604 (Di)
sizeX - 145
sizeY - 105
sizeZ - 20
Stck_Kart - 20
Stck_Pal - 20
Storage Capacity - 12 TB
Storno - Y
Supports Data Channel - SATA III-600
Typical Operating Noise Level - 36 dB
Unit Box Height - 0.025
Unit Box Length - 0.145
Unit Box Width - 0.1
Unit Brutto Volume - 0.0003625 cubm
Unit Gross Weight - 0.64 kg
Unit Net Weight - 0.63 kg
Vendor - WESTERN DIGITAL
Vendor Homepage - https://www.westerndigital.com/products/internal-drives/data-center-drives/ultrastar-dc-hc520-hdd?sku=0F29531
Warranty - 60L months
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 month(s)
warrantyType - G
Warranty Validation Criteria - Serial Number
Weight - 0,64
Weight - 0.63
weight - 660
Weight & dimensions - Depth - 147 mm
Weight & dimensions - Height - 26.1 mm
Weight & dimensions - Weight - 660 g
Weight & dimensions - Width - 101.6 mm
Width (mm) - 101.6 mm
