Cudy Switch GS108D 8xGE

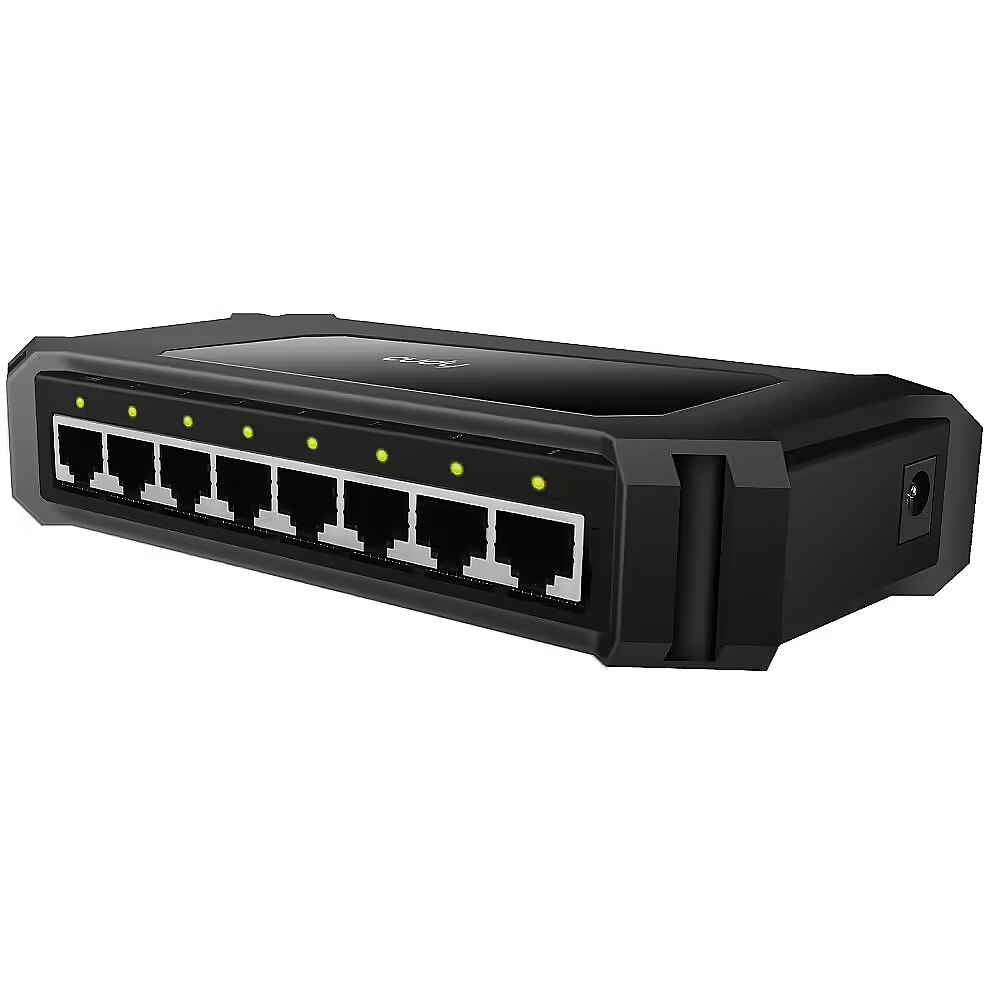

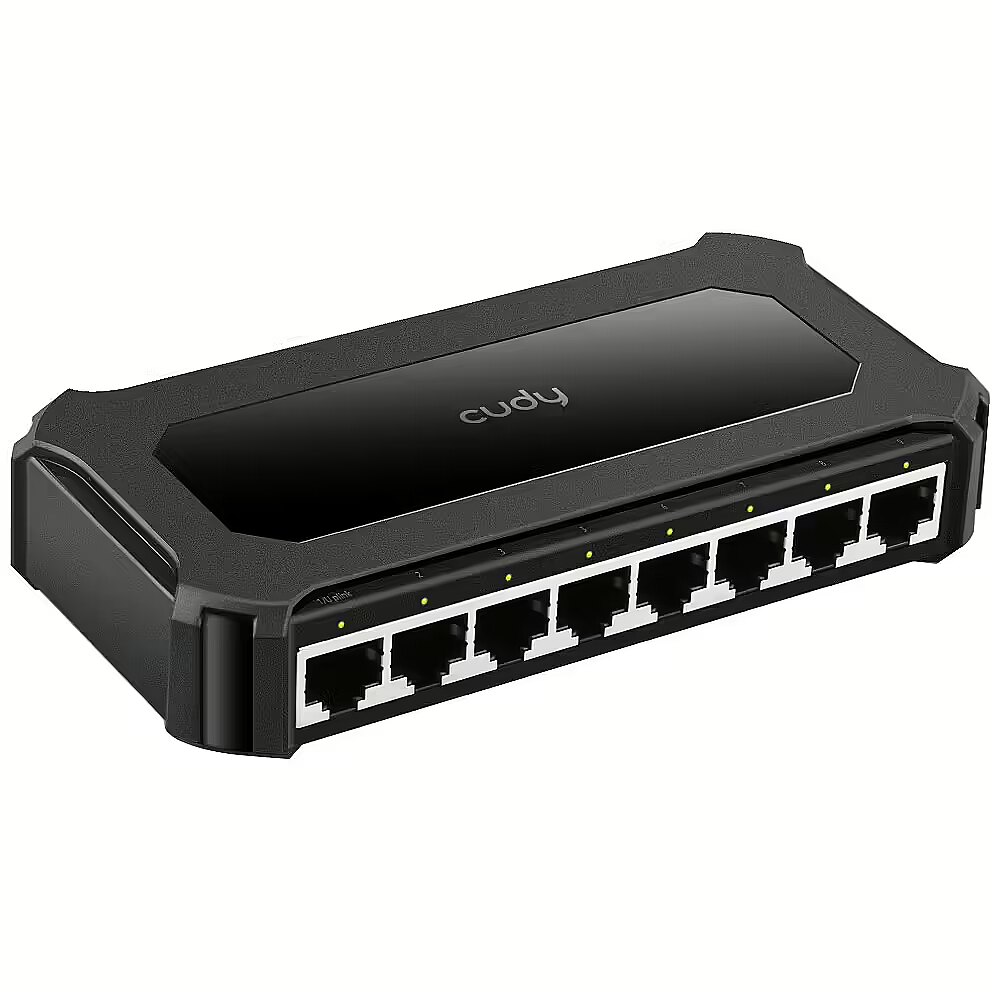

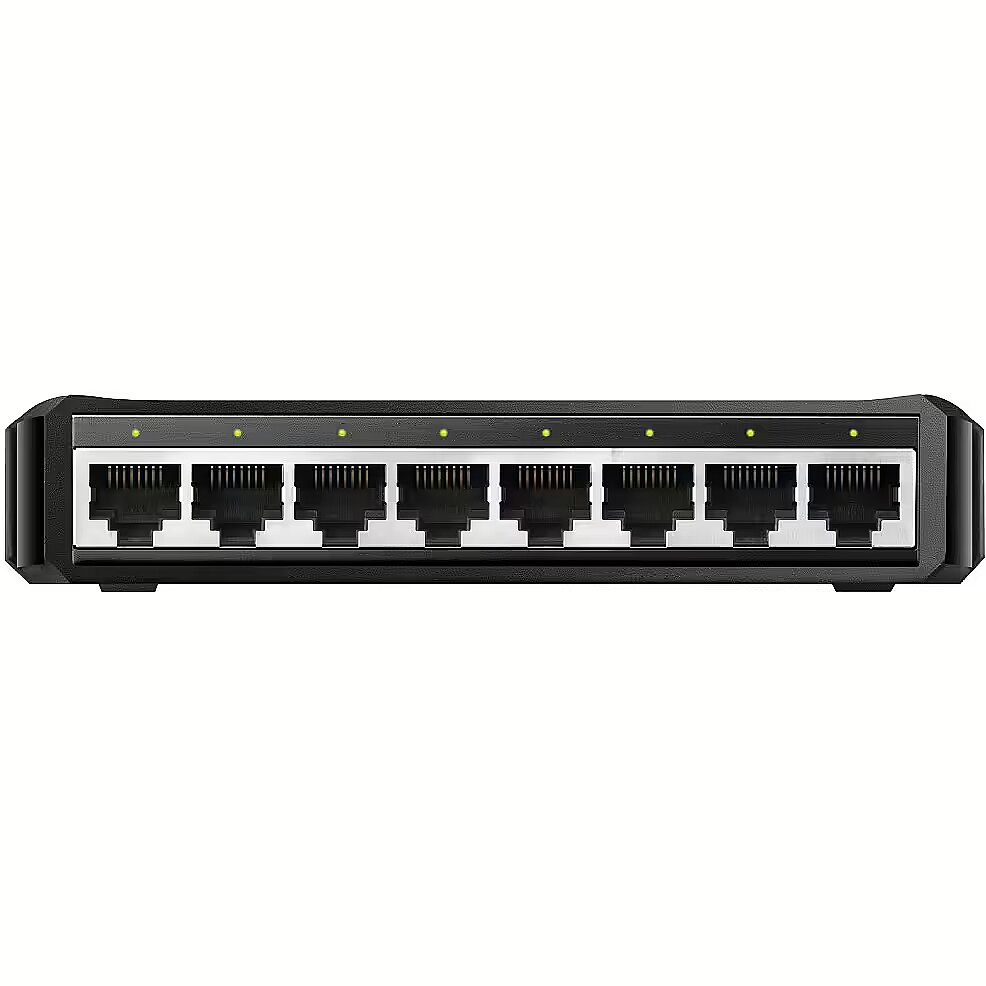

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 945996 Product code: GS108D
Can be ordered 126 units Availability: 14 days after order approval
Warranty: 2 years
23.51 €
Delivery options
  • Delivery to Smartpost 1.99 €: 18.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 18.04.2025
  • Courier delivery 3.99 €: 18.04.2025
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: Eight Core
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : N/A
RJ-45 Ports : Eight Core
SFP Ports : N/A
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : N/A
PoE Support : Nav
PoE Total Power Budget : N/A
Weight (g) : 215 g
Network cards
More detailed specification
10/100/1000/2500 Mbps ports - None

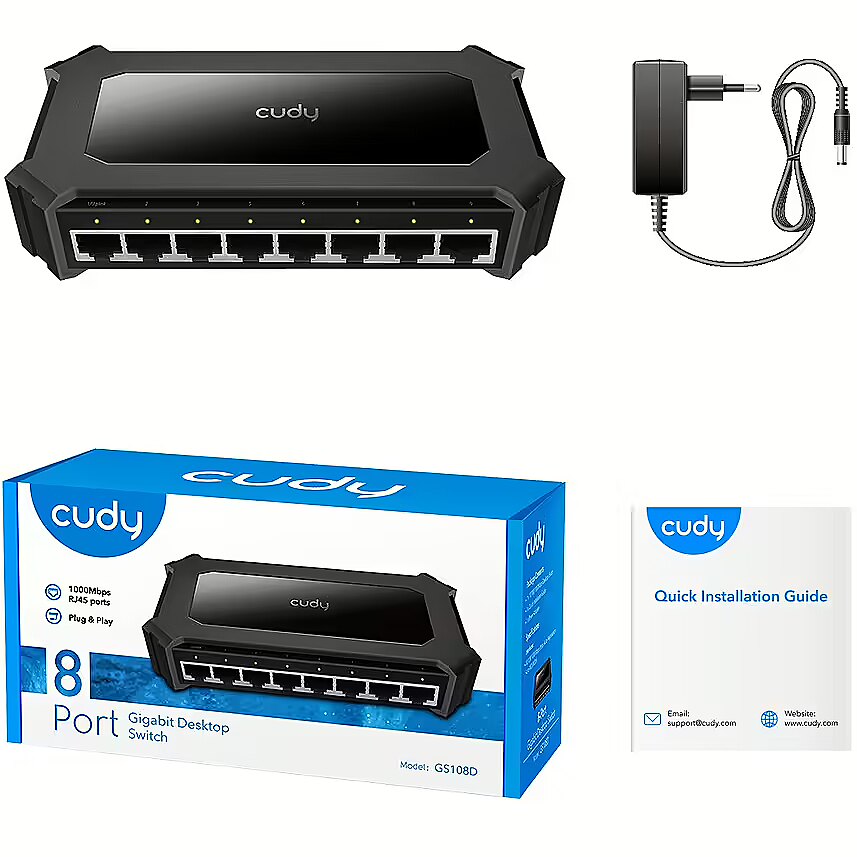

Accessories included - GS108D switch Charger Instruction
Application - Home and small office
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Chassis type - Desktop
Console port - No
Data transmission - Packet forwarding rate (1 Gbps) - 1488000 pps
Data transmission - Packet forwarding rate (10 Mbps) - 14880 pps
Data transmission - Packet forwarding rate (100 Mbps) - 148800 pps
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 16 Gbit/s
Description - GS108D 8-Port Gigabit switch 8 x 10/100/1000Mbps auto-negotiation RJ45 ports supporting Auto-MDI/MDIX Standard IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE 802.3ab Supports auto learning and aging of MAC addresses The non-blocking switching architecture enables packet forwarding and filtering at full line speed Cuda green technology saves energy up to 85% Plug&Play
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - Power
Design - Product colour - Black
Design - Rack mounting - No
Designation - CE+WEEE
dimensionalWeight - 146
dimension depth - 93 mm
dimension height - 175 mm
Dimensions - 143 x 72.7 x 26.9 mm
dimension weight - 228 g
dimension width - 67 mm
ean - 6971690790103
EAN - 6971690790103
Eans - 6971690790103
Environment requirements - Operating temperature: 0 -40 C Operating humidity: 10%-90% (non-condensing) Storage temperature: -40 -70 C Storage humidity: 5%-90% (non-condensing)
Fan - No
Forwarding mode - Store-and-forward
guarantee - 24
guarantee_type - normal
L2 features -
L3 features -
Management, monitoring, configuration -
Manufacturer - Cudy
MPN - GS108D
Name - 8P Cudy GS108D
Name - Cudy GS108D
name - Switch GS108D 8xGE
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat6
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features - Bandwidth - 1.6 Gbit/s
Other functions -
Packaging data - Cables included - DC
Packaging data - Manual - Yes

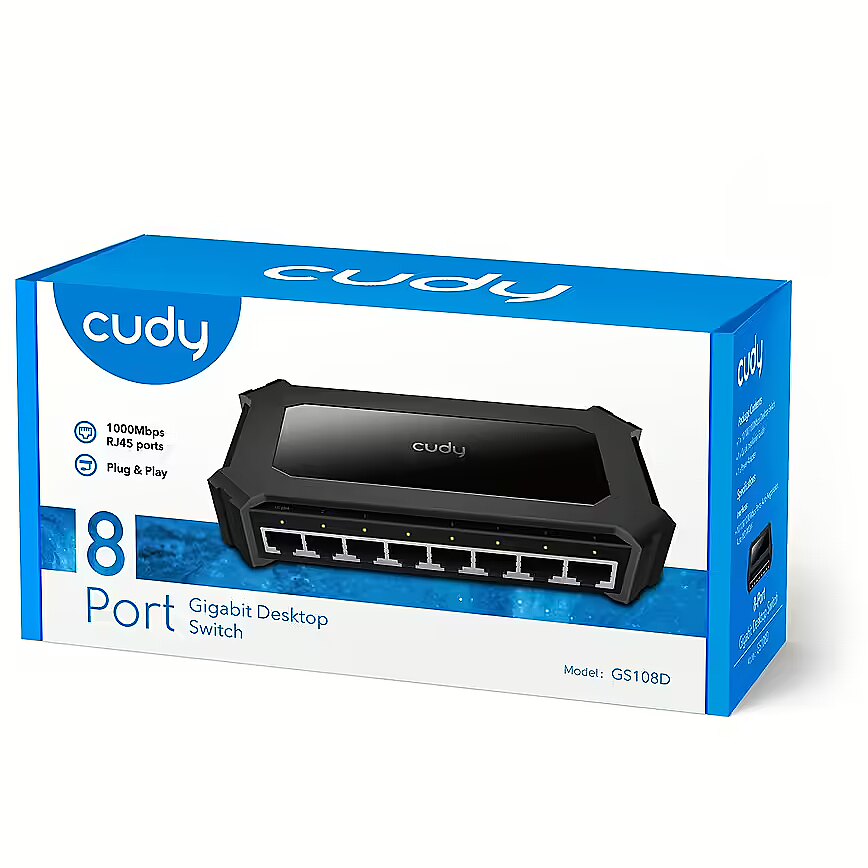

Packaging data - Package type - Box
Performance - Plug and Play - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - DC input voltage - 5 V
Power - Input current - 1 A
Power - Power consumption (max) - 2.3 W
Power - Power source - DC
Power - Power supply included - Yes
Power consumption - 2.3 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - DC 5V /1A
Power supply - External
producer - Cudy
Producer - Cudy
producerCode - GS108D
ProducerCode - GS108D
productName - Cudy GS108D network switch Gigabit Ethernet (10/100/1000) Black
productSize - Normal
QoS -
Security -
ShortDescription -
sizeX - 150
sizeY - 75
sizeZ - 65
Supported protocols and standards - IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3az
Switch class - Unmanaged
Throughput - 16 Gb/s
vendpn - GS108D
VLAN -
warrantyLength - 24
warrantyType - G
Weight - 0.18
weight - 215
Weight - 215 g
Weight & dimensions - Depth - 72.7 mm
Weight & dimensions - Height - 26.9 mm
Weight & dimensions - Weight - 215 g
Weight & dimensions - Width - 143 mm
23.51 €
