10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Medium and large companies
ARTIKEL1 - 28-PORT SMART POE SWITCH
ARTIKEL2 - GIGABIT STACKABLE 2X SFP+
Brand - D-Link
BrandPartCode - DGS-1510-28P
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - CE FCC C-Tick VCCI BSMI CCC IPv6 Ready Logo Phase 2 cUL CB
Certificates - Certification - CE, FCC, C-Tick, VCCI, BSMI, CCC
Chassis type - Rack
Console port - Yes
Data transmission - Forwarding rate - 68.45 Mpps
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Number of static routes - 512
Data transmission - Packet buffer memory - 1.5 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 92 Gbit/s
Description - DGS-1510 Series Gigabit Stackable Managed Smart Switches L2 management and security with L3 features CLI command line, console port and Web GUI 10G SFP+ physical stackable Static and MSTP routes PoE (Power over Ethernet) option Lifetime-Limited warranty upon registration CLI command line Supports a standard and commonly used command line interface for system management. Physical racking Physical stacking of up to 6 units in a stack with a total of 288 ports. 10G uplink ports With SFP+ ports, you can connect to other areas of the network with 10G throughput. Static routing Segregation of L3 traffic between switches, regardless of VLAN segemntation. Multiple images and confusion files Firmware updates and configuration testing without any risk of losing settings. Limited Lifetime Warranty Register your product to benefit from the Lifetime Limited Warranty. A large PoE power budget and extensive Layer 2 features make the DGS-1510 family switches a flexible and cost-effective solution for expanding any corporate network. The DGS1510 series is the latest generation of managed Smart switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high throughput, industry-standard CLI console compliance and the ability to use PoE makes the DGS1510 switch series an ideal solution for SMBs as well as enterprise environments. Full feature set with L3 traffic management The DGS1510 switch series features advanced network management tools via an industry-standard CLI console, console serial port and the GUI browser-based user interface. This provides your business with VLAN, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routes, multiple firmware images and multiple configuration files. With powerful security features in the form of IGMP snooping, access control lists, port security tools and the D-Link Safeguard Engine, which protects the network from malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 switch family is a versatile tool for networked enterprise environments. Fibre optic Uplink ports Network expansion to suit the needs of any business is possible with fibre uplink ports with advanced management and security features. D-View 7: free network design and management system D-Link's free Network Assistant (DNA) system provides information on all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities. Energy saving D-Link's DGS-1510 family of switches with D-Link Green technology enables energy savings without affecting operational performance or functionality.
Design - LED indicators - Activity, Link, PoE, Power
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Safety - cUL, CB
Design - Stackable - Yes
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 345 mm
Dimensions - 440 x 210 x 44 mm
dimension weight - 3690 g
dimension width - 510 mm
ean - 790069467936
EAN - 0790069467936
EANCode - 0790069467936
Eans - 790069467936
EAN_code - 0790069467936
Environment requirements - Operating temperature: -5 to 50 C (23 to 122 F) Storage temperature: -20 to 70C (-4 to 158F) Operating humidity: 0% to 95% non-condensing Storage humidity: 0% to 95% non-condensing
Fan - Yes
Forwarding mode - Store-and-forward
Forwarding rate - 68.45 Mpps
Gross Weight Kg - 4
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 790069399473
GTIN - 0790069399473
GTIN - 0790069402869
GTIN - 790069402869
GTIN - 0790069467936
GTIN - 790069467936
GTIN - 5052183964285
guarantee - 0
guarantee_type - perpetual
HERSTELLER - D-LINK
HSTNUMMER - DGS-1510-28P/E
Jumbo frame size - 9.216 KB
L2 features - MAC Address Table: Up to 16,384 Flow Control 802.3x Flow Control HOL Blocking Prevention Jumbo Frame up to 9,216 Bytes IGMP Snooping IGMP v1/v2 Snooping IGMP v3 awareness Supports 512 IGMP groups Supports 128 static multicast addresses IGMP per VLAN Supports IGMP Snooping Querier Host-based IGMP Snooping Fast Leave MLD Snooping Supports MLD v1/v2 Supports 512 groups Supports 128 Static Multicast Addresses Per VLAN MLD Snooping Host-based MLD Fast Leave MLD Snooping Querier Spanning Tree Protocol 802.1D STP 802.1w RSTP 802.1s MSTP Loopback Detection v4.07 802.3ad Link Aggregation Max. 32 groups per device/8 ports per group Port Mirroring Support 4 mirroring groups One-to-One, Many-to-One Supports Mirroring for Tx/Rx/Both Multicast Filtering Forwards all unregistered groups Filters all unregistered groups Ethernet Ring Protection Switching (ERPS)
L3 features - ARP 256 Static ARP Supports Gratuitous ARP IPv6 Neighbour Discovery (ND) 16 IP interfaces Default Routing Static Routing 64 IPv4 Static Route Entries 32 IPv6 Static Route Entries UDP helper
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The DGS-1510 series is the next generation of smart managed witches. It contains 16, 24 or 48 10/100/1000 Mbps ports plus 2 Gigabit SFP ports and 2 10G SFP+ ports, as well as one 24 10/100/1000 Mbps PoE plus 2 Gigabit SFP ports and 2 10G ports smart managed switch. With it’s 10G SFP+ ports, the DGS-1510 series is ideal for deployments in the SME/SMB core with its 10G uplinks connecting with servers equipped with 10G port connectivity. For medium to large scale enterprise deployment, it can serve as a good interconnection between the core switch and edge switch.The DGS-1510 Series Gigabit Stackable Smart Managed Switches includes a PoE-enable switch for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1510-28P is a 24-port PoE switch that provides 24 PoE-enabled ports that can support up to 30 W of power output following the IEEE 802.3at standard. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.Featuring D-Link Green 3.0 technology, the DGS-1510 series offers a high level of energy saving and efficiency, as it also complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensures your network remains protected after the upgrade from IPv4 to IPv6. By offering multiple management options, the DGS-1510 Series allows quick deployment, infrastructure expansion, and seamless function upgrades. Built for small and medium-sized businesses, the DGS-1510 Series provide functionality, security, and manageability for a fraction of the standard cost of ownership.Two 10G SFP+ Stacking/Uplink PortsDepending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 6 units or 288 Gigabit ports can be configured for a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix any models from the DGS-1510 Series in a single stack to allow simultaneous and easy configuration, management and troubleshooting.Flexibility and ScalabilityDGS-1510 series supports virtual stacking via D-Link’s Single IP Management (SIM), allowing up to 32 devices to be managed via a single IP. This simplifies management of small workgroups or wiring closets while allowing the network to be scaled to handle increased bandwidth demand. SIM not only reduces the number of IP address needed in your network but also allow switches to be stacked together over Ethernet instead of using physical uplink or stacking ports. This eliminates the need for any specialised stacking cables while at the same time removing the distance barriers that typically limit your topology options when using other stacking technology.Extensive Layer 2 FeaturesThese switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shut down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables and determine the cable quality.QoS, Bandwidth ControlThe DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited to VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link smart switches. This technology consolidates data and surveillance video transmission through a single smart switch, thus sparing businesses the expense of maintaining dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might require high priority.Secure your NetworkD-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by screening ingress traffic based on MAC or IP addresses. The DGS-1510 Series includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. To prevent ARP Spoofing attacks, the switch uses Packet Control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised IP assignment.Versatile ManagementThe DGS-1510 series provides a D-Link Network Assistant Utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The D-Link Network Assistant Utility easily allows customers to discover multiple D-Link smart switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup of the smart switches. Switches within the same L2 network segment that are connected to the user’s PC are displayed on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices including password changes and firmware upgrades. The DGS-1510 series also supports D-View 6.0 and Full features Command Line Interface (CLI) through console port. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security. CLI management of the switches is possible via console port and Telnet interfaces. This makes it possible to adjust basic settings, passwords, configuration files, and firmware with ease.Layer 3 Traffic ManagementThe DGS-1510 Series provides static route, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage external traffic and security.IPv6 ReadyThe DGS-1510 Series is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 ACL/QoS, and IMPBv6 to ensure seamless integration of next generation networks. The DGS-1510 Series also supports a IPv4/v6 dual stack function that allows the switch to act as a bridge between IPv4 and IPv6 networks. Finally, all DGS-1510 Series are certified to be IPv6 Ready Logo Phase 2, which guarantees interoperability for IPv6 environments.Energy SavingDGS-1510 Series switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the 802.3az Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no configuration required. For environments not fully supporting the standard, DGS-1510 Series switches offer advanced power-saving settings including port shutoff, LED shutoff, and system hibernation based on custom scheduling profiles. The profiles can also be applied to the PoE switch so that there is no unnecessary power consumption during off hours.
LongProductName - POE, 28x10/100/1G, 2 x 10G SFP+, 2 x SFP SmartPro Stackable Switch
LongSummaryDescription - D-Link DGS-1510-28P. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 92 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting
MAC address table size - 16384
Management, monitoring, configuration - Command Line Interface (CLI) Telnet Server TFTP Client IPv6 Neighbor Discovery Configurable MDI/MDIX SNMP Supports v1, v2c, v3 SNMP Trap System Log Max. 10,000 log entries Debug command Multiple images DHCP Server DHCP Client Surveillance mode DHCP Client D-Link Network Assistant support SNTP ICMPv6 IPv4/v6 Dual Stack DHCP Auto Configuration RMON v1 LLDP, LLDP-MED DHCP relay Web-based GUI NTP Telnet client (supports CLI only) PD-Alive (PoE models only)
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Manufacturer - D-Link
Manufacturer Code - DGS-1510-28P/E
Manufacturer Name - D-Link
Manufacturer_code - DGS-1510-28P/E
Maximum number of units per stack - 6
Mean time between failures (MTBF) - 275428 h
Memory buffer - 1.5 MB
Multicast features - Multicast support - Yes
Name - D-Link DGS-1510-28P/E
Name - D-Link DGS-1510-28P/E, switch
name - Switch DGS-1510-28P 24GE PoE 4SFP
Network - 10G support - Yes
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Cable types supported - Cat5, Cat5e
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Network - Port mirroring - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 26
Number of 10Gb ports - 2
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 24
Number of QSFP+ ports - None
Number of SFP+ ports - 2
Number of SFP ports - 2
Number of VLAN groups - 4000
Operational conditions - Heat dissipation - 813.967 BTU/h
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - PoE standard: IEEE 802.3af, 802.3at PoE ports: 1 - 24: up to 30 W Maximum PoE budget: 193 W
Other functions - Virtual Stacking Support: D-Link Single IP Management Up to 32 devices per virtual stack Up to 20G stacking bandwidth Physical Stacking: Supports Duplex Chain/Ring topology Up to 40G stacking bandwidth full duplex Up to 6 units per stack
Packaging content - Manual - Yes
Packaging data - Package depth - 511 mm
Packaging data - Package height - 91 mm
Packaging data - Package weight - 4 kg
Packaging data - Package width - 348 mm
Performance - Noise level - 46.4 dB
Performance - Physical stacking (units) - 6
Performance - Virtual stacking (units) - 32
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP+ module slots quantity - 2
Ports & interfaces - SFP module slots quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 238.7 W
Power consumption - 238.7 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 24
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 193 W
Power supply - 100 - 240 VAC 50/60 Hz
Power supply - Internal
producer - D-Link
Producer - D-link
ProducerCode - DGS-1510-28P/E
ProductName - DGS-1510-28P
QoS - 802.1p Quality of Service Queue Handling Strict Priority Queue (SPQ) Weighted Round Robin (WRR) Deficit Round Robin (DRR) SPQ + WRR 8 queues per port Bandwidth Control Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s) CoS based on: 802.1p priority VLAN MAC address Ether type IP address DSCP Protocol type TCP/UDP port number DSCP of IPv6 Traffic Class IPv6 flow label
Security - Port Security Supports up to 128 MAC addresses per port Broadcast/Multicast/Unicast Storm Control Dynamic ARP Inspection D-Link Safeguard Engine DHCP Server Screening ARP Spoofing Prevention Max. 64 entries SSH Supports v2 Supports IPv4/IPv6 BPDU Attack Protection DoS Attack Prevention SSL Supports v1/v2/v3 Supports IPv4/IPv6 Traffic Segmentation IP-MAC-Port Binding DHCP snooping IP Source Guard Dynamic ARP Inspection IPv6 DHCP Guard IPv6 RA Guard IPv6 Snooping IPv6 Source Guard IPv6 ND Inspection
Security - Access Control List (ACL) - Yes
Security - DHCP features - DHCP server, DHCP client
Security - IGMP snooping - Yes
Security - MAC address filtering - Yes
Security - SSH/SSL support - Yes
Security - Static port security - Yes
ShortDescription -
Short description - D-Link Switch DGS-1510-28P/E 24xGBit PoE (193W)/2xSFP/2xSFP+
ShortSummaryDescription - D-Link DGS-1510-28P, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting
Stackability - Yes
Stck_Kart - 1
Stck_Pal - 12
Storno - Y
Supported protocols and standards - IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet 802.3ae 10 GbE IEEE 802.3x Flow Control for Full-Duplex Mode
Support for Jumbo frames - Yes
Switch class - SMART
Switch layer - L2
Switch layer - L3
Technical details - Master (outer) cases per pallet (air) - 40 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 40 pc(s)
Technical details - Pallet gross length - 110 cm
Technical details - Pallet gross weight (air) - 533.9 kg
Technical details - Pallet gross weight (sea) - 533.9 kg
Technical details - Pallet gross width - 120 cm
Technical details - Pallet height (air) - 2.05 m
Technical details - Pallet height (sea) - 2.05 m
Technical details - Products per pallet (air) - 120 pc(s)
Technical details - Products per pallet (sea) - 120 pc(s)
Technical details - Products per shipping (inner) case - 3 pc(s)
Technical details - Shipping (inner) case gross weight - 12.9 kg
Technical details - Shipping (inner) case height - 38.3 cm
Technical details - Shipping (inner) case length - 52.9 cm
Technical details - Shipping (inner) case net weight - 9.27 kg
Technical details - Shipping (inner) case width - 29.6 cm
Throughput - 92 Gb/s

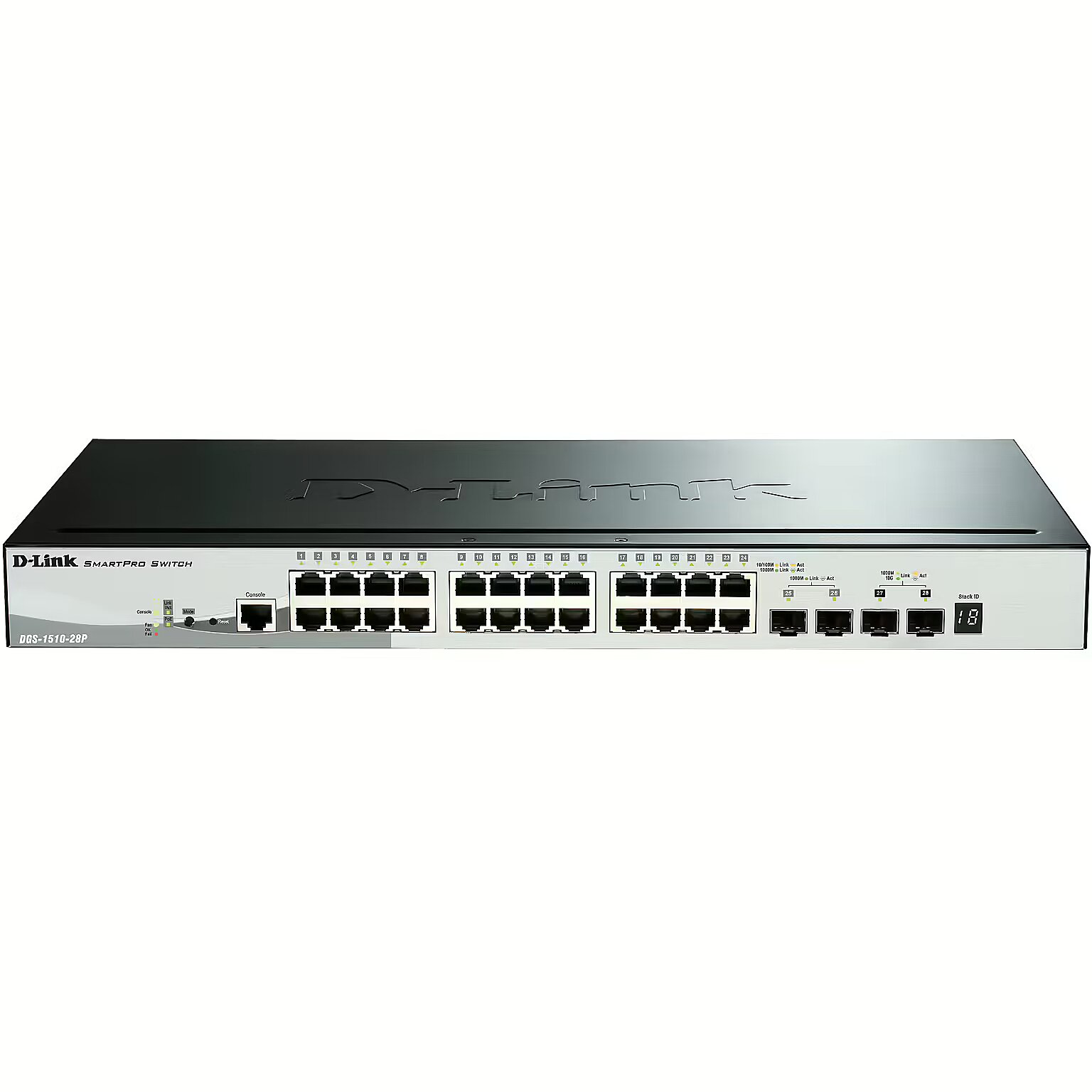

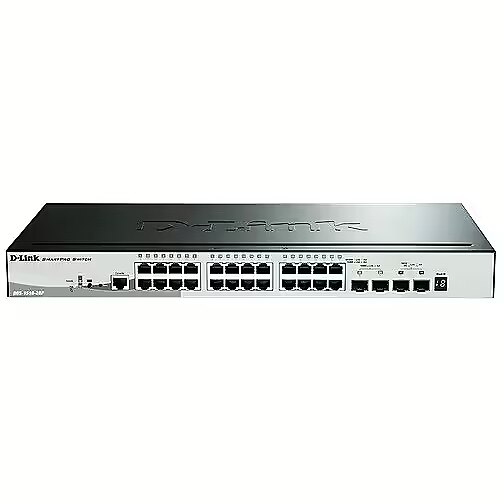

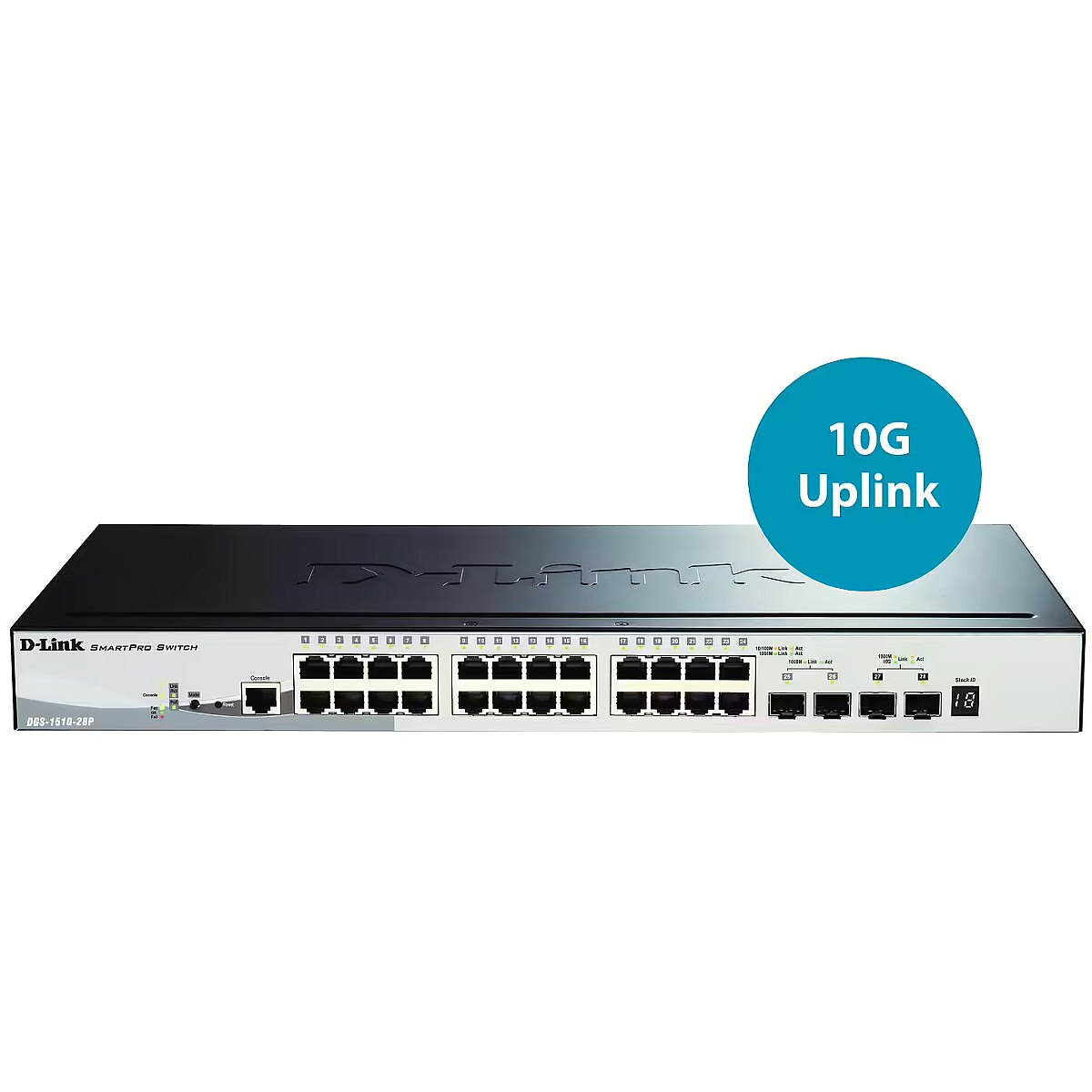

Title - D-Link DGS-1510-28P network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
URL - https://www.dlink.com/uk/en/business-solutions/switching/smart-switches/smartpro/dgs-1510-series-gigabit-stackable-smart-managed-switches
vendpn - DGS-1510-28P/E
VLAN - 802.1Q Tagged VLAN 4K VLAN Groups Configurable VID: 0~4094 GVRP VLAN Wizard Asymmetric VLAN Auto Voice VLAN Auto Surveillance VLAN 2.1 MAC-based VLAN Protocol-based VLAN
WarrantyInfo -
Weight - 2.54 kg
Weight - 4,00
Weight & dimensions - Depth - 250 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 2.54 kg
Weight & dimensions - Width - 440 mm
