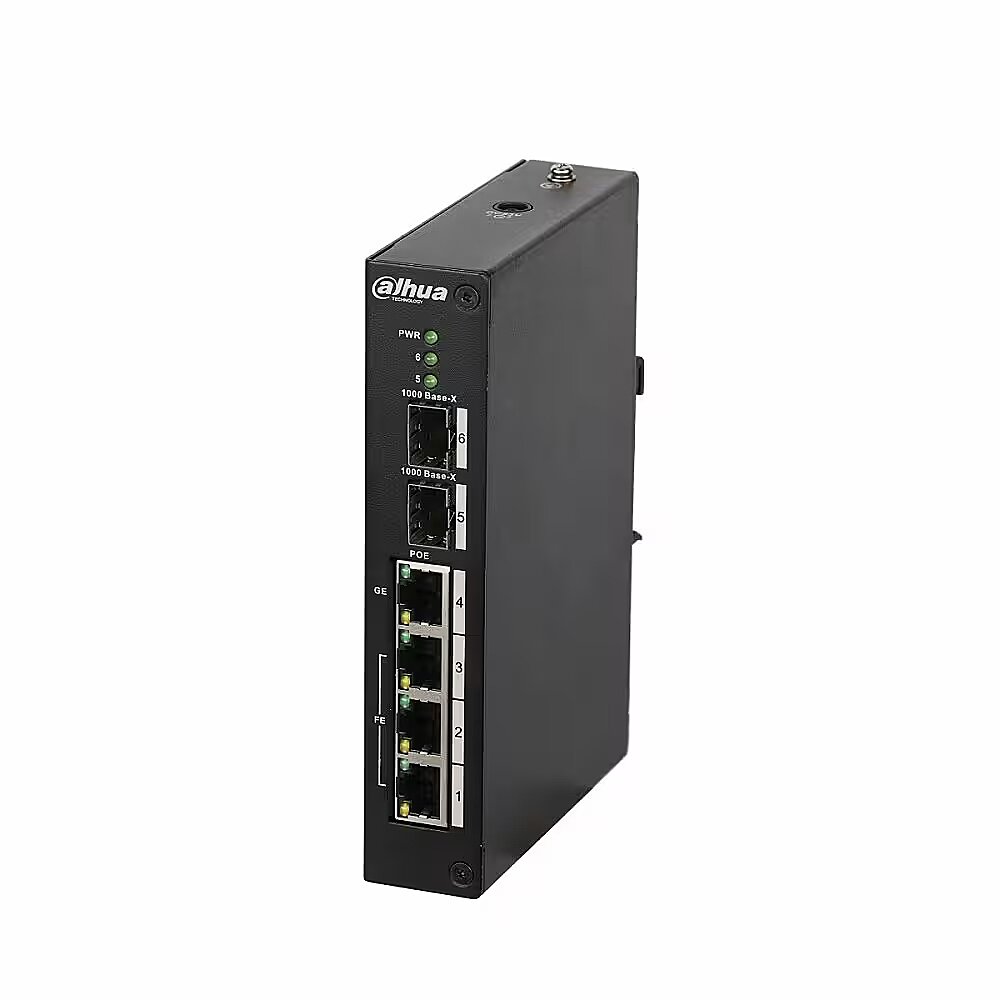

Dahua PFS3206-4P-96

10/100/1000/2500 Mbps ports - None
10Base-T / 100Base-TX / 1000Base-T Ports - 1
10Base-T / 100Base-TX Ports - 3
1000Base-X Ports - 2
Accessories included -
Application - Home and small office
Brand - Dahua Technology
BrandPartCode - PFS3206-4P-96
Category - Network Switches
Category Code - SWI
Console port - No
Data transmission - Forwarding rate - 4.91 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Switching capacity - 6.8 Gbit/s
Description - > Two-layer unmanaged PoE switch > Cascade can be realized via SFP fiber port > MAC auto study and aging, MAC address list capacity is 8K > Support IEEE802.3af, IEEE802.3at, Hi-PoE standard > Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards > Industrial wide temperature design
Description - Dahua 4-Port PoE Switch PFS3206-4P-96 The Dahua PFS3206-4P-96 4-port PoE Switch is a dual-layer unmanaged PoE switch that is equipped with 2 1000 Base-X ports, 1 10/100/1000 Base-T port (Hi-PoE / PoE + / PoE) and 3 10/100 Base-T ports (PoE + / PoE). The device was developed as an industrial device, so it can operate in wide temperature ranges. It supports IEEE802.3af, IEEE802.3at, Hi-PoE standard and is compatible with IEEE802.3, IEEE802 .3u, IEEE802.3ab / z and IEEE802.3X. PFS3206-4P-96 features: Dual layer unmanaged PoE switch Cascade can be implemented via SFP fibre port Automatic MAC polling and aging, MAC address list capacity is 8K Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard Compatibility with IEEE802.3, IEEE802 .3u, IEEE802.3ab / z and IEEE802.3X Industrial-strength wide temperature design
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - Yes
dimensionalWeight - 1058
dimension depth - 80 mm
dimension height - 265 mm
Dimensions - 150 x 100 x 30mm
Dimensions - 150 × 100 × 30 mm
dimension weight - 1228 g
dimension width - 240 mm
ean - 6939554912764
Forwarding rate - 4.91 Mpps
Forwarding rate - 4.91 Mpps
Full Description Line - Type L2|3x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-X|IEEE 802.3|IEEE 802.3ab|IEEE 802.3af|IEEE 802.3at|IEEE 802.3u|IEEE 802.3x|IEEE 802.3z|Switching capacity 6.8 Gbps|Forwarding rate 4.91 Mpps|Dimensions 150 x 100 x 30mm|Unit Net Weight 0.48 kg
GTIN - 6939554912764
guarantee - 24
guarantee_type - external
IEEE 802.3 Network standard - Yes
IEEE 802.3ab Network standard - Yes
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
IEEE 802.3u Network standard - Yes
IEEE 802.3x Network standard - Yes
IEEE 802.3z Network standard - Yes
L2 features -
L3 features -
LongDesc -
LongProductName - 4-Port PoE Switch, Unmanaged
LongSummaryDescription - Dahua Technology PFS3206-4P-96. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 6.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 57 V. Power over Ethernet (PoE)
MAC address table size - 8000
Management, monitoring, configuration -
Management features - Switch layer - L2
Management features - Switch type - Managed
Memory buffer - 1 MB
Model name - PFS3206-4P-96
name - PFS3206-4P-96 switch 4 ports
Network - 10G support - No
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Flow control support - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - 3
Number of 10/100/1000 Mbps ports - 1
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - None
Operational conditions - Operating temperature (T-T) - -30 - 65 °C
Optical fiber - Fiber ethernet cabling technology - 1000BASE-X
Other features - PoE protocol: IEEE802.3af, IEEE802.3at, Hi-PoE Operating humidity 10% ~ 90% Power: DC 48 ~ 57V power supply Operating temperature: -30°C ~ 65°C Ethernet port: 2 x 1000 Base-X 1 x 10/100/1000 Base-T (Hi-PoE / PoE + / PoE) 3 x 10/100 Base-T (PoE + / PoE) PoE power consumption:     Port1, 2, 3 30W Port4 60W Total 96W Lightning protection:    4KV common mode Differential mode 2K
Other functions -
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Fast Ethernet (copper) ports quantity - 3
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 1
Ports & interfaces - SFP module slots quantity - 2
Power - DC input voltage - 48 - 57 V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power supply -
Primary port count - 4
producer - Dahua
producerCode - PFS3206-4P-96
ProductName - PFS3206-4P-96
productName - SWITCH DAHUA PFS3206-4P-96
productSize - Normal
QoS -
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 27 cm
Shipping Box Height Shipping/Package Box Dimensions - 7.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.22 kg
Shipping Box Width Shipping/Package Box Dimensions - 24 cm
ShortSummaryDescription - Dahua Technology PFS3206-4P-96, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE)
sizeX - 270
sizeY - 245
sizeZ - 80
Supported protocols and standards -
Switch class - Unmanaged
Switching capacity - 6.8 Gbps
Switch layer - L2
Switch type - L2
Throughput - 6.8 Gb/s
Title - Dahua Technology PFS3206-4P-96 network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Unit Box Height - 0.075
Unit Box Length - 0.27
Unit Box Width - 0.24
Unit Brutto Volume - 0.00486 cubm
Unit Gross Weight - 1.22 kg
Unit Net Weight - 0.48 kg
URL - https://th.dahuasecurity.com/uk/products/productDetail/6981
Vendor Homepage - www.dahuasecurity.com/products/productDetail/6981
vendpn - 6939554912764
VLAN -
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 480 g
weight - 1215
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 480 g
Weight & dimensions - Width - 150 mm
