Level One GSW-0807, 8x1GE

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 807260 Product code: GSW-0807
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
46.17 €
Delivery options
  • Delivery to Smartpost 1.99 €: 17.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 17.04.2025
  • Courier delivery 3.99 €: 17.04.2025
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: Eight Core
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : N/A
RJ-45 Ports : Eight Core
SFP Ports : N/A
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : N/A
PoE Support : Nav
PoE Total Power Budget : N/A
Weight (g) : 135 g
Network cards
More detailed specification
Brand - LevelOne
BrandPartCode - GSW-0807
Category - Network Switches
Certificates - Certification - CE, RoHS, FCC
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8192 entries
Data transmission - Packet forwarding rate (1 Gbps) - 1488000 pps
Data transmission - Packet forwarding rate (10 Mbps) - 14880 pps
Data transmission - Packet forwarding rate (100 Mbps) - 148000 pps
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 16 Gbit/s
Design - LED indicators - Activity, Link, Power
Design - Product colour - Black, Red
Design - Rack mounting - No
Design - Stackable - No

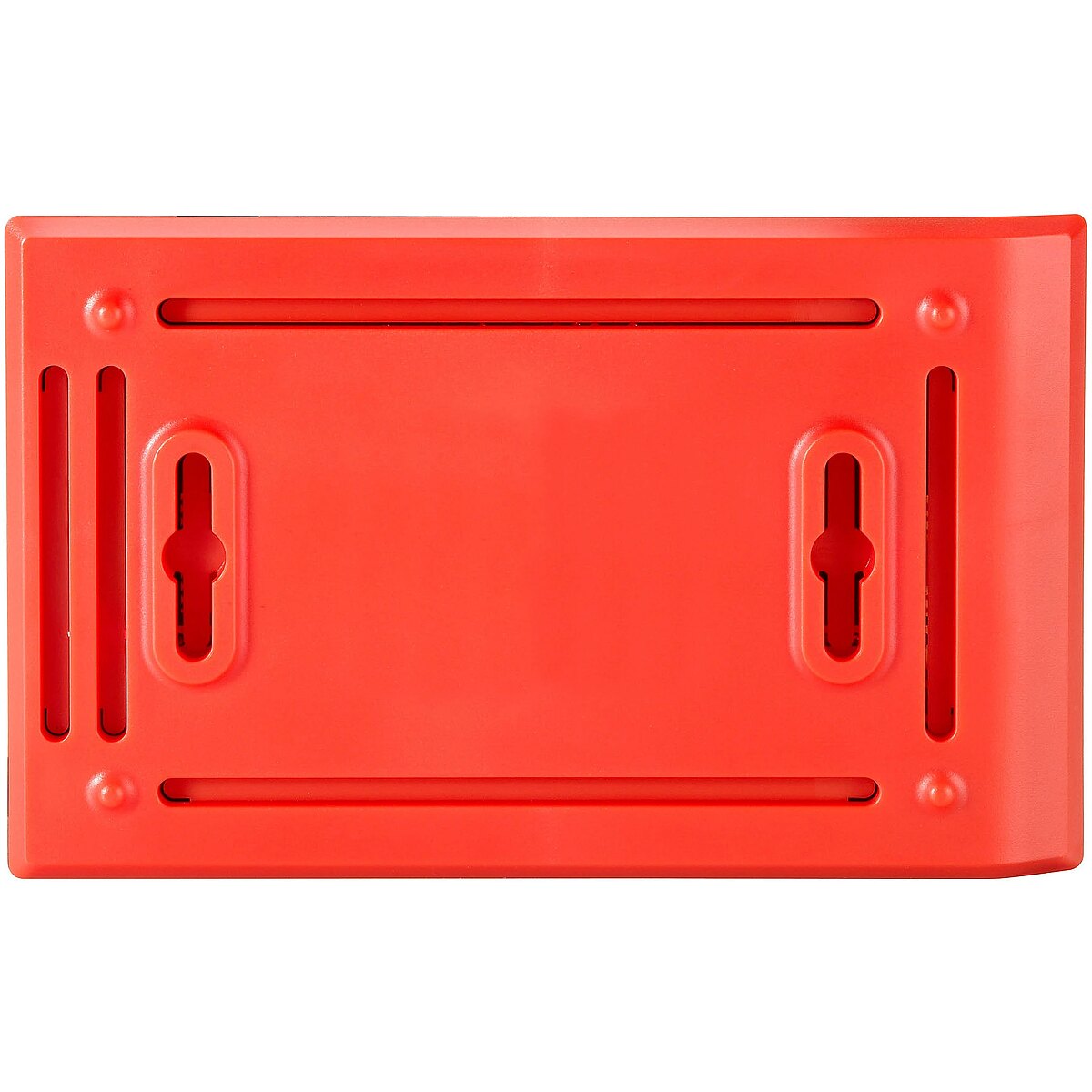

Design - Wall mountable - Yes
EAN - 4015867140048
Gross Weight Kg - 0,45
GTIN - 0168141531194
GTIN - 168141531194
GTIN - 0803982818096
GTIN - 803982818096
GTIN - 0878742003654
GTIN - 878742003654
GTIN - 4014619048519
GTIN - 4015867140048
GTIN - 4015867225141
GTIN - 4052305326244
GTIN - 4054318712984
GTIN - 5054484159551
GTIN - 5711045329197
GTIN - 7320285301504
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The LevelOne GSW-0807 Gigabit Ethernet Switch is designed for reliable high-performance networking. With its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 2000Mbps per port, while the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming. Moreover, this switch also supports IEEE 802.3az Energy Efficient Ethernet which helps reduce power consumption. Power Saving FeaturesThe GSW-0807 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without compromising performance. One of the ways it does this is by automatically detecting the length of connected cables and can adjust power usage by saving energy on shorter cable connections. Compact and Stylish DesignThe stylish, compact wall-mountable housing of GSW-0807 fits any working environment. It comeswith 8 10/100/1000Mbps ports to meet SOHO and home network expansion needs. Easy to UseThe GSW-0807 features plug-and-play for easy installation. No configuration is required. Autonegotiation on each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
LongProductName - 8-Port Gigabit Switch
LongSummaryDescription - LevelOne 8-Port Gigabit Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8192 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Management features - Switch type - Unmanaged
Manufacturer Code - GSW-0807
Manufacturer Name - Level One
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Quick start guide - Yes
Packaging data - AC adapter included - Yes
Packaging data - Package depth - 92 mm
Packaging data - Package height - 92 mm
Packaging data - Package type - Box
Packaging data - Package weight - 300 g
Packaging data - Package width - 142 mm
Performance - Flash memory - 1024 MB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces - Power connector - DC-in jack
Power - Input current - 1 A
Power - Power consumption (typical) - 3 W
Power - Power supply included - No
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Print Text - 8x Gbit (RJ45), without fan; | Layer2; Unmanaged; power adapter external;
ProductName - 8-Port Gigabit Switch
Short description - LevelOne Switch 8x GBit Unmanaged Black Edition
ShortSummaryDescription - LevelOne 8-Port Gigabit Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Title - LevelOne 8-Port Gigabit Switch
URL - https://www.level1.com/level1_en/gsw-0807-8-port-gigabit-switch--levelone-530150
WarrantyInfo -
Weight & dimensions - Depth - 89 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Weight - 135 g
Weight & dimensions - Width - 149.5 mm
