ARTIKEL1 - L3 STACKSWITCH 24X10/100/1000-T
ARTIKEL2 - 4XSFP+ PORTS + SINGLE FIXED PSU
Brand - Allied Telesis
BrandPartCode - AT-GS980MX/28-50
Category - Network Switches
Data transmission - Forwarding rate - 95.2 Mpps
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (1 Gbps) - 7.63 µs
Data transmission - Latency (10 Gbps) - 1.63 µs
Data transmission - Latency (10-100 Mbps) - 8.29 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Switching capacity - 128 Gbit/s
Design - Form factor - 1U
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Stackable - Yes
EANCode - 0767035213712
Gewicht - 5.78
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0767035213712
GTIN - 767035213712
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-GS980MX/28-50
LongDesc - The GS980MX Series of stackable Layer 3 Lite switches feature high capacity, resiliency, and easy management. With Multi-Gigabit ports and Power over Ethernet, and available in both compact and high port density models, they provide an ideal choice for high-speed connectivity at the network edge.

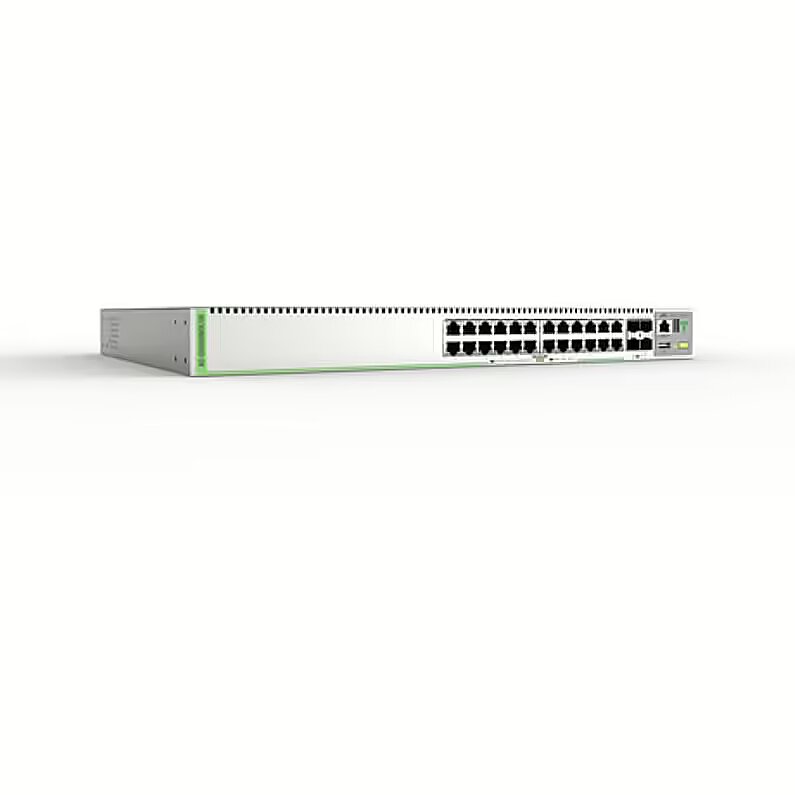

LongProductName - AT-GS980MX - 24-port 10/100/1000T stackable switch with 4 SFP+ ports and a single fixed power supply, European power cord
LongSummaryDescription - Allied Telesis GS980MX. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE.... Rack mounting, Form factor: 1U
Management features - ARP inspection - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Multicast features - Multicast support - Yes
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.2, IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Policy-based routing - Yes
Network - Port mirroring - Yes
Network - Virtual LAN features - Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Network - VLAN support - Yes
Operational conditions - Heat dissipation - 133 BTU/h
Operational conditions - Non-operating altitude - 0 - 4000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Packaging content - Cables included - AC
Packaging data - Package depth - 534 mm
Packaging data - Package height - 128 mm
Packaging data - Package weight - 6.3 kg
Packaging data - Package width - 563 mm
Performance - Flash memory - 256 MB
Performance - Internal memory - 16384 MB
Performance - Memory type - DDR3-SDRAM
Performance - Noise level - 42 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Installed SFP+ modules quantity - 4
Power - Power consumption (max) - 39 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - GS980MX
Protocols - Management protocols - SNMP
Security - Access Control List (ACL) - Yes
Security - Authentication - MAC-based authentication
Security - BPDU filtering/protection - Yes
Security - DHCP features - DHCP client, DHCPv6 snooping
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - SSH/SSL support - Yes
ShortSummaryDescription - Allied Telesis GS980MX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Title - Allied Telesis GS980MX Managed L3 Gigabit Ethernet (10/100/1000) 1U Grey
URL - https://www.alliedtelesis.com/de/en/products/switches/gs980mx-series#description-tab
WarrantyInfo -
Weight & dimensions - Depth - 323 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.3 kg
Weight & dimensions - Width - 441 mm
