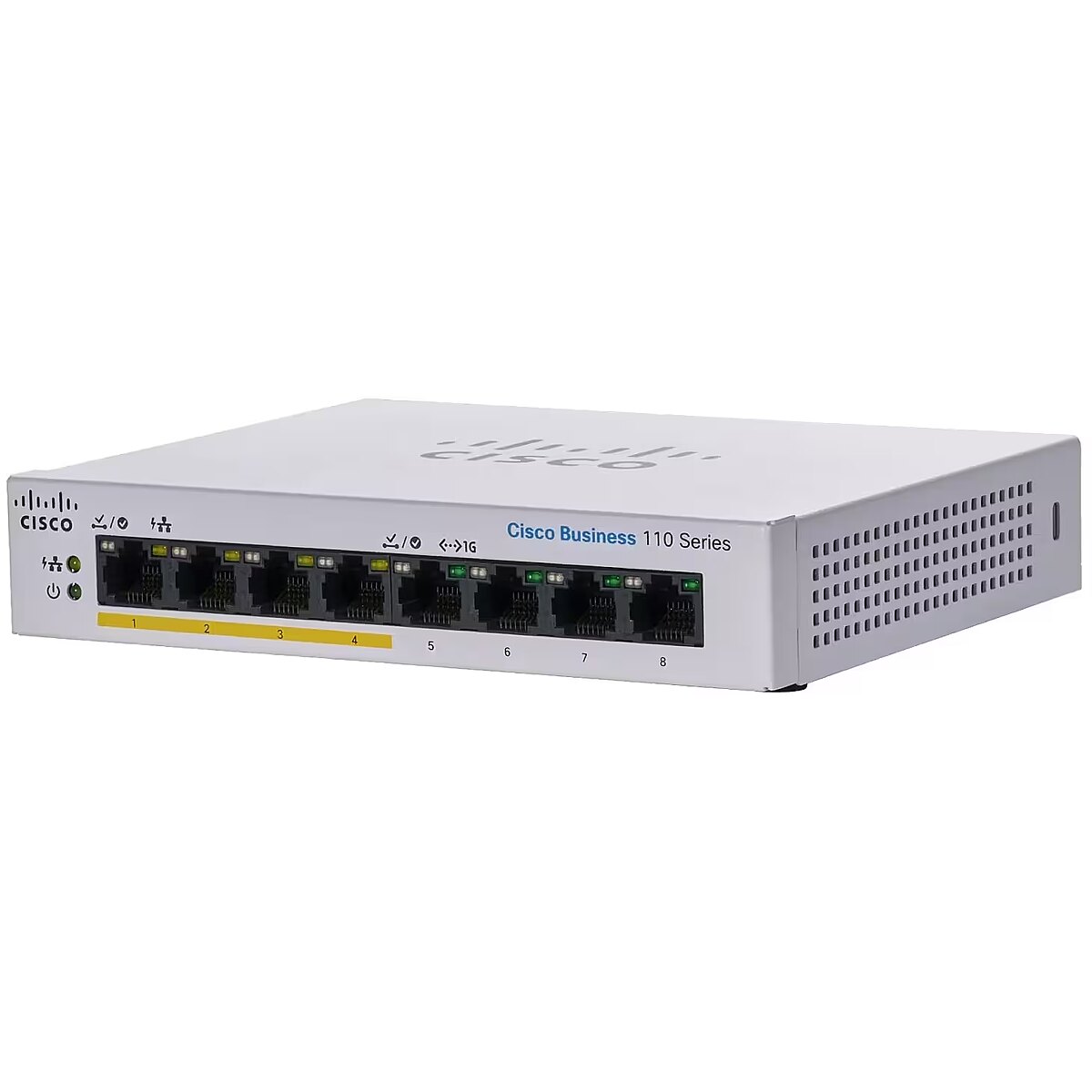

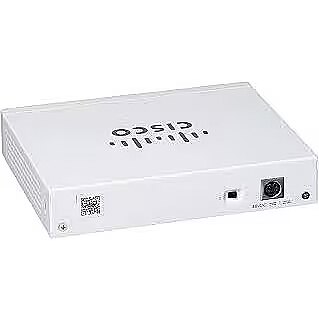

ARTIKEL1 - CBS110 UNMANAGED 8-PORT GE
ARTIKEL2 - PARTIAL POE DESKTOP EXT PS
Breite - 0.23
Data transmission - Forwarding rate - 11.9 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8192 entries
Data transmission - Number of queues - 4
Data transmission - Switching capacity - 16 Gbit/s
Design - Certification - UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A, FCC B
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - No
dimensionalWeight - 931
EANCode - 0889728326049
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
HERSTELLER - CISCO
HSTNUMMER - CBS110-8PP-D-EU
Logistics data - Harmonized System (HS) code - 85176990
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Heat dissipation - 130.34 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Packaging data - Quick start guide - Yes
Performance - Built-in processor - Yes
Performance - Mean time between failures (MTBF) - 465437 h
Performance - Processor frequency - 400 MHz
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 8
Power - DC input voltage - 48 V
Power - Input current - 1.25 A
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 32 W
producerCode - CBS110-8PP-D-EU
productName - CBS110 UNMANAGED 8-PORT GE/PARTIAL POE DESKTOP EXT PS
productSize - Normal
Security - Queue scheduling algorithms - Weighted Round Robin (WRR)
sizeX - 332
sizeY - 230
sizeZ - 61
Stck_Kart - 8
Stck_Pal - 40
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE
warrantyLength - 12
warrantyType - G
weight - 1465
Weight & dimensions - Depth - 129 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 550 g
Weight & dimensions - Width - 160 mm
