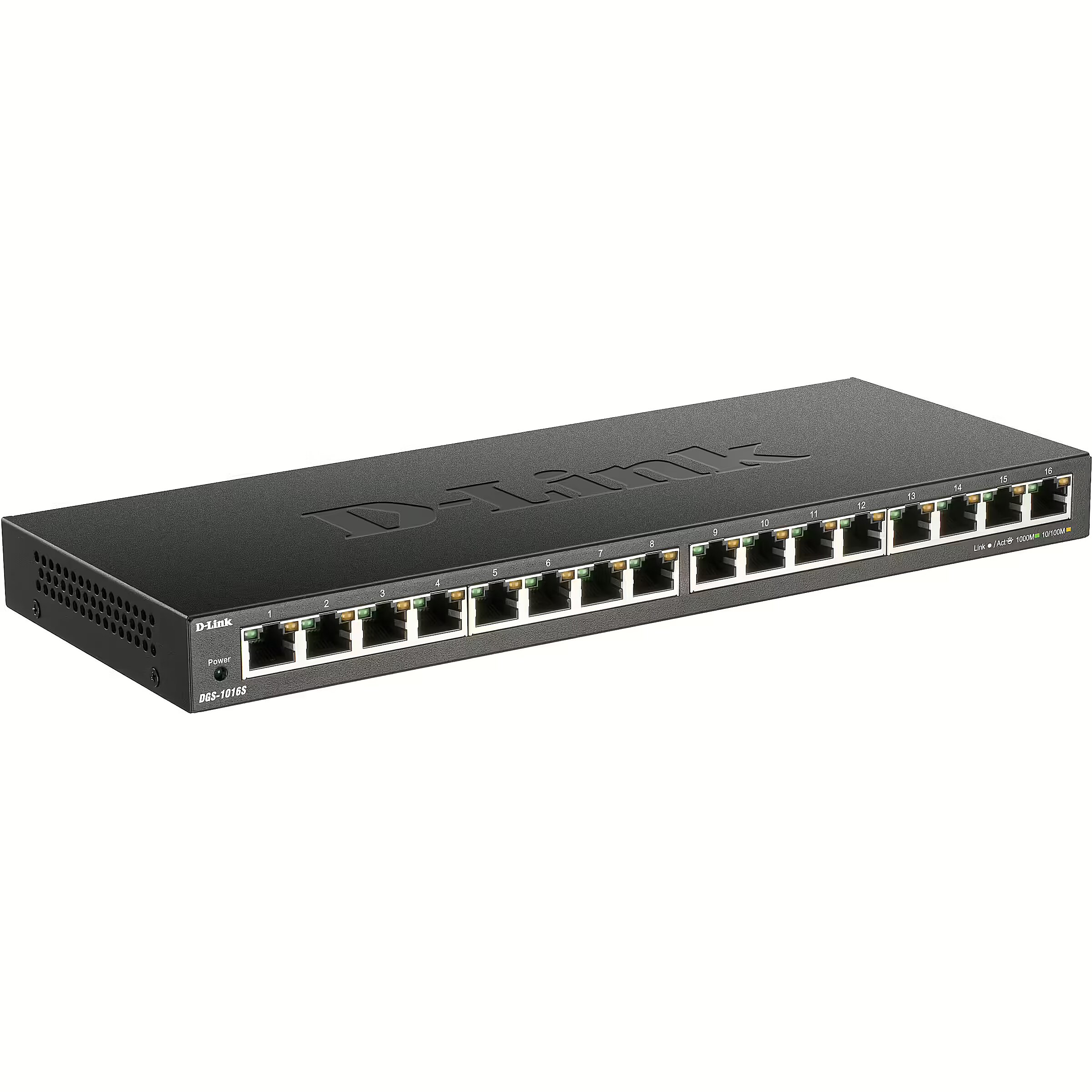

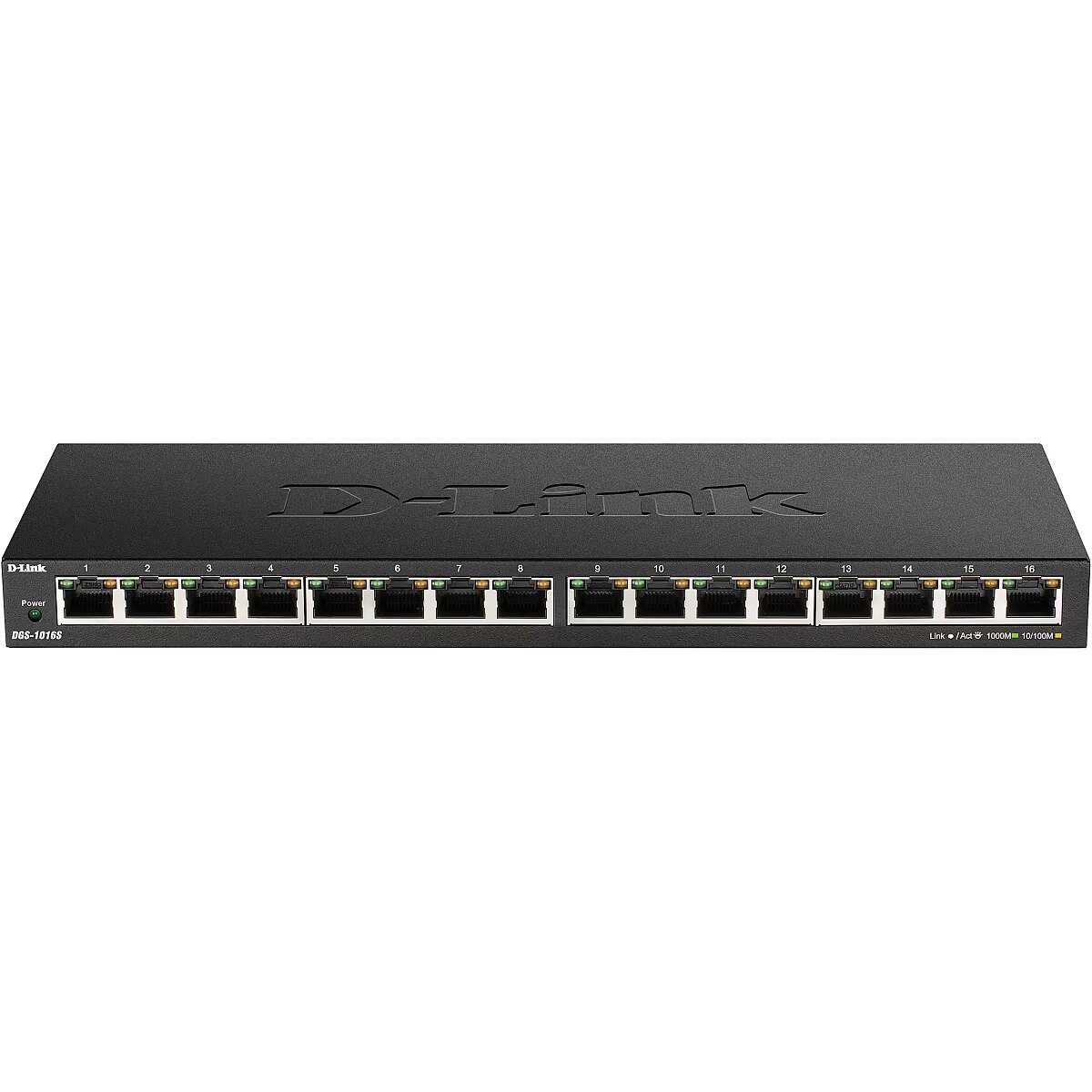

D-Link DGS‑1016S 16-Port Gigabit Unmanaged Switch

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 603273 Product code: DGS-1016S/E
In stock 2 units
Warranty: 2 years
96.31 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 02.12.2024
  • Courier delivery 3.99 €: 02.12.2024
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: 16
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : N/A
RJ-45 Ports : 16
SFP Ports : N/A
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : N/A
PoE Support : Nav
PoE Total Power Budget : N/A
Weight (g) : 770 g
More detailed specification
Accessories included -
Application - Home and small office
ARTIKEL1 - 16-PORT 10/100/1000MBPS UNMGD.
ARTIKEL2 - GB ETHERNET SWITCH
Brand - D-Link
BrandPartCode - DGS-1016S/E
Category - Network Switches
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC, ICES 003, RCM
Code - DGS-1016S/E
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Number of queues - 8
Data transmission - Packet buffer memory - 0.512 MB
Data transmission - Packet forwarding rate (1 Gbps) - 1488000 pps
Data transmission - Packet forwarding rate (10 Mbps) - 14880 pps
Data transmission - Packet forwarding rate (100 Mbps) - 148800 pps
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 32 Gbit/s
Description - Przełącznik niezarządzalny Gigabit D-Link DGS-1016S
16-portowy niezarządzalny przełącznik gigabitowy jest idealny dla domów i małych i średnich firm, które szukają szybkiego i łatwego sposobu na aktualizację lub rozbudowę sieci. Jego smukła, niskoprofilowa konstrukcja oznacza, że można go umieścić na biurku lub zamontować na ścianie. Prosta konfiguracja bez oprogramowania ani konfiguracji. Kluczowe cechy: 16 portów gigabitowych Smukła, niskoprofilowa konstrukcja do montażu na biurku lub na ścianie Prostota Plug & Play dla łatwej instalacji Cicha praca bez wentylatora
Design - LED indicators - Activity, Link, Power, Speed
Design - Product colour - Black
Design > Form factor - Desktop
dimension depth - 80 mm
dimension height - 140 mm
Dimensions - 280 x 110 x 25 mm
dimension weight - 1100 g
dimension width - 310 mm
EAN - 790069455261
ean - 790069455261
EANCode - 0790069455261
EAN_code - 0790069455261
Fan - No
Forwarding mode - Store-and-forward
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0790069455261
GTIN - 790069455261
guarantee - 24
guarantee_type - external
HERSTELLER - D-LINK
HSTNUMMER - DGS-1016S/E
L2 features -
L3 features -
Link - https://us.dlink.com/en/products/dgs-1016s-16-port-gigabit-desktop-switch
LongDesc - Slim, Low-Profile DesignAllowing the switch to be placed on the desktop or mounted on the wallHigh-Speed Gigabit NetworkingConnect up to 16 devices for fast file transfers and smooth media streamingSilent OperationFanless design means the switch is virtually silent when in useEnergy EfficientIntegrated energy-saving technology to reduce power usage automaticallyConnect More, Connect FasterThe 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.Silent and built to lastMetal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.Visual Cable DiagnosticsLEDs on each port allow you to quickly see when something is wrong with the connection.Good for your wallet, great for the planetWith its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
LongProductName - 16‑Port Gigabit Unmanaged Switch
LongSummaryDescription - D-Link DGS-1016S. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x. DC input voltage: 12 V
MAC address table size - 8000
Management, monitoring, configuration -
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - D-Link
Manufacturer_code - DGS-1016S/E
Mean time between failures (MTBF) - 564658 h
Name - D-Link | 16-Port Gigabit Desktop Switch | DGS-1016S | Unmanaged | Desktop
Name - D-Link DGS-1016S/E, Switch
name - DGS-1016S Switch 16xGE
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable length detection - Yes
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 16
Operational conditions - Heat dissipation - 30.32 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 285.00 mm
Package features > Gross depth master carton - 310 mm
Package features > Gross height (mm) - 30.00 mm
Package features > Gross height master carton - 225 mm
Package features > Gross width (mm) - 115.00 mm
Package features > Gross width master carton - 210 mm
Package features > Net weight master carton - 3 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1031 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > PET - 4 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 0.249 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance - Fanless - Yes
Performance - Mean time between failures (MTBF) - 564658 h
Performance > Plug and Play - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)

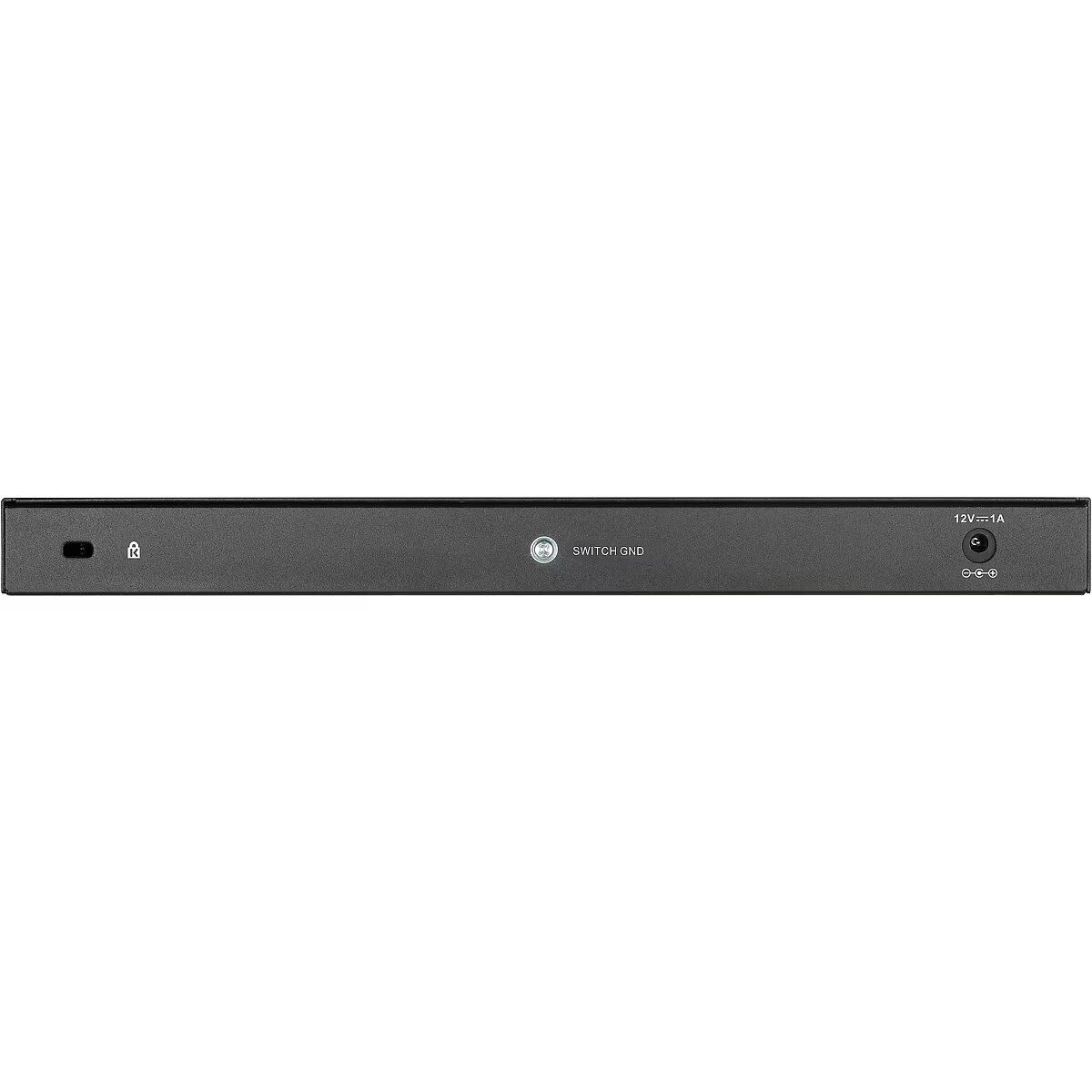

Power - DC input voltage - 12 V
Power - Input current - 1 A
Power - Power consumption (max) - 8.89 W
Power consumption - 3.37 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - 12 V / 1 A
producer - D-Link
Producer product family - 16-Port Gigabit Desktop Switch
Producer product name - DGS-1016S
ProductName - DGS-1016S
QoS -
Security -
ShortSummaryDescription - D-Link DGS-1016S, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
Stck_Kart - 10
Stck_Pal - 10
Storno - N
Supported protocols and standards - IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE)
Support for Jumbo frames - No
Switch class - Unmanaged
Switch layer - L2
Technical details > Gross weight - 0.97 kg
Technical details > Net weight - 0.77 kg
Technical details > Other features - Auto power reduction when port has little or no traffic; Cable-length detection enhances energy conservation; Energy-efficient design reduces heat generated and allows silent operation
Technical details > Producer - D-Link
Throughput - 32 Gb/s
Title - D-Link DGS-1016S Unmanaged Gigabit Ethernet (10/100/1000) Black
URL - https://www.dlink.com/en/products/dgs-1016s-16-port-gigabit-desktop-switch
vendpn - DGS-1016S/E
VLAN -
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo - 2 Years
Weight - 0.77 kg
Weight - 1,09
Weight & dimensions - Depth - 110 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Weight - 770 g
Weight & dimensions - Width - 280 mm
