ID: 363125
Product code: AT-GS950/48-50
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 3 years

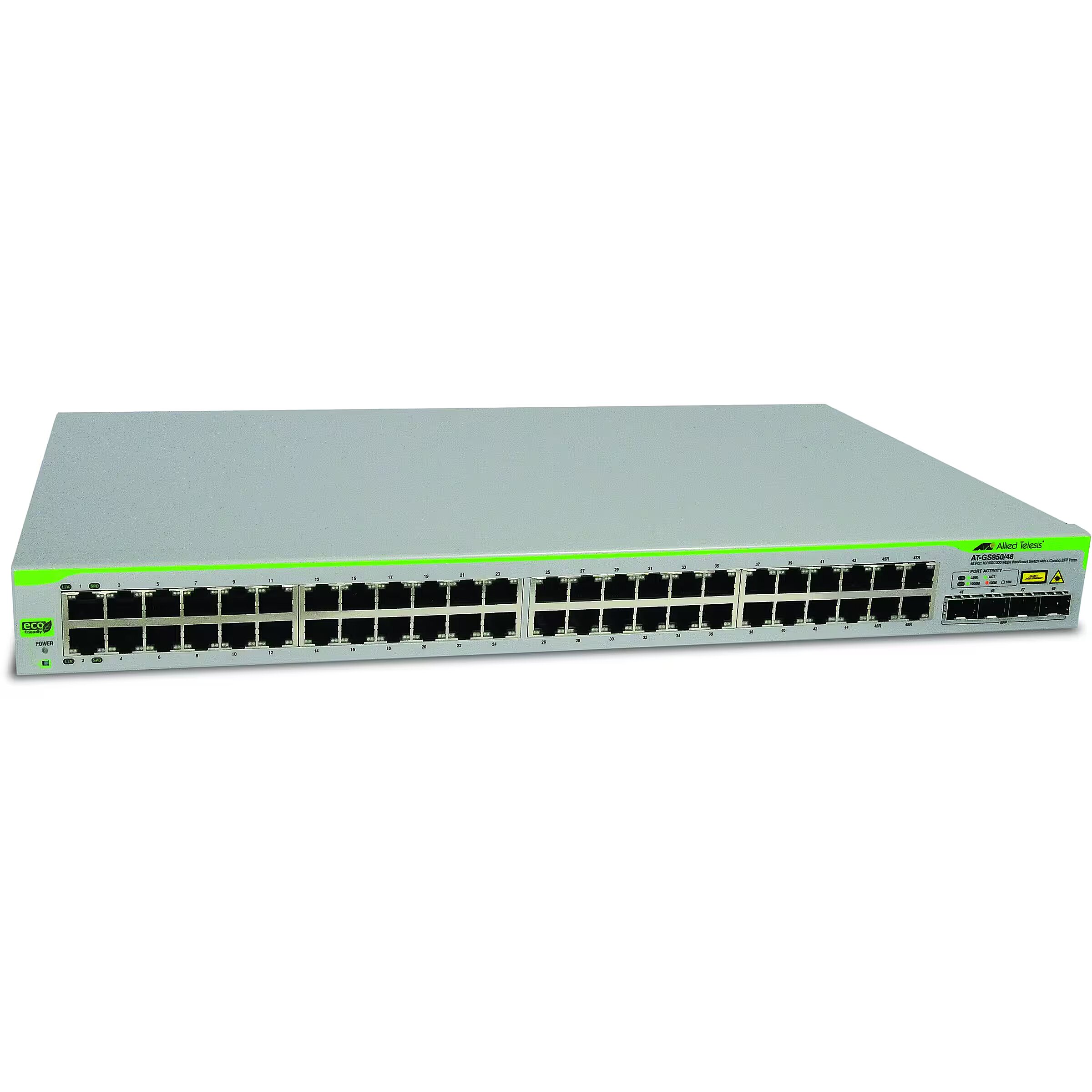

Allied Telesis AT-GS950/48-50
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 20.12.2024
- Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: 48
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: N/A
RJ-45 Ports
: 48
SFP Ports
: 4
Specifikācija
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: Nav
PoE Total Power Budget
: N/A
Weight (g)
: 4005 g
More detailed specification
ARTIKEL1 - L2 WS GE 48 P W/ 4 X SFP
ARTIKEL2 - 990-003647-50 IN
Brand - Allied Telesis
BrandPartCode - 990-003647-50
Category - Network Switches
Certificates - Certification - UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 6 MB
Data transmission - Throughput - 14.88 Mpps
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
EANCode - 0767035182513
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0767035182513
GTIN - 767035182513
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-GS950/48-50
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The Allied Telesis AT-GS950/48 eco-friendly WebSmart switch upholds the Allied Telesis commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high-efficiency power supply and a low power chipset.The AT-GS950/48 features 48 x 10/100/1000T ports and an additional four Gigabit SFP combo ports. This WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network. The AT-GS950/48 provides key features using the simple web-based management function, such as port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.
LongProductName - 48 port 10/100/1000TX WebSmart switch with 4 x 100/1000 SFP bays
LongSummaryDescription - Allied Telesis AT-GS950/48-50. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power connector: DC-in jack. Rack mounting, Form factor: 1U
Management features - MIB support - RFC 1213, RFC 1643, RFC 1493
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - Web-based management - Yes
Multicast features - Multicast support - Yes
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Broadcast storm control - Yes
Network - Copper ethernet cabling technology - 1000BASE-T, 100BASE-TX
Network - Flow control support - Yes
Network - Head-of-line (HOL) blocking - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Performance - Flash memory - 4 MB
Performance - Internal memory - 32 MB
Performance - Mean time between failures (MTBF) - 263000 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 48
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 4
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Power connector - DC-in jack
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - AT-GS950/48-50
Protocols - Management protocols - IGMP, SNMP, FTP
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
ShortSummaryDescription - Allied Telesis AT-GS950/48-50, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Stck_Kart - 3
Stck_Pal - 14
Storno - Y
Title - Allied Telesis AT-GS950/48-50 Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey
URL - https://www.alliedtelesis.com/products/gs95048-0
WarrantyInfo - 5Years
Weight & dimensions - Depth - 322 mm
Weight & dimensions - Height - 43.5 mm
Weight & dimensions - Weight - 4.05 kg
Weight & dimensions - Width - 444 mm
