Accessories included -
Application - Home and small office
Category - Root/Electronics/Networks and communication/Switchers
Chassis type - Desktop
Console port - No

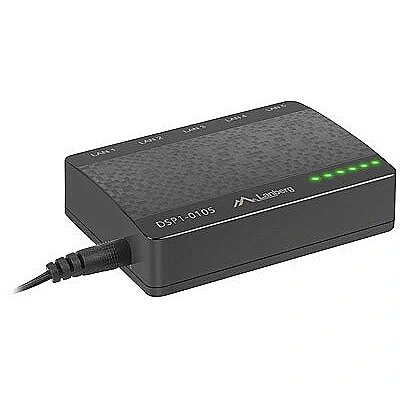

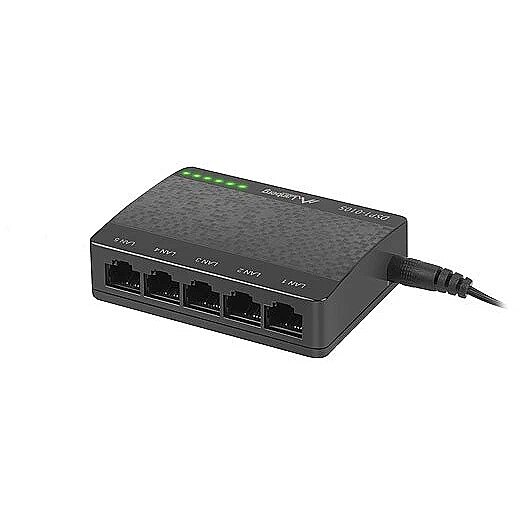

Description - Lanberg DSP1-0105 is a small unmanaged desktop switch, equipped with 5 Fast Ethernet ports. The device is small and handy and operates on the principle of Plug & Play. The switch provides support for switching functions for 5 10/100 Mbps RJ-45 ports with automatic connection negotiation and MDI-MDIX support. The Lanberg switch is ideal for use in home environments due to its very small size and the use of quiet cooling. Black colors and elegant slim casing make the device suitable for almost any interior. The device is suitable for office applications, including SOHO and SMB. The switch also provides adequate performance, meeting the requirements set by users in the switch segment. The function of automatic recognition and adaptation to the type of connected network cable (straight or crossover), eliminates the need to use only one type of cabling, as well as uplinks, allowing simultaneous reduction of unnecessary costs. The switch supports half-duplex and full duplex mode for connections between devices. The Flow control function allows for data flow control, thus avoiding a blockage on the port when one of the receiving devices is unable to receive enough data. The Lanberg switch guarantees a combination of high quality, automation and a range of functionalities that ensure the device's operation without any excessive user interference.
Features and functionalities: 5 10/100 Mbps RJ-45 ports with automatic connection negotiation, Plug-and-play - a device that does not require any additional configuration, Support for MDI / MDIX functionality, MAC-learning, MAC-aging, IEEE 802.3az support (economical Ethernet), Flow control function: back pressure @ half-duplex and IEEE 802.3x @ full duplex, Topology: Star, Protocol: CSMA / CD, MAC address table support: 1K, Switching bandwidth: 1.0 Gbps, Passive cooling for silent operation of the switch, Holes for wall mounting.
Designation - CE+WEEE
dimension depth - 35 mm
dimension height - 100 mm
Dimensions - 82 x 52 x 22 mm
dimension weight - 142 g
dimension width - 155 mm
ean - 5901969415674
Eans - 5901969415674
Forwarding mode - Store-and-forward
guarantee - 24
guarantee_type - normal
L2 features -
L3 features -
MAC address table size - 1000
Management, monitoring, configuration -
Name - Lanberg switch 5x 100Mb/s niezarządzalny 5V
name - Switch DSP1-0105 5-PORT 100M/S DESKTOP DSP1-0105
Network architecture - FastEthernet
Number of 10/100 Mbps ports - 5
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - None
Other features -
Other functions -
Power consumption - 2.15 W
Power supply - AC: 100-240 V, 50/60 Hz, 0.3 A; DC: 5 V, 1.0 A
Power supply - External
producer - Lanberg
Producer - LANBERG
ProducerCode - DSP1-0105
QoS -
Security -
ShortDescription - switch/przełącznik | 5 portów 100Mb/s | Desktop |
Supported protocols and standards - IEEE 802.3i 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x (Flow-Control)
Switch class - Unmanaged
Switch layer - L2
Throughput - 1 Gb/s
vendpn - DSP1-0105
VLAN -
Weight - 100 g
