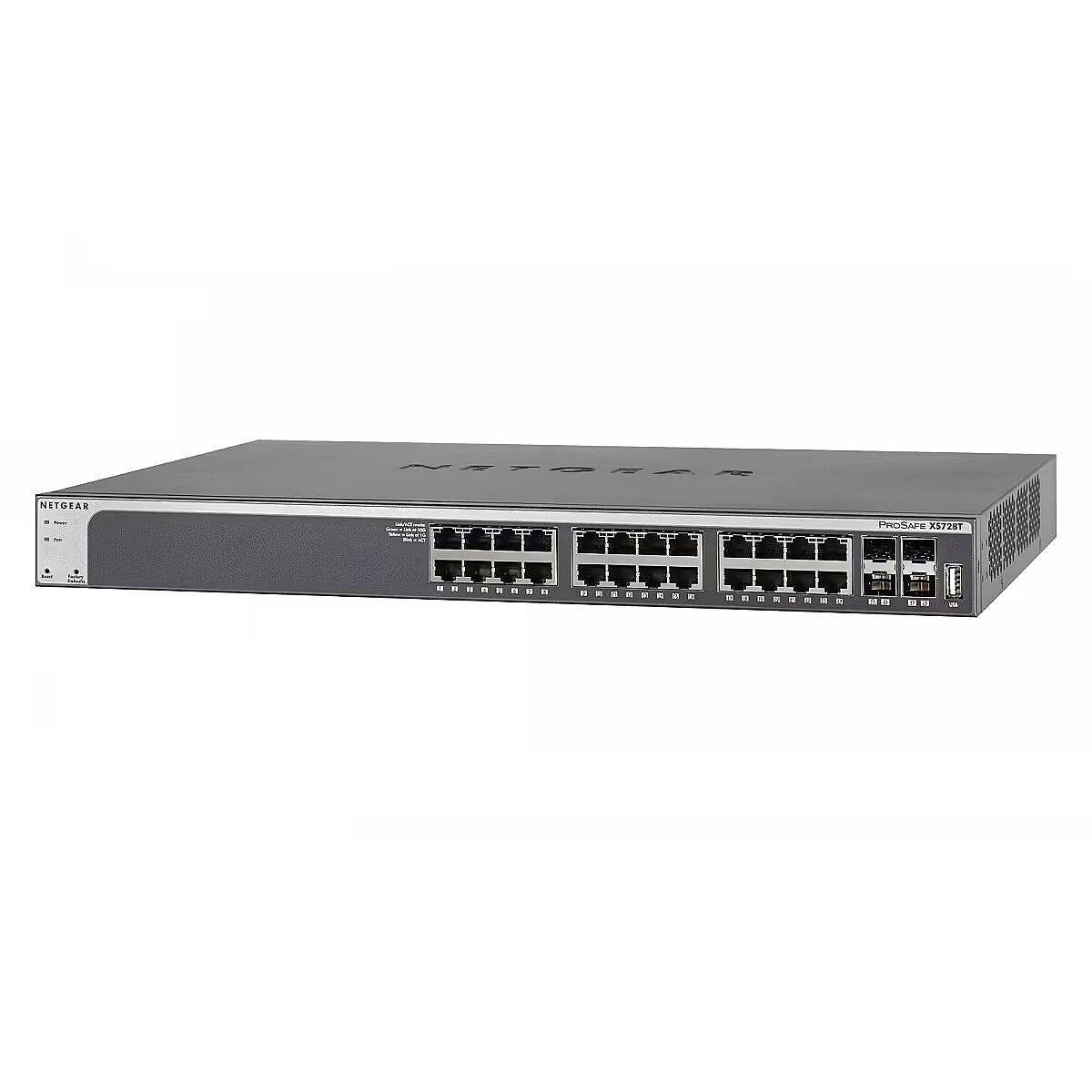

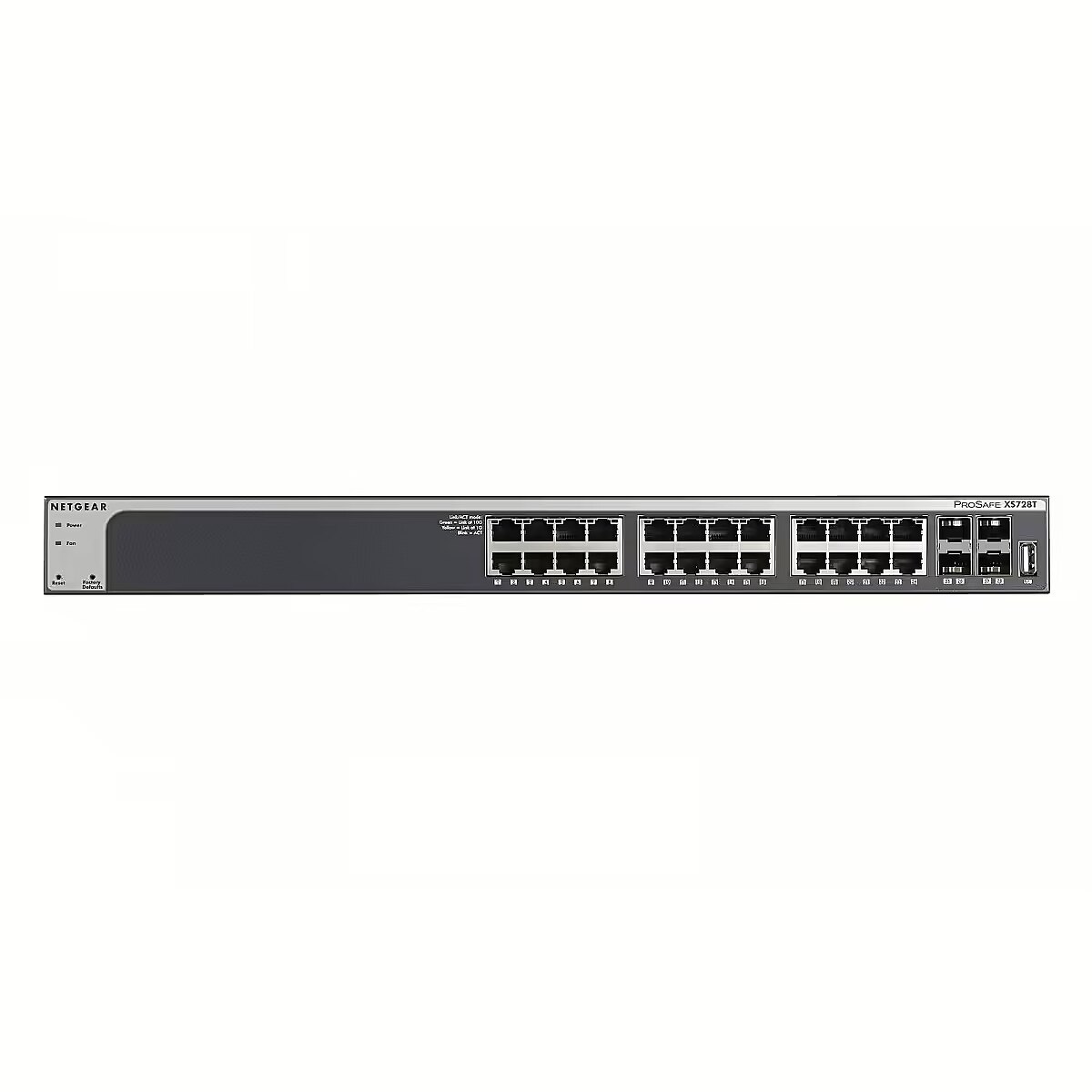

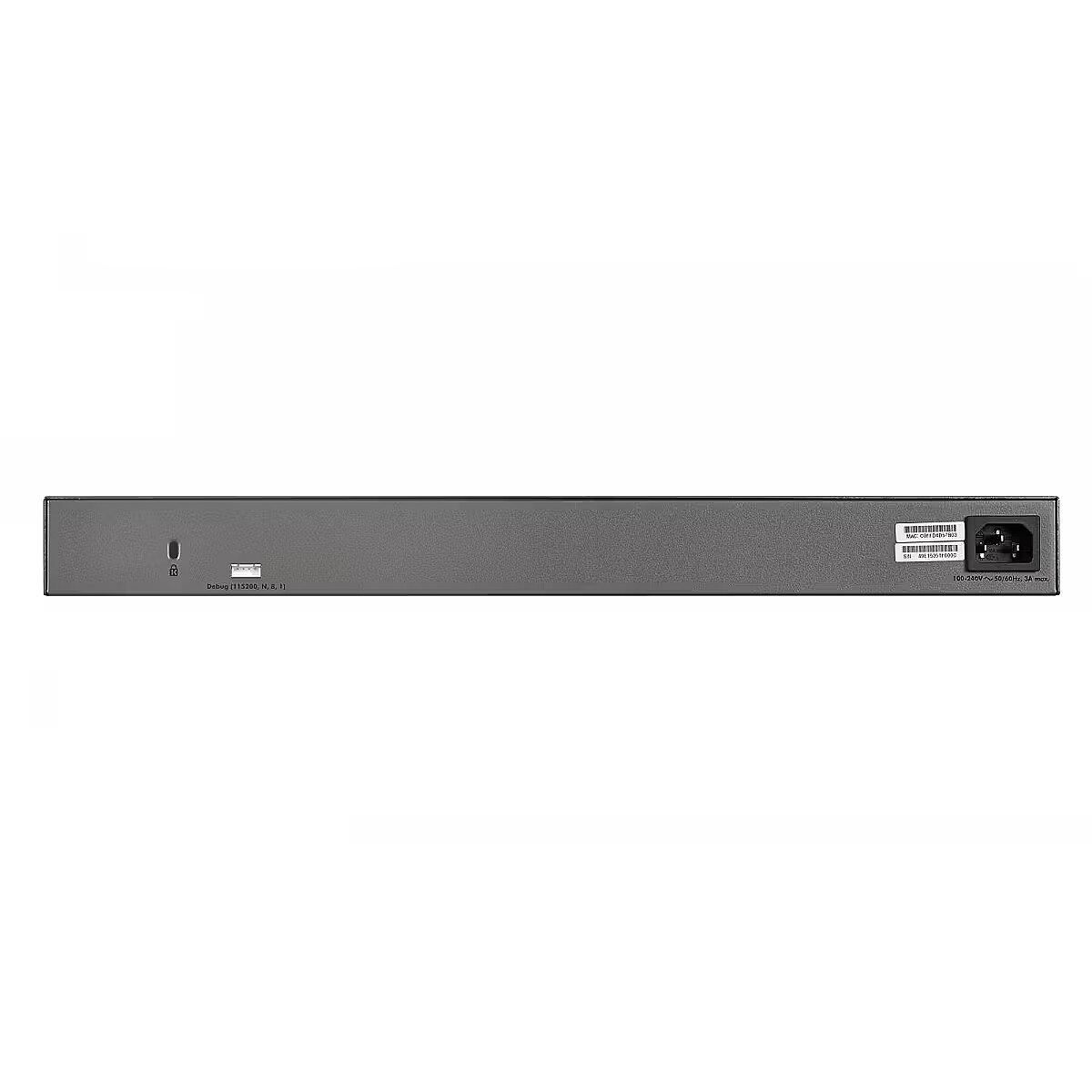

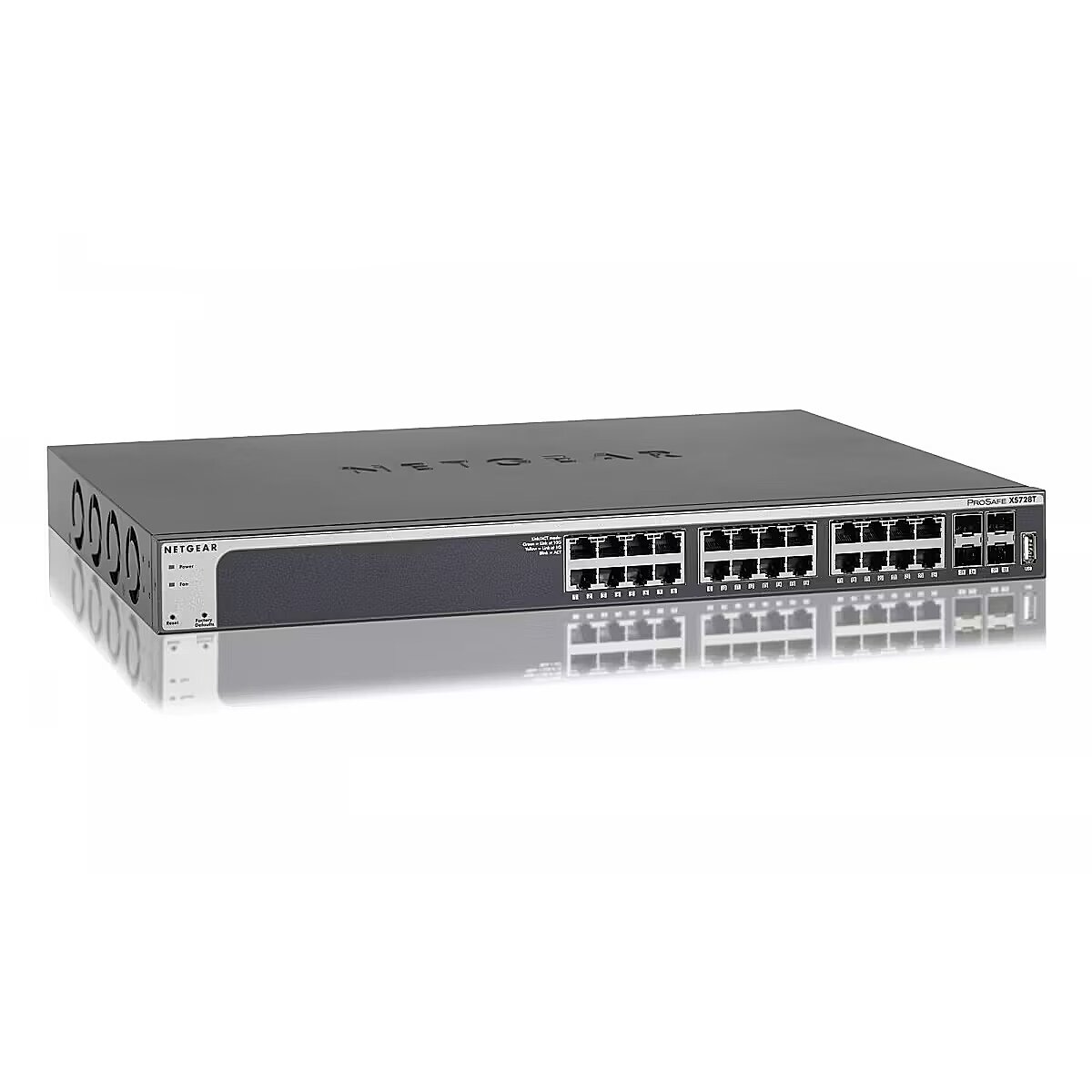

Netgear XS728T Smart Sw itch 24x10GbE 4xSFP+

ARTIKEL1 - 28-PORT 10GB SMART SWITCH
ARTIKEL2 - IN
Brand - NETGEAR
BrandPartCode - XS728T-100NES
Breite - 0.43
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Data transmission - Jumbo frames - 10000
Data transmission - Jumbo frames support - Yes
Data transmission - Latency (10 Gbps) - 11.649 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Number of queues - 8
Data transmission - Number of static routes - 128
Data transmission - Packet buffer memory - 3 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 560 Gbit/s
Design - LED indicators - Activity
Design - LED indicators - Activity, Link, Power
Design - LED indicators - Link
Design - LED indicators - Power
Design - Number of fans - 4 fan(s)
Design - Product colour - Black
Design - Rack mounting - Yes
dimensionalWeight - 4902
EAN - 0606449107241
EANCode - 0606449107241
Eans - 606449107241
EAN_code - 0606449107241
Gross Weight Kg - 8
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 606449107241
GTIN - 0606449107241
HERSTELLER - NETGEAR
Hoehe - 0.1
HSTNUMMER - XS728T-100NES
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to higher speed and performance. The 10-Gigabit Smart Managed Switch series from NETGEAR presents the right solution for this requirement; delivering unprecedented non-blocking 10-Gigabit bandwidth at an affordable cost.The NETGEAR XS708T, XS716T, XS728T, and XS748T are powerful Smart Managed Switches that come with 8, 16, 24, or 44 10-Gigabit Copper ports and either 2 Shared (Combo) Copper/SFP+ ports (XS708T/XS716T) or 4 additional Dedicated SFP+ ports (XS728T/XS748T) for 10G Fiber links. The NETGEAR 10-Gigabit Smart Managed Switches are purposely designed as a cost-effective way to provide 10G connections to 10G-capable servers and NAS (Network Attached Storage) systems. They can be used at the “center of a small business network” or as an aggregation / access switch in a larger organization including workgroup access, connecting to a 10‑Gigabit NETGEAR Fully Managed Switch on one end and extending the 10G connections to the edge. The XS708T and XS716T are also ideal for smaller workgroups that need high bandwidth for sharing, collaborating, editing, and publishing high-density content like video or animation.Comprehensive L2+/Layer 3 Lite Features- The 10G Smart Managed Switches provide comprehensive L2+/Layer 3 Lite features in order to meet current and future needs on virtualization, converged networking and mobility. Some of the main features include:- Advanced VLAN features such as Protocol-based VLAN, MAC-based (Media Access Control) VLAN and 802.1x Guest VLAN- Advanced QoS (Quality of Service) with L2/ L3/L4 awareness and 8 priority queues- IPv4 and IPv6 static routing- Private VLAN- Dynamic VLAN assignment- IGMP and MLD snooping- Advanced Security- IPv6 for management, QoS and ACL10-Gigabit Transition with BASE-T- 10GBASE-T, like other BASE-T technologies, uses the standard RJ-45 Ethernet jack- It is backward compatible, auto-negotiating between higher and lower speeds – thereby not forcing an all-at-once network equipment upgrade- Cat 5 / Cat 5e are supported for Gigabit speeds up to 100 meters- Cat 6 twisted pair copper cabling supports 10-Gigabit speeds up to 45 meters- Cat 6a or newer Cat 7 cabling will allow for up to 100 meter 10GBASE-T connectionsDesigned as a Core Switch for SMB Networks- 10G connection to 10G-capable servers and network storage- Powerful L2+/Layer 3 Lite features make them the most cost-effective core switches for SMB and virtualization environment- Future-proof your network with 10G bandwidth, advanced traffic management and comprehensive IPv6 support- Static routing helps to route internal traffic for more efficient use of network resources- IGMP and MLD snooping provide advanced multicast filteringAct as an Aggregation Switch for Medium Sized Networks- 10-Gigabit switches help to resolve the congestion issue between network edge and core, which is caused by the broader adoption of Gigabit-to-the-desktop- 10-Gigabit Ethernet provides greater scalability than multiple Gigabit Ethernet links, resulting in a simplified and highly efficient network infrastructure- Up to eight 10-Gigabit Ethernet links can be aggregated into a virtual 80‑Gbps connection- 10-Gigabit Ethernet reduces cabling complexity and uses existing cabling efficientlySmart IT, not Big IT- Easy-to-use web browser-based management GUI makes setup and management simple- Standards-based technology, ensuring interoperability with any standards-based devices in the existing network- Dual firmware images, improving reliability and uptime to your network- Worry-free with NETGEAR ProSAFE® LIFETIME Hardware Warranty*- Minimal down-time with NETGEAR ProSAFE LIFETIME Next-Business-Day Replacement Warranty- Get deployment assistance with 90-days Free 24x7 Advanced Technical Phone Support**- LIFETIME 24x7 Online Chat Technical Support
LongProductName - ProSAFE XS728T - 24x 10GBASE-T copper ports, 4x SFP+ 1000/10GBASE-X fiber ports, 173.3W max., 41.6 dB, 5.04 kg
LongSummaryDescription - NETGEAR 28-Port 10G Ethernet Smart Switch (XS728T). Switch type: Managed, Switch layer: L2+/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 16000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Rack mounting
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2+/L3
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer - Netgear
Manufacturer - NETGEAR
Manufacturer Code - XS728T-100NES
Manufacturer Name - Netgear
Manufacturer_code - XS728T-100NES
MPN - XS728T-100NES
Multicast features - Multicast support - Yes
Name - 24P Netgear X7S728T M RM SFP+
Name - Netgear ProSafe Plus XS728T XG/XG/SMA/24
Name - Netgear XS728T-100NES
Network - 10G support - Yes
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat5e, Cat6, Cat6a, Cat7
Network - Cable types supported - Cat6
Network - Cable types supported - Cat6a
Network - Cable types supported - Cat7
Network - Copper ethernet cabling technology - 10GBASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - IP routing - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1ab
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3ae
Network - Networking standards - IEEE 802.3an
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network - Number of VLANs - 512
Network - Port mirroring - Yes
Network - Rate limiting - Yes
Network - Virtual LAN features - Private VLAN
Network - Virtual LAN features - Private VLAN, Protocol-based VLAN
Network - Virtual LAN features - Protocol-based VLAN
Network - VLAN support - Yes
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging content - Rack mount kit - Yes
Performance - Built-in processor - Yes
Performance - Flash memory - 256 MB
Performance - Internal memory - 512 MB
Performance - Mean time between failures (MTBF) - 514977 h
Performance - Noise level - 41.6 dB
Performance - Processor frequency - 800 MHz
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces - SFP+ module slots quantity - 4
Ports & interfaces - USB 2.0 ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 173.3 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Producer - Netgear
producerCode - XS728T-100NES
ProducerCode - XS728T-100NES
ProductName - 28-Port 10G Ethernet Smart Switch (XS728T)
productName - NETGEAR 28-Port 10G Ethernet Smart Switch (XS728T)
productSize - Normal
Protocols - Management protocols - SNMP v1, v2c, v3
Security - Access Control List (ACL) - Yes
Security - Access Control List (ACL) rules - 164
Security - DHCP features - DHCP client
Security - DHCP features - DHCP server
Security - DHCP features - DHCP server, DHCP client
Security - IGMP snooping - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - 802.1x RADIUS
ShortDescription -
Short description - Netgear 24Port Switch 100/1000/10000 XS728T
ShortSummaryDescription - NETGEAR 28-Port 10G Ethernet Smart Switch (XS728T), Managed, L2+/L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting
sizeX - 570
sizeY - 100
sizeZ - 430
Stck_Kart - 1
Stck_Pal - 15
Storno - Y
Technical_details - 24x 10GBase-T 4x SFP+ Special features: rackmount capable, supports IPv6
Title - NETGEAR 28-Port 10G Ethernet Smart Switch (XS728T)
URL - https://www.netgear.com/business/products/switches/smart/XS728T.aspx#tab-overview
WarrantyInfo - LIFETIME Hardware Warranty
warrantyLength - 24
warrantyType - G
Weight - 6,70
Weight - 6.58
weight - 6660
Weight & dimensions - Depth - 310 mm
Weight & dimensions - Height - 43 mm
Weight & dimensions - Weight - 5.04 kg
Weight & dimensions - Width - 440 mm
