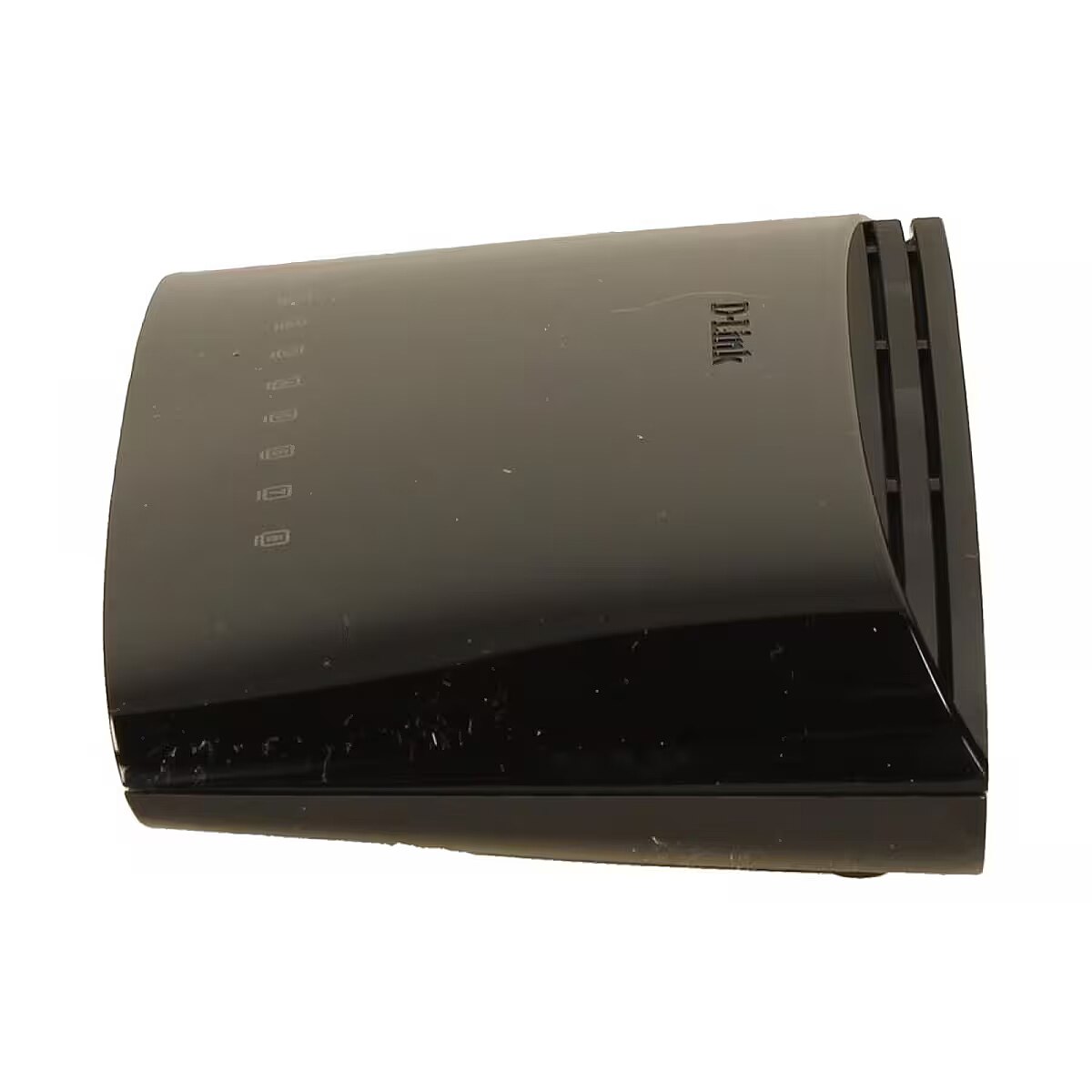

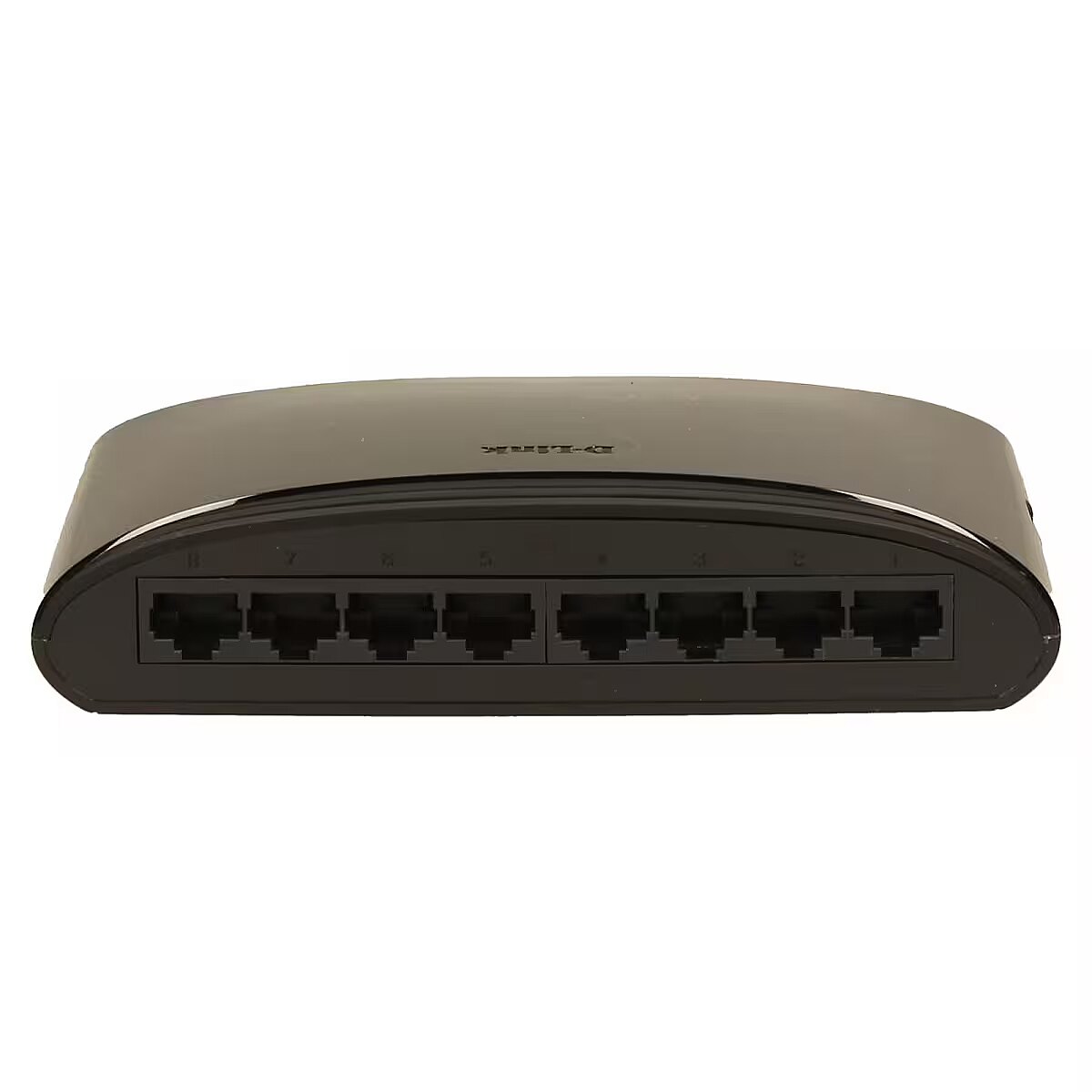

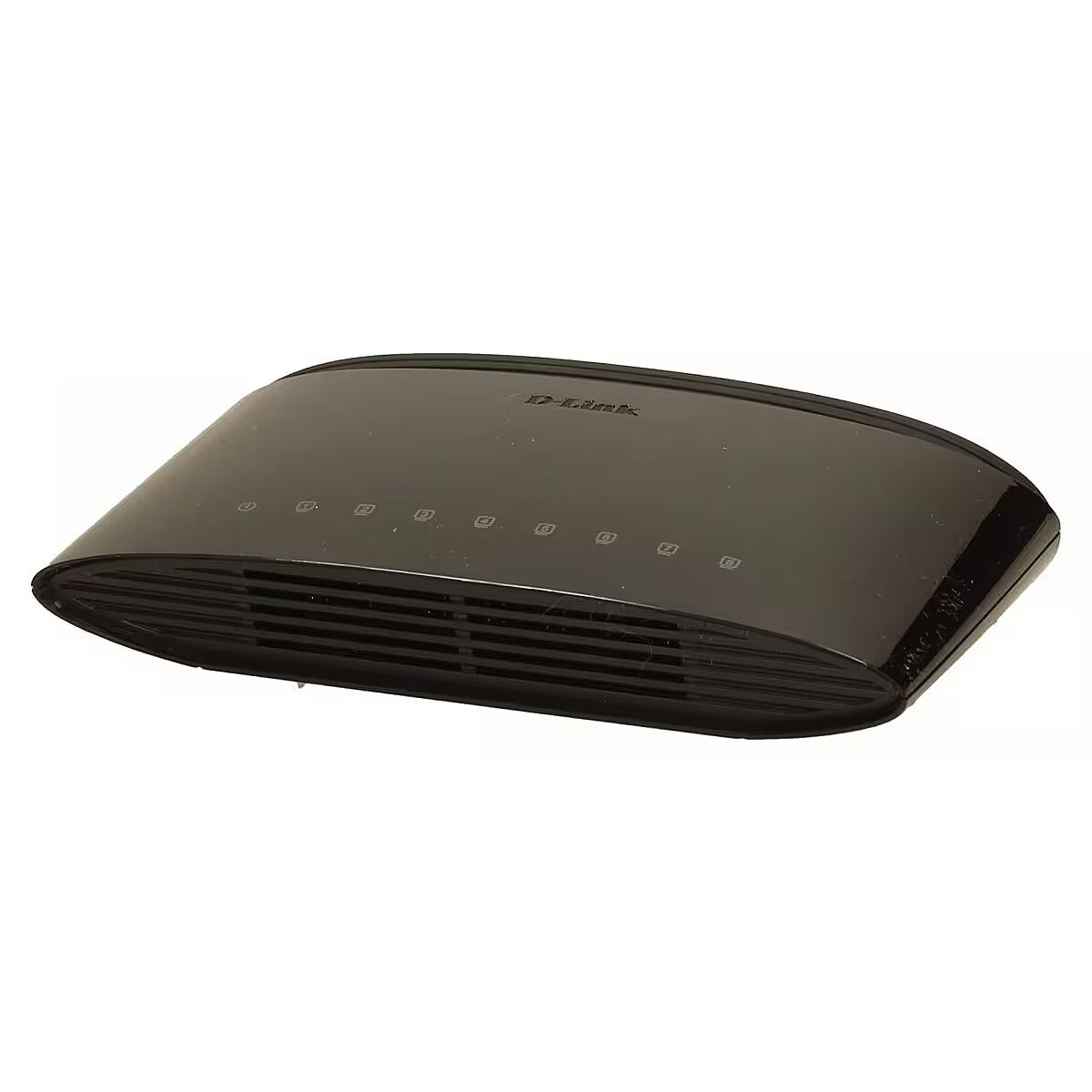

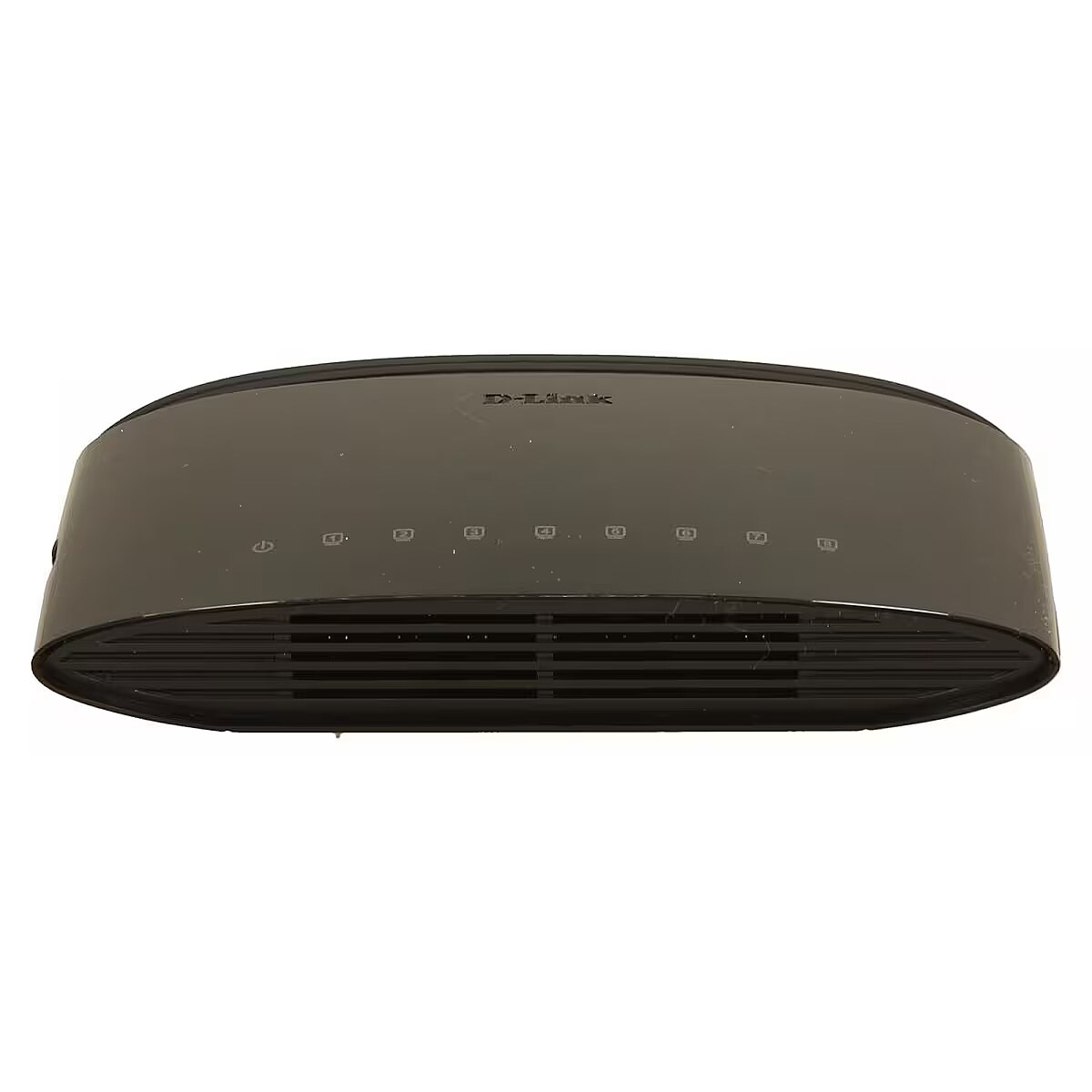

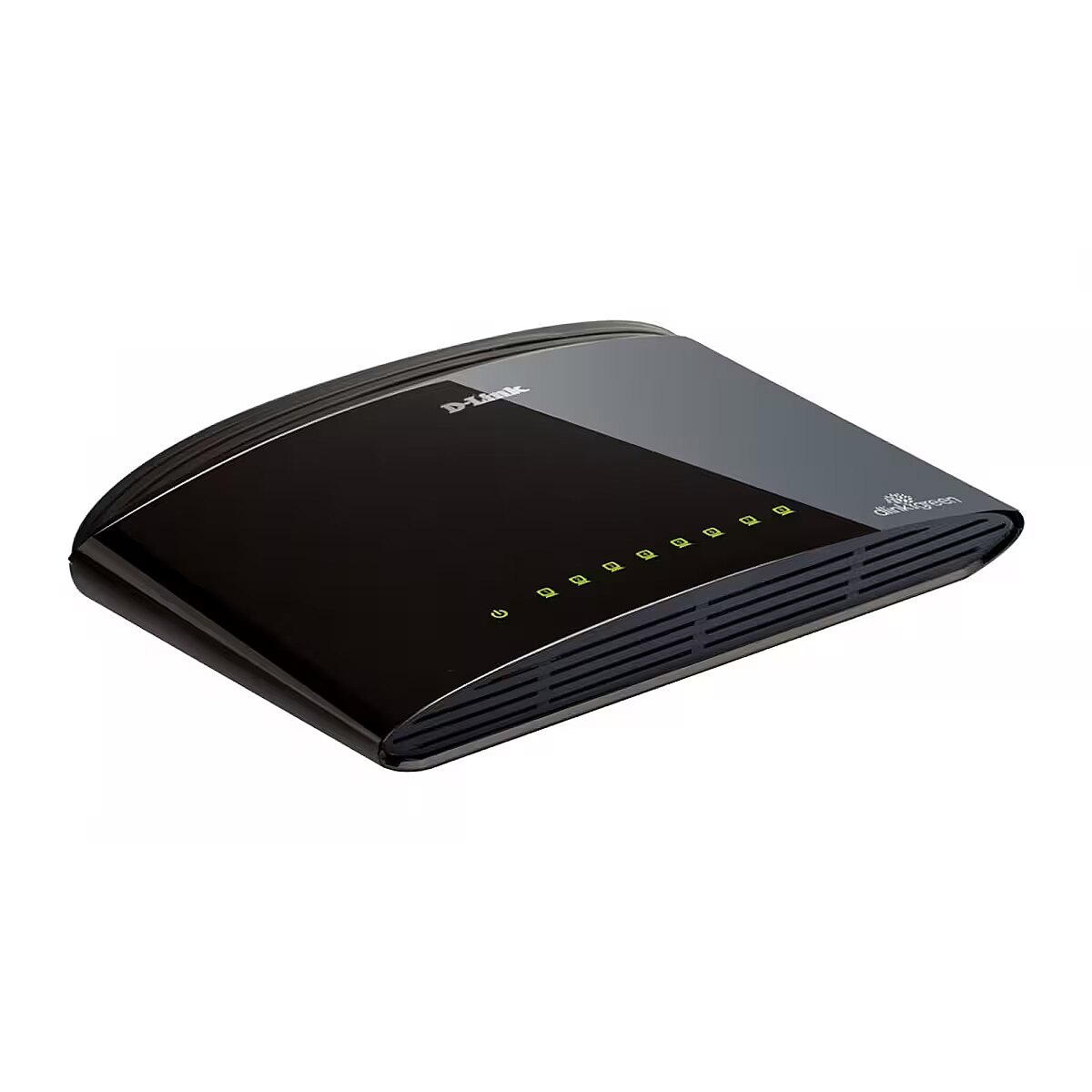

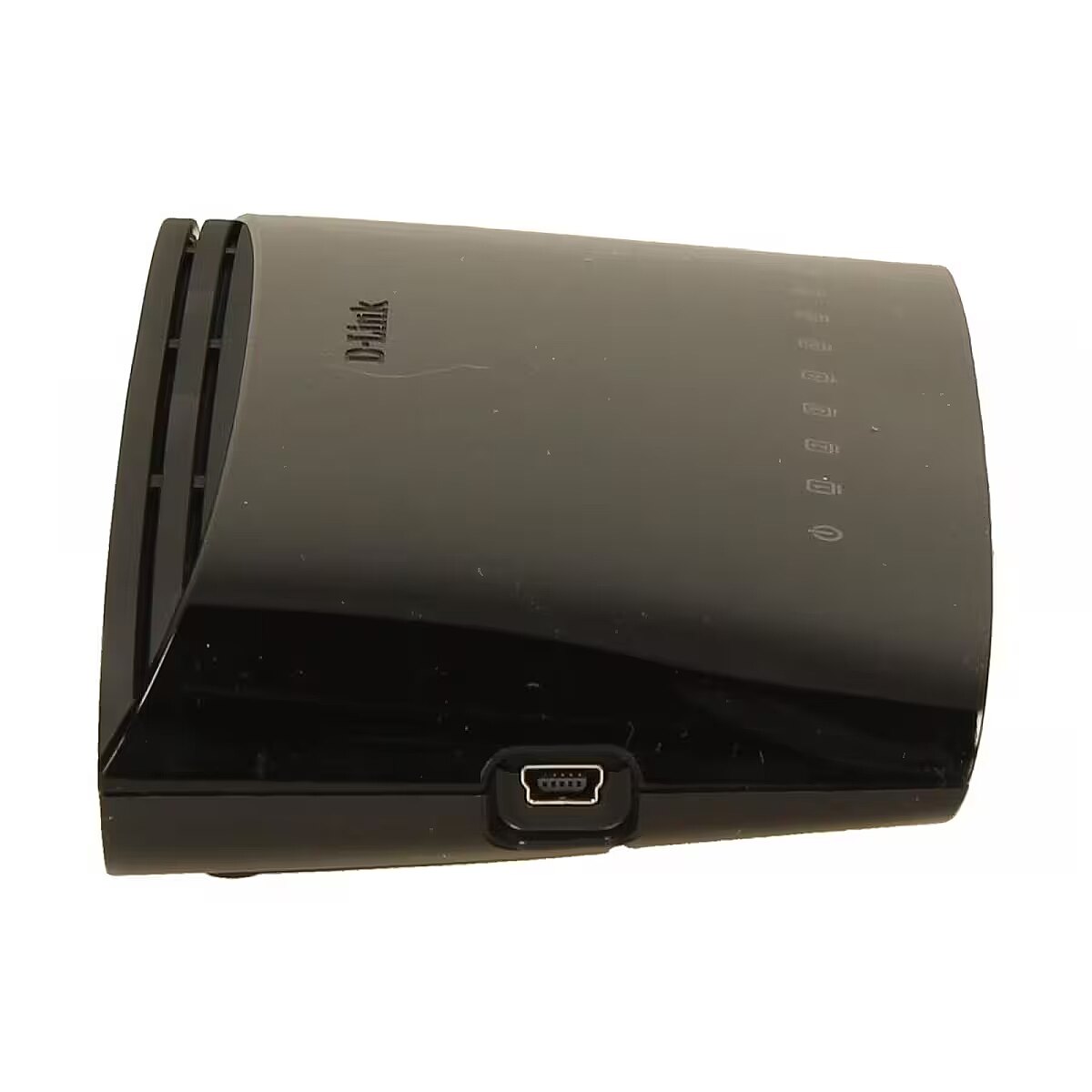

D-Link DES-1008D/E

Application - Home and small office
ARTIKEL1 - DES-1008D FASTETHERNET SWITCH
ARTIKEL2 - 8X10/100 NWAY UPL. NEW BLACK
Brand - D-Link
BrandPartCode - DES-1008D/E
Breite - 0.11
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Chassis type - Desktop
Data transmission - MAC address table - 1024 entries
Data transmission - Switching capacity - 1 Gbit/s
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
dimension depth - 70 mm
dimension height - 210 mm
dimension weight - 280 g
dimension width - 314 mm
ean - 790069217715
EANCode - 0790069217715
Eans - 0790069217715
EAN_code - 0790069217715
Fan - No
Gewicht - 0.21
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0521081065776
GTIN - 521081065776
GTIN - 790069217715
GTIN - 0790069217715
GTIN - 7900692177154
guarantee - 24
guarantee_type - external
HERSTELLER - D-LINK
Hoehe - 0.1
HSTNUMMER - DES-1008D/E
Laenge - 0.16
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - 8 10/100Mbps Ports - Unmanaged Stand-alone - Layer 2 Switch: This compact palm-sized switch is designed for the home and small offices. It provides 8 10/100Mbps ports to connect to 8 workstations and servers. Hubs can also connect to this switch.All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer. At 200Mbps full duplex, this switch provides high-speed data pipes to your Servers with minimum data transfer loss.Auto-negotiation of MDI/MDIX cross over eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, workstation, a hub or another switch using the usual straight-through twisted-pair cable.
LongProductName - DES-1008D/E - 8-Port, Fast Ethernet, IEEE 802.3x, 1Gbps
LongSummaryDescription - D-Link DES-1008D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3x. Power connector: DC-in jack
MAC address table size - 1000
Management features - Switch type - Unmanaged
Manufacturer - D-Link
Manufacturer_code - DES-1008D/E
Name - D-Link DES-1008D
Name - D-Link DES-1008D 100/UNM/ 8
name - DES-1008D switch L2 8x10/100 Desktop/Wall NO FAN
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 100BASE-TX, 10BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3x
Network architecture - FastEthernet
Number of 10/100 Mbps ports - 8
Number of 10/100/1000 Mbps ports - None
Number of COMBO ports - None
Number of PoE ports (PoE & PoE+) - None
Number of SFP ports - None
Other features - The DES-1008D 8-Port Fast Ethernet Unmanaged Desktop Switch is an 8-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-1008D to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.Main type of ports
100BASE-TX Fast Ethernet
Number of ports
5 to 10 ports
Switching capacity
1.6 Gbps

Form Factor
Desktop
Housing
Plastic
Fanless
MAC address
1K
D-Link Green
802.3az Energy-Efficient Ethernet support
Packaging data - Package depth - 158 mm
Packaging data - Package height - 94 mm
Packaging data - Package weight - 310 g
Packaging data - Package width - 104 mm
Performance - Maximum data transfer rate - 100 Mbit/s
Performance - Mean time between failures (MTBF) - 116186 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Ports & interfaces - Power connector - DC-in jack
Power - Input current - 1 A
Power - Output voltage - 5 V
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
Power supply - External
producer - D-Link
Producer - D-link
ProducerCode - DES-1008D
ProductName - DES-1008D
ShortDescription -
ShortSummaryDescription - D-Link DES-1008D, Unmanaged, Fast Ethernet (10/100), Full duplex
Stck_Kart - 20
Stck_Pal - 20
Storno - N
Switch class - Unmanaged
Switch layer - L2
Technical details - Master (outer) cases per pallet (air) - 50 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 50 pc(s)
Technical details - Pallet gross length - 110 cm
Technical details - Pallet gross weight (air) - 330.5 kg
Technical details - Pallet gross weight (sea) - 330.5 kg
Technical details - Pallet gross width - 120 cm
Technical details - Pallet height (air) - 188.5 cm
Technical details - Pallet height (sea) - 188.5 cm
Technical details - Products per pallet (air) - 1000 pc(s)
Technical details - Products per pallet (sea) - 1000 pc(s)
Technical details - Products per shipping (inner) case - 20 pc(s)
Technical details - Shipping (inner) case gross weight - 6.23 kg
Technical details - Shipping (inner) case height - 35 cm
Technical details - Shipping (inner) case length - 54.3 cm
Technical details - Shipping (inner) case net weight - 3.96 kg
Technical details - Shipping (inner) case width - 21.1 cm
Technical_details - 8 10/100Mbps Ports - Unmanaged Stand-alone - Layer 2 Switch: This compact palm-sized switch is designed for the home and small offices. It provides 8 10/100Mbps ports to connect to 8 workstations and servers. Hubs can also connect to this switch. All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports. IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer. At 200Mbps full duplex, this switch provides high-speed data pipes to your Servers with minimum data transfer loss. Auto-negotiation of MDI/MDIX cross over eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, workstation, a hub or another switch using the usual straight-through twisted-pair cable. Transfer Rate LAN 10/100 MBit/s LEDs 8x Lan Ports RJ-45 LAN 8 Product dimensions 190 x 27 x 115 mm
Throughput - 1.6 Gb/s
Title - D-Link DES-1008D Unmanaged Fast Ethernet (10/100) Black
URL - https://www.dlink.co.uk/?go=gNTyP9CgrdFOIC4AStFCF834mptYKO9ZTdvhLPG3yV3oV459kP98f8p8M6tj5jkkBSjuzCJH+o8LBdY=
vendpn - DES-1008D/E
WarrantyInfo - 2 years
Weight - 0,28
