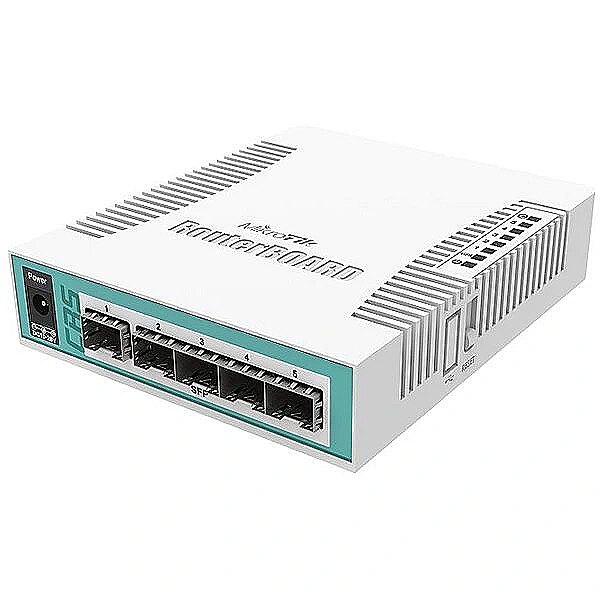

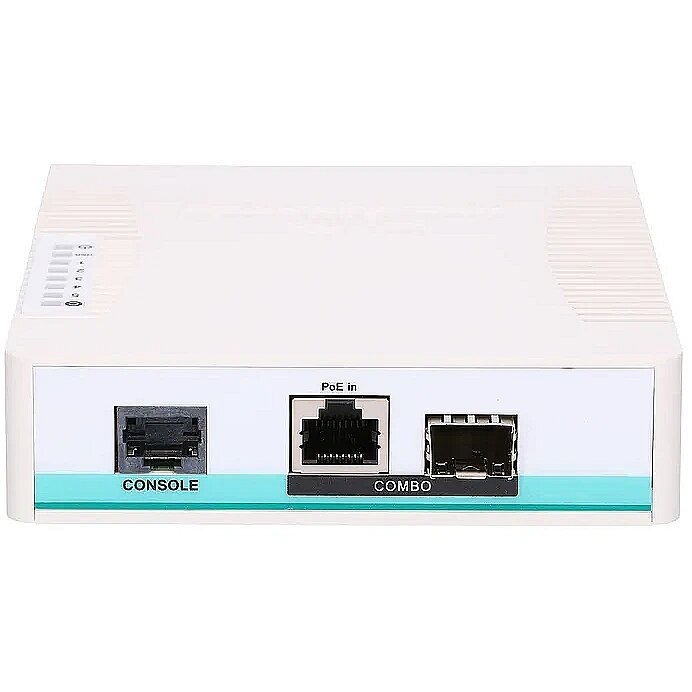

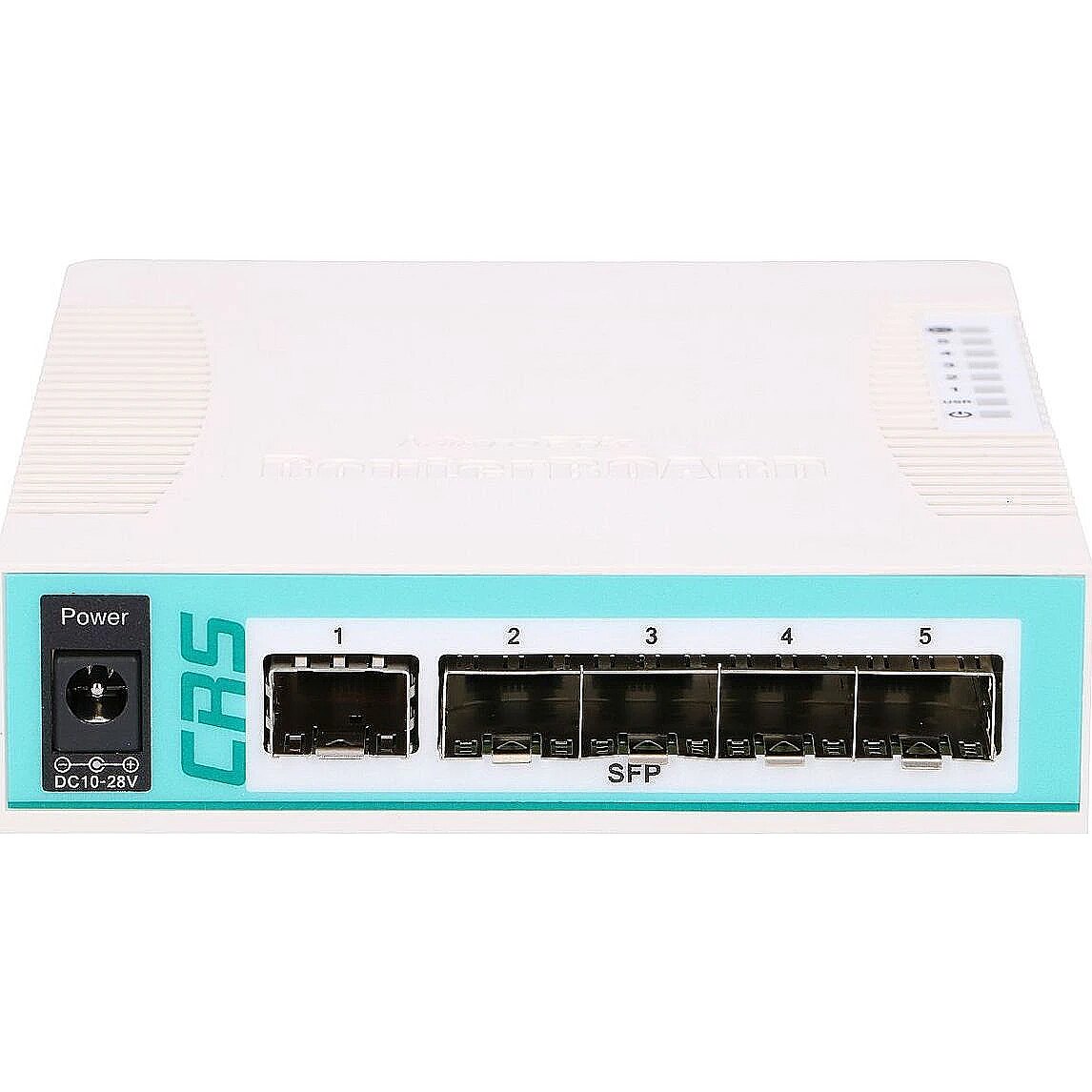

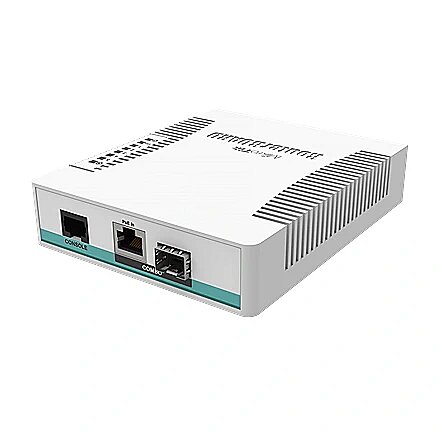

MikroTik CRS106-1C-5S, 5 x Gigabit SFP + 1 x combo Gigabit

10/100/1000/2500 Mbps ports - None
10Base-T / 100Base-TX / 1000Base-T Ports - 1
Accessories included -
Application - Home and small office
brand - MikroTik
category - MikroTik > Komutatori > Cloud Router Switch
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CRS106-1C-5S
Console port - Yes
Description - Cloud Router Switch 106-1C-5S to inteligentny przełącznik wielkości komputera stacjonarnego, wyposażony w jeden port combo Gigabit Ethernet / SFP i pięć klatek SFP 1,25 Gb/s. W zestawie zasilacz. Zasilany procesorem 400 MHz i 128 MB RAM, obsługuje RouterOS z licencją L5 i obsługuje zasilanie 11-30V.
Description - The Cloud Router Switch 106-1C-5S is a desktop size smart switch, equipped with one Gigabit Ethernet / SFP combo port and five 1.25Gbps SFP cages. The package includes a power supply. Powered by a 400MHz CPU and 128MB RAM, it runs RouterOS with a L5 license and supports 11- 30V power.
Design - Product colour - White
Design - Stackable - No
Design > Form factor - Desktop
Designation - CE+WEEE
dimensionalWeight - 330
dimension depth - 30 mm
dimension height - 115 mm
Dimensions - 114 x 137 x 29 mm
Dimensions - 114 x 137 x 29mm
dimension weight - 300 g
dimension width - 140 mm
EAN - 2000000950242
ean - 4752224000101
EAN - 4752224000101
Fan - Yes
Full Description Line - 1x10Base-T / 100Base-TX / 1000Base-T|5xSFP|Dimensions 114 x 137 x 29mm|Unit Net Weight 0.35 kg
Gross weight - 0.518, 0.518 kg
guarantee - 12
guarantee_type - normal
height - 0.07 m
L2 features -
L3 features -
length - 0.2 m
Link - https://mikrotik.com/product/CRS106-1C-5S
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Management features > Switch type - Web Management
Mean time between failures (MTBF) - 100000 h
mpn - CRS106-1C-5S
MPN - CRS106-1C-5S
Name - 5P+1 MikroTik CRS106-1C-5S POE M
name - MikroTik Switch 5xSFP 1xCOMBO CRS106-1C-5
Name - MikroTik | Cloud Router Switch | CRS106-1C-5S | Web Management | Desktop | SFP ports quantity 5 | 12 month(s) | 12 month(s)
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - 1
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP ports - 5
Operational conditions - Operating temperature (T-T) - -20 - 70 °C
Other features - Architektura: MIPSBE Procesor: QCA8511 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 400 MHz Licencja RouterOS: 5 System operacyjny: RouterOS Rozmiar pamięci RAM: 128 MB Rozmiar pamięci: 16 MB Typ pamięci: FLASH Testowana temperatura otoczenia: -20°C do 70°C
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 145.00 mm
Package features > Gross height (mm) - 195.00 mm
Package features > Gross width (mm) - 55.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 1111 pc(s)
Package features > Paper/Pasteboard - 196 g
Package features > Plastic (No PET) - 22 g
Package features > Tare weight (kg) - 0.218 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB
Packaging data - AC adapter included - Yes
Performance - Built-in processor - Yes
Performance - Compatible operating systems - RouterOS
Performance - Flash memory - 16 MB
Performance - Internal memory - 128 MB
Performance - Processor frequency - 400 MHz
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Power connector - DC-in jack
Ports & interfaces - SFP module slots quantity - 5
Ports & interfaces > Combo SFP ports quantity - 1
Ports & interfaces > POE - No
Ports & interfaces > Predominant port type - SFP (1 Gbps Fiber)
Ports & interfaces > SFP ports quantity - 5
Power - DC input voltage - 30 V
Power - Power consumption (max) - 11 W
Power consumption - 11 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power supply -
Power supply - Internal
producer - Mikrotik
producerCode - CRS106-1C-5S
Producer product family - Cloud Router Switch
Producer product name - CRS106-1C-5S
productName - Mikrotik CRS106-1C-5S network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
productSize - Normal
QoS -
Security -
SFP Ports - 5
Shipping Box Depth Shipping/Package Box Dimensions - 57 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 7.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
sizeX - 200
sizeY - 55
sizeZ - 150
Supported protocols and standards -
Switch class - Managed
Switch layer - L2
Technical details > Net weight - 0.30, 1.20 kg
Technical details > Other features - POE In: Passive POE
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS (Level 5)
Technical details > Warranty - 12 month(s)
title - MikroTik CRS106-1C-5S
Unit Box Height - 0.22
Unit Box Length - 0.57
Unit Box Width - 0.21
Unit Brutto Volume - 0.001317 cubm
Unit Gross Weight - 0.39 kg
Unit Net Weight - 0.35 kg
Vendor Homepage - routerboard.com/CRS106-1C-5S
vendpn - CRS106-1C-5S
VLAN -
Warranty - 12
Warranty - 12 months
warrantyLength - 24
warrantyType - G
Weight - 0.4
weight - 0.415 kg
weight - 390
Weight & dimensions - Depth - 137 mm
Weight & dimensions - Height - 29 mm
Weight & dimensions - Width - 114 mm
width - 0.15 m
