ID: 1174147
Product code: FS1016
Can be ordered 7 units Availability: 14 days after order approval
Warranty: 2 years

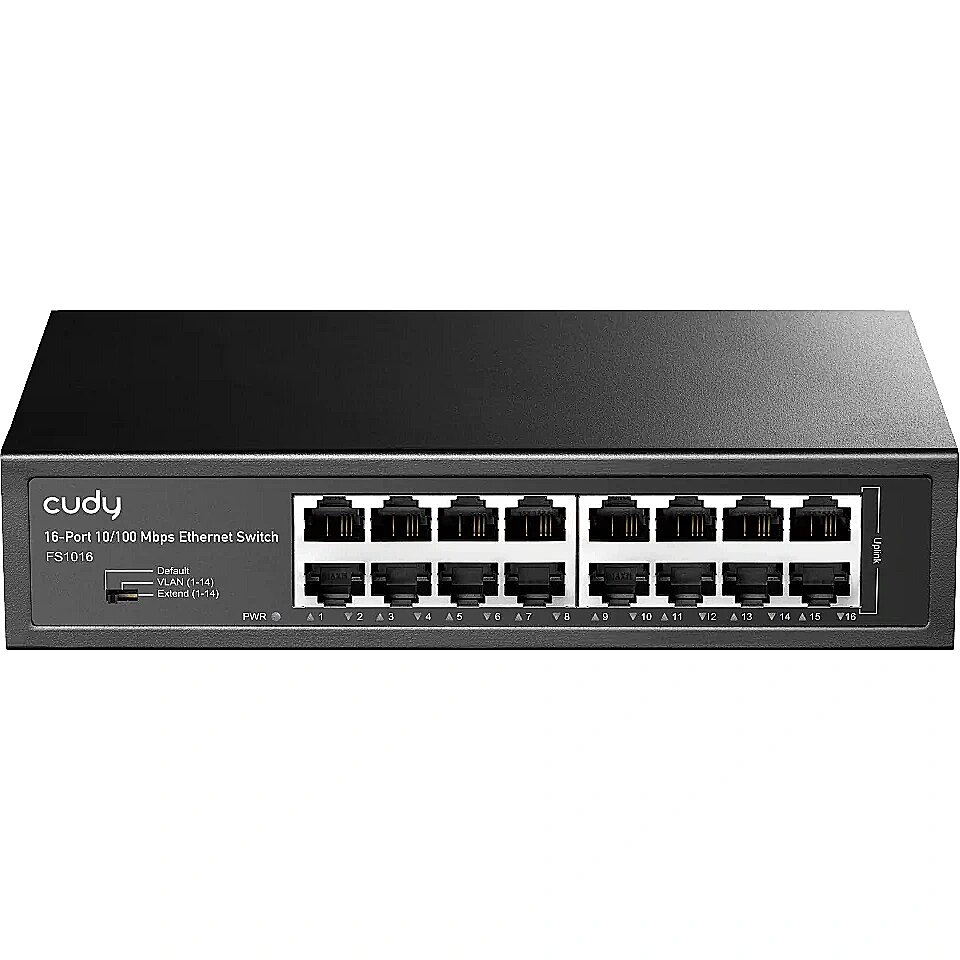

Cudy 16P Cudy FS1016
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 12.05.2025
- Delivery to Omniva parcel locker 1.99 €: 12.05.2025
- Courier delivery 3.99 €: 12.05.2025
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: 16
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: N/A
RJ-45 Ports
: 16
SFP Ports
: N/A
Specifikācija
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: Nav
PoE Total Power Budget
: N/A
Weight (g)
: 1004 g
Network cards
More detailed specification
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - MAC address table - 8192 entries
Data transmission - Switching capacity - 3.2 Gbit/s
Design - LED indicators - LAN
Design - LED indicators - Power
Design - Material - Metal
Design - Product colour - Black
dimensionalWeight - 770
EAN - 6971690793890
Manufacturer - Cudy
MPN - FS1016
Name - 16P Cudy FS1016 RM
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Extend DIP Switch - Y
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Cables included - AC
Packaging data - Manual - Yes
Packaging data - Rack mounting kit - Y
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 16
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Power - Frequency - 50 / 60 Hz
Power - Input voltage - 90 - 260 V
Power - Power consumption (idle) - 0.8 W
Power - Power consumption (max) - 2 W
Power - Power source - AC
producerCode - FS1016
productName - Cudy FS1016 network switch Fast Ethernet (10/100) Black
productSize - Normal
sizeX - 235
sizeY - 205
sizeZ - 80
warrantyLength - 24
warrantyType - G
Weight - 1.04
weight - 1045
Weight & dimensions - Depth - 118 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 600 g
Weight & dimensions - Width - 200 mm
