Brand - HUAWEI eKit
BrandPartCode - 98012375
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - Forwarding rate - 95 Mpps
Data transmission - MAC address table - 16000 entries
Data transmission - Static route - Yes
Data transmission - Switching capacity - 128 Gbit/s
Design - Form factor - 1U
Design - Housing material - Metal
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
EAN - 6901443450077
GTIN - 6901443450077
LongDesc - Huawei eKitEngine S220 Series SwitchesHuawei eKitEngine S220 series switches are Layer 2 GE/10GE switches designed for the small office and home office (SOHO)/small- and medium-sized business (SMB) market. They include eight models, such as those with 8 downlink GE electrical ports (PoE/non-PoE ports), 24 downlink GE electrical ports (PoE/non-PoE ports), 48 downlink GE electrical ports (PoE/non-PoE), and uplink GE/10GE ports. These switches provide many features, such as rich management methods (web-based management, CLI-based management, and app-based management), flexible Ethernet networking, and diversified security control. Therefore, they can be widely used in scenarios such as SOHO, enterprise office, budget hotels, factories, primary and secondary education, hospitals, and building security.
LongProductName - 24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power
LongSummaryDescription - HUAWEI eKit S220 Series S220-24T4X. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 4, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Rack mounting, Form factor: 1U
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Manufacturer - HUAWEI
MPN - 98012375
Multicast features - Multicast support - Yes

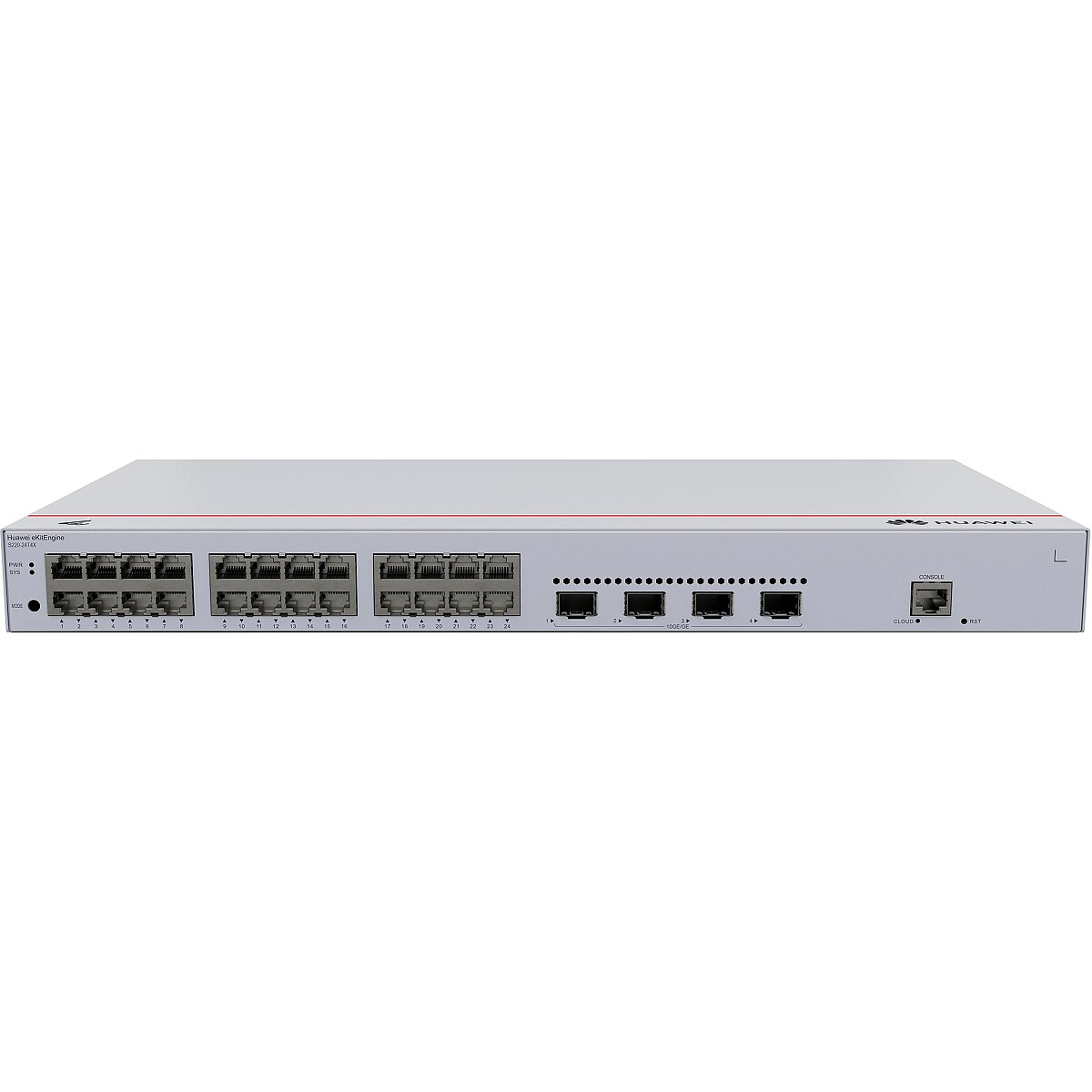

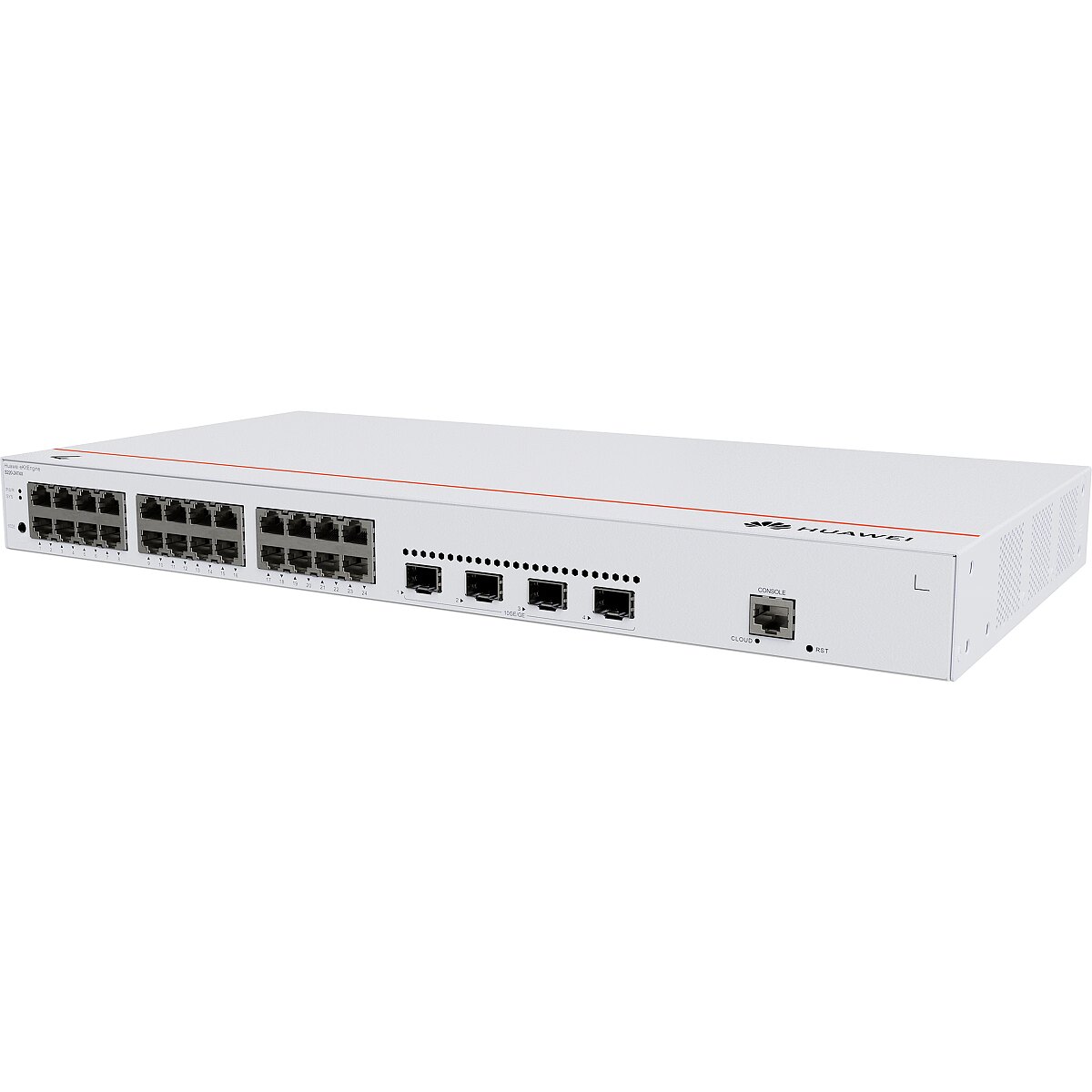

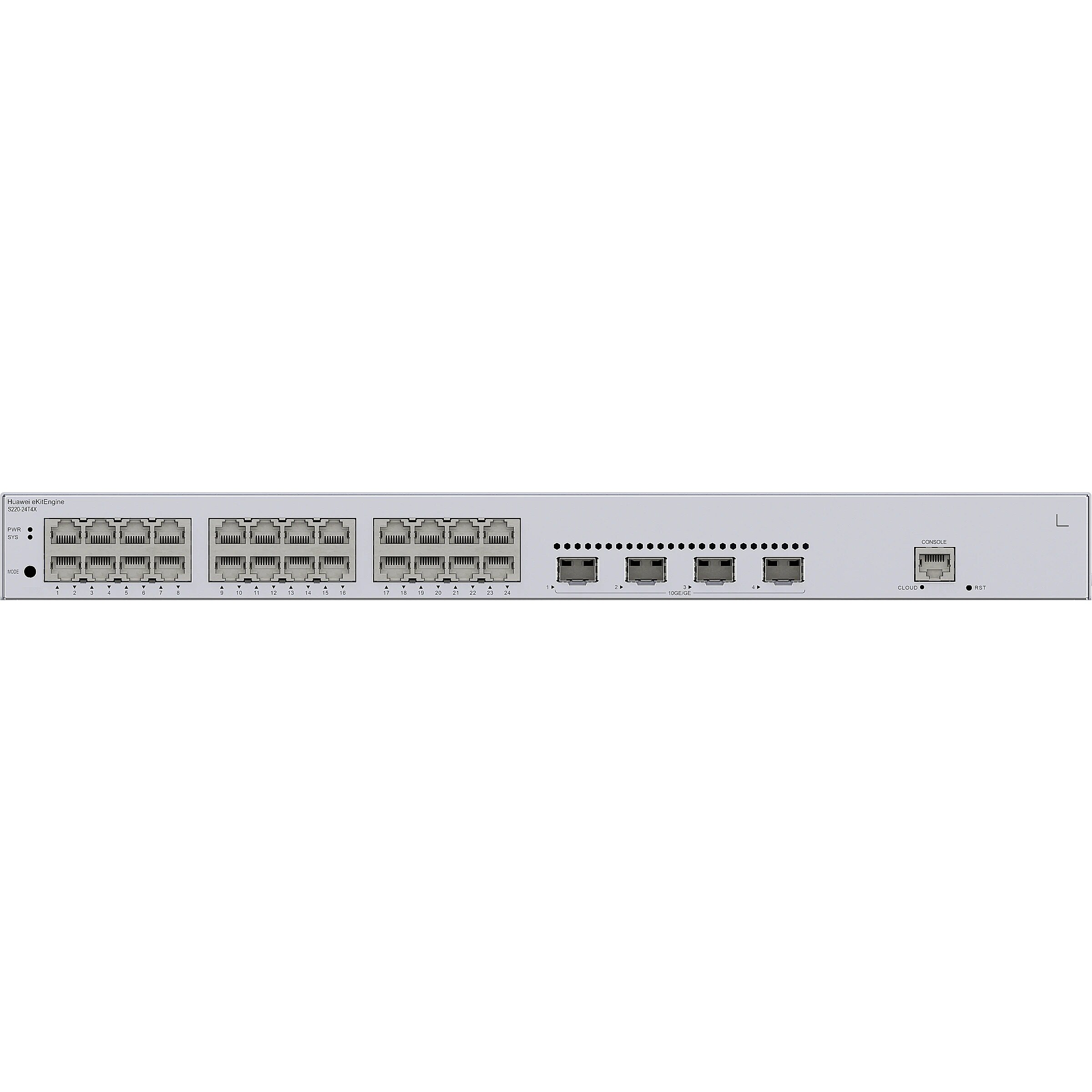

Name - Huawei eKit Switch S220-24T4X
Network - 10G support - Yes
Network - Link aggregation - Yes
Network - Number of VLANs - 4094
Network - Rate limiting - Yes
Network - VLAN support - Yes
Operational conditions - Non-operating altitude - 0 - 5000 m
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Package weight - 3.44 kg
Performance - Noise level - 51 dB
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Installed SFP+ modules quantity - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 35.04 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
ProductName - S220-24T4X
Security - Access Control List (ACL) - Yes
Security - Authentication - MAC-based authentication
Security - Authentication type - IEEE 802.1x
Security - DHCP features - DHCP server, DHCP snooping, DHCP client
Security - Loop protection - Yes
Security - Security algorithms - SNMP, SNMPv2, SNMPv3
ShortSummaryDescription - HUAWEI eKit S220 Series S220-24T4X, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Title - HUAWEI eKit S220 Series S220-24T4X Managed L2 Gigabit Ethernet (10/100/1000) 1U Grey
URL - https://ekit.huawei.com/#/ekitShop/shopList?firstCatalogName=undefined&firstCatalog=10677&secondCatalogName=Switch&secondCatalog=10684&countryCode=Global&lang=en
WarrantyInfo -
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 43.6 mm
Weight & dimensions - Width - 442 mm
