Brand - HUAWEI eKit
BrandPartCode - 98012269
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Data transmission - Forwarding rate - 14.88 Mpps
Data transmission - MAC address table - 2000 entries
Data transmission - Switching capacity - 20 Gbit/s
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
EAN - 6901443428434
GTIN - 6901443428434
LongDesc - Huawei eKitEngine S110 series switches (S110 for short) are unmanaged switches designed for the distribution market outside China. The whole series adopts an all-new crystal-like appearance design with great visual impacts, winning itself the German Red Dot Design Award 2022. The newly launched colorways of Silk White and Silver Frost are becoming increasingly popular. In addition, the iconic Huawei logo on eKitEngine S110 series switches gives them a more refreshing look. In terms of aesthetics, a diamond cut design is employed to make the switches more elegant through an integrated and completely seamless surface with sleek corners.Therefore, eKitEngine S110 series switches can be widely used in access scenarios such as SOHO enterprises, and commercial stores.Four working modes- standard mode- port isolation- port bonding- flow control disablingPlug and play- configurationfree- managementfree
LongProductName - 8*10/100/1000BASE-T ports, PoE+, 1*GE SFP port, 1*10/100/1000BASE-T port, AC power, power adapter
LongSummaryDescription - HUAWEI eKit S110 Series S110-8P2ST. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 20 Gbit/s. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting
Management features - Switch layer - L2
Management features - Switch type - Unmanaged
Manufacturer - HUAWEI
MPN - 98012269

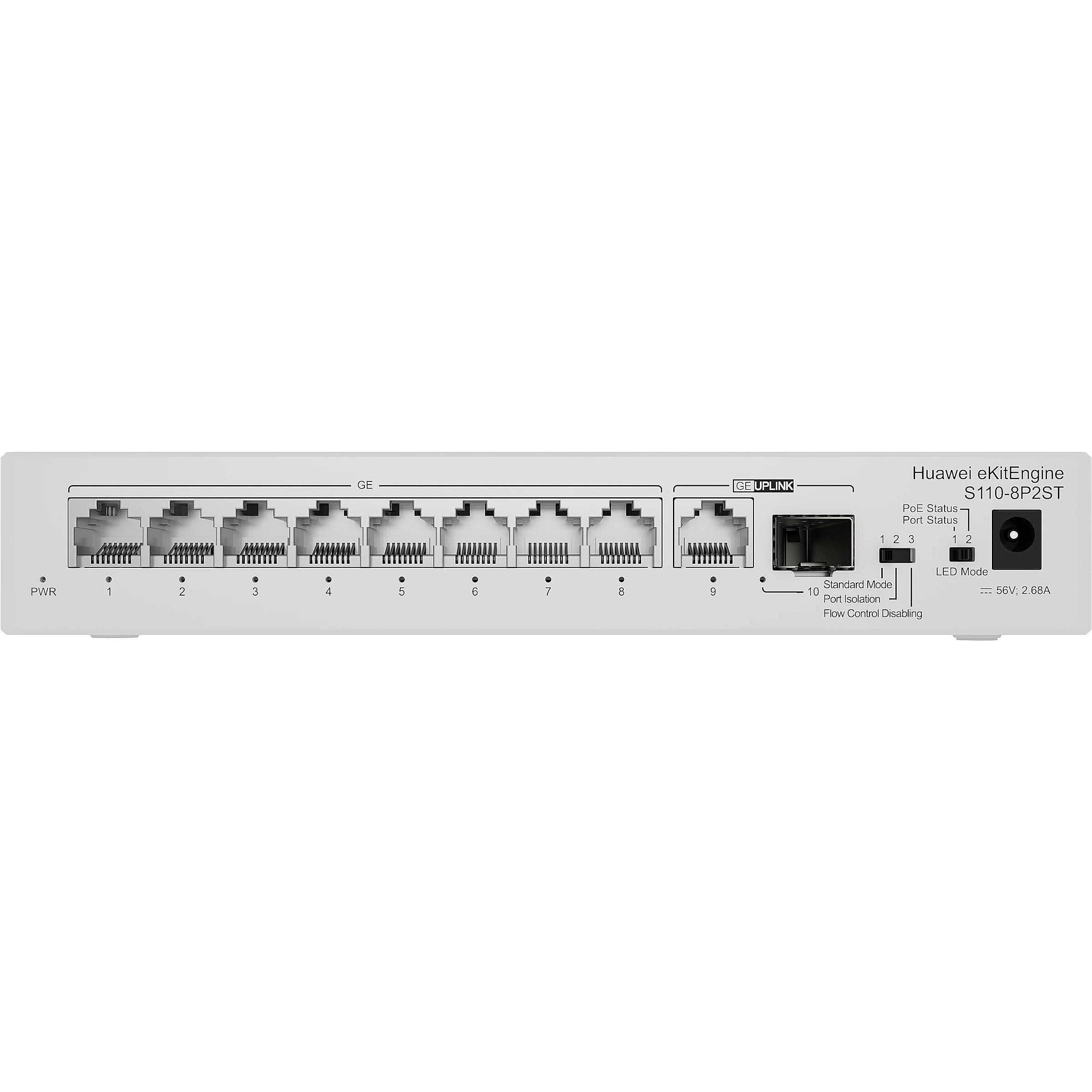

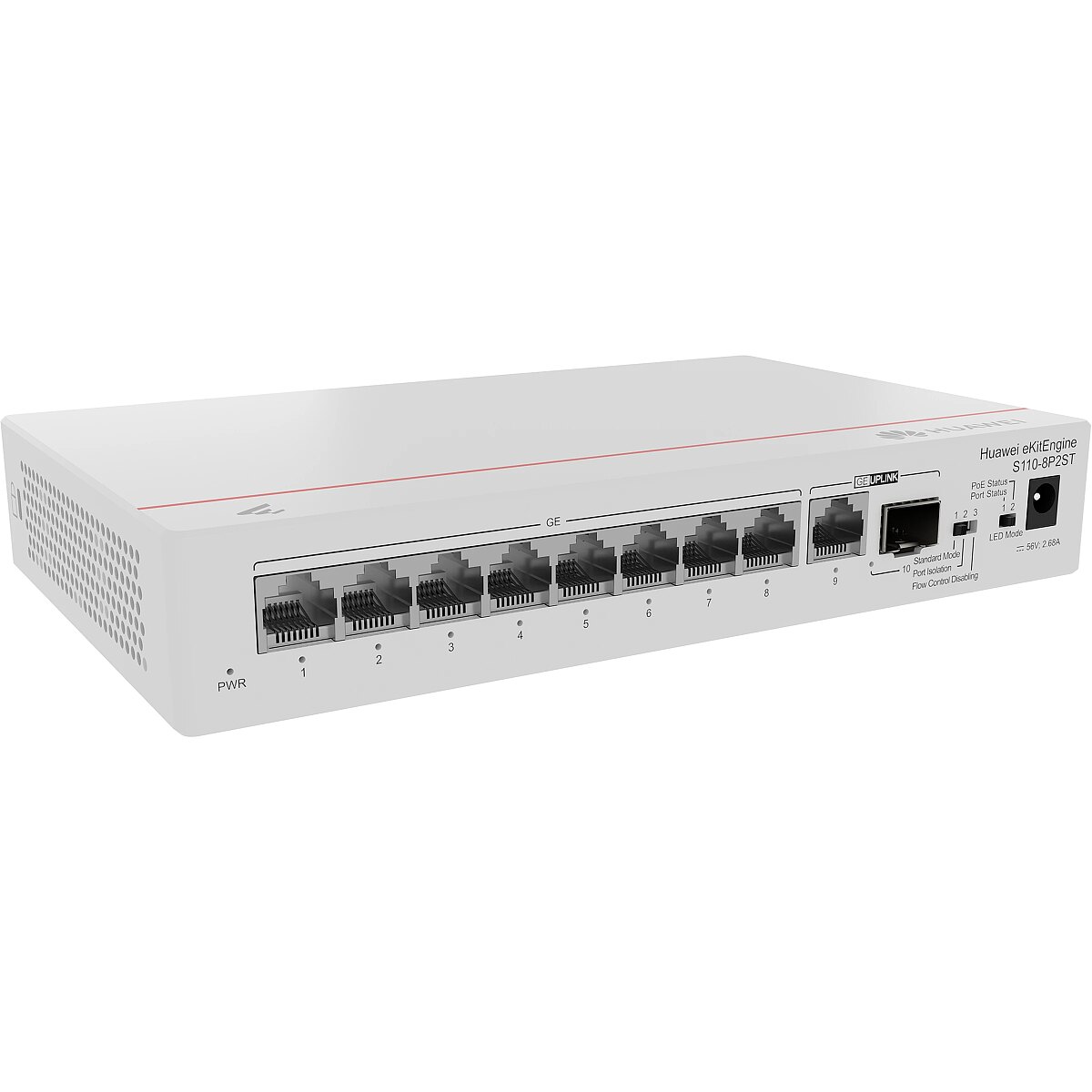

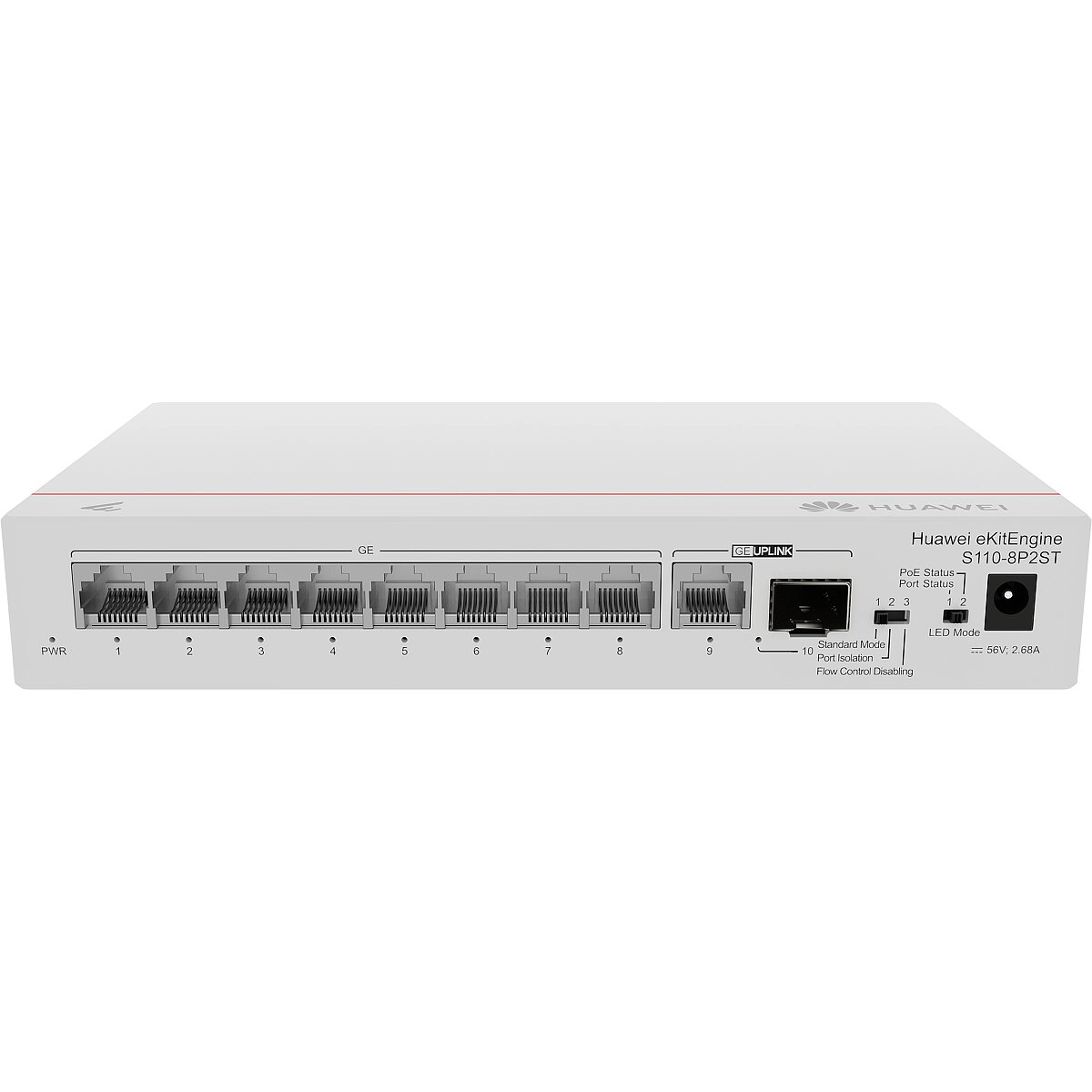

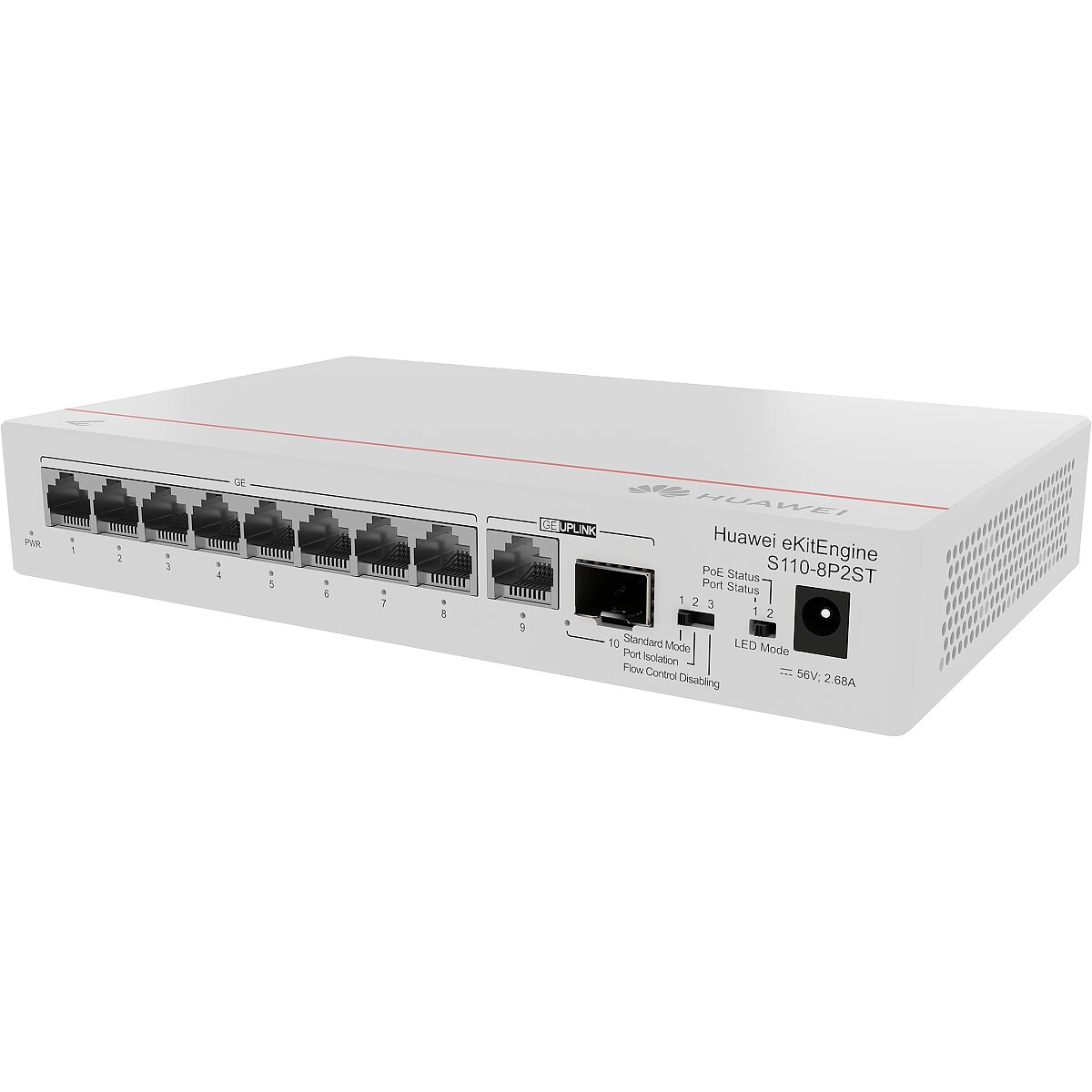

Name - Huawei eKit Switch S110-8P2ST
Network - 10G support - No
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Operational conditions - Non-operating altitude - 0 - 5000 m
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 1
Power - DC input voltage - 54 V
Power - Power consumption (max) - 155 W
Power - Power source - AC
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 124 W
ProductName - S110-8P2ST
ShortSummaryDescription - HUAWEI eKit S110 Series S110-8P2ST, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Title - HUAWEI eKit S110 Series S110-8P2ST Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
URL - https://info.support.huawei.com/info-finder/search-center/en/enterprise/Switches/S100-pid-C00000000966/hardwarecenter?keyword=98012269&productModel=S110-8P2ST#specifacations
WarrantyInfo -
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Weight - 910 g
Weight & dimensions - Width - 210 mm
