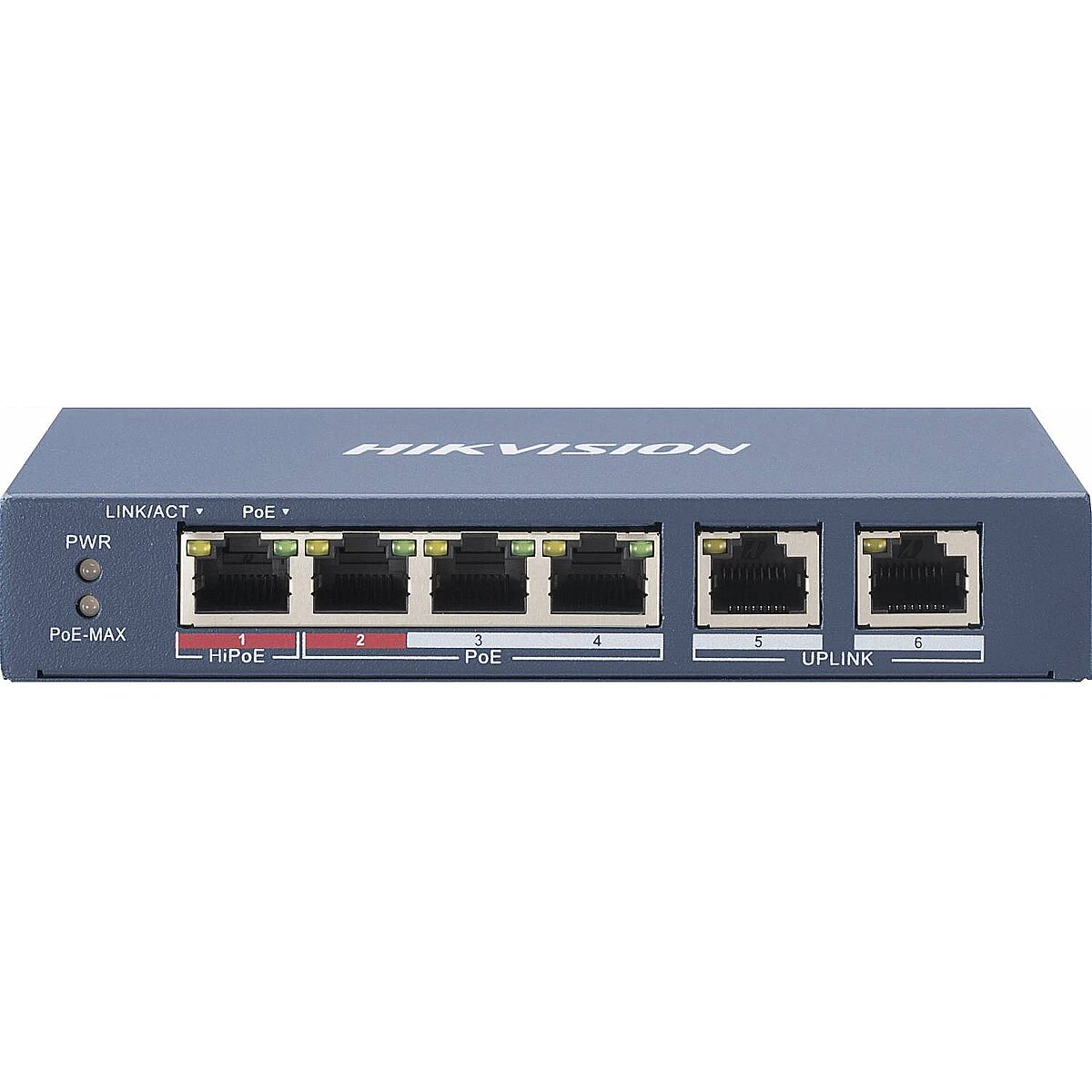

Hikvision DS-3E0105P-E/M(B)

Name: Hikvision DS-3E0105P-E/M(B)
Brand: Hikvision
SKU: 1150200
Price: 48.25 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1150200 Product code: DS-3E0105P-E/M

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Base-T speed: 10/100
RJ-45 Ports: 4

Similar Products

Ports and equipment
	This product Hikvision DS-3E0105P-E/M(B)	TP-LINK TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch	Ubiquiti N-SW, 4port, 1000Mbps Switch, Openbox	D-Link DGS-1100-24V2 Smart Managed Switch [24x Gigabit Ethernet], Openbox	Hikvision SWITCH POE HIKVISION DS-3E0310HP-E 10-PORTOWY
Show similar specs. Hide similar specs.	48.25 €	47.51 €	39.00 €	149.00 €	97.35 €
Base-T speed	10/100	10/100	10/100/1000	10/100/1000
PoE Ports	4	N/A		N/A
RJ-45 Ports	4	16	4	24
SFP Ports		N/A		N/A
Specifikācija
Number of fans	Fanless	Fanless		Fanless
PoE Per-Port Power Budget	30 W	N/A		N/A
PoE Support	Ir	Nav		Nav
PoE Total Power Budget	35 W	N/A		N/A
Weight (g)	200 g	500 g		1630 g

Ports and equipment

Base-T speed : 10/100

PoE Ports : 4

RJ-45 Ports : 4

Specifikācija

Number of fans : Fanless

PoE Per-Port Power Budget : 30 W

PoE Support : Ir

PoE Total Power Budget : 35 W

Weight (g) : 200 g

More detailed specification

Data transmission - MAC address table - 2000 entries
Data transmission - Packet buffer memory - 0.768 MB
Data transmission - Switching capacity - 1 Gbit/s
Design - Housing material - Metal
Design - Product colour - Blue
dimensionalWeight - 421
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package weight - 480 g
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Fast Ethernet (10/100)
Power - DC input voltage - 48 V
Power - Input current - 0.8 A
Power - Power consumption (max) - 38 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
producerCode - DS-3E0105P-E/M
productName - SWITCH POE HIKVISION DS-3E0105P-E/M(B)
productSize - Normal
sizeX - 195
sizeY - 108
sizeZ - 100
warrantyLength - 24
warrantyType - F
weight - 660
Weight & dimensions - Depth - 83.1 mm
Weight & dimensions - Height - 27.6 mm
Weight & dimensions - Weight - 200 g
Weight & dimensions - Width - 105 mm
