ID: 1133196
Product code: TEG1050F
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years

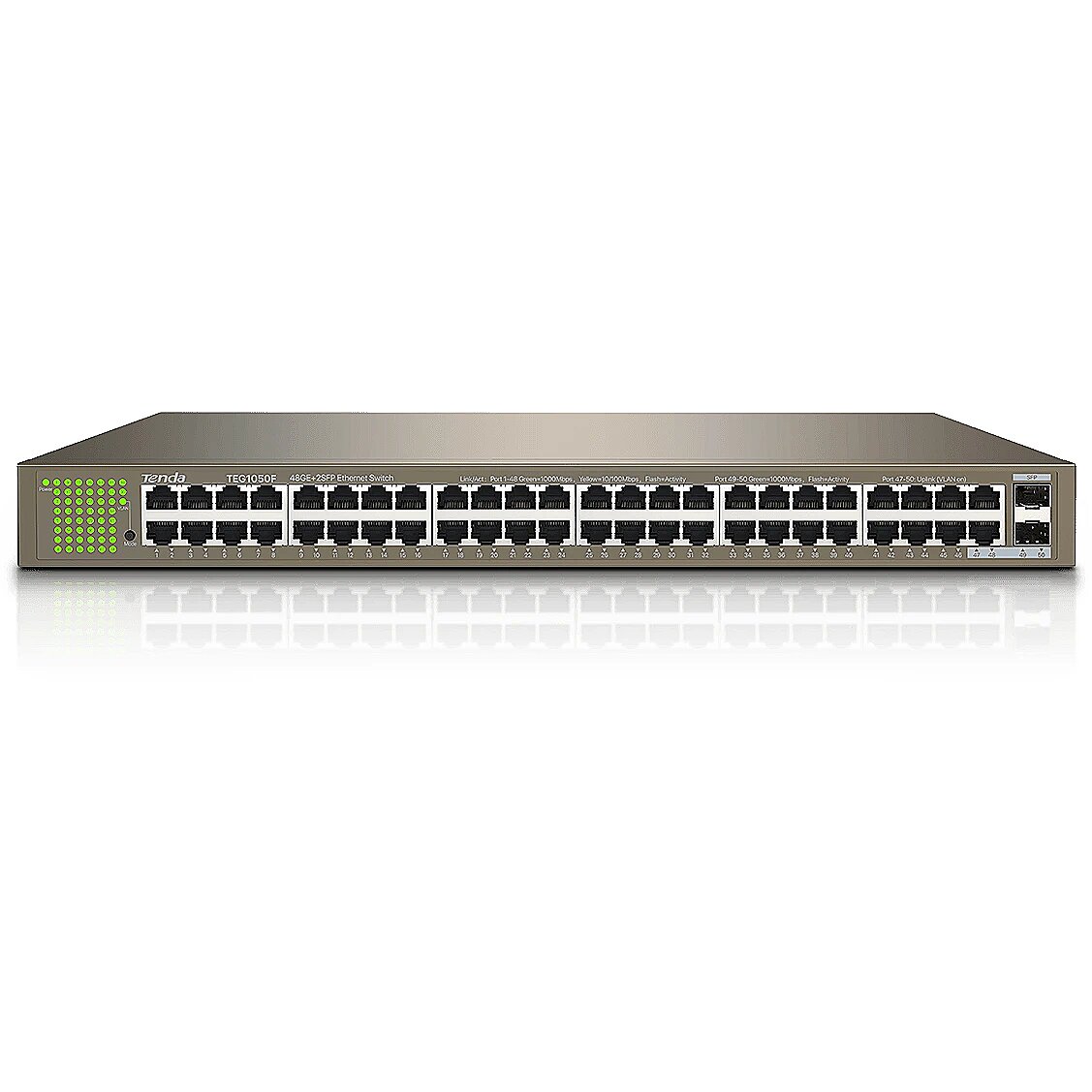

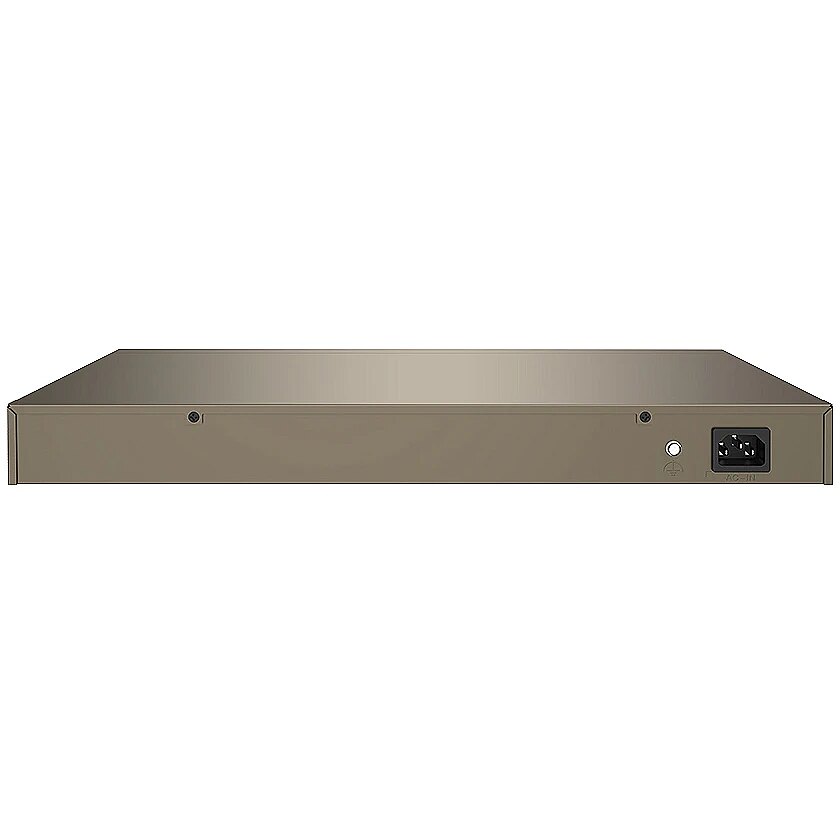

Tenda TEG1050F, 48x1Gb 2SFP
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 16.04.2025
- Delivery to Omniva parcel locker 1.99 €: 16.04.2025
- Courier delivery 3.99 €: 16.04.2025
Main product parameters All parameters
- Base-T speed: 10/100/1000
- RJ-45 Ports: 48
Ports and equipment
Base-T speed
: 10/100/1000
PoE Ports
: N/A
RJ-45 Ports
: 48
SFP Ports
: 2
Specifikācija
Number of fans
: Fanless
PoE Per-Port Power Budget
: N/A
PoE Support
: Nav
PoE Total Power Budget
: N/A
Weight (g)
: 3500 g
Network cards
More detailed specification
Data transmission - Forwarding rate - 74.4 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 1000 Gbit/s
Design - LED indicators - Yes
Design - Product colour - Grey
Design - Rack mounting - Yes
dimensionalWeight - 2828
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3z
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 50
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - DC input voltage - 12 V
Power - Input current - 4 A
Power - Power consumption (max) - 48 W
Power - Power source - AC
producerCode - TEG1050F
productName - Tenda TEG1050F network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey
productSize - Normal
Safety warning - Warnings - Do not open the case or try to repair it yourself.
Safety warning - Warnings - The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations.
sizeX - 520
sizeY - 80
sizeZ - 340
warrantyLength - 36
warrantyType - G
weight - 3500
Weight & dimensions - Depth - 240 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 440 mm
