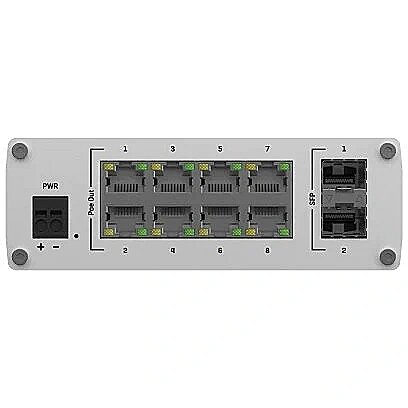

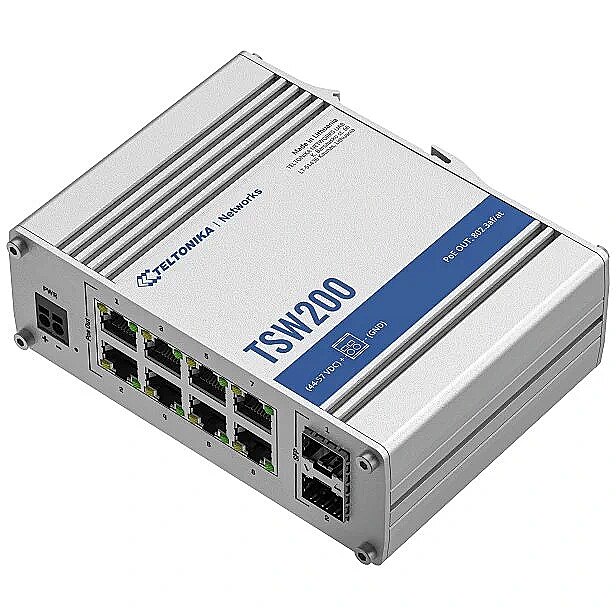

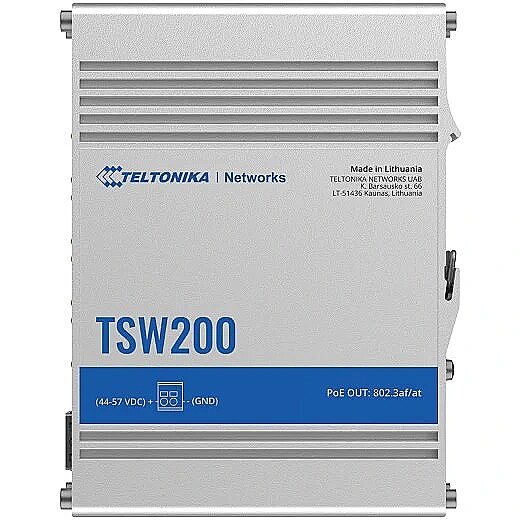

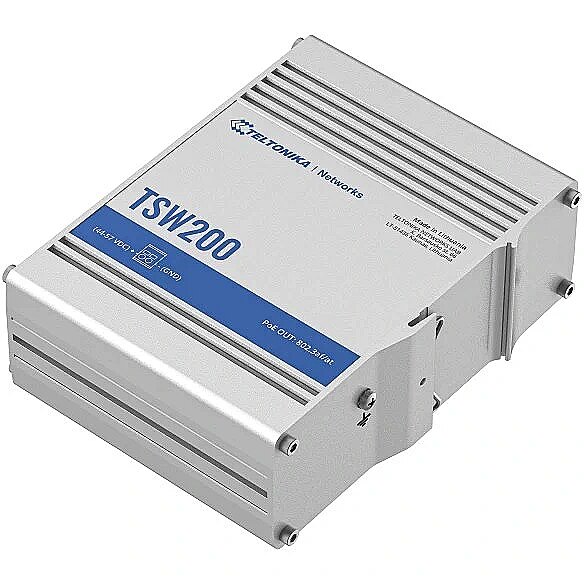

Teltonika TSW200, 8xGbE 2xSFP 8xPoE+

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1113053 Product code: TSW200 000050
Can be ordered 6 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
99.34 €
Delivery options
  • Delivery to Smartpost 1.99 €: 18.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 18.04.2025
  • Courier delivery 3.99 €: 18.04.2025
Main product parameters All parameters
  • Base-T speed: 10/100/1000
  • RJ-45 Ports: Eight Core
Ports and equipment
Base-T speed : 10/100/1000
PoE Ports : 8
RJ-45 Ports : Eight Core
SFP Ports : 2
Specifikācija
Number of fans : Fanless
PoE Per-Port Power Budget : 30 W
PoE Support : Ir
PoE Total Power Budget : 240 W
Weight (g) : 520 g
Network cards
More detailed specification
10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
Certificates - CE UKCA CITC ANRT FCC IC CB
Chassis type - Desktop
Chassis type - Rack
Console port - No
Description - TSW200
PRZEŁĄCZNIK PRZEMYSŁOWY POE+ ETHERNET
TSW200 to przemysłowy przełącznik Ethernet z 2 portami SFP do komunikacji światłowodowej dalekiego zasięgu i 8 portami Gigabit Ethernet obsługującymi standardy IEEE802.af i IEE802.3at Power-over-Ethernet. Sklasyfikowany jako sprzęt źródła zasilania (PSE), umożliwia centralizację zasilania, zapewniając do 30 watów na port i zmniejszając wysiłek związany z instalacją zasilania.
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 150 mm
Dimensions - 132 x 44.2 x 95.1 mm
dimension weight - 625 g
dimension width - 175 mm
ean - 4779051840120
Environment requirements - Temperatura pracy  -40°C do 75°C  Wilgotność pracy  10% do 90% bez kondensacji
Fan - No
guarantee - 24
guarantee_type - normal
Jumbo frame size - 9216 KB
L2 features -
L3 features -
MAC address table size - 2000
Management, monitoring, configuration -
name - Industrial switch TSW200 Switch 2xSFP 8xPoE+ 8xGbE
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - 8
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 2
Other features -
Other functions - ESD EN 61000-4-2:2009 Radiated Immunity EN IEC 61000-4-3:2020 EFT EN 61000-4-4:2012 Surge Immunity (AC Mains Power Port) EN 61000-4-5:2014 + A1:2017 CS EN 61000-4-6:2014 DIP EN IEC 61000-4-11:2020
Packet buffer - 128 KB
Power consumption - 240 W
Power supply -
Power supply - External
producer - TELTONIKA
QoS -
Security - IP30 IEC 62368-1:2018 EN IEC 62368-1:2020+A11:2020
Supported protocols and standards - 802.3i 802.3u 802.3ab 802.3x 802.3az EN 55032:2015 + A1:2020 EN 55035:2017 + A11:2020 EN IEC 61000-3-2:2019 + A1:2021 EN 61000-3-3:2013 + A1:2019
Support for Jumbo frames - Yes
Switch class - Unmanaged
Throughput - 20 GB/s
vendpn - TSW200 000050
VLAN -
Weight - 517 g
