10/100/1000/2500 Mbps ports - 24
Accessories included -
Application - Medium and large companies
ARTIKEL1 - 24-P POE SMART MANAGED SWITCH
ARTIKEL2 - 2.5G L2 700W 22X1G 4X10G 2XSFP+
Brand - Zyxel
BrandPartCode - XMG1930-30HP-ZZ0101F
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Certificates - LVD BSMI Safety EMC FCC Part 15 (Class A) CE (Class A) BSMI EMC RoHS
Chassis type - Rack
Console port - No
Data transmission - Forwarding rate - 178.5 Mpps
Data transmission - Jumbo frames - 12000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Static route - Yes
Data transmission - Switching capacity - 240 Gbit/s
Description - Multi-Gigabit support for 2.5G and 10G combinations provides flexibility for high-density Multi-Gig deployments The main ports support speeds up to 2.5G, making the Switch ideal for high-speed Internet service providers, enabling any user to upgrade from traditional 1G/2.5G The Nebula ecosystem offers a unified cloud networking experience, from wired, wireless and security gateway Access and manage the full feature set available from day one of purchase via your local web GUI

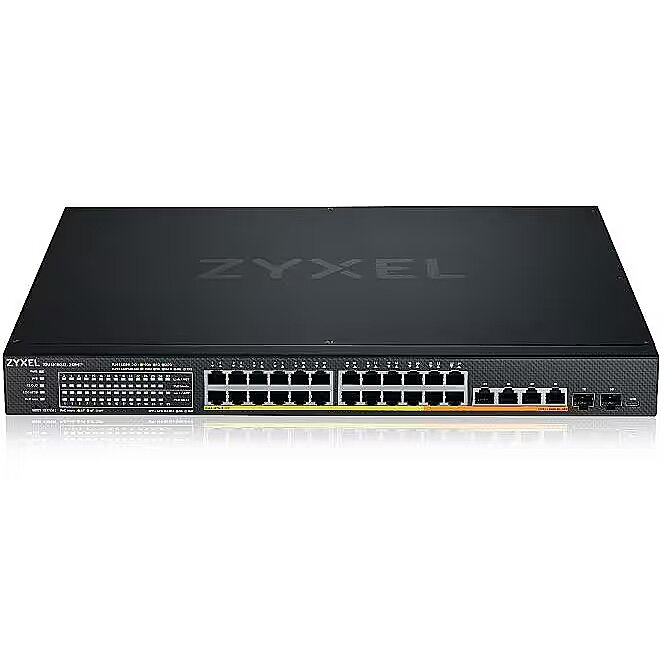

Description - ZYXEL XMG1930-30HP, 24-PORT 2.5GBE SMART MANAGED LAYER 2 POE 700W 22XPOE+/8XPOE++ SWITCH WITH 4 10GBE AND 2 SFP+ UPLINK
Design - Form factor - 1U
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Reset button - Yes
Designation - CE+WEEE
DHCP client - Yes
DHCP server - Yes
dimensionalWeight - 5858
dimension depth - 100 mm
dimension height - 500 mm
Dimensions - 441 x 330 x 44 mm
Dimensions W x D x H, mm - 441 x 330 x 44
dimension weight - 67 g
dimension width - 580 mm
ean - 760559129422
EANCode - 4718937622078
Environment requirements -
Ethernet LAN (RJ-45) PoE ports quantity - 28
Ethernet LAN (RJ-45) ports quantity - 28
Fan - No
Flash memory, MB - 32
Forwarding rate - 178.5 Mpps
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 4718937622078
guarantee - -1
guarantee_type - external
Height - 100.000000
HERSTELLER - ZYXEL
HSTNUMMER - XMG1930-30HP-ZZ0101F
IGMP snooping - Yes
Jumbo frame size - 12 KB
Jumbo Frames support - 12K
L2 features - Limiting IGMP IGMP filtering Static multicast transmission
L3 features -
Length - 580.000000
LongDesc - The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options.On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
LongProductName - 24-Port 2.5G Multi-Gig PoE++/PoE+ Lite-L3 Smart Managed Switch 700W with 6-port 10G Uplink (4 Copper/2 SFP+)
LongSummaryDescription - Zyxel XMG1930-30HP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP+ modules quantity: 2. MAC address table: 16000 entries, Switching capacity: 240 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
MAC address filtering - Yes
MAC address table, entries - 16 K
MAC address table size - 16000
Management, monitoring, configuration - SNMP v1, v2c, v3 SNMP trap group RMON (1, 2, 3, 9) Syslog (IPv4/v6)* IEEE 802.1AB LLDP IEEE 802.1AB LLDP-MED Custom default
Management features - Cloud-managed - Yes
Management features - Configuring Location Settings (CLI) - Yes
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L3
Management features - Switch type - Managed
Management features - Web-based management - Yes
Manufacturer - Zyxel
Manufacturer - ZYXEL NETWORKS
ManufacturerPartNumber - XMG1930-30HP-ZZ0101F
Maximum data transfer rate, Gbit/s - 240
Mean time between failures (MTBF) - 587922.31 h
MPN - XMG1930-30HP-ZZ0101F
Multicast features - Multicast support - Yes
Name - 28+2P Zyxel XMG1930-30HP POE M RM
name - Switch XMG1930-30HP, 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink
Network - 10G support - Yes
Network - Broadcast storm control - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500,10000 Mbit/s
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3ae
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3an
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3bz
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Network - Number of VLANs - 4000
Network - Policy-based routing - Yes
Network - Rate limiting - Yes
Network - Spanning tree protocol - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - 4
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 24
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 2
Operating temperature range (T-T), °C - -20 - 50
Operational conditions - Heat dissipation - 864.1 BTU/h
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -20 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - Cables included - AC
Packaging content - Rack mount kit - Yes
Packet buffer - 2 MB
Packet transfer speed - 2 MB
Performance - Mean time between failures (MTBF) - 587922.31 h
PeriodofWarranty -
Ports & interfaces - 10G Ethernet (copper) ports quantity - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 2.5G Ethernet (100/1000/2500)
Ports & interfaces - Fiber optic connector - SFP+
Ports & interfaces - Installed SFP+ modules quantity - 2
Ports & interfaces - Power connector - AC-in jack
Ports quantity - 30
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 864.1 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 864.1 W
Power over Ethernet (PoE), W - 700
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 28
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 20
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 700 W
Power over Ethernet (PoE) Support - Yes
Power supply - 100 - 240 V AC, 50/60 Hz
Power supply - Internal
producer - Zyxel
producerCode - XMG1930-30HP-ZZ0101F
ProductName - XMG1930-30HP
productName - Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
productSize - Normal
Protocols - GARP VLAN Registration Protocol (GVRP) - Yes
QoS -
Quality of Service (QoS) support - Yes
RAM memory - 256
Security - 802.1X Port security MAC authentication Static MAC forwarding SSL Static ARP Guest VLAN PPPoE Option 82 PPPoE IA CPU protection SHA2 HTTPS certificate Login authentication via RADIUS Authorization in RADIUS ACL packet filtering (IPv4/IPv6)
Security - Access Control List (ACL) - Yes
Security - DHCP features - DHCP client
Security - DHCP features - DHCP client, DHCPv6 relay
Security - DHCP features - DHCPv6 relay
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Security - MAC address filtering - Yes
Security - SSH/SSL support - Yes
SFP+ slots quantity - 2
SFP slots quantity - 2
ShortSummaryDescription - Zyxel XMG1930-30HP, Managed, L3, 2.5G Ethernet (100/1000/2500), Power over Ethernet (PoE), Rack mounting, 1U
sizeX - 505
sizeY - 580
sizeZ - 100
Spanning tree protocol - Yes
Stackability - Yes
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Supported protocols and standards - IEEE 802.3z 1000BASE-X IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3an 10G BASE-T Ethernet IEEE 802.3bz 2.5GBASE-T/5GBASE-T IEEE 802.3ae 10 Gbit/s Ethernet over fiber IEEE 802.3af PoE IEEE 802.3at PoE plus IEEE 802.3bt (60 W) PoE over 4 pair IEEE 802.3x flow control IEEE 802.3ad LACP aggregation IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1p Class of Service (CoS) prioritization IEEE 802.1X port authentication
Support for Jumbo frames - Yes
Switch class - SMART
Switching capacity, Gbit/s - 240
Switch layer - L2
Switch layer - L3
Switch type - Managed
Throughput - 240 Gb/s
Title - Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
URL - https://store.zyxel.com/xmg1930-30hp-zz0101f.html
vendpn - XMG1930-30HP-ZZ0101F
VLAN - Static VLANs/Dynamic VLANs 802.1Q: 1K/4K Support for VLAN IDs up to 4K Independent VLAN learning (IVL) Port-based VLAN Voice VLAN VLAN Trunking
WarrantyInfo -
warrantyType - W
Weight - 4.85 kg
Weight - 6.54
Weight - 6.560000
weight - 6535
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 4.85 kg
Weight & dimensions - Width - 441 mm
Weight, g - 4850
Width - 500.000000
