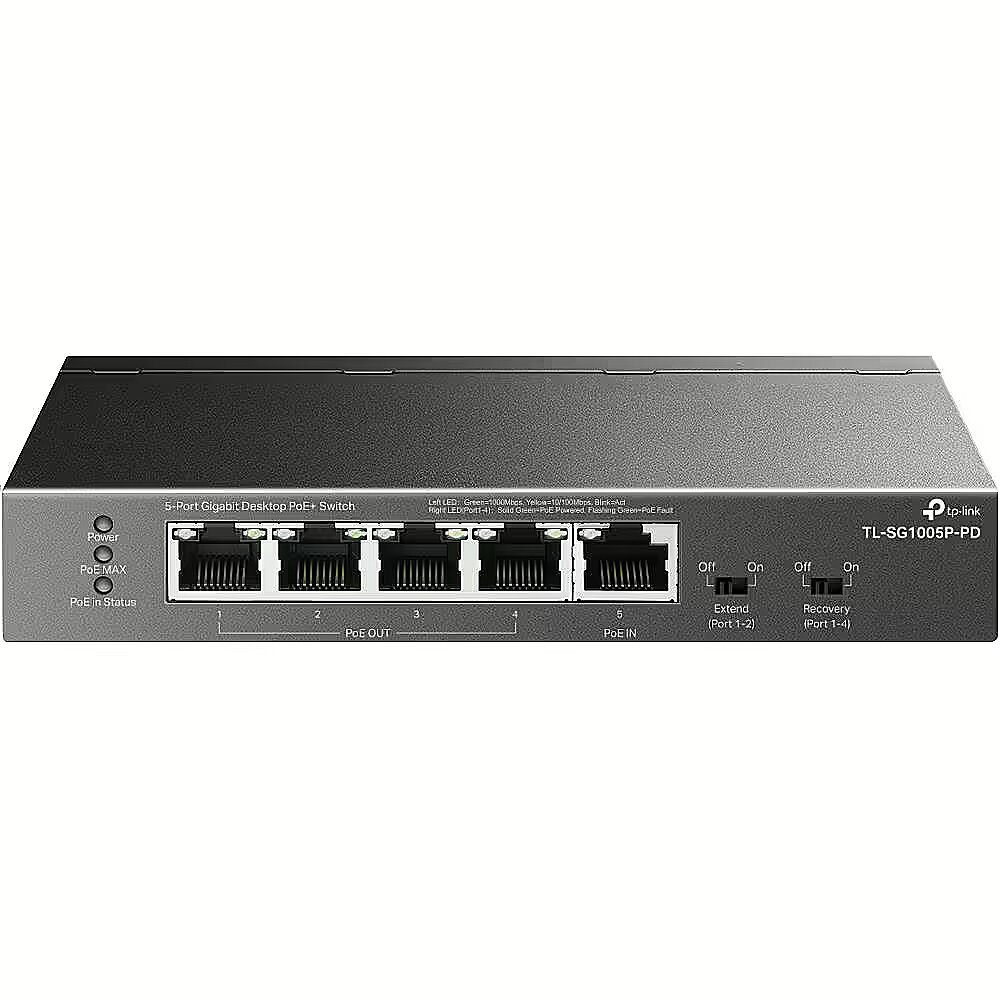

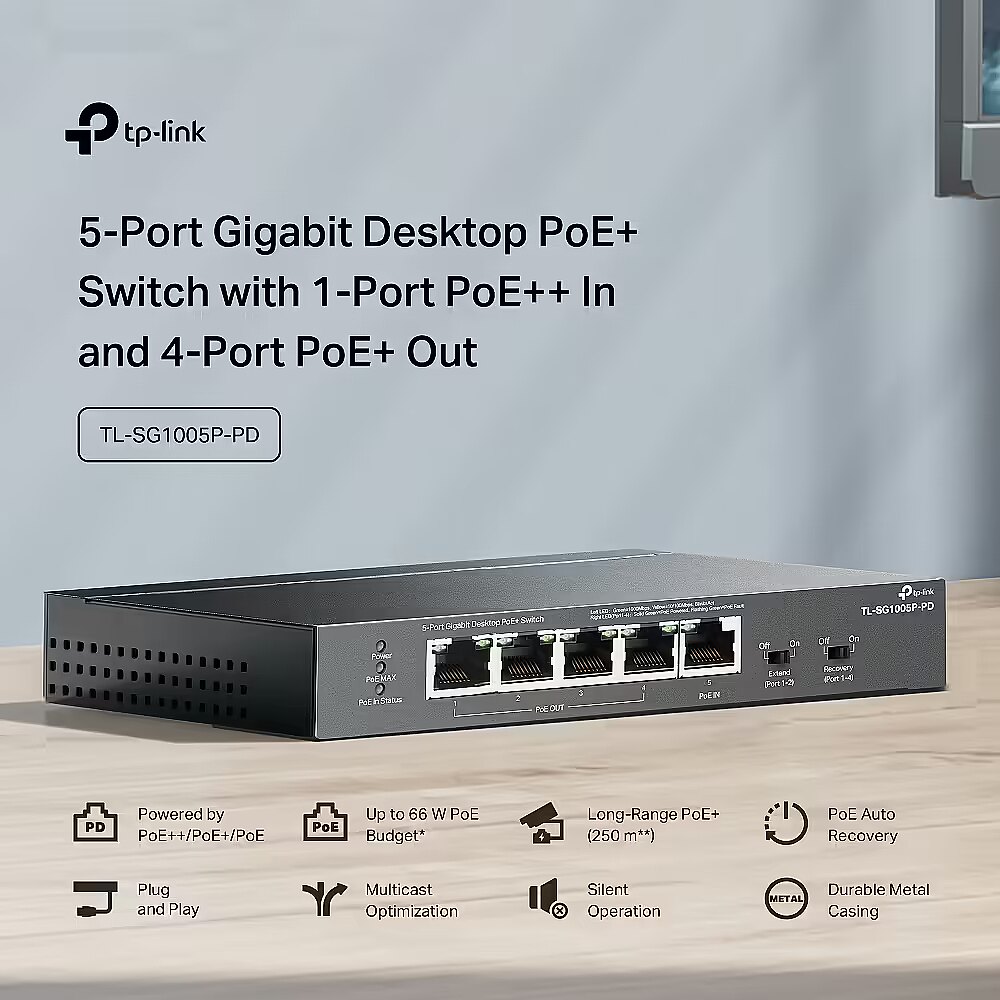

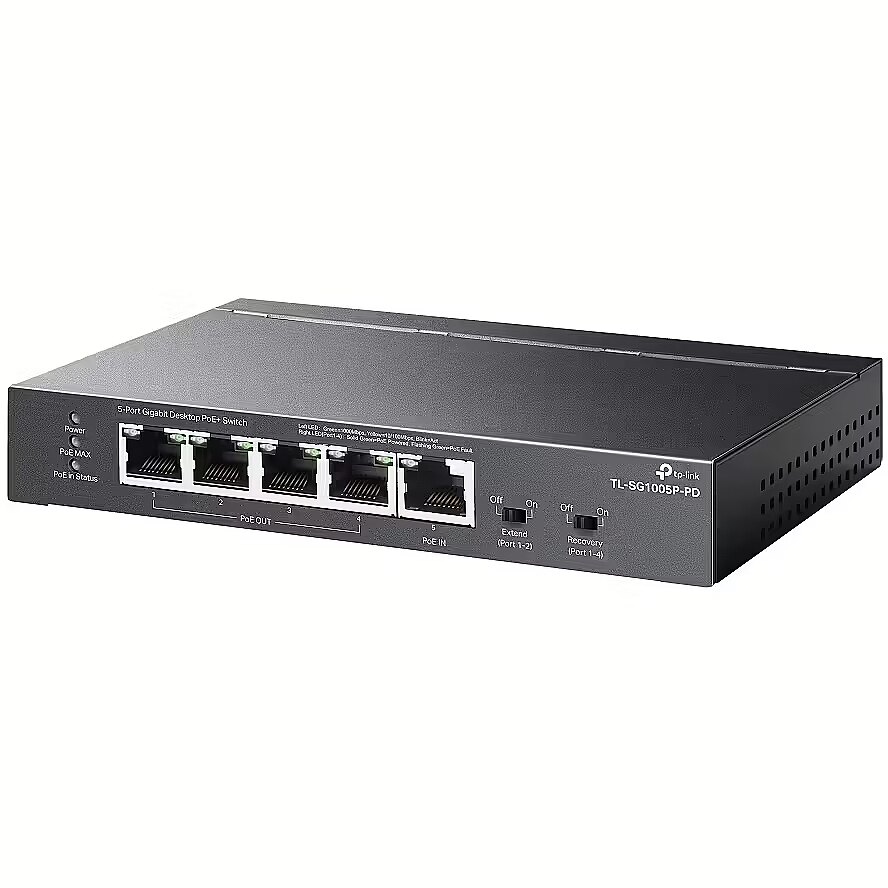

TP-LINK TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

10Base-T / 100Base-TX / 1000Base-T Ports - 5
Accessories included - TL-SG1005P-PD Installation Guide
Application - Home and small office
Brand - TP-Link
BrandPartCode - TL-SG1005P-PD
Category - Network Switches
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Certificates - CE FCC RoHS
Certificates - Certification - CE, FCC, RoHS
Chassis type - Desktop
Code - TL-SG1005P-PD
Console port - No
Data transmission - Forwarding rate - 7.44 Mpps
Data transmission - MAC address table - 2000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Description - 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively. Long-Range PoE+: With Extend Mode, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas. PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices. Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments. Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business. Plug and Play: No configuration and installation required. Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Description - TL-SG1005P-PD Desktop PoE+ Switch, 5 Gigabit ports, including 1 PoE++ IN port and 4 PoE+ OUT ports Ports: 5 RJ45 ports 10Mb/s / 100Mb/s / 1Gb/s 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 66 W / 47 W / 21 W / 9 W output PoE power - when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at and 802.3af PoE respectively. Long PoE+ range: In Extend Mode, PoE transmission range reaches up to 250m, being ideal for deploying cameras over large areas. PoE Auto Recovery: A function that guarantees stable operation of PoE devices by automatically restarting them when they lose connection or stop responding. Metal chassis: The robust metal chassis and ability to be mounted on a desk or wall will work well in a wide variety of environments. Quiet operation: The fanless design ensures silent operation, suitable for homes and businesses. Plug and Play: No configuration or complicated installation required. Power: The product can only be powered from a PoE source. AC and DC power supply is not supported.
Design - Certification - CE, FCC, RoHS
Design - LED indicators - Yes
Design - Number of fans - 0 fan(s)
Design - Product colour - Black

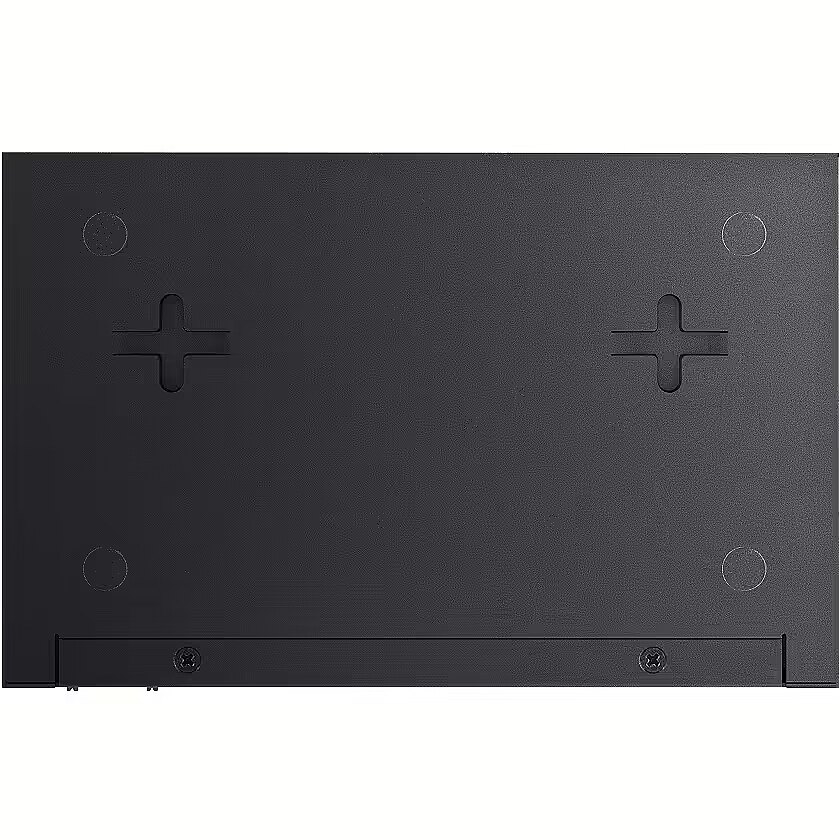

Design - Wall mountable - Yes
Design > Form factor - Desktop/Wall mountable
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 254
dimension depth - 50 mm
dimension height - 130 mm
Dimensions - 158 x 101 x 25 mm
Dimensions - 158 × 101 × 25 mm
dimension weight - 290 g
dimension width - 200 mm
EAN - 4895252501117
ean - 4895252501117
Eans - 4895252501117
Environment requirements - Permissible operating temperature: -30~70°C (-22~158°F) Permissible storage temperature: -40~70°C (-40~158°F) Permissible air humidity: 10% ~ 90%, no condensation Permissible storage humidity 5%~90%, no condensation
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 7.44 Mpps
Forwarding rate - 7.44 Mpps
Full Description Line - Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE+ ports 5|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Dimensions 158 × 101 × 25 mm|Unit Net Weight 0.3 kg
GTIN - 4895252501117
guarantee - 60
guarantee_type - normal
L2 features -
L3 features -
Link - https://www.tp-link.com/us/business-networking/soho-switch-unmanaged/tl-sg1005p-pd/
LongDesc - - Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.- Plug and Play: No configuration and installation required.- Power Supply: The product only supports PoE power supply, not AC or DC power supply.Ideal for Mains-Free EnvironmentsPowered by a PoE++ switch or PoE++ injector, no additional DC adapter is required.- Scenarios without mains power- Powered by PoE++/PoE+/PoEPower over Ethernet, Flexible Network DeploymentSupports up to 66W/47W/21W/9W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.* The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged. - Access Point- IP Phone- IP Camera- 4K Video- Network Video Recorder- ComputerInstantaneous Multi-mode Toggles, Ideal for IP Surveillance- Extend Mode. Up to 250m Transmissions. With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.- Recovery Mode. PoE Auto Recovery. Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
LongProductName - 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out, 158x101x25 mm, 10Gbps
LongSummaryDescription - TP-Link TL-SG1005P-PD. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u,.... Power over Ethernet (PoE). Wall mountable
MAC address table size - 2000
Management, monitoring, configuration - Extend Mode (Ports 1-2, up to 250 m of PoE power and data transmission) PoE Auto Recovery (Ports 1-4) Automatic learning and blanking of MAC addresses IEEE 802.3x flow control 802.1p/DSCP QoS IGMP Snooping
Management features - Quality of Service (QoS) support - Yes
Management features > Switch type - Unmanaged
Model name - TL-SG1005P-PD
name - Switch SG1005P-PD 5xGE (1xPoE++ 4xPoE+)
Name - Tp-Link TL-SG1005P-PD
Name - TP-LINK | 5-Port Gigabit Desktop Switch with 4-Port PoE | TL-SG1005P-PD | Unmanaged | Desktop/Wall mountable
Network - 10G support - Yes
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6
Network - Cable types supported - Cat4
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Cable types supported - Cat6
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Flow control support - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3bt
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 5
Number of PoE++ ports - 1
Number of PoE+ ports - 4
Operational conditions - Heat dissipation - 233.206 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -30 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - AUTO Negotiation AUTO MDI/MDIX
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 250.00 mm
Package features > Gross height (mm) - 250.00 mm
Package features > Gross width (mm) - 250.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 111 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - User guide - Yes
Packaging data - Package type - Box
Packaging data - User guide - Yes
Performance - Fanless - Yes
PoE+ ports - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces > POE - PoE++ 802.3 bt
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - Power consumption (max) - 68.59 W
Power - Power source - PoE
Power - Power supply included - No
Power consumption - 68.59 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 5
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 66 W

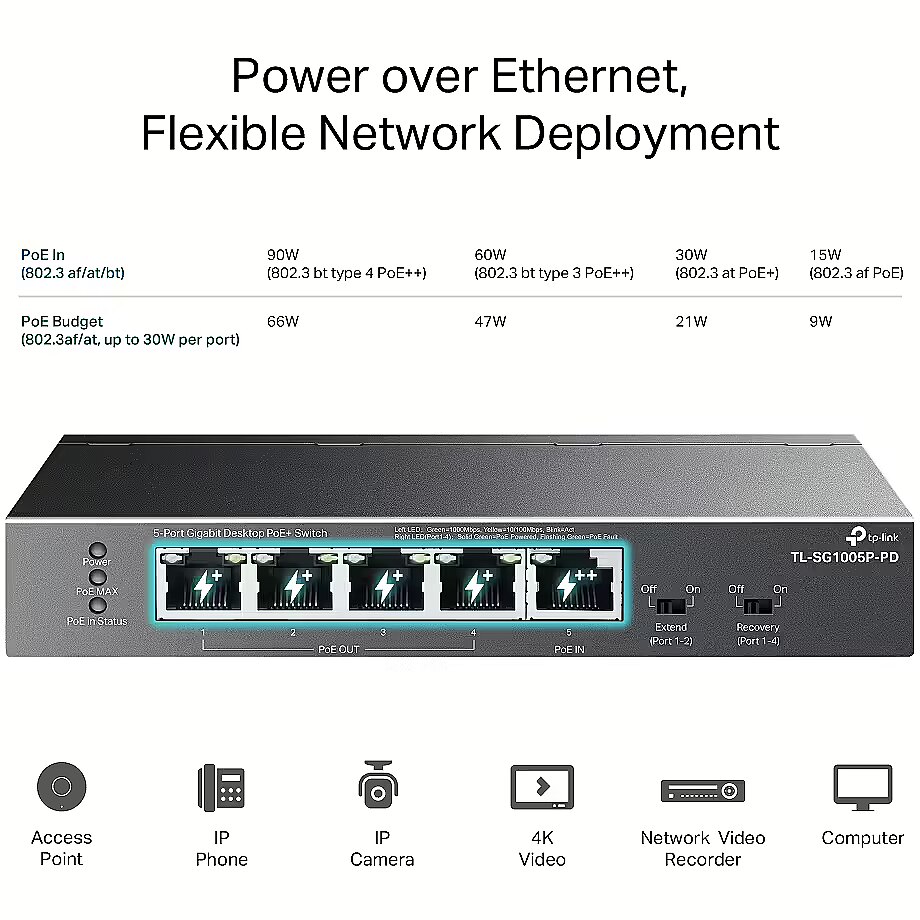

Power supply - Powered only from a PoE source PoE IN port (Port 5) compliant with 802.3af/at/bt Type3/bt Type4 PoE OUT ports (Ports 1-4) compliant with 802.3af/at Total PoE power supply: 66 W when powered by 802.3bt Type 4 (90 W) 47 W when powered by 802.3bt Type 3 (60 W) 21W when powered by 802.3at (30W) 9W when powered by 802.3af (15.4W)
Primary port count - 5
producer - TP-LINK
Producer - TP-Link
producerCode - TL-SG1005P-PD
ProducerCode - TL-SG1005P-PD
Producer product family - 5-Port Gigabit Desktop Switch with 4-Port PoE
Producer product name - TL-SG1005P-PD
ProductName - TL-SG1005P-PD
productName - TP-LINK | 5-Port Gigabit Desktop Switch with 4-Port PoE | TL-SG1005P-PD | Unmanaged | Desktop/Wall mountable
productSize - Normal
QoS -
Security -
Security - IGMP snooping - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 19.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortDescription -
ShortSummaryDescription - TP-Link TL-SG1005P-PD, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
sizeX - 196
sizeY - 50
sizeZ - 130
Stackability - No
Supported protocols and standards - IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3x IEEE 802.1p
Support for Jumbo frames - No
Switch class - Unmanaged
Switching capacity - 10 Gbps
Technical details > Gross weight - 0.66 kg
Technical details > Net weight - 0.46 kg
Technical details > Producer - TP-LINK
Throughput - 10 Gb/s
Title - TP-Link TL-SG1005P-PD network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Unit Box Height - 0.05
Unit Box Length - 0.195
Unit Box Width - 0.13
Unit Brutto Volume - 0.001267 cubm
Unit Gross Weight - 0.5 kg
Unit Net Weight - 0.3 kg
URL - https://www.tp-link.com/eg/business-networking/omada-switch-unmanaged/tl-sg1005p-pd/#highlights
Vendor Homepage - www.tp-link.com/au/business-networking/unmanaged-switch/tl-sg1005p-pd/
vendpn - TL-SG1005P-PD
VLAN -
Warranty - 36 months
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 460
Weight & dimensions - Depth - 101 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 158 mm
