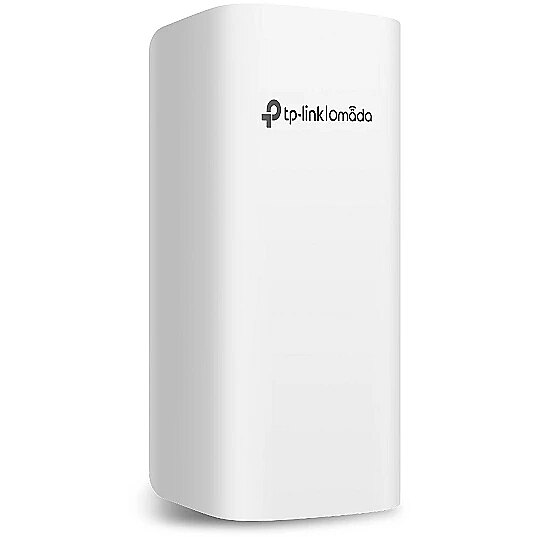

TP-LINK Omada SG2005P-PD

10Base-T / 100Base-TX / 1000Base-T Ports - 5
Accessories included - SG2005P-PD Zestaw montażowy Instrukcja instalacji
Application - Home and small office
ARTIKEL1 - OMADA 5-PORT 1G SMART SWITCH
ARTIKEL2 - 1X POE++ IN AND 4-PORT POE+ OUT
Brand - TP-Link
BrandPartCode - SG2005P-PD
Breite - 0
Category - Network Switches
Category Code - SWI
Certificates - CE FCC RoH
Certificates - Compliance certificates - CE, RoHS
Chassis type - Desktop
Code - SG2005P-PD
Console port - No
Data transmission - Jumbo frames - 9
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4.1 MB
Data transmission - Packet forwarding rate (1 Gbps) - 7440 pps
Data transmission - Switching capacity - 10 Gbit/s
Description - Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.* 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions. Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs. Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management. Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN.
Description - SG2005P-PD Omada Smart Switch, 5 gigabit ports, including 1 PoE++ IN port and 4 PoE+ OUT ports Up to 200 m of PoE transmission: The PoE Passthrough standard allows you to increase the PoE transmission range (source to device) from 100 m to a maximum of 200 m (up to 100 m to the switch + up to 100 meters from the switch), without losing gigabit speeds. This is ideal for remote surveillance cameras and access points. 1 Gigabit PoE++ IN port and 4 PoE+ OUT ports: Supports up to 64 W / 44 W / 19 W / 6 W of PoE output during power supply - according to the 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W) standard respectively , 802.3at and 802.3af PoE Weather resistance: IP55 tightness class and UV-resistant housing. Permissible temperature ranging from -40 to 60 °C and 4kV lightning protection ensures stable operation even in difficult conditions outside the building. Easy installation: Placing the device on a wall or pole is hassle-free thanks to the included mounting kit. Centralized Cloud Management: Integration with Omada SDN enables cloud access, remote management, and multi-site management. Features that add value and capabilities: Static Routing, Access Control List (ACL), QoS and VLAN. PoE powered PoE switch: Simple network deployment outside the building Omada Smart gigabit switch 1 PoE++ IN port 4 PoE+ OUT ports Power supply via PoE++/PoE+/PoE Total PoE power supply 64 W on 4 PoE+ output ports Doubling the PoE range to 200m without losing gigabit speeds Gigabit ports Easy installation - Pole/wall mounting Water and UV radiation resistant housing Centralized management of multiple sites Static routing The PoE Passthrough standard allows you to increase the PoE transmission range to a maximum of 200m, without losing gigabit speeds. Eliminate network restrictions and transmit data and power over a single cable, simplifying installation and reducing implementation costs. Increase the PoE transmission range (source to device) from 100m to a maximum of 200m without losing gigabit speeds. This is an ideal solution for remote surveillance cameras and access points. 1 Gigabit PoE++ IN port 4 Gigabit PoE+ OUT ports Supports up to 64W / 44W / 19W / 6W PoE output when powered - 802.3bt Type 4 (90W), 802.3bt Type 3 (60W), 802.3at and 802.3af PoE respectively. The PoE-PD switch automatically detects the required PoE power of your devices and protects non-PoE devices from damage. Weather-resistant housing designed for outdoor use The IP55 enclosure rating, assessed through penetration testing, ensures that the rugged and weather-resistant enclosure will protect the switch from harsh outdoor environments. Easy assembly, tailored to your needs The compact design of the switch allows for easy and flexible installation, for example on an external junction box. The set includes elements for mounting on a wall or pole. Additional features that add value and capabilities Static Routing - Helps direct internal traffic for more efficient use of network resources. Access Control List (ACL) - ACL acts as a virtual administrator, allowing all connected devices to obtain data according to user-defined network rules and helps you create the network regulations you need. QoS - Prioritize traffic based on QoS, ensuring smooth operation of latency-sensitive applications such as voice and video calls. VLAN Secure and flexible management - VLAN allows you to logically group the management of devices on different physical LANs, increasing data security and reducing data traffic congestion. Software control of network infrastructure (SDN) with access from the cloud Omada's software-defined network (SDN) platform integrates the operation of network devices, including access points, switches and gateways, providing comprehensive central management from the cloud. Omada enables you to create a highly scalable network - fully controlled via a single interface.
Design - Form factor - Desktop

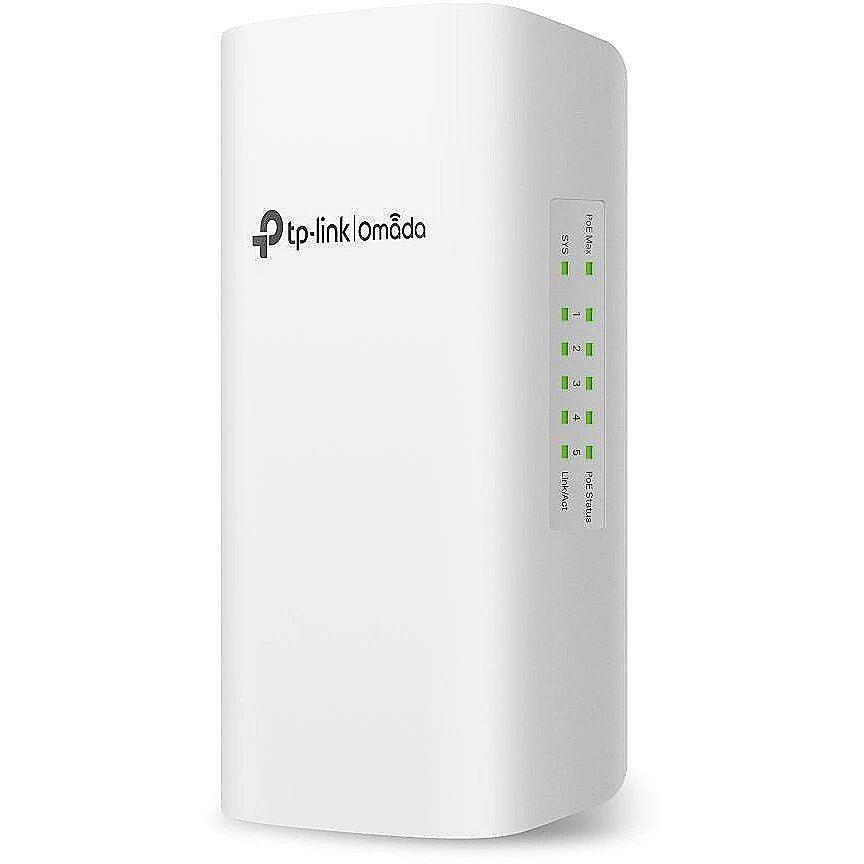

Design - LED indicators - Yes
Design - Product colour - White
Design - Rack mounting - No
Design - Stackable - No
Design > Form factor - Desktop
Desktop/pedestal Mounting Type - Yes
dimension depth - 70 mm
dimension height - 210 mm
Dimensions - 100 x 38,5 x 170 mm
Dimensions - 100 × 38.5 × 170 mm
dimension weight - 323 g
dimension width - 210 mm
EAN - 4897098689486
ean - 4897098689486
EANCode - 4897098689486
Environment requirements - Permissible operating temperature: -40~60°C (-40~140°F); Permissible storage temperature: -40~70°C (-40~158°); Permissible air humidity: 10%~90%, no condensation Permissible storage humidity: 5%~90%, non-condensing
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 7.44 Mpps
Forwarding rate - 7.44 Mpps
Full Description Line - Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE ports 1|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Dimensions 100 × 38.5 × 170 mm|Unit Net Weight 0.3 kg
Gewicht - 0
Gross Weight Kg - 1,2
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0840030709487
GTIN - 840030709487
GTIN - 4897098689332
GTIN - 4897098689486
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - SG2005P-PD
Jumbo frame size - 9 KB
L2 features - 16 IP interfaces - Support IPv4/IPv6 interface Static routing - 32 IPv4/IPv6 static routes DHCP server DHCP L2 Relay Static ARP entries Proxy ARP Gratuitous ARP Loopback detection Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED Flow Control - 802.3x Flow Control DHCP Relay: DHCP Interface Relay DHCP VLAN Relay Link Aggregation:
Static link aggregation Up to 8 aggregation groups and up to 8 ports per group LACP 802.3ad Spanning Tree Protocol (STP): STP 802.1D RSTP 802.1w MSTP 802.1s STP security: TC protection, BPDU filtering/protection, Root protection Mirroring: Port Mirroring CPU mirroring One-to-One transfer Many-to-One Transfer Based on flow Ingress/Egress/Both
L3 features -
Laenge - 0
Link - https://www.tp-link.com/my/business-networking/omada-switch-poe/sg2005p-pd/
LongDesc - PoE-Powered PoE Switch forSimplified Outdoor Network DeploymentOmada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ OutStandard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit SpeedsEliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.One Gigabit PoE++ In Port and Four Gigabit PoE+ Out PortsSupports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.Specially Designed Weatherproof Enclosure for OutdoorsRated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.Easy Installation to Flexibly Fit Your NeedsEasy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.Value-Added Features Foster Touchpoint ExperiencesStatic RoutingHelps route internal traffic for more efficient use of network resources.Access Control List (ACL)ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.QoS for Lag-Free ExperiencesDesignate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.VLAN for Security and Flexible ManagementVLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.Software Defined Networking (SDN) with Cloud AccessOmada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
LongProductName - 1× 10/100/1000 Mbps RJ45 PoE In, 4× 10/100/1000 Mbps RJ45 PoE Out, 10 Gbps, 8K MAC, 9 KB Jumbo, 100 x 38.5 x 170 mm
LongSummaryDescription - TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Form factor: Desktop
MAC address table size - 8000
Management, monitoring, configuration - Omada app Central management Cloud access Maintenance-free ZTP configuration Management panel features: GUI graphical interface CLI command line interface SNMP v1/v2c/v3 SNMPTrap/Inform RMON (groups 1, 2, 3, 9) SDM template DHCP/BOOTP client Dual Image, Dual Configuration CPU usage monitoring Cable diagnostics EEE SNTP System log
Management features - ARP inspection - Yes
Management features - Cloud-managed - Yes
Management features - MIB support - Y
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2/L2+
Management features - Switch type - Managed
Management features - Web-based management - Yes
Management features > Switch type - Managed L2+
Manufacturer Code - SG2005P-PD
Manufacturer Name - TP-LINK
Model name - SG2005P-PD
Multicast features - IPv4 multicast entries - 511
Multicast features - IPv6 multicast entries - 511
Multicast features - Multicast MAC address table - 8000 entries
Multicast features - Multicast support - Yes
name - Switch SG2005P-PD 5xGE (1xPoE++ 4xPoE+)
Name - TP-LINK | 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out | SG2005P-PD Omada | Managed L2+ | Desktop
Network - 10G support - Yes
Network - Cable types supported - Cat5, Cat5e
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 100BASE-T
Network - Flow control support - Yes
Network - IPv4 routes - 32
Network - IPv6 routes - 32
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Network - Number of VLANs - 4000
Network - Port mirroring - Yes
Network - Spanning tree protocol - Yes
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100/1000 Mbps ports - 5
Number of PoE++ ports - 1
Number of PoE+ ports - 4
Number of VLAN groups - 4000
Operational conditions - Heat dissipation - 243.99 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions - Automatic device detection Group configurations Bulk software updates Intelligent network health monitoring Warnings about unusual events Unified configuration process Restart schedule
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 212.50 mm
Package features > Gross height (mm) - 71.50 mm
Package features > Gross width (mm) - 209.50 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 543 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packet buffer - 4.1 MB
PoE ports - 1
Ports & interfaces - 10G Ethernet (copper) ports quantity - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces > POE - PoE++ 802.3 bt
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - Power consumption (typical) - 71.5 W
Power - Power source - DC/PoE
Power - Power supply included - Yes
Power consumption - 71.5 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 64 W

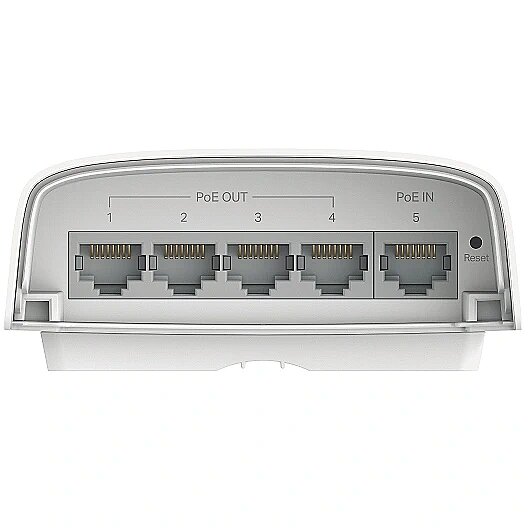

Power supply - Obtained from an 802.3af/at/bt PoE power source PoE IN port (Port 5) compliant with 802.3af/at/bt PoE OUT ports (Ports 1-4) compliant with 802.3af/at PoE Total PoE power supply: 64W when powered by 802.3bt Type 4 (90W) 44W when powered by 802.3bt Type 3 (60W) 19 W when powered by 802.3at 6W when powered by 802.3af
Primary port count - 5
producer - TP-LINK
Producer product family - 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Producer product name - SG2005P-PD Omada
ProductName - Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Protocols - IPv4 & IPv6 features - Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert
QoS - Supports 802.1p CoS/DSCP prioritization 8 priority rounds Queue weight configuration Smoother operation Bandwidth Control - Limiting transfer speeds based on port/data flow Priority Schedule Mode: SP (Strict Priority) WRR (Weighted Round Robin) Storm Control: Multiple control modes (kbps/rate) Broadcast/Multicast/Unknown-Unicast transmission control
Security - AAA Protection against DoS attacks Port protection through their static/dynamic/permanent configuration - Up to 64 MAC addresses per port Storm Control Broadcast/Multicast/Unicast - Control mode (kbps/indicator) Port isolation Secure web-based management via HTTPS with SSLv3/TLS1.2 encryption Secure CLI management with SSHv1/SSHv2 encryption Access control based on IP/Port/MAC 802.1X authentication: Port-based authentication Authentication based on MAC address (Host) Authentication methods available: PAP/EAP-MD5 MAB Guest VLAN Authentication and authorisation via Radius IP/IPv6 and MAC address binding: 512 possible entries DHCP Snooping DHCPv6 Snooping ARP inspection ND attack detection Source IP address protection: 253 possible entries Source IP address + source MAC address IPv6 source address protection: 183 possible entries Source IPv6 address + source MAC address
Security - Access Control List (ACL) - Yes
Security - Access Control List (ACL) IPv4 entries - 32
Security - Authentication - MAC-based authentication, Port-based authentication
Security - DHCP features - DHCP relay, DHCP server
Security - IGMP snooping - Yes
Security - IP-MAC-Port binding - Yes
Security - MAC address filtering - Yes
Security - Password protection - Yes
Security - Security algorithms - 802.1x RADIUS
Shipping Box Depth Shipping/Package Box Dimensions - 21 cm
Shipping Box Height Shipping/Package Box Dimensions - 7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 21 cm
Short description - TP-LINK Switch SG2005P-PD 5-Port Smart 1-Port PoE++ in and 4-Port PoE+ out
ShortSummaryDescription - TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Desktop
Stackability - No
Stck_Kart - 20
Stck_Pal - 0
Storno - Y
Supported protocols and standards - IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3x IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1q IEEE 802.1p IEEE 802.1x
Support for Jumbo frames - Yes
Sustainability - Sustainability compliance - Yes
Switch class - SMART
Switching capacity - 10 Gbps
Switch layer - L2
Switch layer - L2+
Technical details > Gross weight - 0.71 kg
Technical details > Net weight - 0.51 kg
Technical details > Producer - TP-LINK
Throughput - 10 Gb/s
Title - TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Unit Box Height - 0.07
Unit Box Length - 0.21
Unit Box Width - 0.21
Unit Brutto Volume - 0.003087 cubm
Unit Gross Weight - 0.5 kg
Unit Net Weight - 0.3 kg
URL - https://www.tp-link.com/en/business-networking/omada-switch-smart/sg2005p-pd/#overview
Vendor Homepage - www.tp-link.com/sg/business-networking/omada-sdn-switch/sg2005p-pd/
vendpn - SG2005P-PD
VLAN - VLAN Groups - Max. 4K VLAN groups 802.1Q VLAN tagging VLAN MAC Address: 12 entries VLAN protocol GVRP Voice VLAN
Warranty - 36 months
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 38.5 mm
Weight & dimensions - Width - 170 mm
