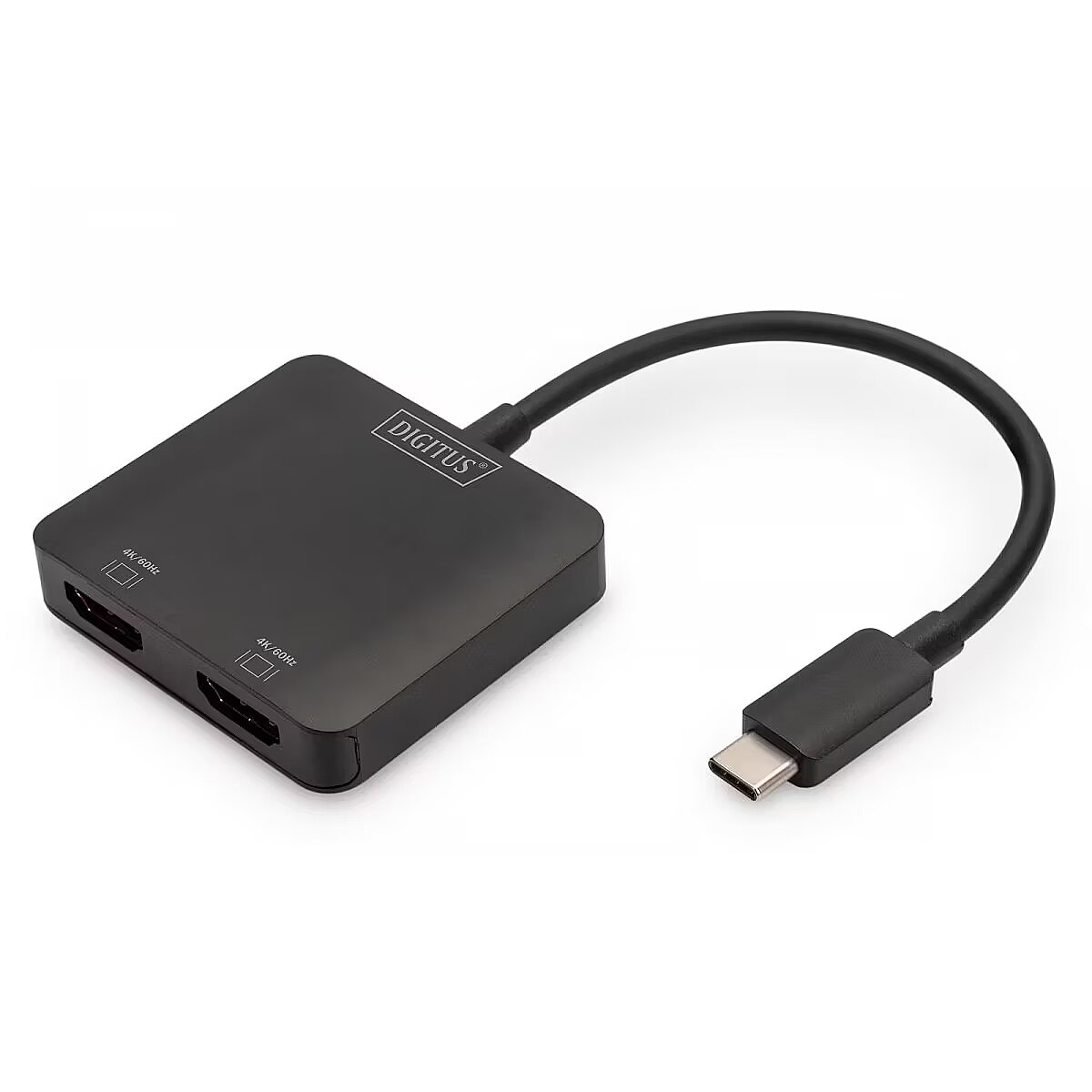

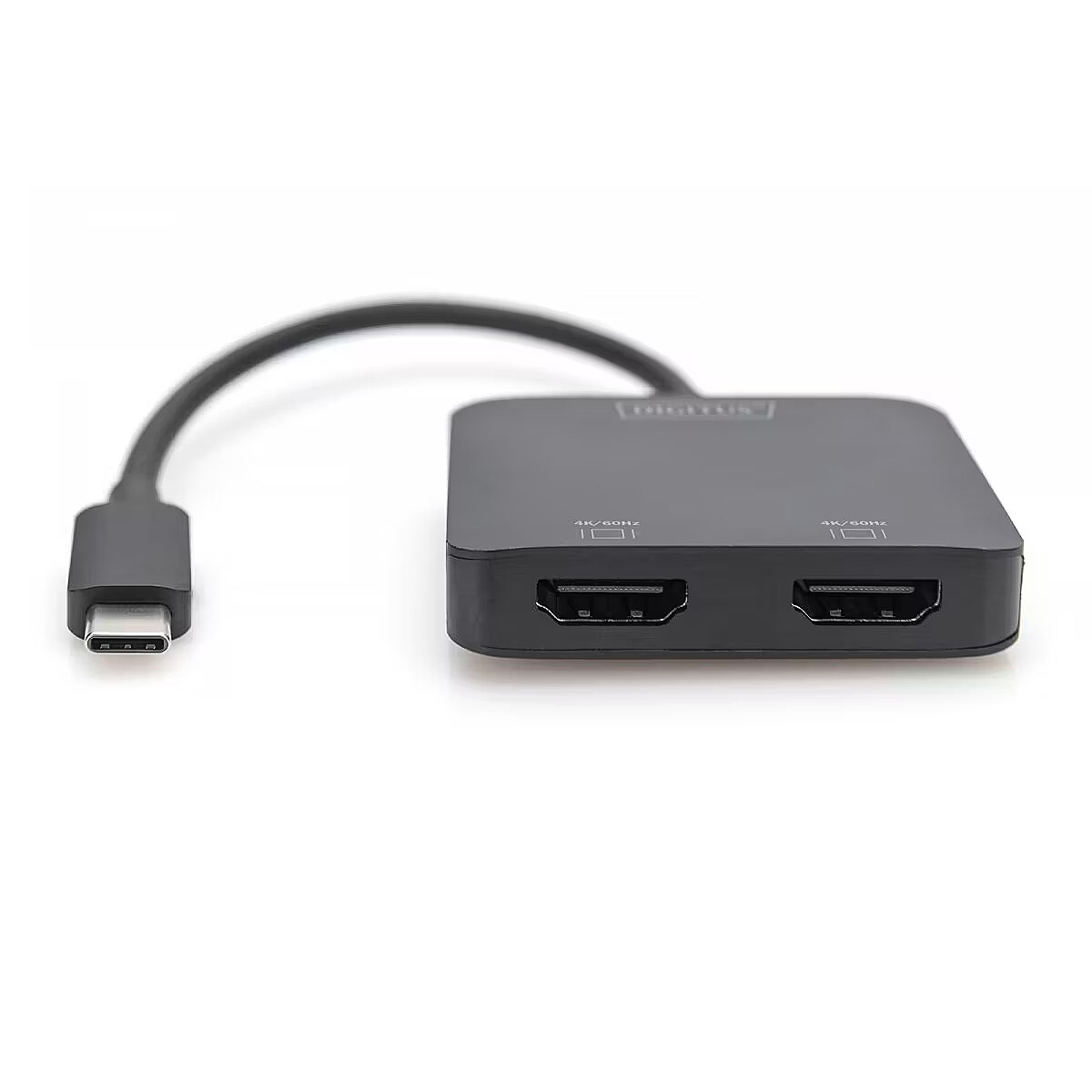

Digitus 2-PORT MST VIDEO HUB HDMI USB-C -> 2X HDMI

Accessories included - quick start guide
ARTIKEL1 - 2-PORT MST VIDEO HUB HDMI
ARTIKEL2 - USB-C -> 2X HDMI
Breite - 0
Buttons > Input type - 1x USB-C
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Code - DS-45338
Color - Black

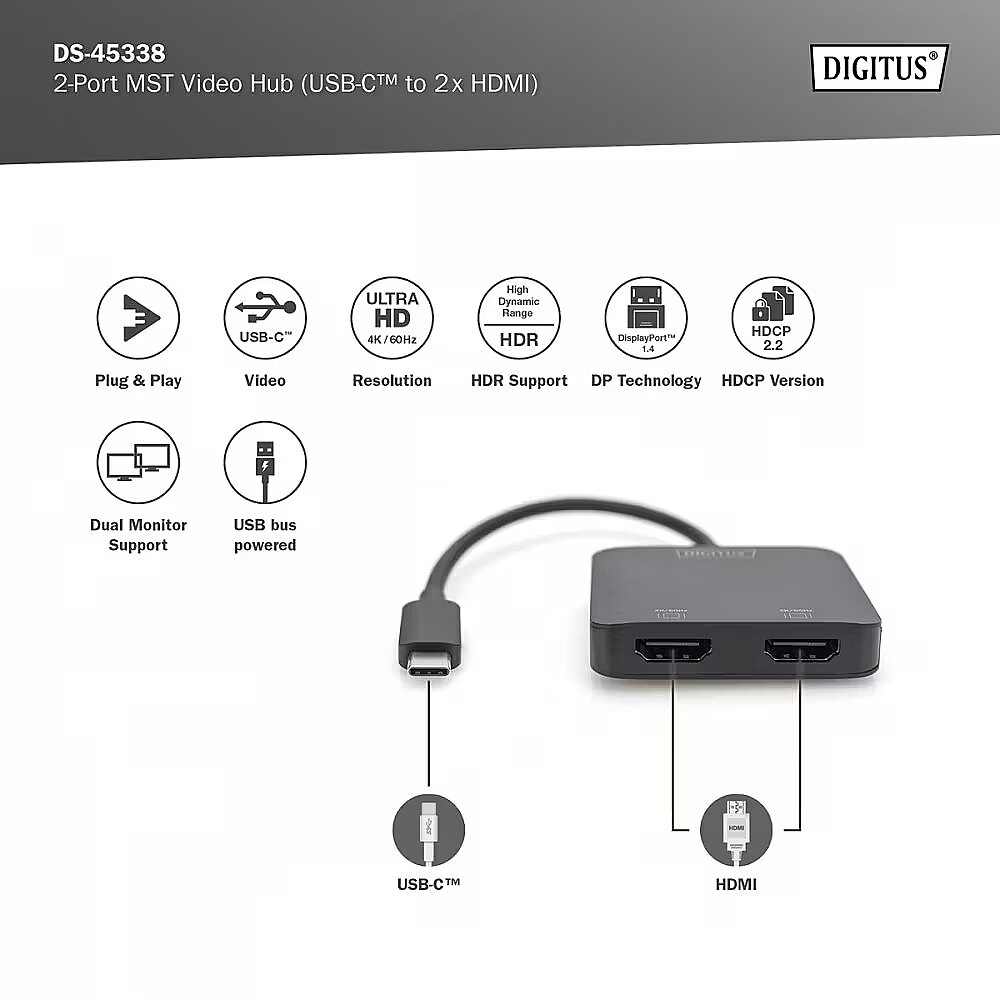

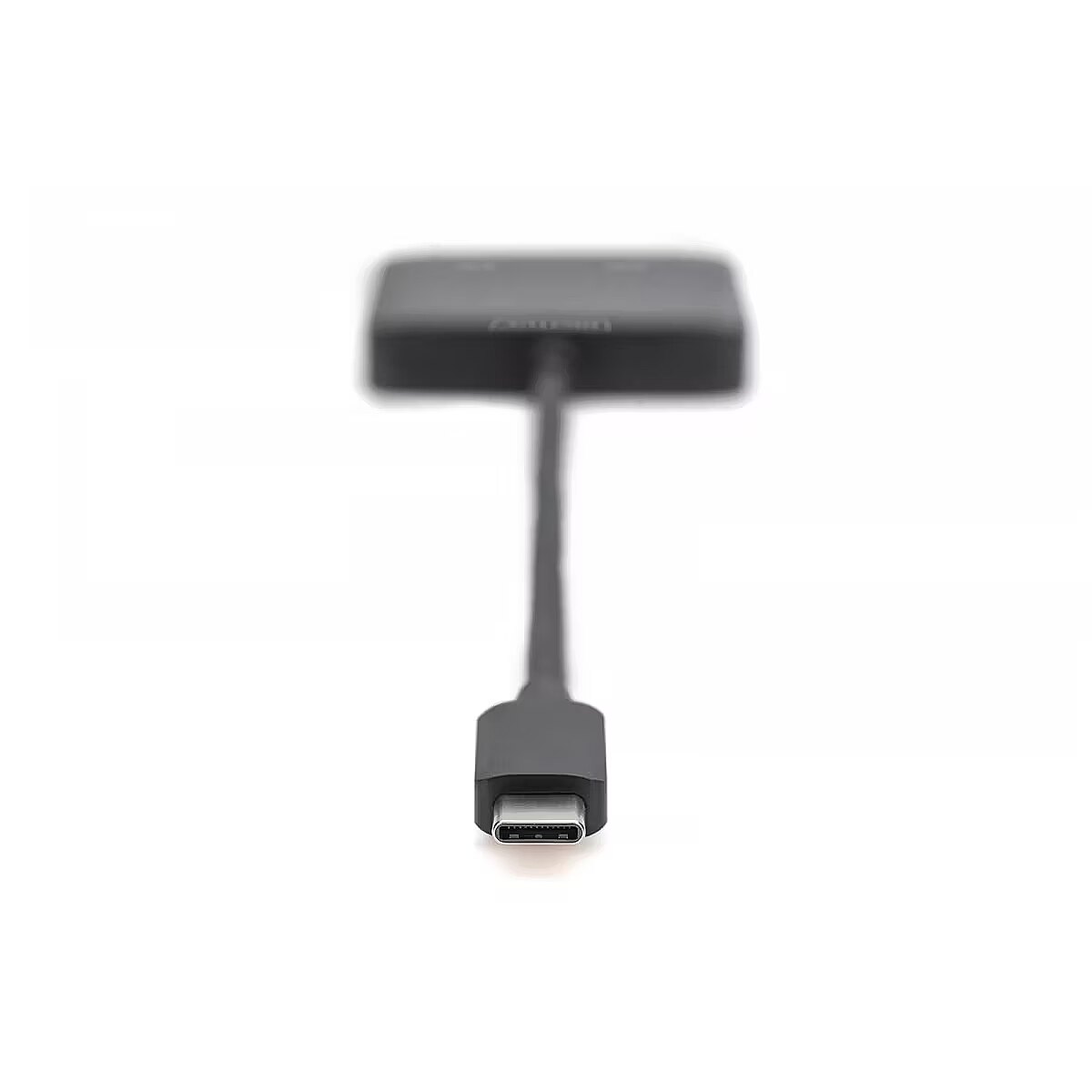

Connectors #1 - USB Type C Male

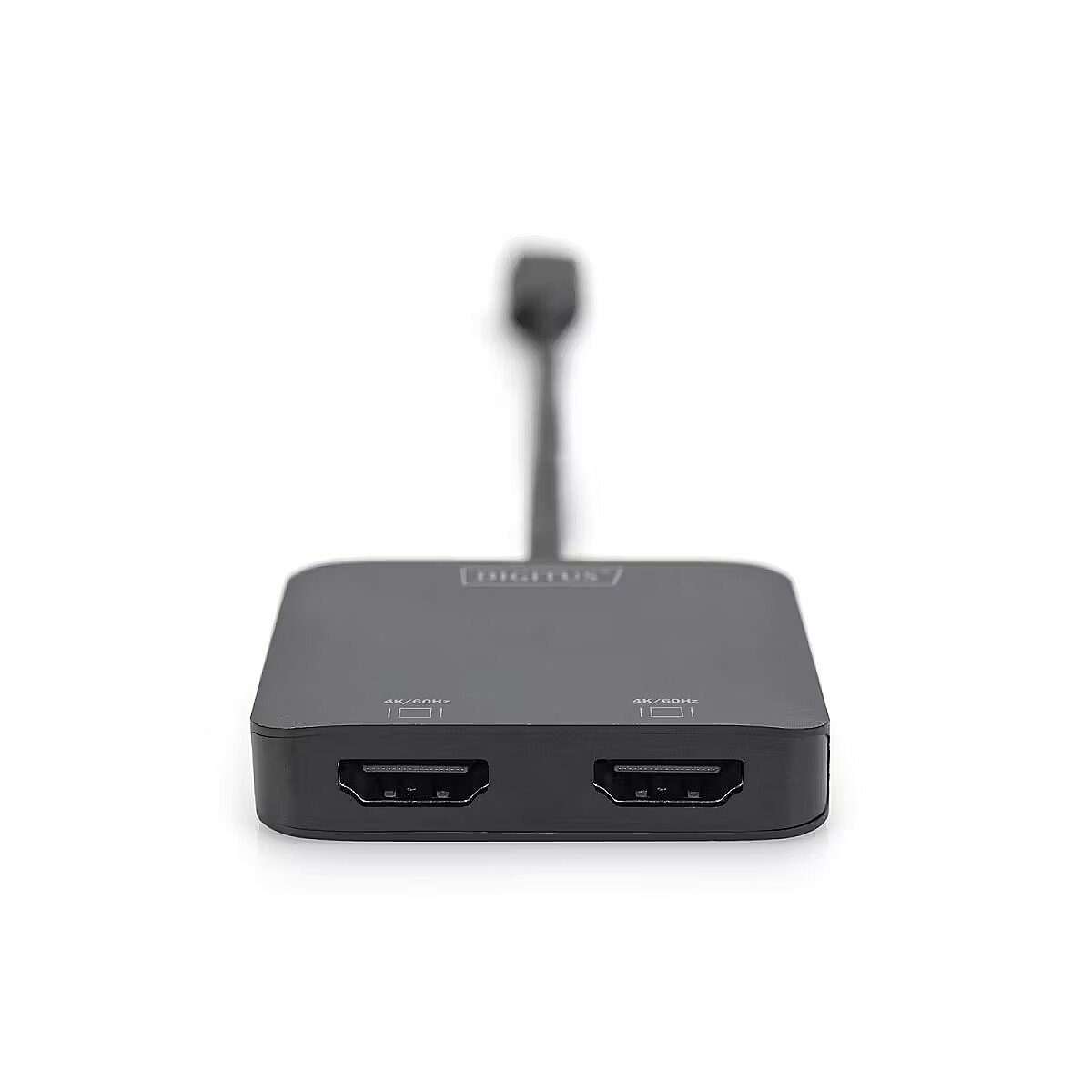

Connectors #2 - HDMI Type A Female x2

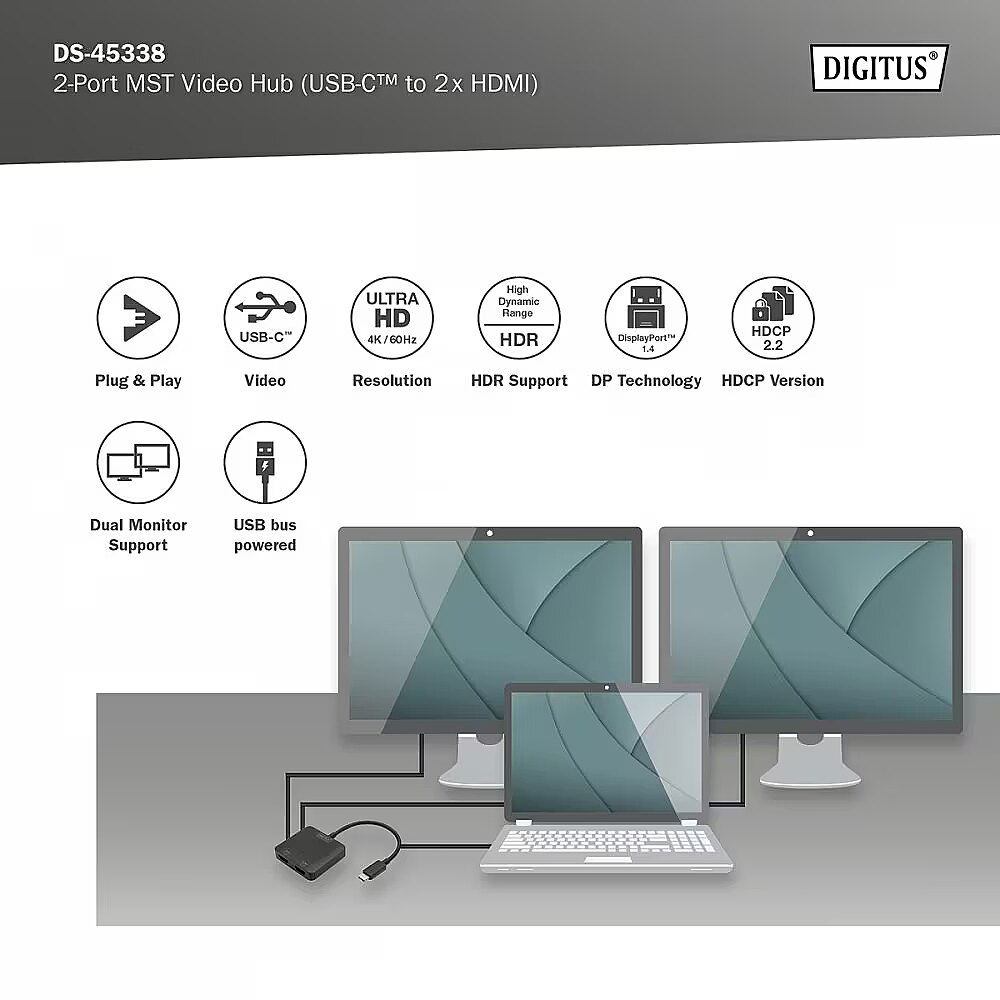

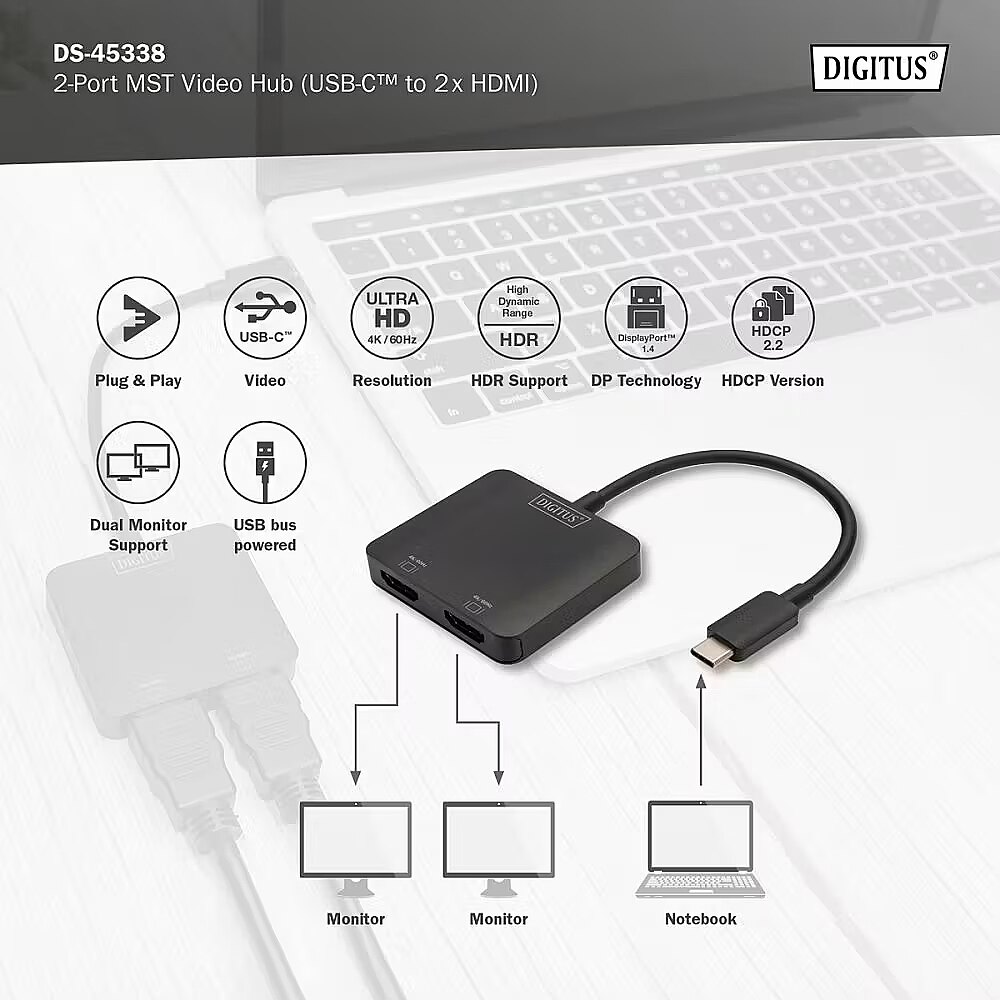

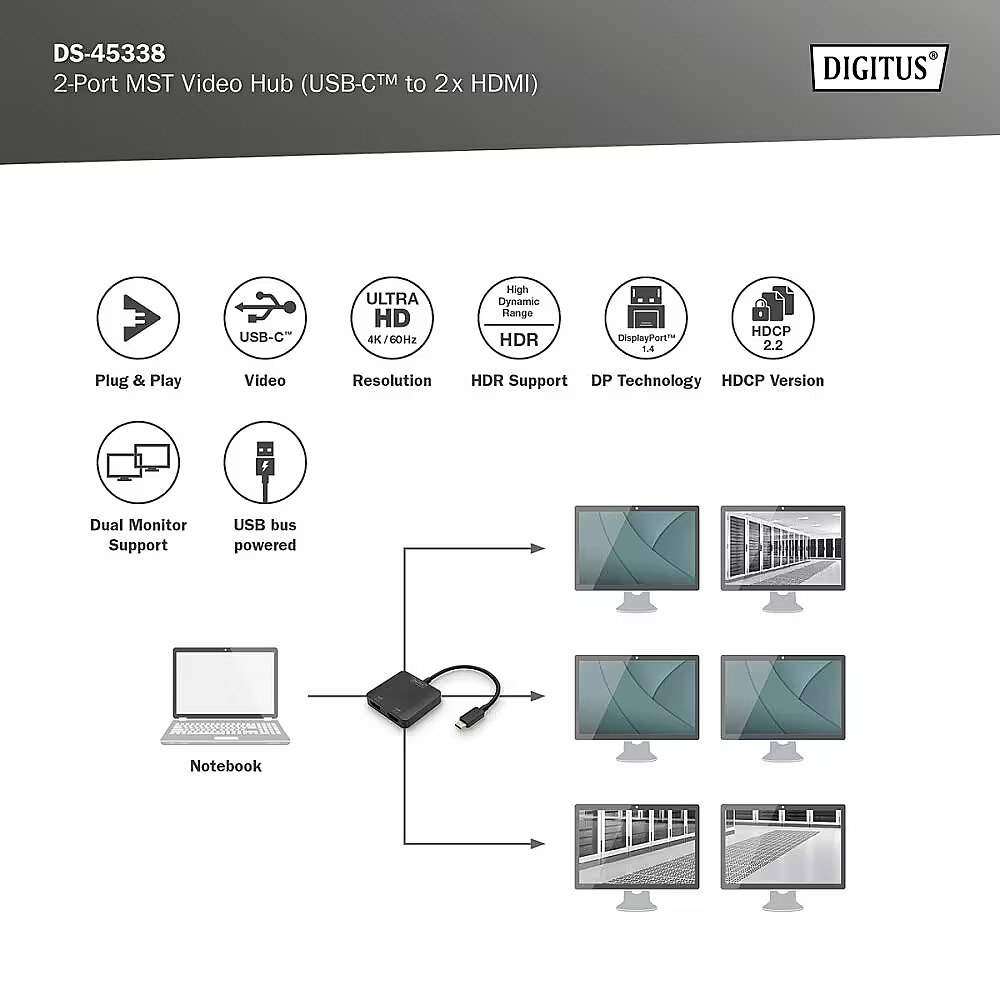

Description - The MST hub for connecting up to 2 external monitors via the video output of your notebook/PC allows you to increase your productivity by working with multiple screens. It uses Multi Stream Transport technology (DisplayPort 1.2 functionality), which enables the transmission of several AV signals over a single cable. This allows the use of several monitors connected via the MST hub setup. The MST hub can distribute different video streams to two connected displays. Basically, three playback modes are supported: Screen Mirroring (1 signal duplicated on 2 displays), Desktop Extend (2 signals on 2 displays), Split (1 signal split on 2 displays). DP 1.4 support (Alt mode) with up to 8.1 Gbps per channel, up to 32.4 Gbps over 4 channels Host PC resolution with DP 1.4: max. 2 x 4K / 60 Hz Host PC resolution with DP 1.2: max. 2 x 4K / 30 Hz Powered by USB-C BUS powered connector No drivers or software needed, configuration is done through the display settings in the Windows operating system Support 3 display modes: Screen mirroring (1 signal duplicated on 2 displays), desktop extending (2 signals on 2 displays), Split (1 signal split on 2 displays) Support for graphics cards from AMD, Nvidia and Intel Support for Windows OS (11, 10)
dimension depth - 20 mm
dimension height - 160 mm
Dimensions - L 5.5 x W 5 x H 1.15 cm
dimension weight - 150 g
dimension width - 80 mm
EAN - 4016032483731
ean - 4016032483731
EANCode - 4016032483731
EAN_code - 4016032483731
Features > Colour of product - Black
Gewicht - 0
GRUPPE1 - Cables
GRUPPE2 - AUDIO / VIDEO CABLE
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-45338
Laenge - 0
Link - https://de.assmann.shop/en/Video-and-Audio/Video-Converters/2-Port-MST-Video-Hub-USB-C-2x-HDMI.html
Manufacturer - Digitus
Manufacturer_code - DS-45338
Name - Digitus 2-Port MST Video Hub, docking station (USB-C, 2x HDMI)
Name - Digitus | 2-Port MST Video Hub | DS-45338 | Black
name - Video adapter 2-ports DS-45338
Other features - 1 x USB-C input 2 x HDMI out HDCP 2.2/1.4 HDR (High Dynamic Range) video support MST (Multi Stream Transport) and SST (Single Stream Transport) support Body: ABS plastic Working temperature: 0-45° Power consumption in standby mode: approx. 0.5 W Tips: To achieve the above resolutions, the computer (host) must support DP 1.4 (Alt mode). If your computer only supports DP 1.2, the corresponding resolutions will be reduced due to bandwidth limitations. The resolution configurations listed above are provided as theoretical references and actual resolutions will vary depending on the connected host computer and monitors. To use the full range of functions, please ensure that your device (graphics card) supports DP 1.4. When using a DisplayPort 1.1 graphics card, the MST hub functions as a splitter and mirrors the video source to all connected displays. Functionality may be limited depending on device specifications and operating system. MST hubs do not allow you to increase the number of displays supported by the graphics card. Each graphics card can support a limited number of displays. Please check the specifications of your device beforehand. At least one host system with DP 1.2/HBR2/MST or higher is required (recommended).
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 20.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 6750 pc(s)
Package features > Paper/Pasteboard - 20.00 g
Package features > PET - 20.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Ports & interfaces > Output connections - 2x HDMI
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
System Requirements -
Technical details > Gross weight - 0.08 kg
Technical details > Net weight - 0.06 kg
Technical details > Other features - The DIGITUS MST Hub uses Multi Stream Transport (DisplayPort 1.2 function), which allows multiple AV signals to be transported over a single cable. This enables the use of multiple monitors that are connected via the MST Hub configuration. The MST Hub can distribute different video streams to the two connected screens. In general, it supports three reproduction modes: Mirror (1 signal mirrored on 2 displays), extend (2 signals on 2 displays), distribute (1 signal distributed across 2 displays)
Technical details > Producer - Digitus
Technical details > Producer product family - 2-Port MST Video Hub
Technical details > Producer product name - DS-45338
Technical details > Type - USB-C dock
Type - Adapter
Usage - Video
vendpn - DS-45338
Warranty - 24
Warranty - 24 month(s)
Weight - 0,08
Weight - 43 g
