ID: 976435
Product code: ZP2000GM3A004
Can be ordered 27 units Availability: 14 days after order approval
Warranty: 3 years

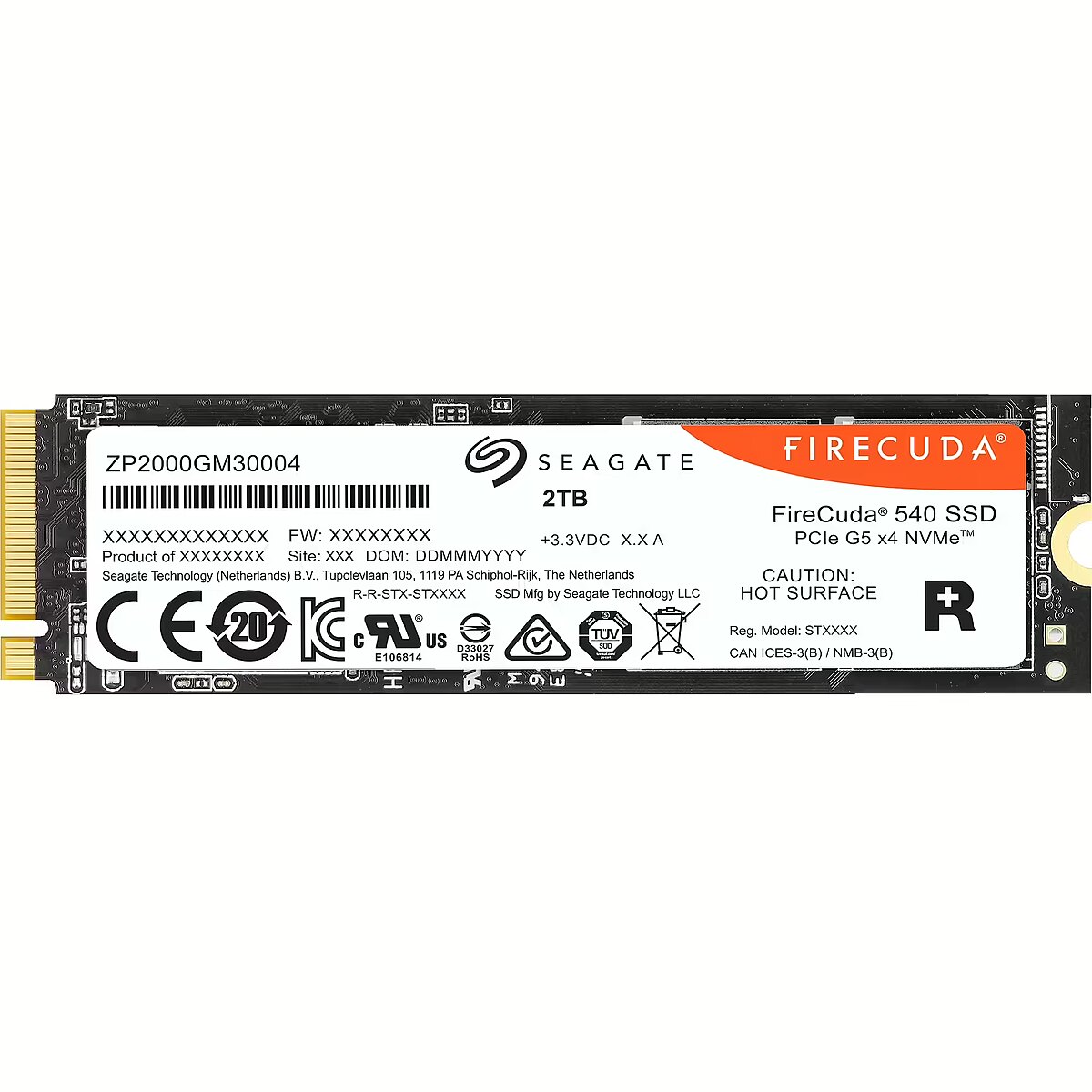

Seagate FireCuda 540, 2TB, M.2 Gen5 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost free of charge: 08.01.2025
- Delivery to Omniva parcel locker 1.99 €: 08.01.2025
- Courier delivery 3.99 €: 08.01.2025
Main product parameters All parameters
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 10000 MB/s
- Write speed (sequential): 10000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 5.0 x4
Description
Available for purchase, the Seagate M.2 80mm (2280) format SSD disk with a large volume of 2 TB.
This SSD drive has a compact and modern M.2 connector.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
10000 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The writing speed for this SSD disk reaches 10000 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
This SSD drive has an M.2 80mm (2280) format.
This SSD disk has a PCIe 5.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
10000 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
10000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 5.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: 2000 TB
More detailed specification
ARTIKEL1 - FIRECUDA 540 NVME SSD 2TB M.2S
ARTIKEL2 - PCIE GEN4 3D TLC SED BASE
Brand - Seagate
BrandPartCode - ZP2000GM3A004
Breite - 0.11
Category - Internal Solid State Drives
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
code - ZP2000GM3A004
ean - 8719706430883
EANCode - 8719706430883
Eans - 8719706430883
EAN_code - 8719706430883
Features - Component for - Server/workstation
Features - Interface - PCI Express 5.0
Features - Linux operating systems supported - Yes
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - Random read (4KB) - 1490000 IOPS
Features - Random write (4KB) - 1500000 IOPS
Features - S.M.A.R.T. support - Yes
Features - Sequential read speed (ATTO) - 10000 MB/s
Features - Sequential write speed (ATTO) - 10000 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 10, Windows 11
Gewicht - 0.07
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0763649174630
GTIN - 763649174630
GTIN - 8719706430883
HERSTELLER - SEAGATE
HSTNUMMER - ZP2000GM3A004
Laenge - 0.16
Logistics data - Layers per pallet - 7 pc(s)
Logistics data - Master (outer) case gross weight - 970 g
Logistics data - Master (outer) case height - 140 mm
Logistics data - Master (outer) case length - 292 mm
Logistics data - Master (outer) cases per pallet - 168 pc(s)
Logistics data - Master (outer) case width - 153 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - With speeds up to 10,000 MB/s, this PCIe Gen5 takes no-prisoners, toppling Gen4 speeds by 50% and going 17 times faster than SATA SSDs. DirectStorage support brings faster load times to games and applications. Plus, handles upwards of 2000 TB total bytes written, perfect for powering through constant abuse. This SSD isn’t for the faint of heart.FireCuda 540 is also compatible with PS5™ systems when combined with effective heat dissipation and an added cooling structure — such as a heatsink or a heat transfer sheet.Waste No TimePerformance has a new name — featuring speeds up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.Full Tilt SpeedsUp to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.Built to LastUp to 2,000 TB TBW (total bytes written) means you can write and delete 90% of the drive capacity, every day, for five years.Faster. Faster. Faster.Transfer speeds up to 50% faster than PCIe Gen4 NVMe SSDs and up to 17× faster than SATA SSDs.Storage Expansion for PS5The FireCuda 540 is compatible with PS5™ consoles and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.Rescue Data Recovery ServicesWe’ve Got Your BackWhen the unexpected happens — like water damage or natural disaster — Rescue Services help you defend against data loss and retrieval costs so you can rest easier.DiscWizard and SeaTools — Making Drive Management EasierSeagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard — and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
LongProductName - 2 TB, M.2 2280-D2, PCIe Gen5 x4 NVMe 2.0, 10000 MB/s
LongSummaryDescription - Seagate FireCuda 540. SSD capacity: 2 TB, SSD form factor: M.2, Component for: Server/workstation
Manufacturer - Seagate
Manufacturer_code - ZP2000GM3A004
Name - Seagate FireCuda 540 2TB, SSD (PCIe 5.0 x4, NVMe 2.0, M.2 2280-D2)
Name - Seagate Firecuda 540 M.2 PCIe NVMe 2TB
name - Seagate FireCuda 540 NVMe SSD, PCIe 5.0 M.2 Typ 2280 - 2 TB
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Non-operating vibration - 1.52 G
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 93%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Other features - Warranty period - 5 year(s)
Packaging data - Package depth - 24 mm
Packaging data - Package height - 155 mm
Packaging data - Package weight - 70 g
Packaging data - Package width - 109 mm
Power - Average power consumption (read) - 10.5 W
Power - Average power consumption (write) - 11.5 W
Power - Power consumption (average) - 11 W
Power - Power consumption (idle) - 0.144 W
Producer - Seagate
ProducerCode - ZP2000GM3A004
ProductName - 540
ShortDescription - SSD | 2TB | 10000/10000 MB/s | M.2
ShortSummaryDescription - Seagate FireCuda 540, 2 TB, M.2
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Title - Seagate FireCuda 540 2 TB M.2 PCI Express 5.0 NVMe 3D TLC
URL - https://www.seagate.com/gb/en/products/gaming-drives/pc-gaming/firecuda-540-ssd/
WarrantyInfo - 5 years limited
Weight - 0,10
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 3.58 mm
Weight & dimensions - Weight - 7.4 g
Weight & dimensions - Width - 22.1 mm
