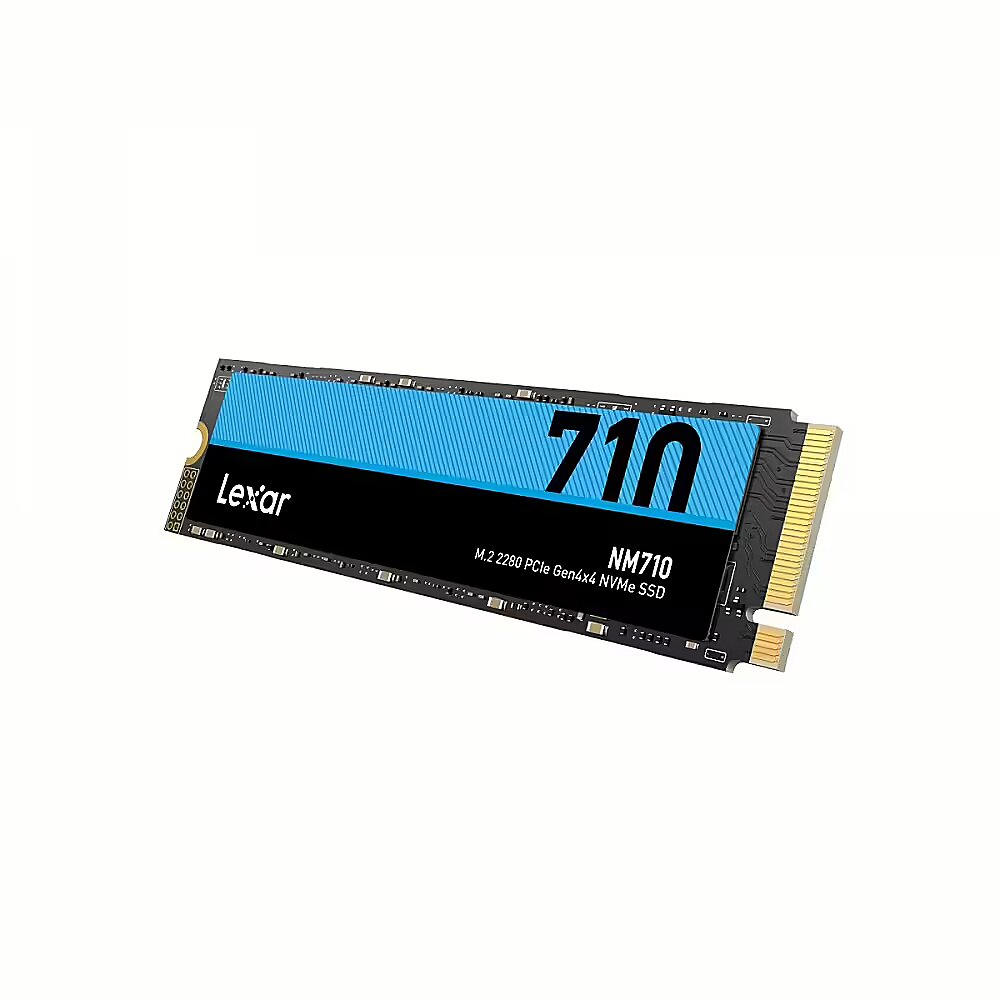

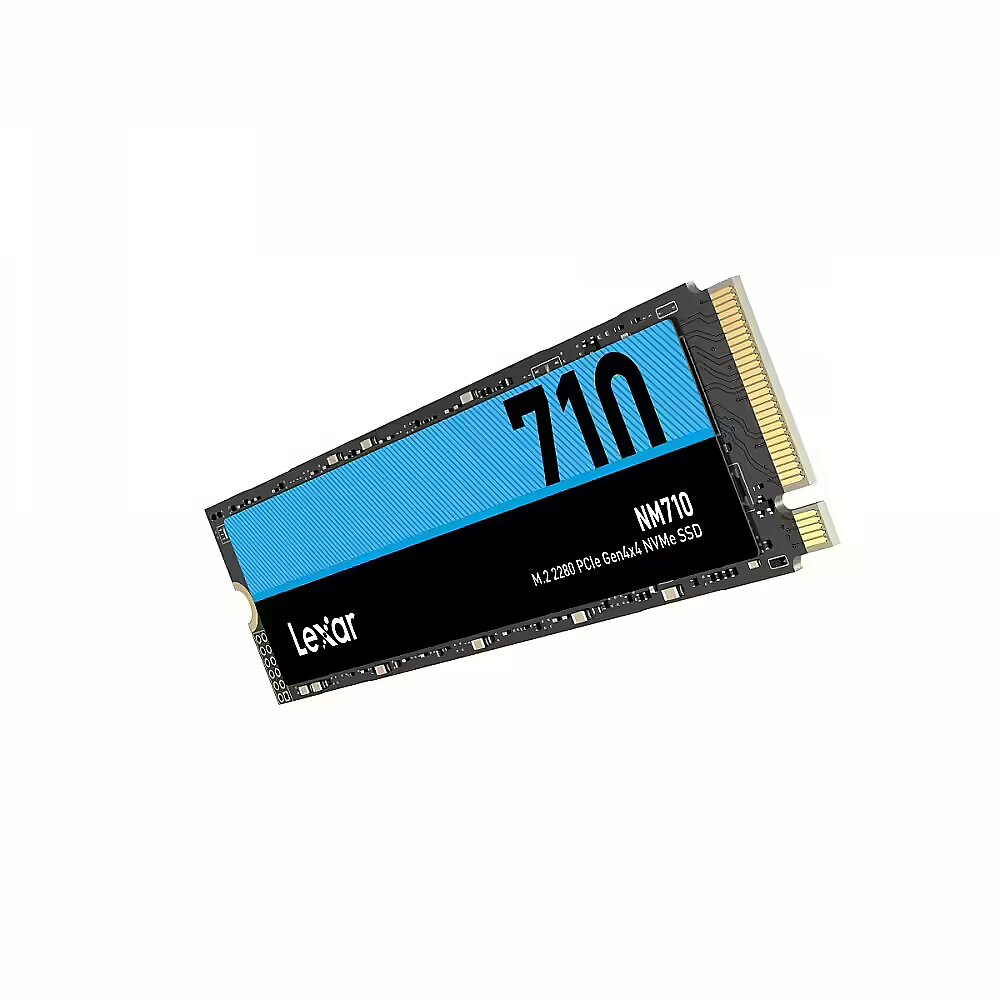

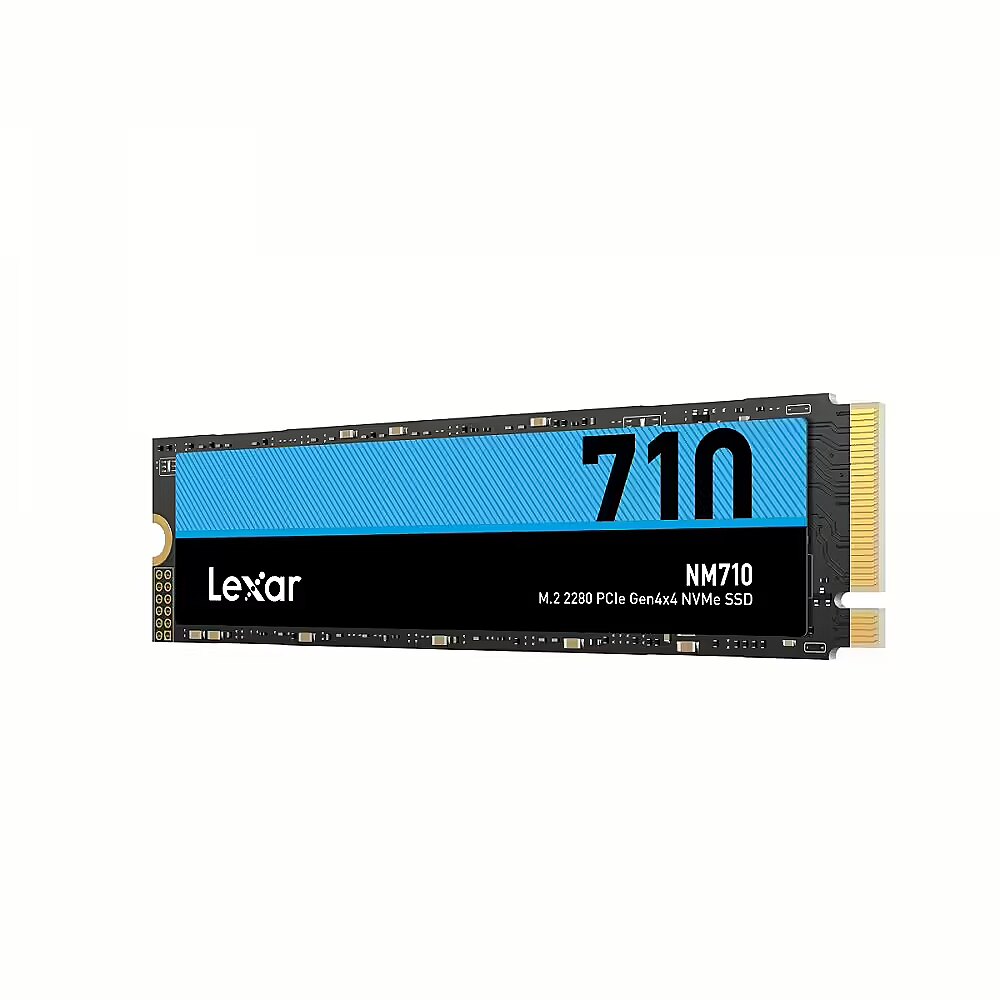

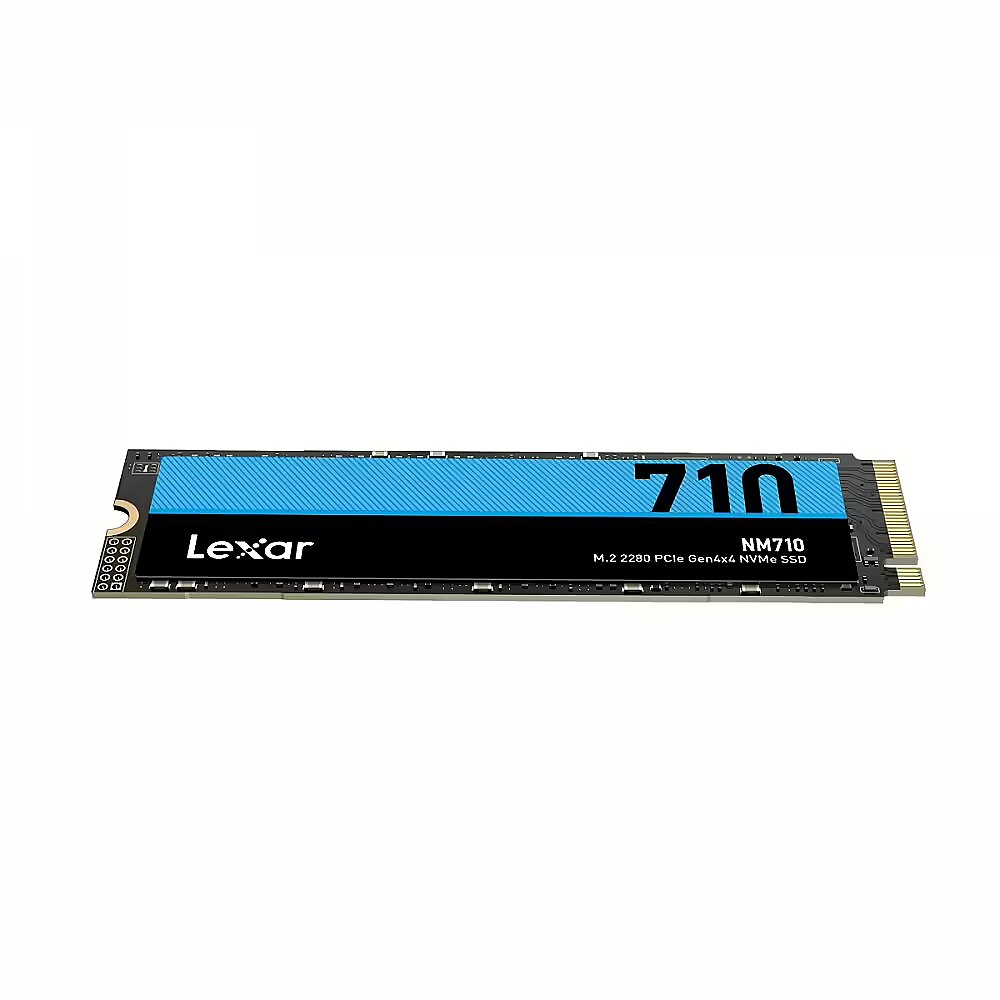

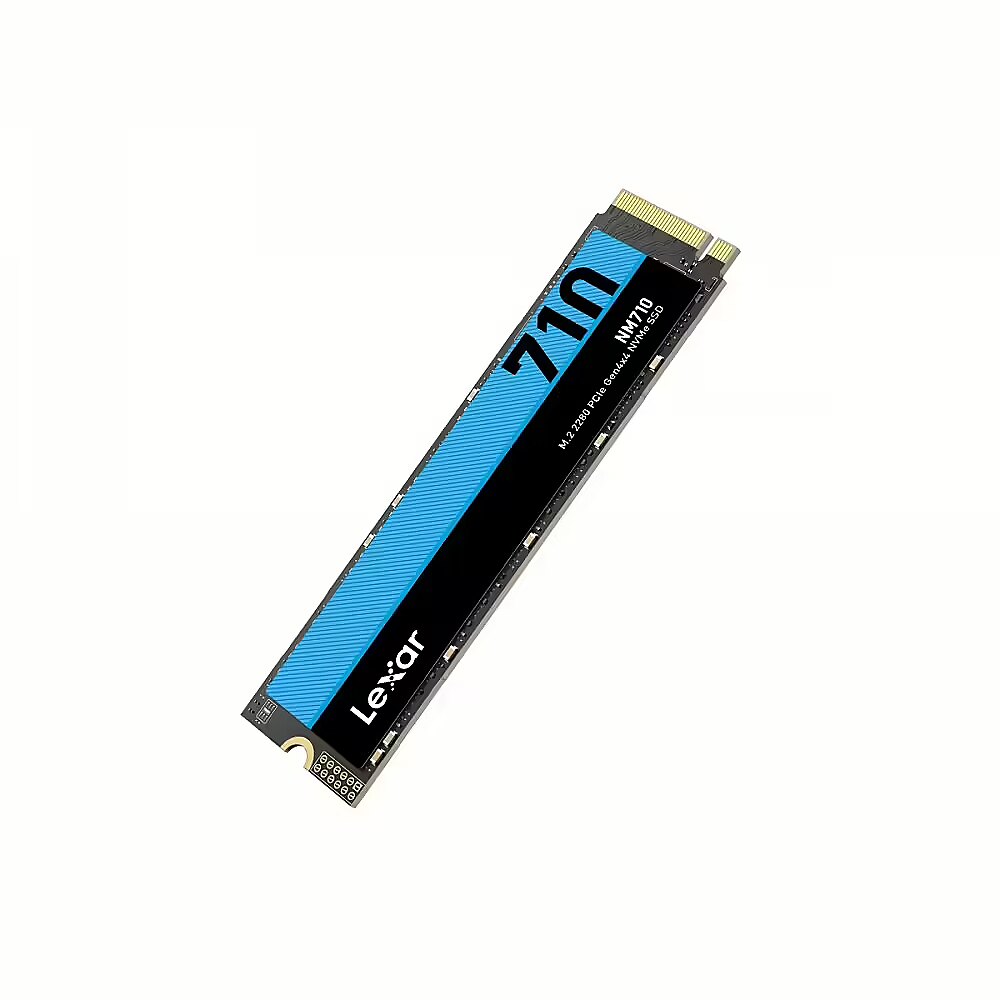

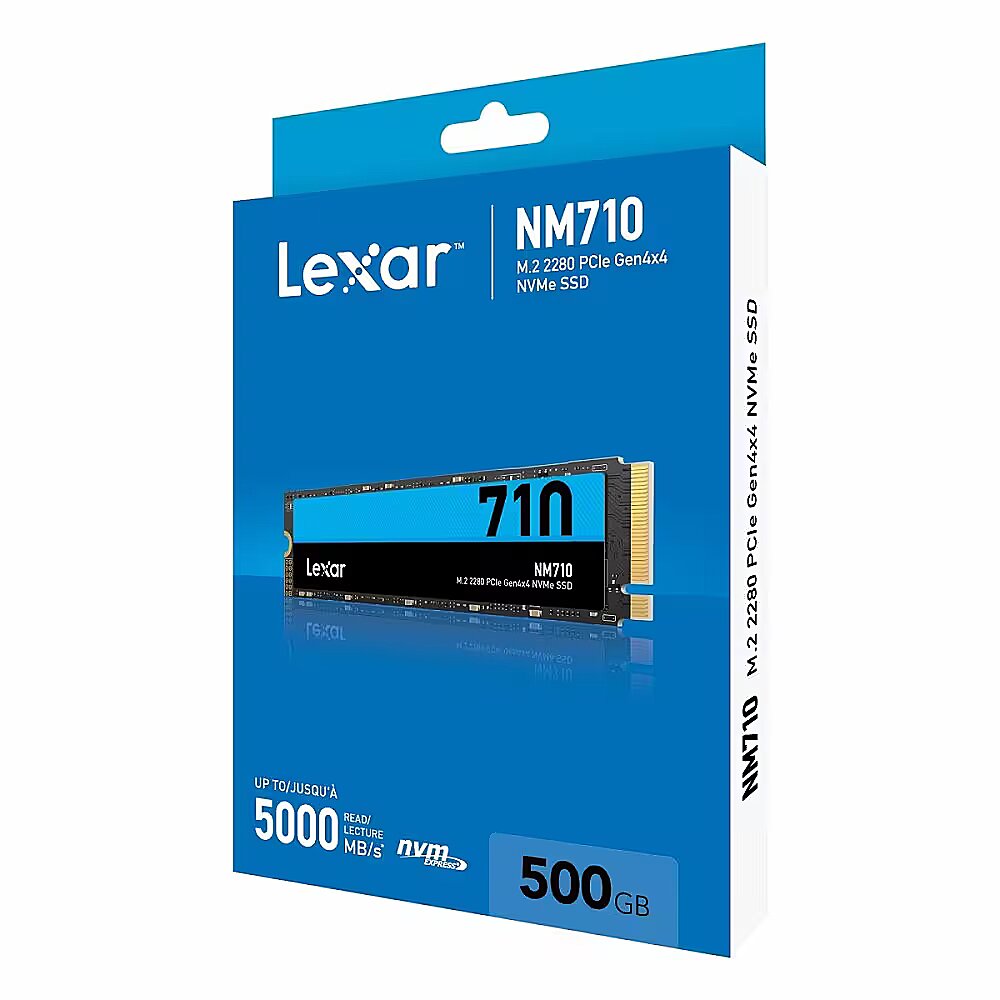

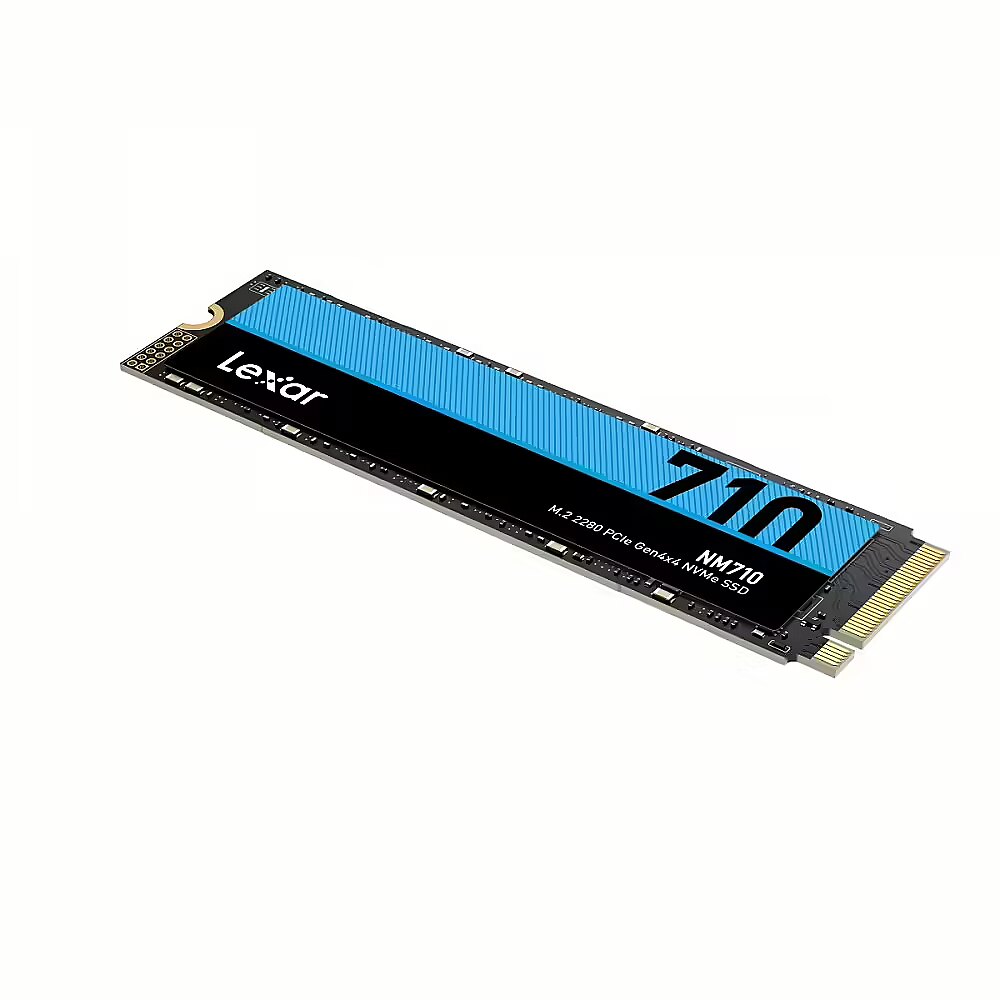

Lexar NM710, 500GB, M.2 Gen4 x4

Name: Lexar NM710, 500GB, M.2 Gen4 x4
Brand: Lexar
SKU: 933074
Price: 47.31 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 933074 Product code: LNM710X500G-RNNNG

In stock 21 units

Warranty: 2 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
Courier delivery 3.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Capacity: 500 GB
Type: NVMe
Read speed (sequential): 5000 MB/s
Write speed (sequential): 2600 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

Available for purchase, the Lexar M.2 80mm (2280) format SSD disk with a large volume of 500 GB.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

This SSD disk read speed (Sequential read speed) is 5000 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

The writing speed for this SSD disk reaches 2600 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD disk has a PCIe 4.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 500 GB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 5000 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 2600 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Nav

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : Not indicated

Random Write IOPS : Not indicated

Endurance (TBW) : 300 TB

More detailed specification

Box Weight Brutto (kg) - 0.61 kg
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Code - LNM710X500G-RNNNG
Color - Not applicable
Combined (other) - 0.7000 g
Depth - 80 mm
Description -
Description - Lexar® NM710 M.2 2280 PCIe Gen4x4 NVMe SSD
Design > SSD form factor - M.2 2280
Device Location - Internal
dimensionalWeight - 51
dimension depth - 10 mm
dimension height - 160 mm
Dimensions - 80 x 22 x 2.45 mm
dimension weight - 47 g
dimension width - 100 mm
Disk type - SSD
Drive thickness - 2.45mm
Drive type - Internal
EAN - 843367129690
ean - 843367129690
EAN - 0843367129690
EAN Code - 843367129690
Eans - 843367129690
EAN_code - 0843367129690
Features - Component for - PC/Laptop
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - NVMe - Yes
Features - Protection features - Vibration proof
Features - Read speed - 5000 MB/s
Features - SSD capacity - 500 GB
Features - SSD form factor - M.2
Features - Write speed - 2600 MB/s
Form Factor - M.2
Form Factor - M.2 22x80mm
Form factor (width) - M.2 2280
Full Description Line - SSD series NM710|500GB|Form Factor M.2|PCIe Gen4|NVMe|Write speed 2600 MBytes/sec|Read speed 5000 MBytes/sec|Drive thickness 2.45mm|TBW 300 TB|MTBF 1500000 hours
guarantee - 60
guarantee_type - normal
HDD capacity - 500 GB
HDD interface - PCI-Express
Height - 2.45 mm
Image - https://content.it4profit.com/pimg/s/resize/750x750x750x750/230125170013845211.jpg
Manufacturer - Lexar
Manufacturer - Lexar Media
Manufacturer_code - LNM710X500G-RNNNG
Maximum Sequential Read Rate - 5000 MB/s
Maximum Sequential Write Rate - 2600 MB/s
Memory Technology - NAND Flash
Model - LNM710X500G-RNNNG
Model - NM710
MPN - LNM710X500G-RNNNG
MTBF - 1.5e+006 hours
Name - Lexar NM710 - 500GB - SSD - M.2, PCIe 4.0 x4
Name - Lexar NM710 Pci-e NVMe 500GB
Name - Lexar | M.2 NVMe SSD | NM710 | 500 GB | SSD form factor M.2 2280 | Solid-state drive interface PCIe Gen4x4 | Read speed 5000 MB/s | Write speed 2600 MB/s
Name - M.2 500GB Lexar NM710 High Speed NVMe PCIe4.0 x 4
name - SSD drive NM710 500GB NVMe M.2 2280 5000/2600MB/s
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Operational conditions - Vibration resistance - 20 G
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 5.00 mm
Package features > Gross width (mm) - 120.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 960 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > PET - 1.7 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Package Type - Retail
Packs in Box - 10
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.03 kg
PCIe Gen4 Interface - Yes
PDF - https://www.blobs.lt/products/7/1/7/9/8/3/05db2bfdc7e95cf21853ab0b45ca5ef5/original.pdf
Performance > Read speed - 5000 MB/s
Performance > Solid-state drive capacity - 500 GB
Performance > Solid-state drive interface - PCIe Gen4x4
Performance > Write speed - 2600 MB/s
Pieces in pack - 1
producer - Lexar
Producer - Lexar
producerCode - LNM710X500G-RNNNG
ProducerCode - LNM710X500G-RNNNG
Producer product family - M.2 NVMe SSD
Producer product name - NM710
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230118132620438928&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - LNM710X500G-RNNNG
ProductDescription - Lexar® 500GB High Speed PCIe Gen 4X4 M.2 NVMe, up to 5000 MB/s read and 2600 MB/s write, EAN: 843367129690
productName - Lexar NM710 500 GB M.2 PCI Express 4.0 NVMe
productSize - Normal
ProductType - SSD Client
Reading speed - 5000 MB/s
Read speed - 5000 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 16.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 1.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.05 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
ShortDescription - m2 | SSD | 500GB | 5000/2600 MB/s | PCI-e|NVME | TBW
sizeX - 165
sizeY - 15
sizeZ - 105
Solid State Drive Features - NVMe Support
SSD Capacity - 500GB
SSD series - NM710
Storage Capacity - 500 GB
Supports Data Channel - PCIe NVMe 4.0 x4
TBW - 300 TB
TBW - 300 TB
Technical details > Gross weight - 0.16 kg
Technical details > Net weight - 0.06 kg
Technical details > Producer - Lexar
Technical details > Warranty - 36 month(s)
Unit Brutto Volume - 0.0002722 cubm
Unit Gross Weight - 0.05 kg
Unit Net Weight - 0.007 kg
Vendor - LEXAR
Vendor Homepage - www.lexar.com/en/product/lexar-nm710-m-2-2280-pcie-gen4x4-nvme-ssd/
vendpn - LNM710X500G-RNNNG
Warranty - 36
Warranty - 60 months
warrantyLength - 24
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0,05
Weight - 0.04
Weight - 7 g
weight - 46
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.45 mm
Weight & dimensions - Weight - 7 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Write speed - 2600 MBytes/sec
Writing speed - 2600 MB/s
