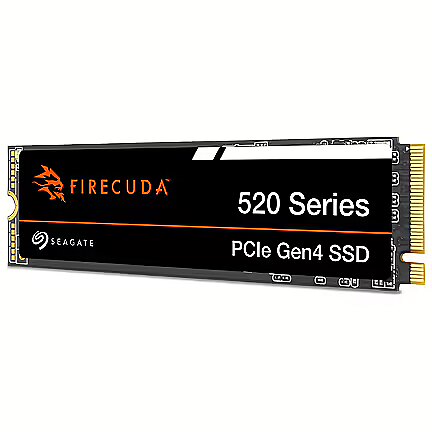

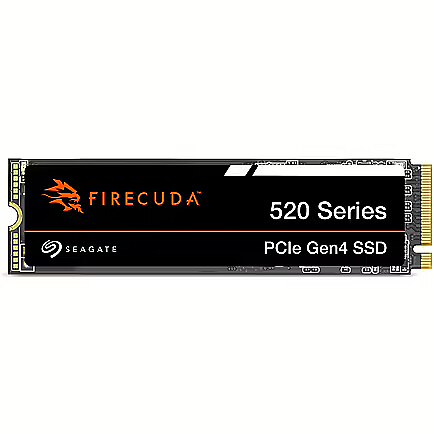

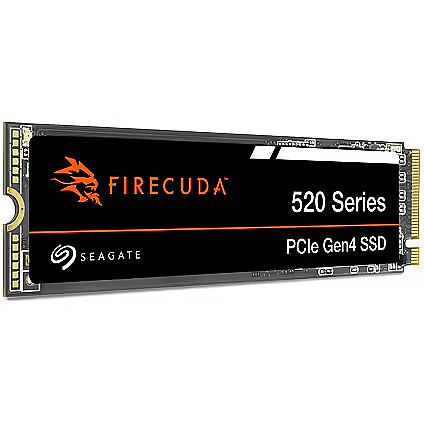

Seagate FireCuda 520, 2TB, M.2 Gen4 X4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 931292 Product code: ZP2000GV3A012
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Capacity: 2 TB
  • Type: NVMe
  • Read speed (sequential): 4850 MB/s
  • Write speed (sequential): 4750 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Similar Products
This product Seagate FireCuda 520, 2TB, M.2 Gen4 X4
Recommended Samsung 990 PRO, 2TB, M.2 Gen4 x4
Recommended ADATA Legend 900, 2TB, M.2 Gen4 x4
Recommended Kingston NV3, 2TB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 1TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.
162.64 €
181.22 €
123.87 €
127.92 €
108.36 €
Basic information
Capacity 2 TB 2 TB 2 TB 2 TB 1 TB
Type NVMe NVMe NVMe NVMe NVMe
Read speed (sequential) 4850 MB/s 7450 MB/s 7000 MB/s 6000 MB/s 7450 MB/s
Write speed (sequential) 4750 MB/s 6900 MB/s 5400 Mb/s 5000 MB/s 6900 MB/s
Functionality
Radiators Nav Nav Ir Nav Nav
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specifikācija
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS 800K 1.4M Not indicated Not indicated 1.2m
Random Write IOPS 950K 1.55M Not indicated Not indicated 1.55M
Endurance (TBW) 1200 TB 1200 TB 1200 TB 640 TB 600 TB
Description

We offer to purchase a Seagate M.2 80mm (2280) format SSD drive with a 2 TB capacity.

This SSD drive has a compact and modern M.2 connector.

This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.

4850 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 4750 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 4850 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 4750 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 800K
Random Write IOPS : 950K
Endurance (TBW) : 1200 TB
More detailed specification
Additional information in manufacturers website Seagate FireCuda 520, 2TB, M.2 Gen4 X4
Brand - Seagate
BrandPartCode - ZP2000GV3A012
Category - Internal Solid State Drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
EAN_code - 8719706433167
Features - Component for - PC/Laptop
Features - Interface - PCI Express 4.0
Features - Linux operating systems supported - Yes
Features - Mean time between failures (MTBF) - 1800000 h
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 800000 IOPS
Features - Random write (4KB) - 950000 IOPS
Features - Read speed - 4850 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 1200
Features - TRIM support - Yes
Features - Windows operating systems supported - Yes
Features - Write speed - 4750 MB/s
GTIN - 0763649177600
GTIN - 763649177600
GTIN - 8719706433167
LongDesc - Accelerate and dominate with the Seagate® FireCuda® 520 PCIe Gen4 SSD. Featuring blazing fast read/write speeds of up to 5000/4850MB/s, this FireCuda 520 SSD is nearly 50% faster than its previous version. Powered by the latest 3D TLC NAND technology, this plug-and-play SSD is equipped with staying power—handling upwards of 1200TB total bytes written with ease.Upgrade Your Gaming ExperienceGo further with a gaming SSD built for industry-leading speed, sustained abuse, lowest latency and superior gaming.Faster Gaming with PCIe Gen4Pro-level gaming that’s nearly 45% faster than PCIe Gen3 M.2 NVMe SSD.Beyond AccelerationUpgrade to PCIe Gen4, with sequential read/write up to 5,000/4,400 MB/s.Enviable EnduranceWith 1.8M hours MTBF, this SSD can play harder for longer. A Winning ComboOur FireCuda 520 SSD is built to provide you with more cores, more cache, more tech and more I/O. This gaming drive is out-of-the-box compatible with the latest generation of powerful AMD Ryzen™ processors.DiscWizard and SeaTools — Making Drive Management EasierSeagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard, and then seamlessly monitor drive health, performance, and firmware updates using SeaTools. We’ve Got Your BackWhen the unexpected happens — like water damage or natural disaster — Rescue Services help you defend against data loss and retrieval costs so you can rest easier.
LongProductName - FireCuda 520 PCIe Gen4 SSD, 2TB
LongSummaryDescription - Seagate FireCuda 520. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 4850 MB/s, Write speed: 4750 MB/s, Component for: PC/Laptop
Manufacturer - Seagate
Manufacturer_code - ZP2000GV3A012
Name - Seagate FireCuda 520 2TB, SSD (PCIe 4.0 x4, NVMe 1.4, M.2 2280)
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package depth - 155 mm
Packaging data - Package height - 24 mm
Packaging data - Package weight - 71 g
Packaging data - Package width - 109 mm
Power - Power consumption (average) - 4.3 W
Power - Power consumption (idle) - 0.02 W
ProductName - 520
ShortSummaryDescription - Seagate FireCuda 520, 2 TB, M.2, 4850 MB/s
Sustainability - Sustainability compliance - Yes
Technical details - Doesn't contain - Halogen
Title - Seagate FireCuda 520 2 TB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/gb/en/support/internal-hard-drives/ssd/firecuda-520-ssd/
WarrantyInfo - 5-year limited warranty
Weight - 0,06
Weight & dimensions - Depth - 80.2 mm
Weight & dimensions - Height - 2.23 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 22.1 mm
