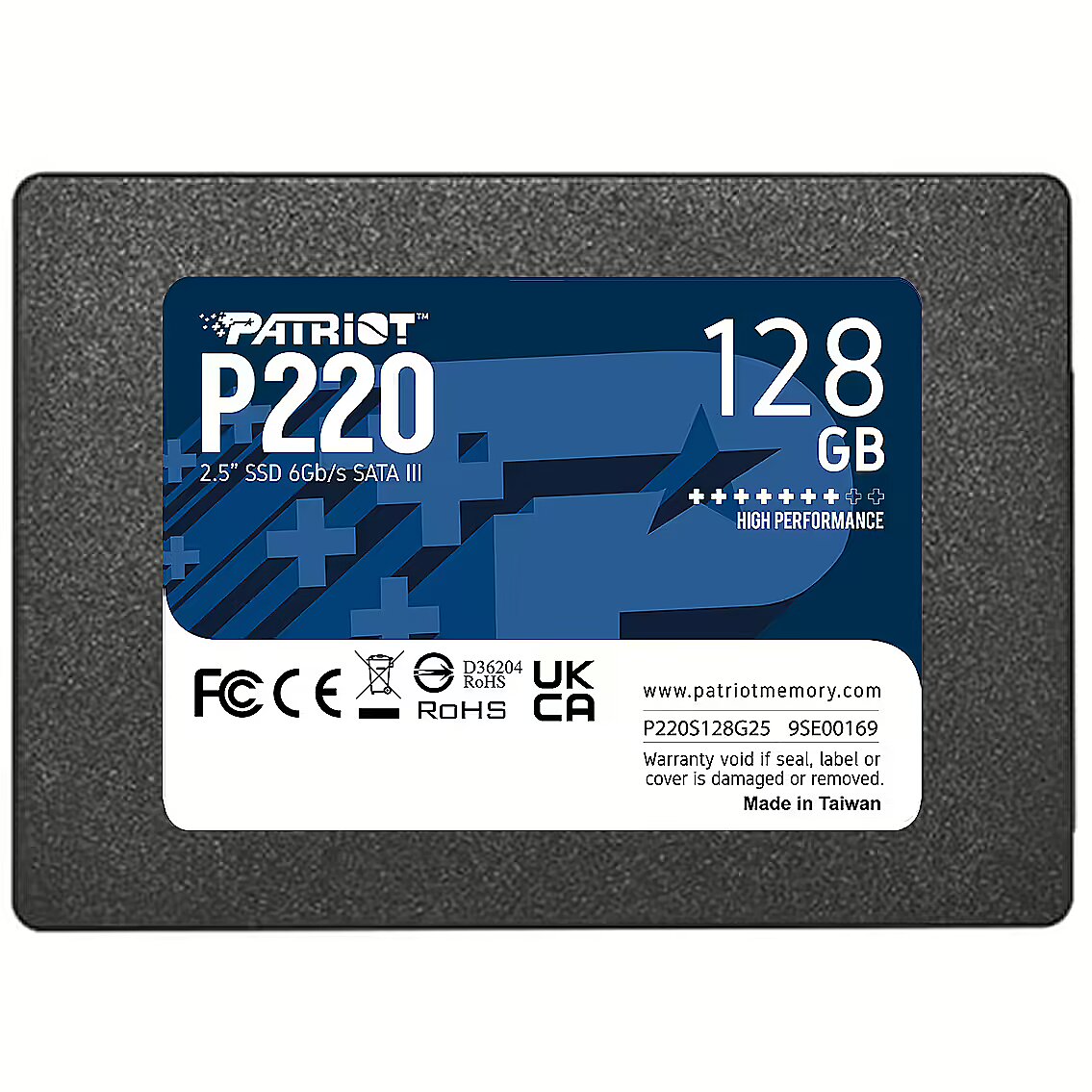

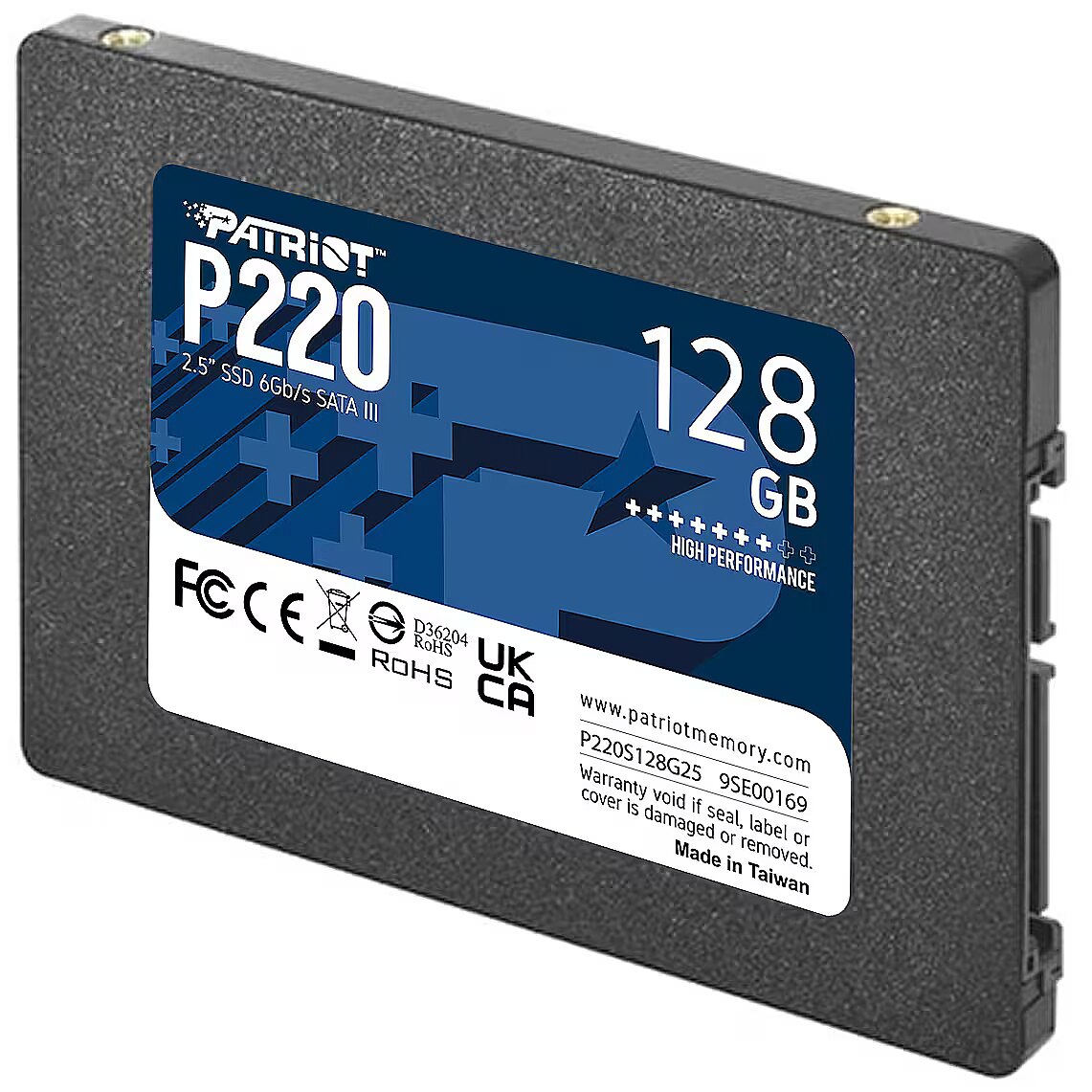

Patriot P220, 128GB

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 926273 Product code: P220S128G25
In stock 14 units
Warranty: 3 years
17.30 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 02.12.2024
  • Courier delivery 3.99 €: 02.12.2024
Main product parameters All parameters
  • Capacity: 128 GB
  • Type: SATA
  • Read speed (sequential): 550 MB/s
  • Write speed (sequential): 480 MB/s
  • Form factor: 2.5"
  • Interface: SATA III (6Gb/s)
Description

Available for purchase, the Patriot 2.5" format SSD disk with a large volume of 128 GB.

The disk is equipped with the traditional SATA port. It uses SATA data and power cables.

This is a SATA type SSD disk. It uses the SATA III protocol, which is older technology, however SATA is still a good option for everyday use and budget solutions.

This SSD disk read speed (Sequential read speed) is 550 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

The writing speed for this SSD disk reaches 480 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This is an SSD disk in the 2.5" format.

The SSD drive has a SATA III (6Gb/s) interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 128 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 550 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 480 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : Nav norādīts
Random Read IOPS : 40K
Random Write IOPS : 50K
Endurance (TBW) : 60 TB
More detailed specification
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD
Color - Not applicable
Depth - 100 mm
Description - Patriot is proud to present the next generation 2. 5 SATA III SSD: the P220. Designed with the latest SATA 3 controller, the P220 is the ultimate storage solution designed with system performance in mind. With read and write speeds of up to 550 and 500 MB/s, the P220 delivers the performance you need to get the job done. The P220 is a compact 7mm, 2.5" SSD that delivers greater overall performance and productivity. The P220 is ideal for fast upgrades, storing large files and delivering workspace performance at an attractive price point. Backed by Patriot's 3-year warranty and customer support, Patriot's P220 SSD is one of the most reliable and high-performance SSDs available on the market today.
dimensionalWeight - 48
dimension depth - 3 mm
dimension height - 180 mm
dimension weight - 63 g
dimension width - 133 mm
Disk type - SSD
Drive type - Internal
ean - 4711378422337
Eans - 4711378422337
EAN_code - 4711378422337
Features - Component for - PC/Laptop
Features - Interface - Serial ATA III
Features - Random read (4KB) - 40000 IOPS
Features - Random write (4KB) - 50000 IOPS
Features - S.M.A.R.T. support - Yes
Features - Sequential read speed (CDM) - 550 MB/s
Features - Sequential write speed (CDM) - 480 MB/s
Features - SSD capacity - 128 GB
Features - SSD form factor - 2.5"
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 7
Features - Windows operating systems supported - Windows 8
Features - Windows operating systems supported - Windows 8.1
Features - Windows operating systems supported - Windows 10
Form factor (width) - 2,5'' (SFF)
guarantee - 36
guarantee_type - normal
HDD capacity - 128 GB
HDD interface - SATA III - 6 Gb/s
Height - 7 mm
Logistics data - Master (outer) case height - 195 mm
Logistics data - Master (outer) case length - 394 mm
Logistics data - Master (outer) case net weight - 6 kg
Logistics data - Master (outer) case width - 324 mm
Logistics data - Products per master (outer) case - 120 pc(s)
Manufacturer - Patriot
Manufacturer_code - P220S128G25
Model - P220
name - Disc SSD 128GB P220 550/480 MB/s SATA III 2.5
Name - Patriot P220 128GB
Name - Patriot P220 SSD - 128GB - SATA - 2.5
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Packaging data - Package depth - 80 mm
Packaging data - Package height - 178 mm
Packaging data - Package type - Hanging box
Packaging data - Package weight - 50 g
Packaging data - Package width - 133 mm
producer - Patriot
Producer - Patriot
producerCode - P220S128G25
ProducerCode - P220S128G25
productName - Patriot Memory P220 128GB 2.5" Serial ATA III
productSize - Normal
Random read IOPS (max) - 40 K
Random write IOPS (max) - 50 K
Reading speed - 550 MB/s
ShortDescription - 2,5" | SSD | 550/480 MB/s | 7mm
sizeX - 180
sizeY - 10
sizeZ - 134
TBW - 60 TB
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
vendpn - P220S128G25
warrantyLength - 36
warrantyType - G
Weight - 0,06
Weight - 46 g
weight - 58
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 46 g
Weight & dimensions - Width - 69.9 mm
Width - 69.9 mm
Writing speed - 480 MB/s
