ID: 917057
Product code: ALEG-960-4TCS
Can be ordered 11 units Availability: 14 days after order approval
Warranty: 3 years

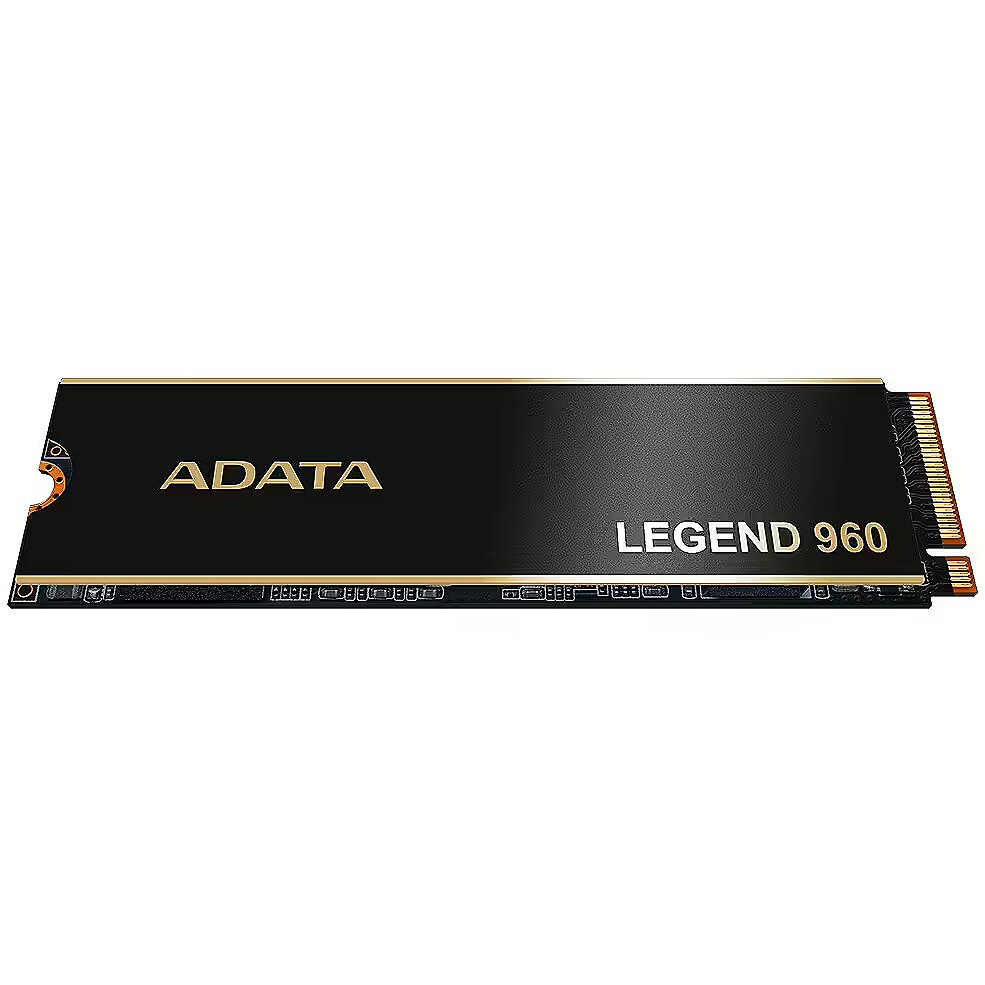

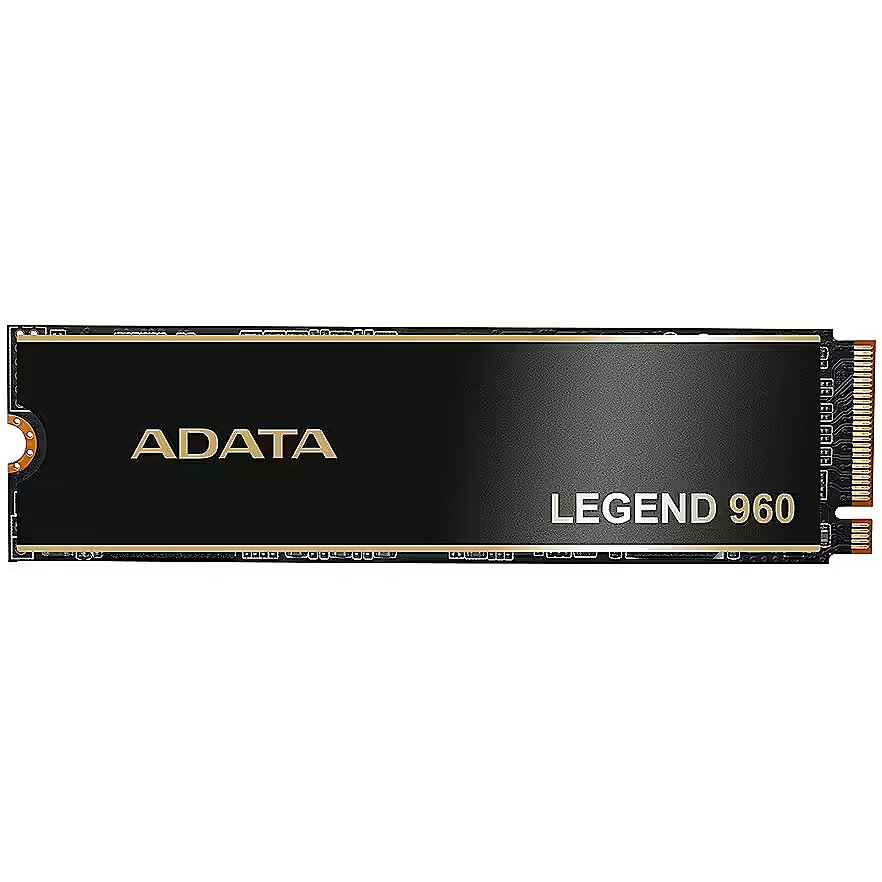

ADATA Legend 960, 4TB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 20.12.2024
- Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
- Capacity: 4 TB
- Type: NVMe
- Read speed (sequential): 7400 MB/s
- Write speed (sequential): 6800 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Adata M.2 80mm (2280) format SSD disk with a large volume of 4 TB.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
7400 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The write speed (Sequential write speed) of this SSD is 6800 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
To ensure memory chips maintain a low temperature and assure constant performance over long periods of use, the disk equipment is equipped with a cooler or a radiator. However, even if you purchase a "fast" SSD without a built-in radiator, it's not critical - almost all motherboards (99%) already have an integrated M.2 slot cooler.
This SSD drive has an M.2 80mm (2280) format.
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
4 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
7400 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
6800 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 700K
Random Write IOPS
: 550K
Endurance (TBW)
: 3120 TB
More detailed specification
Brand - ADATA
Brand-specific features - Brand specific technologies - SLC Caching
BrandPartCode - ALEG-960-4TCS
Category - Internal Solid State Drives
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Description - Legend 960 Redefining creative speed The LEGEND 960 drive supports the latest PCIe Gen4x4 interface, which is NVMe 1.4 compliant, offering superior read and write speeds, more connectivity options, and support for the latest Intel and AMD platforms. It will help you speed up your creative work whether you are working on a desktop or notebook. The ultimate in performance The LEGEND 960 drive delivers sequential read and write speeds of 7400/6800 MB per second, up to 4 times faster than a standard PCIe Gen3 SSD and 13 times faster than a SATA SSD. It is backwards compatible with the PCIe 3.0 interface and is designed for creating both virtual projects, animations and games! Interoperability with PS5 consoles The LEGEND 960 drive supports the PCIe 4.0 interface and can be used with PS5 consoles as a memory expansion. Not only does its size fit perfectly into the slot, but it also ensures smooth gaming without lag. * According to Sony, even though the read and write speeds exceed the official standard, not all games will get the same performance as the PS5 console's built-in SSD. ** When used with the PS5 console, the sequential read speed is 6400 MB/s for all capacities. More than ample 4TB capacity Thanks to its stacked 3D flash memory, the LEGEND 960 drive offers capacities of up to 4TB. In addition, it is equipped with various security and correction technologies and has a high TBW (Total Bytes Written) rating for endurance and reliability. Great looks and cooling The LEGEND 960's black heatsink with bronze finish and sandblasted surface looks and cools great. Thanks to an innovative surface treatment, it provides extremely effective heat dissipation and temperature reduction. The ultimate in professionalism The LEGEND 960's SLC caching and DRAM buffer improve system loading and data caching. 4K random read/write speeds of up to 750K/630K IOPS ensure smooth multi-tasking. Create without worry Low Density Parity Check (LDPC) code technology and 256-bit AES encryption ensure data accuracy and file security. SSD ToolBox software ADATA's SSD Toolbox software allows you to monitor drive health and remaining lifespan with S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) attributes. It also allows monitoring of the current operating temperature, capacity and total amount of used space, as well as firmware updates. 5-year warranty LEGEND Series SSDs feature high-quality integrated circuits that are built to withstand time and conditions of use. Their reliability has been proven through rigorous verification and testing procedures. In addition, they are backed by a 5-year warranty.
dimensionalWeight - 54
dimension depth - 15 mm
dimension height - 105 mm
dimension weight - 34 g
dimension width - 130 mm
Disk type - SSD
Drive type - Internal
ean - 4711085938145
Eans - 4711085938145
EAN_code - 4711085938145
Features - Certification - CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS
Features - Compatible products - PlayStation 5
Features - Component for - PC/Laptop
Features - Controller type - SMI SM2264
Features - ECC - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 700000 IOPS
Features - Random write (4KB) - 550000 IOPS
Features - Read speed - 7400 MB/s
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 4 TB
Features - SSD form factor - M.2
Features - TBW rating - 3120
Features - Write speed - 6800 MB/s
Form factor (width) - M.2 2280
GTIN - 4711085938145
guarantee - 60
guarantee_type - normal
HDD capacity - 4 TB
HDD interface - PCI-Express
Height - 3.13 mm
LongDesc - Redefining the Speed of CreativityLEGEND 960 supports the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance, expanded device connectivity, and support for the latest Intel and AMD platforms. Whether on a desktop or notebook PC, get your creativity up to speed.The Ultimate in PerformanceLEGEND 960 delivers sequential read and write speed of 7,400/6,800MB per second, which is up to 4 times faster than a standard PCIe Gen3 SSD and 13 times faster than a SATA SSD. It is backward compatible with PCIe 3.0 and made for creating, whether virtual design, animation, or game development!Works with PS5LEGEND 960 supports PCIe 4.0 and works with PS5 consoles as expanded storage. Not only does its size conform to the slot design, it also provides for smooth and non-laggy gaming.More than Ample 4TB CapacityWith 3D-stacked flash memory, the LEGEND 960 provides you with capacities of up to 4TB. What's more, it comes with various protection and correction technologies, and high TBW (Total Bytes Written) for durability and reliability.Cool and CoolThe LEGEND 960's black heat sink design with bronzing trimming and sandblasted surfaces look cool and keep things cool. Through a cutting-edge surface treatment, it dissipates heat incredibly effectively reducing temperature.The Consummate ProfessionalLEGEND 960 comes with SLC Caching and DRAM Cache Buffer for advantages in system loading and data caching. It features 4K random read/write of up to 750K/630K IOPS for smoother multitasking.Create Without WorryLDPC (Low Density Parity check Code) and AES 256-bit encryption ensure data accuracy and file security.SSD ToolBox SoftwareADATA SSD Toolbox allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used, plus keeps you up-to-date on firmware.
LongProductName - 4 TB, M.2, PCIe Gen4 x4, 3D NAND, NVMe 1.4
LongSummaryDescription - ADATA LEGEND 960. SSD capacity: 4 TB, SSD form factor: M.2, Read speed: 7400 MB/s, Write speed: 6800 MB/s, Component for: PC/Laptop
Manufacturer - ADATA
Manufacturer_code - ALEG-960-4TCS
Model - Legend 960
Name - ADATA Legend 960 - SSD - 4TB - M.2, PCIe 4.0 x4
Name - Adata LEGEND 960 M.2 NVMe PCIe4x4 4TB
name - SSD drive Legend 960 4TB PCIe 4x4 7.4/6.6 GB/s M2
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Minimum operating temperature - 0 °C
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Compatible products - PlayStation 5
Packaging data - Package type - Box
producer - Adata
Producer - Adata
producerCode - ALEG-960-4TCS
ProducerCode - ALEG-960-4TCS
productName - ADATA LEGEND 960 M.2 4000 GB PCI Express 4.0 3D NAND NVMe
ProductName - LEGEND 960
productSize - Normal
Random read IOPS (max) - 700 K
Random write IOPS (max) - 550 K
Reading speed - 7400 MB/s
ShortDescription - SSD | 4TB | 7400/6800 MB/s | M.2 | 2280 | PCI-E Gen 4x4| NVMe | 256-bitowe szyfrowanie AES|gwarancja ograniczona parametrem TBW
ShortSummaryDescription - ADATA LEGEND 960, 4 TB, M.2, 7400 MB/s
sizeX - 130
sizeY - 20
sizeZ - 105
TBW - 3120 TB
Title - ADATA LEGEND 960 4 TB M.2 PCI Express 4.0 NVMe 3D NAND
URL - https://www.adata.com/en/consumer/solid-state-drives-LEGEND-960?tab=description
vendpn - ALEG-960-4TCS
WarrantyInfo - 5 years limited
warrantyLength - 60
warrantyType - G
Weight - 0,03
Weight - 11 g
weight - 30
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 4.68 mm
Weight & dimensions - Weight - 11 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Writing speed - 6600 MB/s
