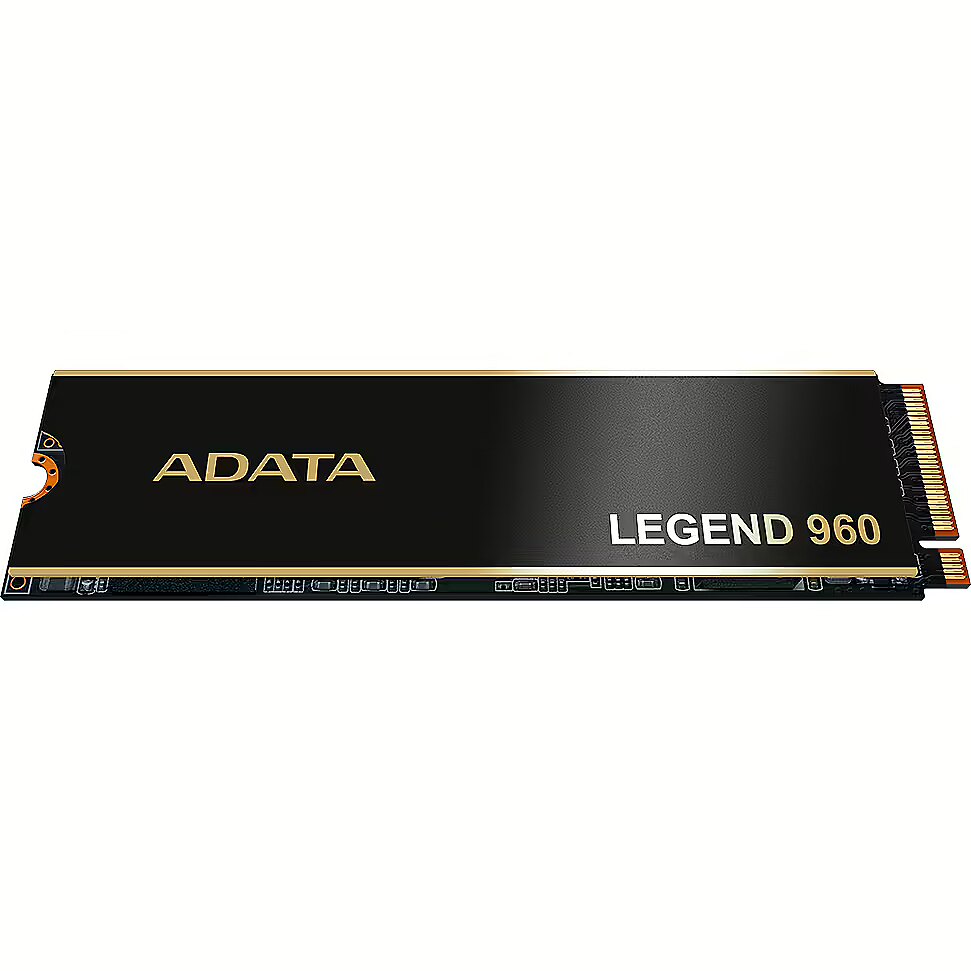

ADATA Legend 960, 2TB, M.2 Gen4 x4

Name: ADATA Legend 960, 2TB, M.2 Gen4 x4
Brand: ADATA
SKU: 890906
Price: 160.17 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 890906 Product code: ALEG-960-2TCS

Can be ordered 71 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: 10.12.2024
Courier delivery 3.99 €: 10.12.2024

Main product parameters All parameters

Capacity: 2 TB
Type: NVMe
Read speed (sequential): 7400 MB/s
Write speed (sequential): 6800 MB/s
Form factor: M.2 80mm (2280)
Interface: PCIe 4.0 x4

Description

This Adata brand SSD has a 2 TB capacity and a M.2 80mm (2280) format.

This disc uses the latest generation compact M.2 port.

This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.

The read speed for this SSD drive reaches 7400 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.

The writing speed for this SSD disk reaches 6800 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

A stable data reading and writing speed during prolonged work is ensured by a cooler or heat sink with which this SSD drive is equipped. It helps to maintain memory chips at an optimal temperature. There is no particular need to worry if you choose a "fast" disc without a heat sink, as almost always (99% of cases) the system board will be equipped with a built-in M.2 slot cooling solution.

This SSD drive has an M.2 80mm (2280) format.

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information

Capacity 2 TB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 7400 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 6800 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality

Radiators : Ir

Lighting : Nav

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4

Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Random Read IOPS : 750K

Random Write IOPS : 630K

Endurance (TBW) : 1560 TB

More detailed specification

Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Color - Not applicable
Depth - 80 mm
Description - LEGEND 960 PCIe Gen4 x4 M.2 2280 SSD With PCIe 4.0 sequential read/write speeds of 7400/6800 MB per second, the LEGEND 960 will help you create seamlessly on the latest Intel and AMD platforms.
dimensionalWeight - 45
dimension depth - 17 mm
dimension height - 105 mm
dimension weight - 34 g
dimension width - 130 mm
Disk type - SSD
Drive type - Internal
ean - 4711085937513
Eans - 4711085937513
EAN_code - 4711085937513
Features - Certification - CE, FCC, BSMI, KC, EAC, RCM, morocco, UKCA, RoHS
Features - Compatible products - PlayStation 5
Features - Component for - PC/Laptop
Features - Controller type - SMI SM2264
Features - ECC - Yes
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 750000 IOPS
Features - Random write (4KB) - 630000 IOPS
Features - Read speed - 7400 MB/s
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 1560
Features - Write speed - 6800 MB/s
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 2 TB
HDD interface - PCI-Express
Height - 3.13 mm
Manufacturer - ADATA
Manufacturer_code - ALEG-960-2TCS
Mean time between failures (MTBF) - 2000000 h
Model - Legend 960
Name - ADATA LEGEND 960 2 TB - SSD - M.2 - PCIe 4.0 x4, dark grey/gold
Name - Adata LEGEND 960 M.2 NVMe PCIe4x4 2TB
name - SSD drive Legend 960 2TB PCIe 4x4 7.4/6.8 GB/s M2
Operational conditions - Maximum operating temperature - 70 °C
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Cooling type - Heatsink
Packaging data - Package type - Box
producer - Adata
Producer - Adata
producerCode - ALEG-960-2TCS
ProducerCode - ALEG-960-2TCS
productName - ADATA LEGEND 960 M.2 2 TB PCI Express 4.0 3D NAND NVMe
productSize - Normal
Random read IOPS (max) - 750 K
Random write IOPS (max) - 630 K
Reading speed - 7400 MB/s
ShortDescription - SSD | 2TB | 7400/6800 MB/s | M.2 | 2280 | PCI-E Gen 4x4| NVMe | 256-bitowe szyfrowanie AES|gwarancja ograniczona parametrem TBW
sizeX - 130
sizeY - 17
sizeZ - 102
TBW - 1560 TB
vendpn - ALEG-960-2TCS
warrantyLength - 60
warrantyType - G
Weight - 0,03
Weight - 11 g
weight - 35
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.13 mm
Weight & dimensions - Weight - 11 g
Weight & dimensions - Width - 22 mm
Width - 22 mm
Writing speed - 6800 MB/s
