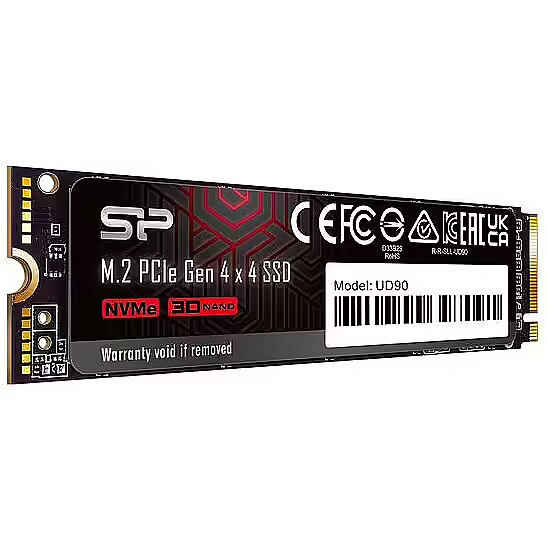

Silicon Power UD90, 500GB, M.2 Gen4 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 870492 Product code: SP500GBP44UD9005
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Capacity: 500 GB
  • Type: NVMe
  • Read speed (sequential): 5000 MB/s
  • Write speed (sequential): 3850 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 4.0 x4
Similar Products
This product Silicon Power UD90, 500GB, M.2 Gen4 x4
Recommended Kingston NV3, 500GB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 1TB, M.2 Gen4 x4
Recommended Samsung 990 PRO, 2TB, M.2 Gen4 x4
Recommended ADATA Legend 900, 1TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.
42.12 €
48.98 €
108.36 €
181.22 €
71.46 €
Basic information
Capacity 500 GB 500 GB 1 TB 2 TB 1 TB
Type NVMe NVMe NVMe NVMe NVMe
Read speed (sequential) 5000 MB/s 5000 MB/s 7450 MB/s 7450 MB/s 7000 MB/s
Write speed (sequential) 3850 MB/s 3000 MB/s 6900 MB/s 6900 MB/s 4700 MB/s
Functionality
Radiators Nav Nav Nav Nav Ir
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4 PCIe 4.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specifikācija
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell)
Random Read IOPS Not indicated Not indicated 1.2m 1.4M Not indicated
Random Write IOPS Not indicated Not indicated 1.55M 1.55M Not indicated
Endurance (TBW) 300 TB 160 TB 600 TB 1200 TB 600 TB
Description

Available for purchase, the Silicon Power M.2 80mm (2280) format SSD disk with a large volume of 500 GB.

The disk is equipped with the currently most advanced and compact M.2 connection port.

This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.

This SSD disk read speed (Sequential read speed) is 5000 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.

The write speed (Sequential write speed) of this SSD is 3850 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 5000 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 3850 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 4.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : Not indicated
Random Write IOPS : Not indicated
Endurance (TBW) : 300 TB
More detailed specification
Category - Root/Electronics/PC parts/Hard drives
Depth - 3.5 mm
Description - Accessible PCIe 4.0 Boost Give your system the power of PCIe 4.0 with the budget-friendly UD90. Providing the best bang for your buck, it reaches read speeds up to 5,000MB/s and write speeds up to 4,800MB/s. It also boasts 2x faster data transfer rates than its predecessor, PCIe 3.0, for sustained use and dependable performance. With this much efficiency, the UD90 allows you to maximize your creative output at an unbeatable value. Multi-Task Like No Other Don't lose your train of thought with slow load times! Designed with content creators in mind, the UD90 is built to handle the demanding levels of multi-tasking that's required of creative production, effortlessly. With support for NVMe 1.4 and Host Memory Buffer (HMB) technology, the UD90 offers uninterrupted productivity via higher performance and lower latency for seamless execution across applications. Do More, In The Same Amount Of Time To bolster its multi-tasking factor even further, the UD90 takes advantage of increased bandwidth when used in conjunction with motherboards equipped with PCIe 4.0 slots. In fact, it has nearly double the bandwidth of PCIe 3.0 for shorter download times and the ability to download more files within the same amount of time. Speed Meets Reliability An SSD's speed is meaningless without the ability to handle that speed reliably. The UD90 achieves improved sequential read/write and random read/write performance with support for SLC Caching. At the same time, it supports low density parity check (LDPC) coding to ensure accuracy of data transmission and reliability of data access. Safe And Secure Data Storage The UD90 supports RAID to protect data in the case of a drive failure. It's also equipped with built-in E2E data protection for enhanced data transfer integrity. Unexpected things can happen at any moment, but the UD90 is prepared for them with your data at its utmost priority. Free-Download of SSD Health Monitor - SP Toolbox Easily monitor your new SSD's health with our free-download software SP Toolbox. Run performance tests on the UD90, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.
dimension depth - 5 mm
dimension height - 85 mm
dimension weight - 12 g
dimension width - 125 mm
Disk type - SSD
Drive type - Internal
ean - 4713436147299
Eans - 4713436147299
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 500 GB
HDD interface - PCI-Express
Height - 22 mm
Mean time between failures (MTBF) - 1500000 h
Model - UD90
Name - Silicon Power UD90 M.2 NVMe PCIe 500GB
name - SSD UD90 500GB PCIe M.2 2280 NVMe Gen 4x4 5000/4800 MB/s
Other features - System requirements: Computers with M. 2 slots with PCIe interface and one of the following operating systems: Windows 8. 1 or Windows 10
producer - Silicon Power
Producer - Silicon Power
ProducerCode - SP500GBP44UD9005
Reading speed - 5000 MB/s
ShortDescription - SSD | 500GB | 4800/3700 MB/s | M.2 | 2280 | PCI-E Gen4x4 | NVMe | gwarancja ograniczona parametrem TBW 300
vendpn - SP500GBP44UD9005
Weight - 8 g
Width - 80 mm
Writing speed - 4800 MB/s
