ID: 817924
Product code: P310P240GM28
Can be ordered 79 units Availability: 14 days after order approval
Warranty: 3 years

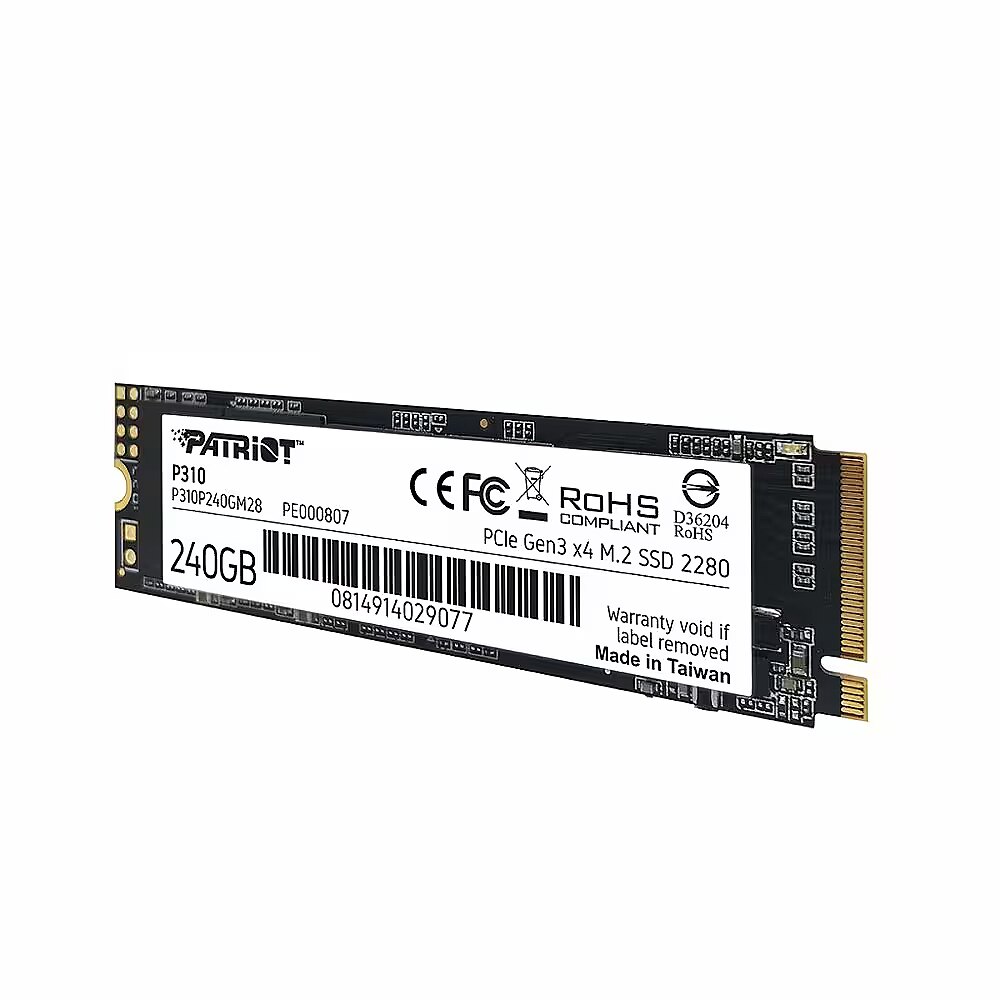

Patriot P310, 240GB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 10.12.2024
- Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
- Capacity: 240 GB
- Type: NVMe
- Read speed (sequential): 1700 MB/s
- Write speed (sequential): 1000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
We offer to purchase a Patriot M.2 80mm (2280) format SSD drive with a 240 GB capacity.
This disc uses the latest generation compact M.2 port.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
1700 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.
The writing speed for this SSD disk reaches 1000 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
240 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
1700 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
1000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: Nav norādīts
Random Read IOPS
: 280K
Random Write IOPS
: 250K
Endurance (TBW)
: 120 TB
More detailed specification
Box Weight Brutto (kg) - 0.01 kg
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
Certifications - CE/FCC/RoHS22
Color - Not applicable
Depth - 80 mm
Depth (mm) - 22 mm
Description - P310 SSD Built with the latest PCIe m.2 Gen3x 4, NVMe 1.3, Patriot P310 solid state drive, offers 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The P310 m.2 SSD delivers great acceleration in boot, load and transfer times and data integrity, durability and reliability for everyday tasks. With a compact m.2 form factor designed for easy installation, the P310 SSD fits precisely into any PC or laptop. Low power consumption helps extend battery life.
Device Location - Plug-in Module
dimension depth - 5 mm
dimension height - 130 mm
dimension weight - 18 g
dimension width - 100 mm
Disk type - SSD
Drive type - Internal
ean - 814914029077
Eans - 814914029077
EAN_code - 0814914029077
Form Factor - M.2 22x80mm
Form factor (width) - M.2 2280
guarantee - 60
guarantee_type - normal
HDD capacity - 240 GB
HDD interface - PCI-Express
Height - 3.8 mm
Height (mm) - 3.8 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/220721160147758313.jpg
Included Accessories - Īsa lietotāja rokasgrāmata
Manufacturer - Patriot
Manufacturer_code - P310P240GM28
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 2.38 W
Maximum Random Read Rate - 280000 IOPS
Maximum Random Write Rate - 250000 IOPS
Maximum Sequential Read Rate - 1700 MB/s
Maximum Sequential Write Rate - 1000 MB/s
Memory Technology - NAND Flash
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 0.38 W
Model - P310
Name - Patriot P310 PCIe NVMe 240GB
Name - Patriot SSD 240GB 1000/1700 P310 M.2 PCIe
name - SSD drive P310 240GB M.2 2280 1700/1000 PCIe NVMe Gen3 x 4
Other features -
Package Type - Retail
Packs in Box - 1
Pack Weight Brutto (kg) - 0.01 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
producer - Patriot
Producer - Patriot
ProducerCode - P310P240GM28
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=220707132104993506&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - P310P240GM28
ProductDescription - Patriot P310 240GB M.2 2280 PCIe, EAN: 814914029077
ProductType - SSD Client
Random read IOPS (max) - 280 K
Random write IOPS (max) - 250 K
Reading speed - 1700 MB/s
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
ShortDescription - SSD| 240GB | M.2 | PCI-Ex | NVMe | odczyt/zapis max. 1700MB/s 1000MB/s |
Solid State Drive Features - End-to-End Data ProtectionThermal Throttling TechnologyError Correction Code
Storage Capacity - 240 GB
Supports Data Channel - NVMe PCIe® Gen3
TBW - 120 TB
Technical_details - patriot P310 240GB, SSD Patriot's P310 240GB SSD is the perfect solution for users who need fast boot times and instant access to all their data. The SSD uses the PCIe 3.0 x4 interface and supports NVMe 1.3. It achieves a speed of up to 1,700 MB/s when reading and 1,000 MB/s when writing. The P310's advanced firmware includes SmartECC technology, thermal throttling, and end-to-end data path protection to provide data integrity, durability, and reliability for everyday tasks. Type: SSD EAN code: 0814914029077 Manufacturer part number: P310P240GM28 Series: P310 Design: plug-in card Capacity: 240GB Interface: 1x M.2 (M.2 module key: M) Internal interface: PCIe 3.0 Data transfer rate: Read | 1,700MB/s Data transfer rate: Write | 1,000MB/s Power Consumption: Operation | 2.38W Power Consumption: Quiet | 0.38W IOPS: Read | 280,000 IOPS: Write | 250,000 TBW: 120TB Feature: SmartECC, End-to-End Data Path Protection, Thermal Throttling Technology Dimensions: Width: 22mm x Height: 3.8mm x Depth/Length: 80mm Weight: 9 grams
Total Bytes Written (TBW) - 120 TB
Vendor - PATRIOT
vendpn - P310P240GM28
Warranty Products Returnable - Yes
Warranty Term (month) - 36 mēneši
Warranty validation Criteria - Serial Number
Weight - 0,02
Weight - 9 g
Width - 22 mm
Width (mm) - 80 mm
Writing speed - 1000 MB/s
