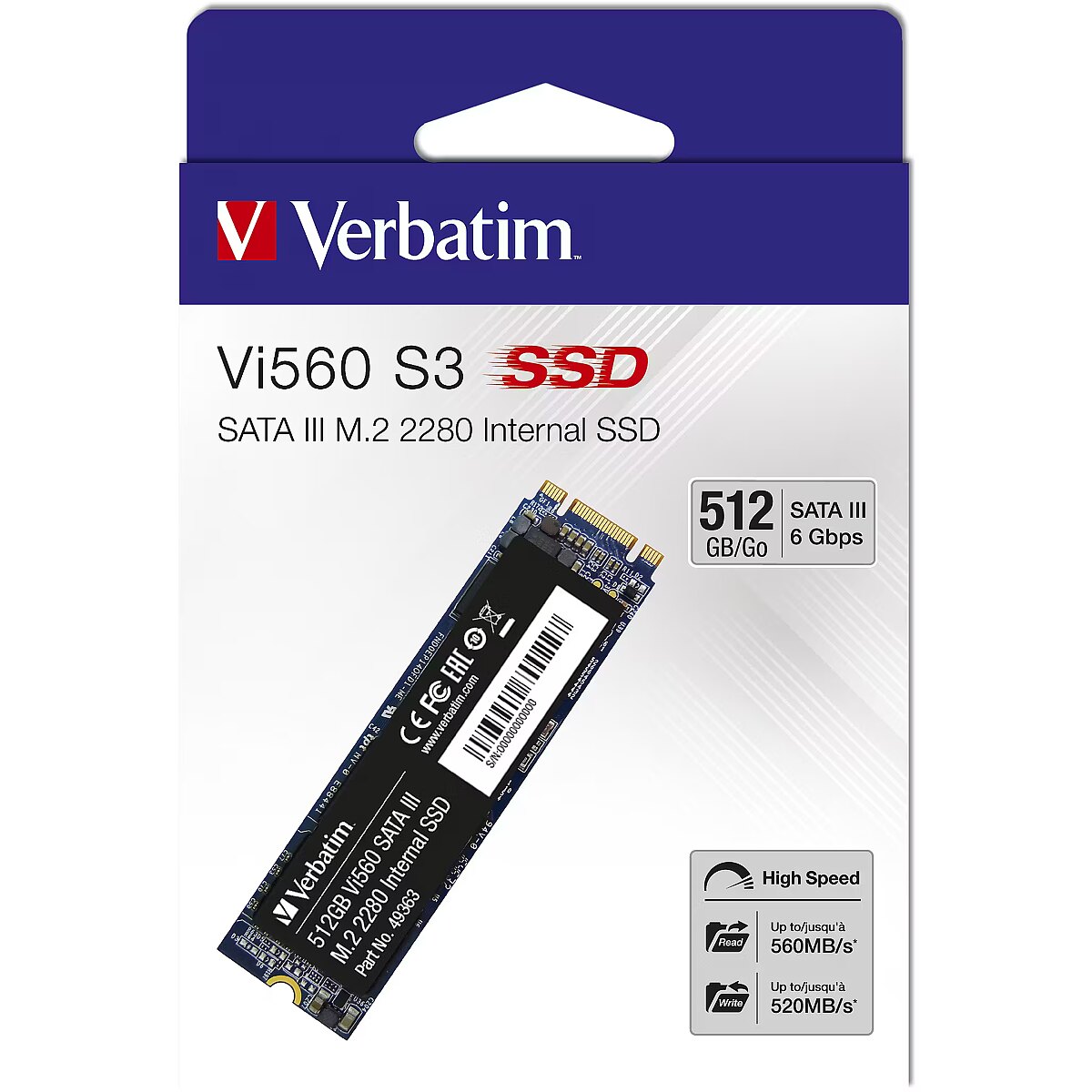

Verbatim Vi560, 512GB M.2 Sata

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 571199 Product code: 49363
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years
41.41 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Capacity: 512 GB
  • Type: SATA
  • Read speed (sequential): 560 MB/s
  • Write speed (sequential): 520 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: SATA III (6Gb/s)
Description

This Verbatim brand SSD has a 512 GB capacity and a M.2 80mm (2280) format.

This SSD drive has a compact and modern M.2 connector.

This is a SATA type SSD disk. It uses the SATA III protocol, which is older technology, however SATA is still a good option for everyday use and budget solutions.

560 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 520 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

The SSD drive has a SATA III (6Gb/s) interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 512 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 560 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 520 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : Nav norādīts
Random Read IOPS : 101K
Random Write IOPS : 80K
Endurance (TBW) : Not indicated
More detailed specification
Additional information in manufacturers website Verbatim Vi560, 512GB M.2 Sata
ARTIKEL1 - VI560 S3 M.2 2280 SSD 512GB
ARTIKEL2 - SATA III M.2 INTERNAL
Brand - Verbatim
BrandPartCode - 49363
Category - Internal Solid State Drives
dimensionalWeight - 86
EANCode - 0023942493631
Features - Component for - PC/Laptop
Features - Data transfer rate - 6 Gbit/s
Features - Hardware encryption - No
Features - Interface - Serial ATA III
Features - Linux operating systems supported - Yes
Features - M.2 key ID - B+M
Features - Mac operating systems supported - Mac OS X 10.4 Tiger
Features - Mac operating systems supported - Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Features - Mac operating systems supported - Mac OS X 10.5 Leopard
Features - Mac operating systems supported - Mac OS X 10.6 Snow Leopard
Features - Mac operating systems supported - Mac OS X 10.7 Lion
Features - Mac operating systems supported - Mac OS X 10.8 Mountain Lion
Features - Mac operating systems supported - Mac OS X 10.9 Mavericks
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - No
Features - Random read (4KB) - 101376 IOPS
Features - Random write (4KB) - 80400 IOPS
Features - Read speed - 520 MB/s
Features - SSD capacity - 512 GB
Features - SSD form factor - M.2
Features - TBW rating - 240
Features - Windows operating systems supported - Windows 7
Features - Windows operating systems supported - Windows 8
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 7, Windows 8
Features - Write speed - 480 MB/s
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0023942493631
GTIN - 023942493631
HERSTELLER - VERBATIM
HSTNUMMER - 49363
Logistics data - Harmonized System (HS) code - 84717070
Logistics data - Layers per pallet - 5 pc(s)
Logistics data - Master (outer) case gross weight - 120 g
Logistics data - Master (outer) case height - 188 mm
Logistics data - Master (outer) case length - 70 mm
Logistics data - Master (outer) cases per pallet - 495 pc(s)
Logistics data - Master (outer) case width - 128 mm
Logistics data - Products per master (outer) case - 2 pc(s)
Logistics data - Products per pallet - 990 pc(s)
LongDesc - Verbatim SATA III M.2 2280 internal solid state drives can revitalise the performance of your system. Using the latest 3D NAND technology and compact dimensions, they offer the perfect way to upgrade, particular for small or thin form factor devices such as Ultrabooks and Notebooks.The Vi560 delivers fast system boot-ups, quick application responses, and rapid transfer speeds, with read speeds of up to 560MB/s, which is 20 times faster than a standard hard drive. With an MTBF (mean time before failure) rating of 1.5 million hours and up to 450 TBW (terabytes written), the Vi560 is a high spec SSD that can be relied upon. (Recommended for professional installation.)
LongProductName - Vi560 Internal SATA III M.2 SSD 512GB
LongSummaryDescription - Verbatim Vi560 S3 M.2 SSD 512GB. SSD capacity: 512 GB, SSD form factor: M.2, Read speed: 520 MB/s, Write speed: 480 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package depth - 25 mm
Packaging data - Package height - 148 mm
Packaging data - Package type - Hanging box
Packaging data - Package weight - 43 g
Packaging data - Package width - 117 mm
Packaging data - Quick start guide - Yes
Power - Power consumption (idle) - 0.6 W
Power - Power consumption (read) - 1.43 W
Power - Power consumption (write) - 1.39 W
producerCode - 49363
productName - Verbatim Vi560 S3 M.2 SSD 512GB
ProductName - Vi560 S3 M.2 SSD 512GB
productSize - Normal
ShortSummaryDescription - Verbatim Vi560 S3 M.2 SSD 512GB, 512 GB, M.2, 520 MB/s, 6 Gbit/s
sizeX - 117
sizeY - 148
sizeZ - 25
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Technical details - Sustainability certificates - RoHS
Title - Verbatim Vi560 S3 M.2 SSD 512GB
URL - https://www.verbatim-europe.co.uk/en/prod/vi560-s3-m2-ssd-49363/
WarrantyInfo - 3 Year Limited Warranty
warrantyLength - 24
warrantyType - G
weight - 40
Weight & dimensions - Depth - 22 mm
Weight & dimensions - Height - 2.3 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 80 mm
