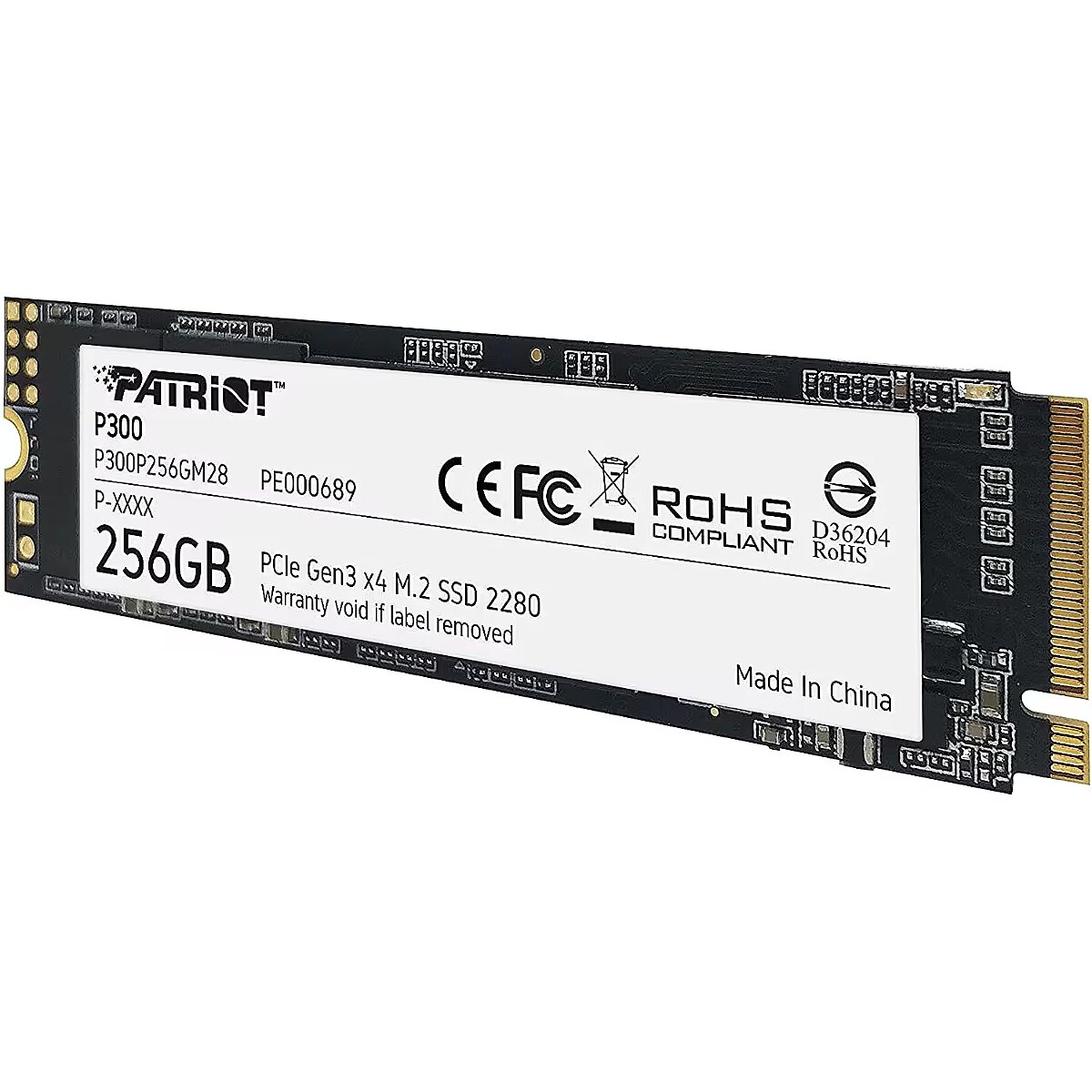

Patriot P300, 256GB, M.2 Gen3 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 516781 Product code: P300P256GM28
Can be ordered 211 units Availability: 14 days after order approval
Warranty: 3 years
25.63 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 10.12.2024
  • Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
  • Capacity: 256 GB
  • Type: NVMe
  • Read speed (sequential): 1700 MB/s
  • Write speed (sequential): 1100 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 3.0 x4
Description

Available for purchase, the Patriot M.2 80mm (2280) format SSD disk with a large volume of 256 GB.

This disc uses the latest generation compact M.2 port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

1700 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 1100 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

This SSD drive interface is PCIe 3.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 256 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 1700 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 1100 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 3.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : 290K
Random Write IOPS : 260K
Endurance (TBW) : 80 TB
More detailed specification
Additional information in manufacturers website Patriot P300, 256GB, M.2 Gen3 x4
Category - Root/Electronics/PC parts/Hard drives
Category Code - SSU
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
CnCode CnCode - 84717098
Color - Black
Depth - 8 cm
Description - P300 to nowa generacja dysków SSD PCIe trzeciej generacji NVMe PCIe, która trafiła na rynek, oferując o 25% wyższe prędkości transferu i procesory IOP niż standardowe rozwiązania PCIe 3x2. Kompaktowa obudowa m.2 została zaprojektowana z myślą o łatwej instalacji i zmieści się na każdym komputerze stacjonarnym lub laptopie, a jej niskie zużycie energii pomaga wydłużyć żywotność baterii laptopa. P300 gwarantuje poprawę czasu uruchamiania, ładowania i transferu w porównaniu z tradycyjnymi dyskami twardymi.
Description - PATRIOT P300 PCIe M.2 SSD The P300 is Patriot’s next generation of mid-tier PCIe gen 3x4 NVMe SSD to hit the market, offering 25% higher transfer speeds and IOPs than standard PCIe 3x2 solutions. The compact m.2 form factor is designed for easy installation and will fit into any PC or laptop, while its low power consumption helps extend laptop battery life. The P300 is guaranteed to improve start-up, loading, and transfer times over traditional hard disk drives. FEATURES + Built with the latest PCIe 3 x4 controller + 2280 M.2 PCIe NVMe Gen3 x4 SSD + NANDXtend ECC Technology + HMB Technology + Operating Temperature: 0~70°C
dimensionalWeight - 26
dimension depth - 10 mm
dimension height - 130 mm
Dimensions - 8 x 2.2 x 0.38 cm
dimension weight - 20 g
dimension width - 100 mm
Disk type - SSD
Drive thickness - 3.8mm
Drive type - Internal
ean - 814914026519
Eans - 814914026519
EAN_code - 0814914026519
Features - NVMe - Yes
Features - SSD capacity - 256 GB
Features - SSD form factor - M.2
Form Factor - M.2
Form factor (width) - M.2 2280
Full Description Line - SSD series P300|256GB|Form Factor M.2|PCIE|NVMe|Technology 3D NAND|Write speed 1100 MBytes/sec|Read speed 1700 MBytes/sec|Drive thickness 3.8mm|TBW 120 TB
guarantee - 60
guarantee_type - normal
HDD capacity - 256 GB
HDD interface - PCI-Express
Height - 0.38 cm
Manufacturer - Patriot
Manufacturer_code - P300P256GM28
Model - Viper P300
Name - Patriot P300 256 GB, SSD (PCIe 3.0 x4, M.2 2280)
Name - Patriot P300 256GB
name - SSD 256GB Viper P300 1700/1100 PCIe M.2 2280
NAND flash technology - 3D NAND
NVMe - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Read speed - 1700 MB/s
Operational conditions - Write speed - 1100 MB/s
Other features -
PCIE Interface - Yes
producer - Patriot
Producer - Patriot
producerCode - P300P256GM28
ProducerCode - P300P256GM28
productName - PATRIOT P300 M.2 PCI-EX4 NVME 256GB
productSize - Normal
Random read IOPS (max) - 290 K
Random write IOPS (max) - 260 K
Reading speed - 1700 MB/s
Read speed - 1700 MBytes/sec
Shipping Box Depth Shipping/Package Box Dimensions - 29 cm
Shipping Box Height Shipping/Package Box Dimensions - 15 cm
Shipping box quantity - 50
Shipping Box Weight Shipping/Package Box Dimensions - 1 kg
Shipping Box Width Shipping/Package Box Dimensions - 11 cm
ShortDescription - SSD| 256GB | M.2 | PCI-Ex | NVMe |
sizeX - 130
sizeY - 10
sizeZ - 100
SSD Capacity - 256GB
SSD series - P300
TBW - 80 TB
TBW - 120 TB
Unit Box Height - 0.01
Unit Box Length - 0.17
Unit Box Width - 0.07
Unit Brutto Volume - 9.57e-005 cubm
Unit Gross Weight - 0.02 kg
Unit Net Weight - 0.009 kg
Vendor Homepage - store.patriotmemory.com/products/patriot-p300-m-2-pcie-gen-3-x4-ssd
vendpn - P300P256GM28
Warranty - 36L months
warrantyLength - 36
warrantyType - G
Weight - 0,02
Weight - 9 g
weight - 18
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Width - 22 mm
Width - 2.2 cm
Write speed - 1100 MBytes/sec
Writing speed - 1100 MB/s
