ID: 1206872
Product code: MZ-VAP2T0CW
In stock 50 units
Warranty: 3 years

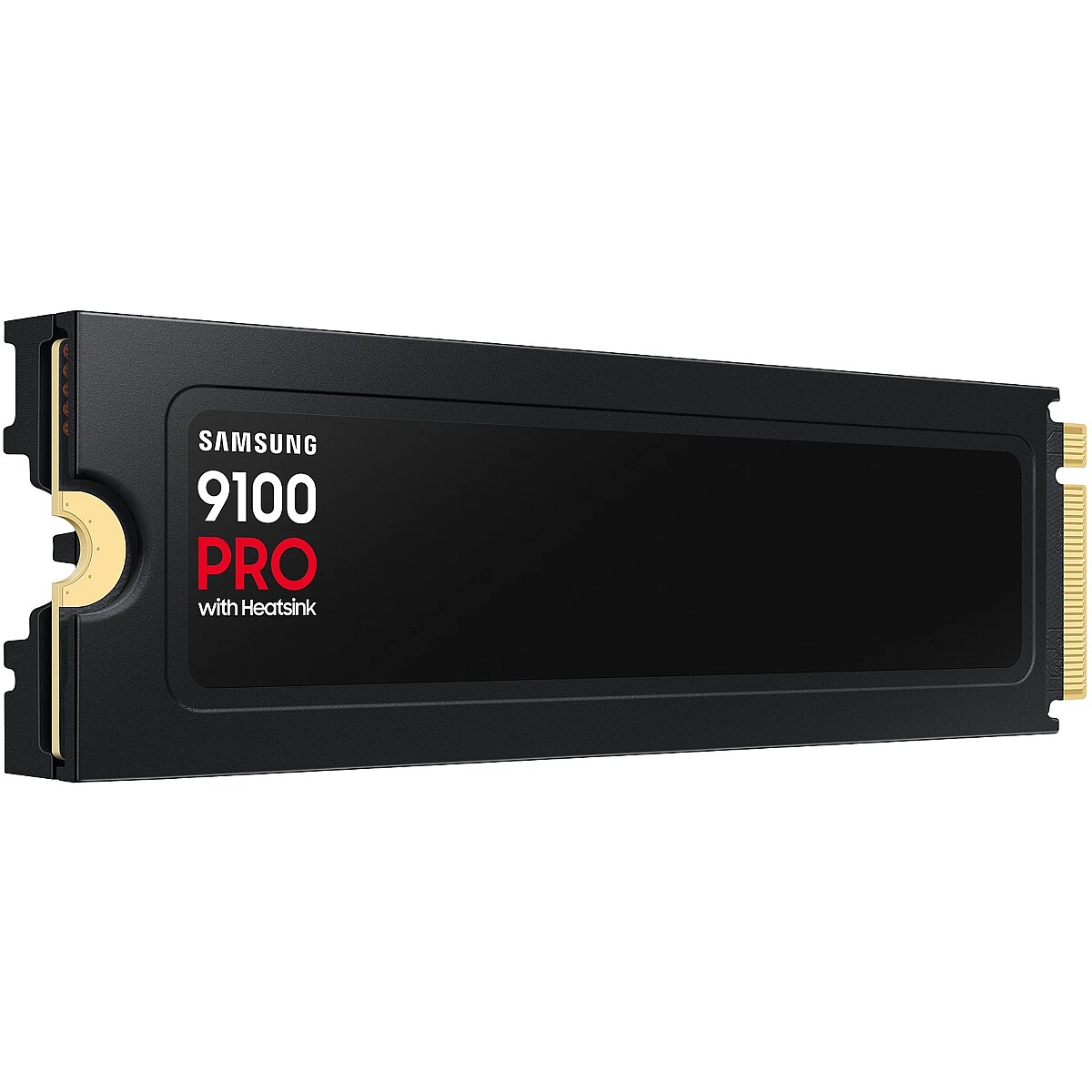

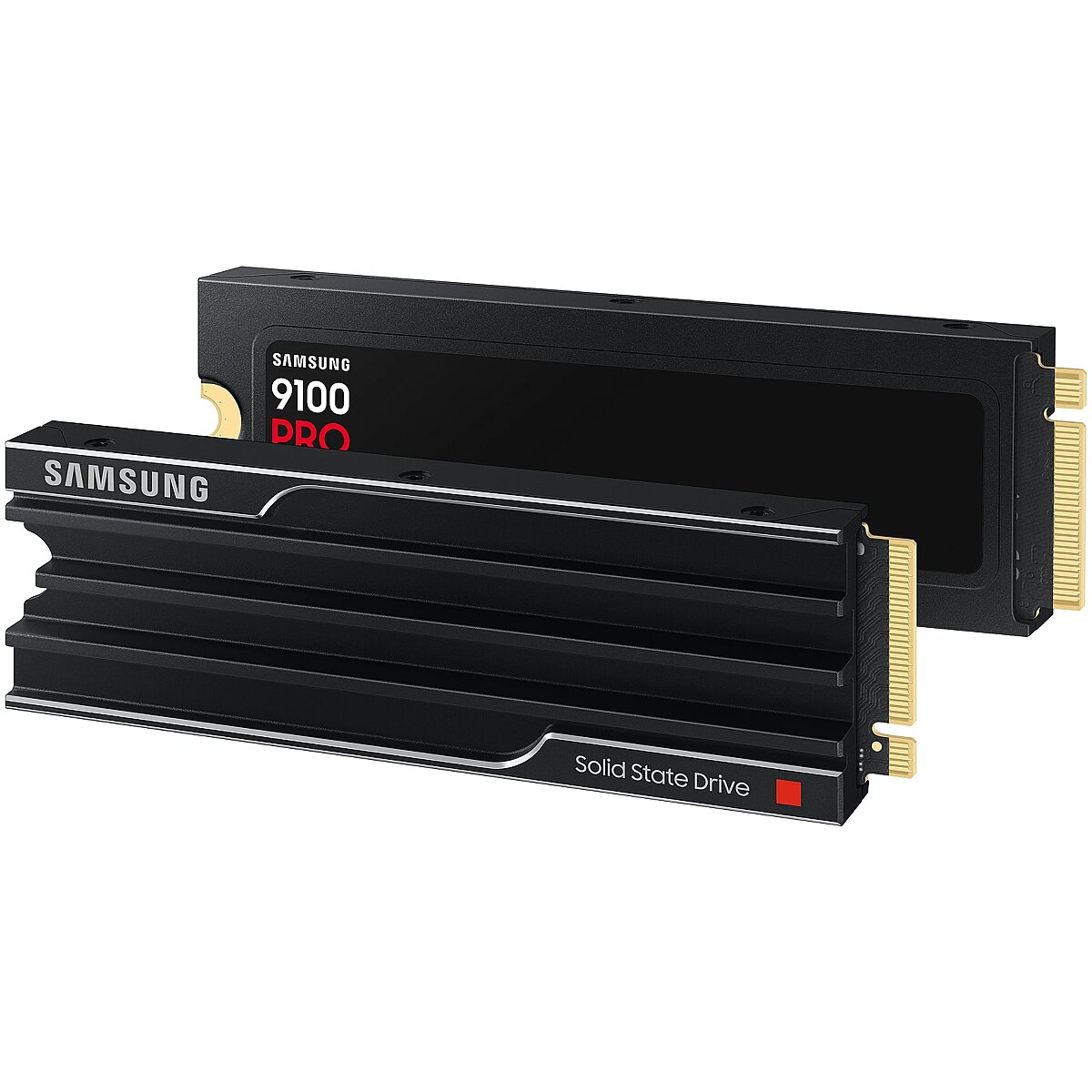

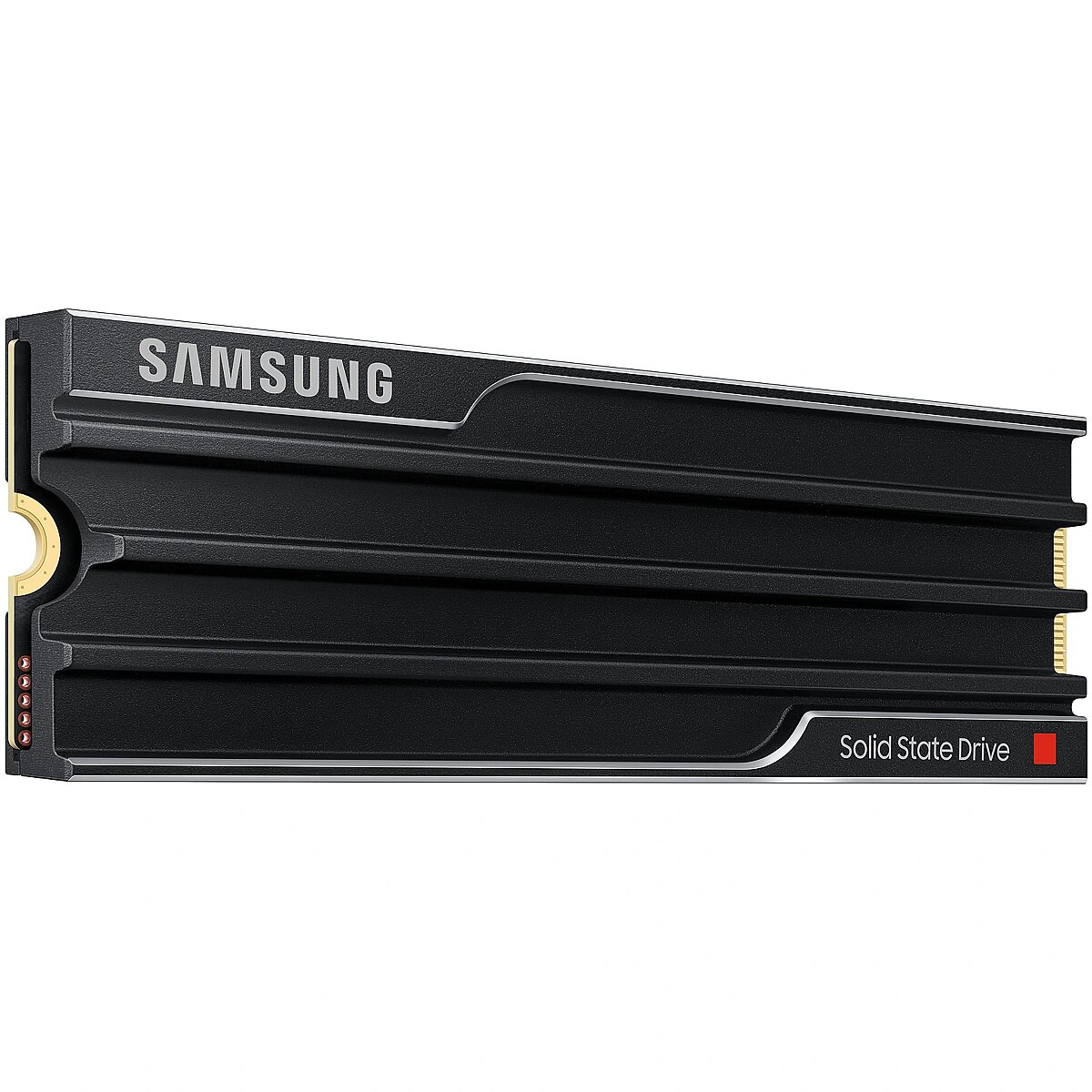

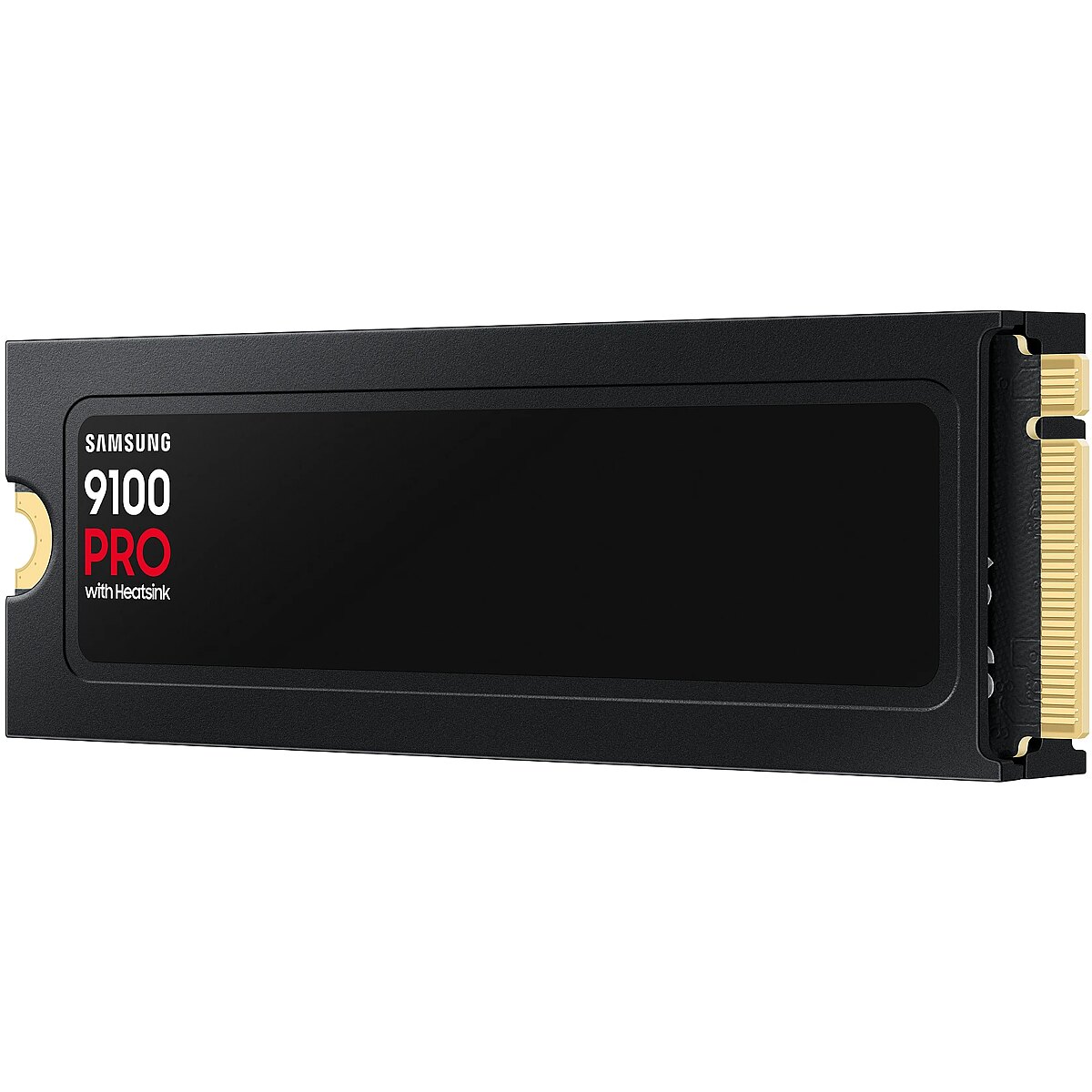

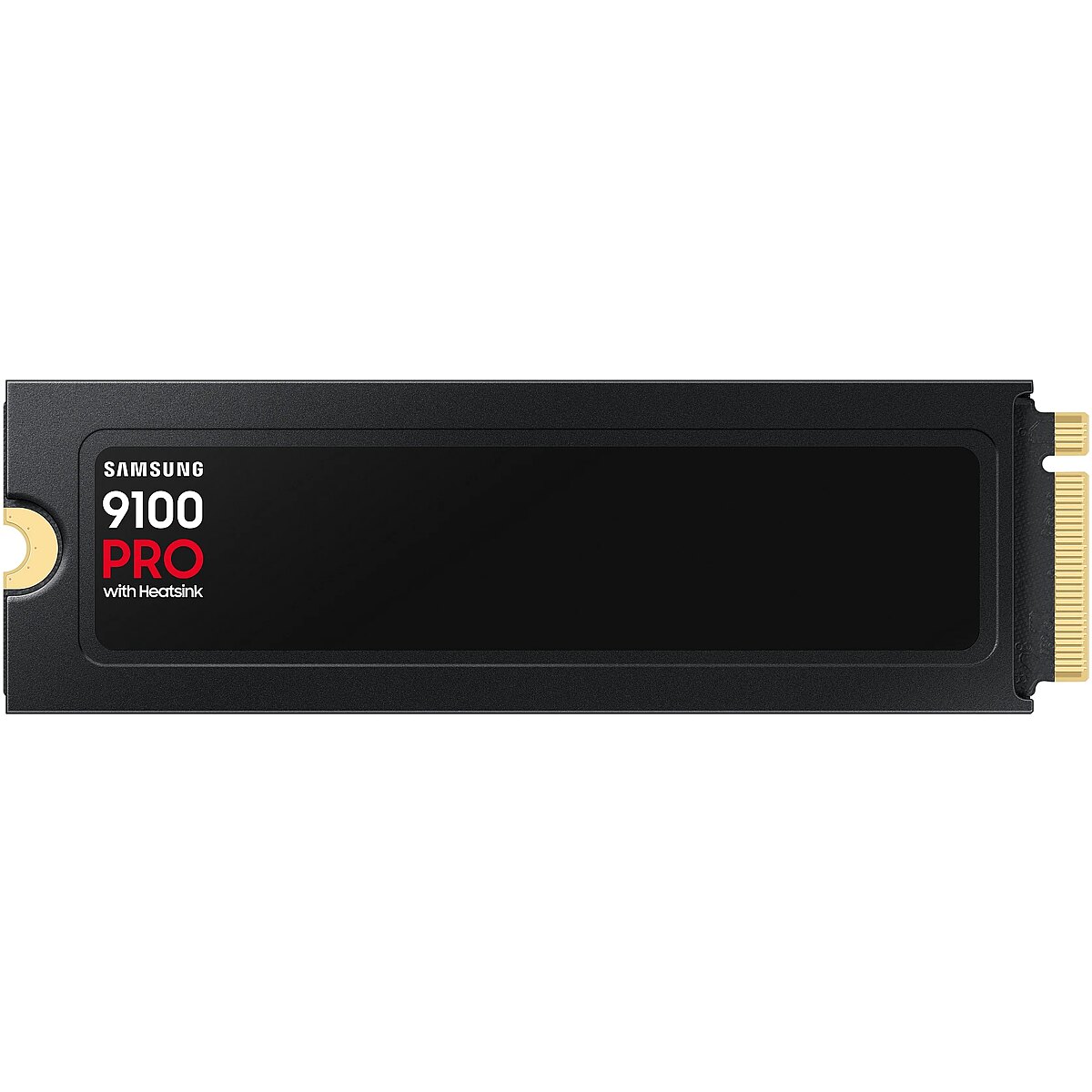

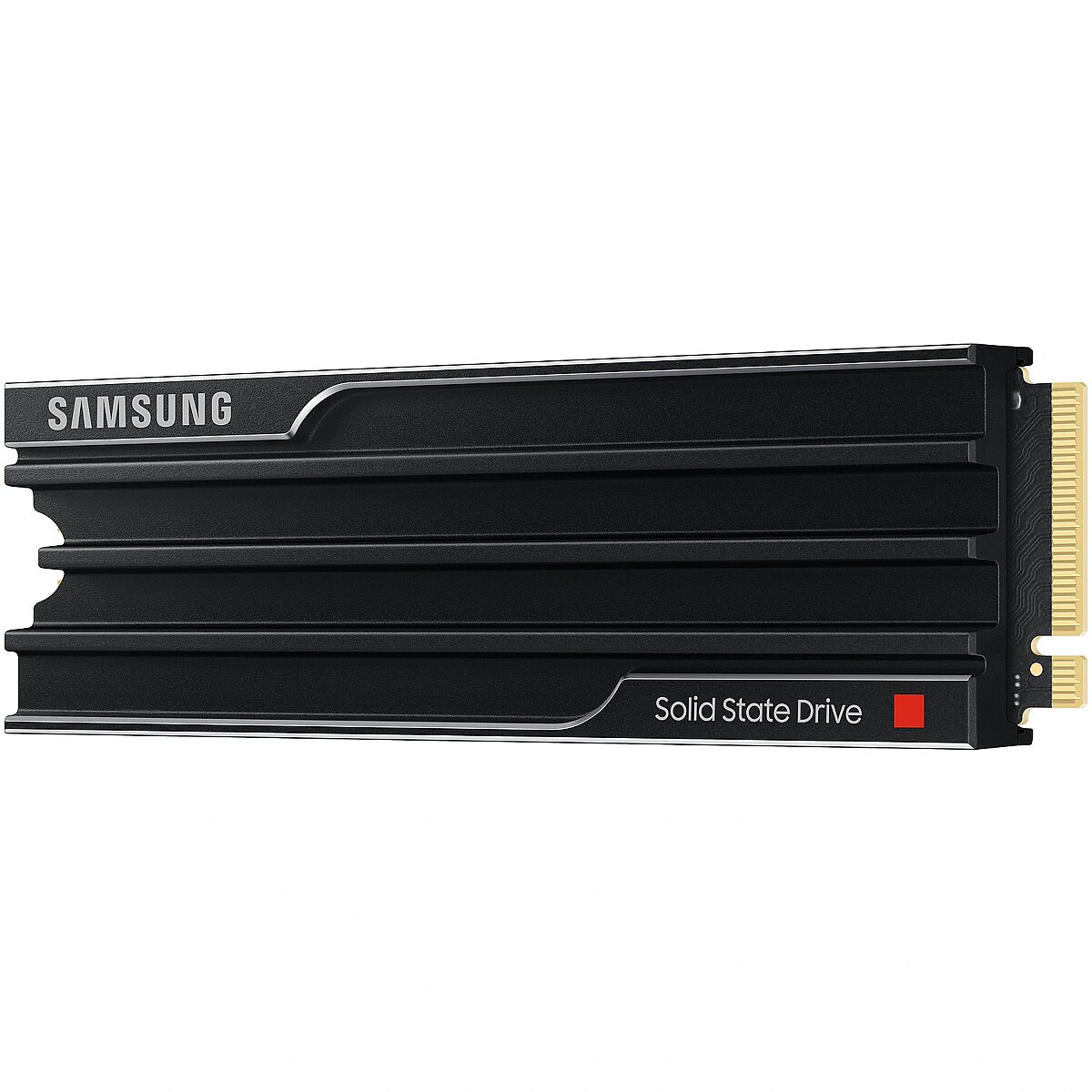

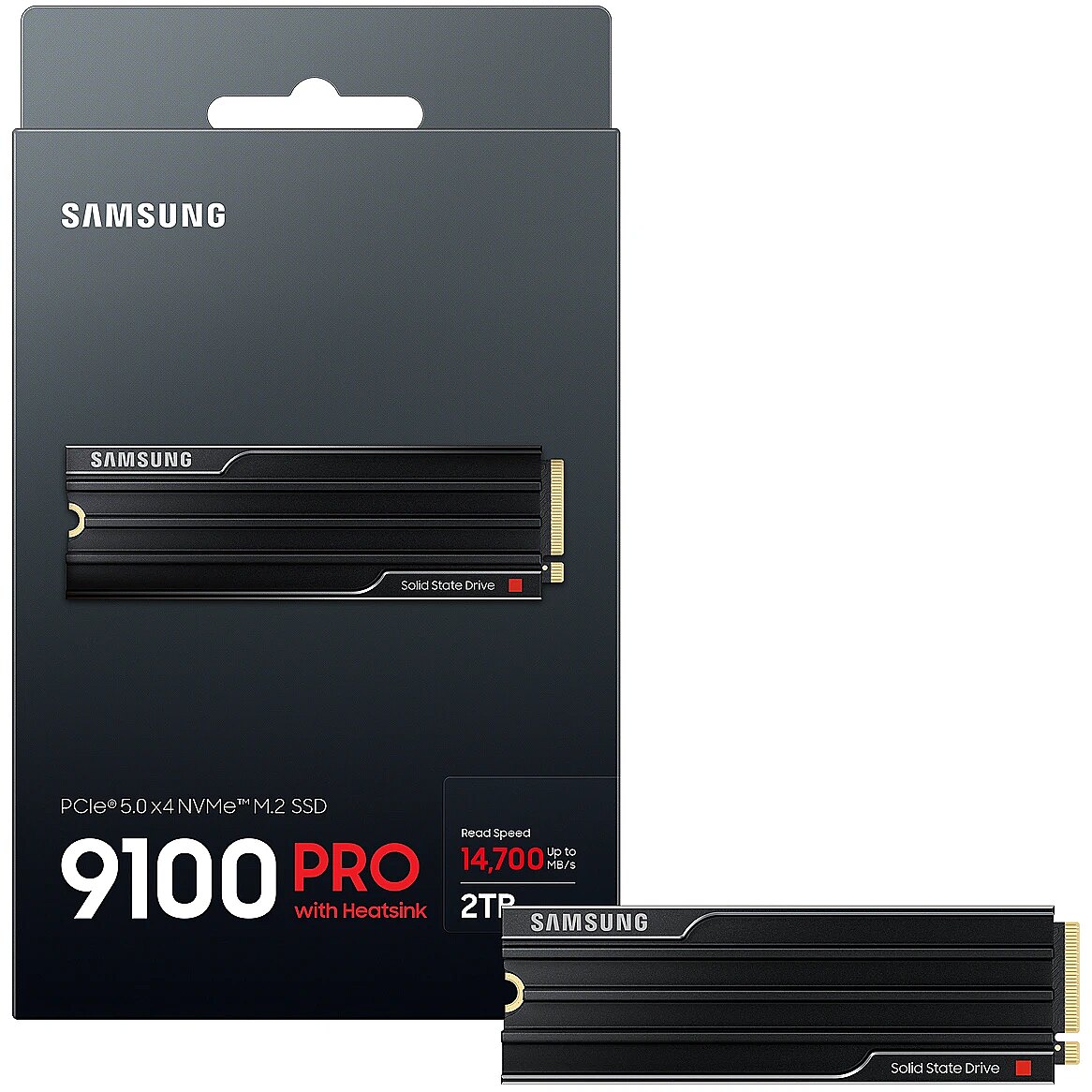

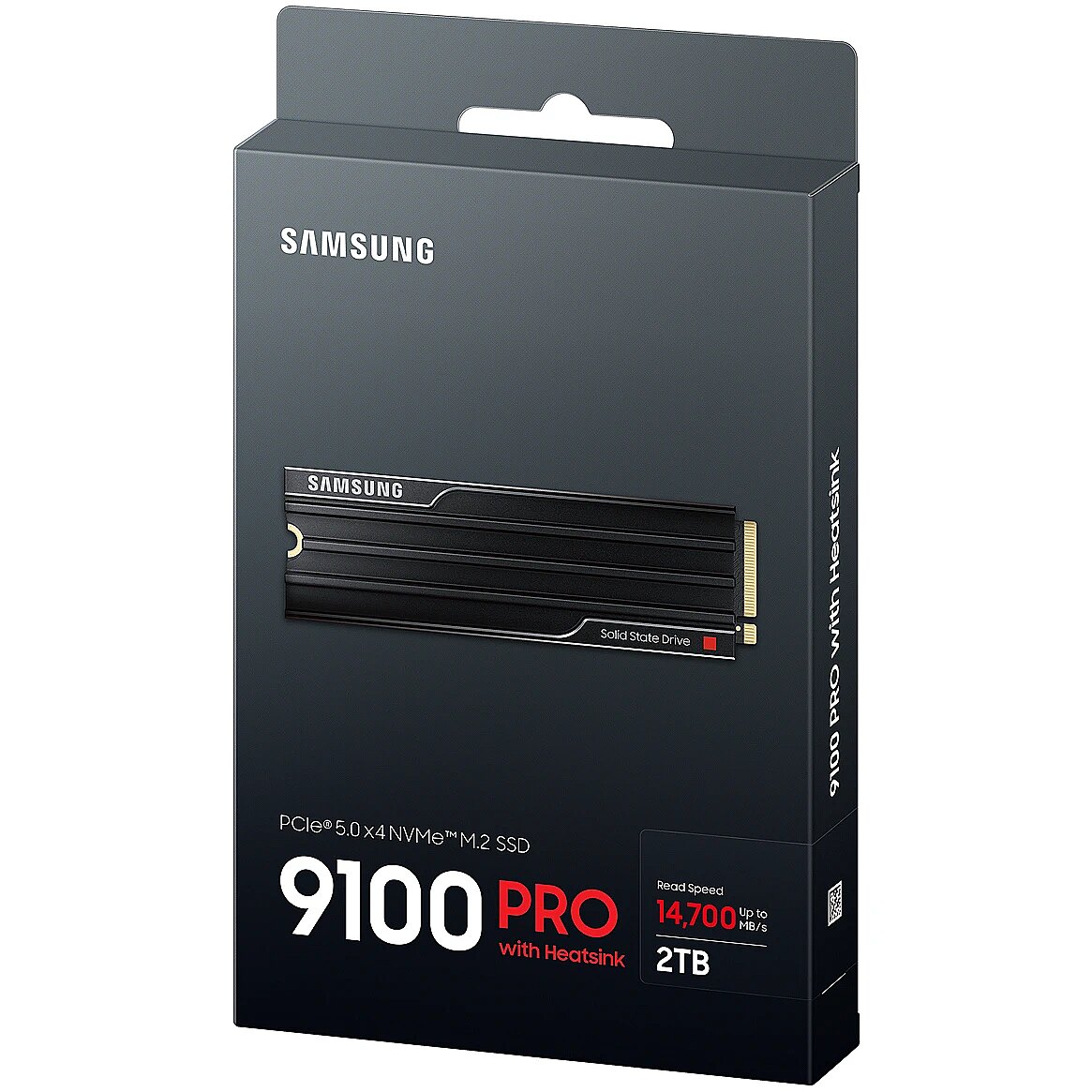

Samsung 9100 PRO, 2TB, M.2 Gen5 x4, with Heatsink
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: on Thursday, 10.04.2025
- Delivery to Omniva parcel locker 1.99 €: on Thursday, 10.04.2025
- Courier delivery 3.99 €: on Thursday, 10.04.2025
Main product parameters All parameters
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 14700 MB/s
- Write speed (sequential): 13400 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 5.0 x4
Description
Available for purchase, the Samsung M.2 80mm (2280) format SSD disk with a large volume of 2 TB.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.
This SSD disk read speed (Sequential read speed) is 14700 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.
The write speed (Sequential write speed) of this SSD is 13400 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
To ensure memory chips maintain a low temperature and assure constant performance over long periods of use, the disk equipment is equipped with a cooler or a radiator. However, even if you purchase a "fast" SSD without a built-in radiator, it's not critical - almost all motherboards (99%) already have an integrated M.2 slot cooler.
This SSD drive has an M.2 80mm (2280) format.
This SSD disk has a PCIe 5.0 x4 interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
14700 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
13400 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 5.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 1.85M
Random Write IOPS
: 2.6M
Endurance (TBW)
: 1200 TB
More detailed specification
Brand - Samsung
BrandPartCode - MZ-VAP2T0CW
Category - Internal Solid State Drives
Category Code - SSU
Description - MZ-VAP2T0CW Samsung 9100 PRO with Heatsink, PCIe 5.0, NVMe M.2 SSD 2 TB black.
Dimensions - 80.15 x 22.15 x 2.38 mm
Drive thickness - 2.38mm
Features - Component for - PC/Game console
Features - Hardware encryption - Yes
Features - Interface - PCI Express 5.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - V-NAND TLC
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - Random read (4KB) - 1850000 IOPS
Features - Random write (4KB) - 2600000 IOPS
Features - Read speed - 14700 MB/s
Features - S.M.A.R.T. support - Yes
Features - Security algorithms - 256-bit AES
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Write speed - 13400 MB/s
Form Factor - M.2
Full Description Line - SSD series 9100 PRO|2TB|Form Factor M.2|PCIe Gen5|NVMe|Technology TLC|Write speed 13400 MBytes/sec|Read speed 14700 MBytes/sec|Drive thickness 2.38mm|TBW 1200 TB
GTIN - 8806095811666
LongDesc - Breakthrough PCIe® 5.0 performancePush PCIe® 5.0 performance to the max. 9100 PRO with Heatsink achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.Impressive processing powerSpeed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.Rapid AI creationIntelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO with Heatsinks exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.Advance your gameplayBoundless gaming freedom. Join forces with the 9100 PRO with Heatsink on PC, laptop, or PlayStation® 5, and experience surreal performance with the latest PCIe® 5.0 interfaces. Equip yourself with the ultimate advantage to help overwhelm opponents and emerge victorious.Extraordinary thermal efficiencyPeak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.Boost your gaming experienceSecure victory with the immense 8TB capacity. 9100 PRO with Heatsink delivers huge space to expand your ever-growing game library. Break free from storage constraints and keep all your favourite game titles.Slim build. Seamless fit.Super slim fit. 9100 PRO with Heatsink boasts an incredibly thin 8.8mmT body, compatible with PlayStation® 5, PC, and on laptops, meeting PCI-SIG® D8 specs. Overcome space limits and get ultimate design flexibility to build your most efficient, high-performance system, with the compact M.2 form factor.Samsung Magician softwareMake your SSD work like magic. Samsung Magician software's optimisation tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.Bringing innovations to lifeFor decades, Samsungs NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.PCIe® 5.0 PerformanceMax 14,800/13,400 MB/s sequential speeds,two times faster than 990 PRO.Advance your gameplayMega capacity with exceptional compatibility.Innovative Power & Thermal ControlUp to 49% enhanced power efficiency with advanced thermal control.
LongProductName - 9100 PRO with Heatsink, PCIe 5.0, NVMe M.2 SSD
LongSummaryDescription - Samsung 9100 PRO Heatsink PCIe® 5.0 NVMe™ M.2 SSD - 2 TB. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 14700 MB/s, Write speed: 13400 MB/s, Component for: PC/Game console
Model - MZ-VAP2T0CW
NAND flash technology - TLC
NVMe - Yes
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Packaging data - Package type - Box
PCIe Gen5 Interface - Yes
Power - Average power consumption (read) - 8.1 W
Power - Average power consumption (write) - 7.9 W
Power - Operating voltage - 3.3 V
ProductName - 9100 PRO Heatsink PCIe® 5.0 NVMe™ M.2 SSD - 2 TB
Read speed - 14700 MBytes/sec
Shipping box quantity - 1
ShortSummaryDescription - Samsung 9100 PRO Heatsink PCIe® 5.0 NVMe™ M.2 SSD - 2 TB, 2 TB, M.2, 14700 MB/s
SSD Capacity - 2TB
SSD series - 9100 PRO
TBW - 1200 TB
Title - Samsung 9100 PRO Heatsink PCIe® 5.0 NVMe™ M.2 SSD - 2 TB
Unit Brutto Volume - 0.0006216 cubm
Unit Gross Weight - 0.088 kg
Unit Net Weight - 0.03 kg
URL - https://www.samsung.com/uk/memory-storage/nvme-ssd/9100-pro-2tb-nvme-pcie-gen-5-with-heatsink-mz-vap2t0cw/
Vendor Homepage - www.samsung.com/lv/memory-storage/nvme-ssd/9100-pro-2tb-nvme-pcie-gen-5-mz-vap2t0cw/
Warranty - 60L months
WarrantyInfo -
Weight & dimensions - Depth - 8.88 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Weight - 30 g
Weight & dimensions - Width - 80.2 mm
Write speed - 13400 MBytes/sec
