ID: 1013555
Product code: G325E2TB
In stock 7 units
Warranty: 2 years
(Warranty for business entities 1 year)

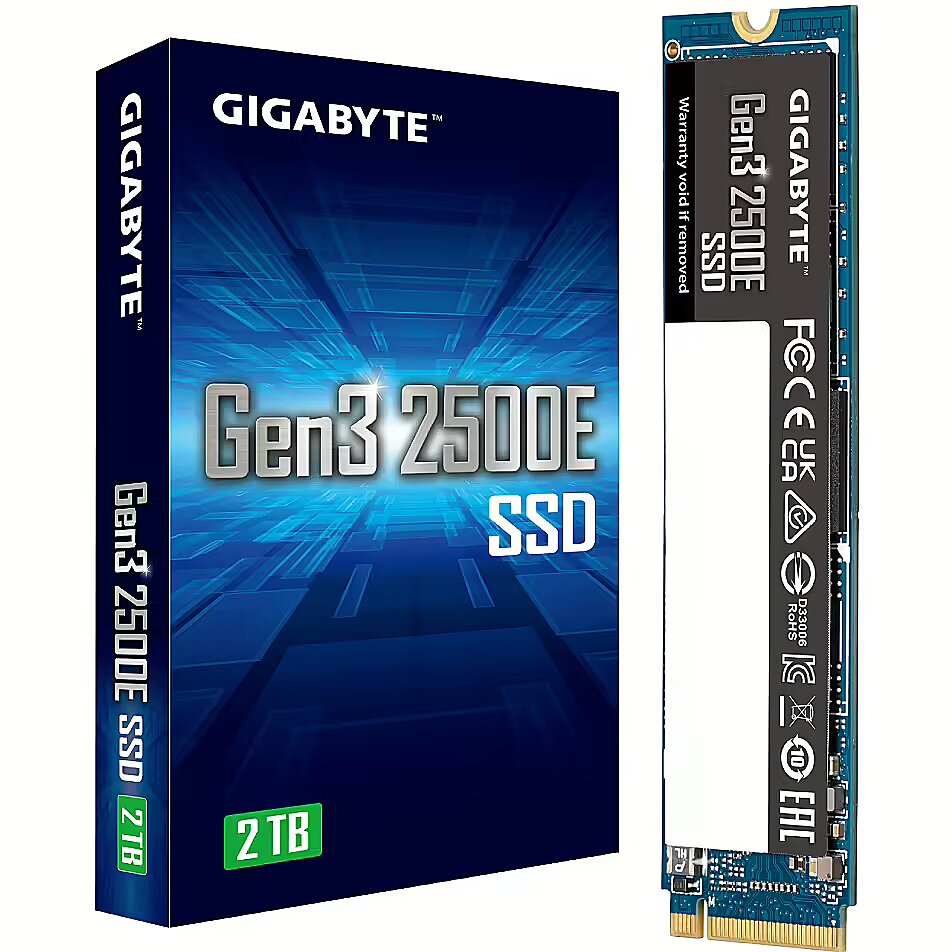

Gigabyte Gen3 2500E, 2TB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 11.12.2024
- Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 2400 MB/s
- Write speed (sequential): 2000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
This Gigabyte brand SSD has a 2 TB capacity and a M.2 80mm (2280) format.
This SSD drive has a compact and modern M.2 connector.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 2400 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
2000 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
2400 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
2000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: 480 TB
More detailed specification
Brand - GIGABYTE
BrandPartCode - G325E2TB
Category - Internal Solid State Drives
Features - Component for - PC/Laptop
Features - Interface - PCI Express 3.0
Features - JEDEC standard - Yes
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - Read speed - 2400 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 480
Features - Write speed - 2000 MB/s
GTIN - 4719331856687
LongDesc - A worthy choice for your PC upgradeGIGABYTE Gen3 2500E SSD adopts Phison's controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 2000 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.Breaking the Barriers of SATA Limitations (2TB)Outstanding performanceGIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.Sequential read speeds up to 2400 MB/sSequential write speeds up to 2000 MB/sGIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5" SATA solid state driveHost Memory Buffer (HMB)The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.Power Saving While OperatingComparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.SSD Tool BoxThe newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.GIGABYTE CONTROL CENTER (GCC)GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.Unified software platform for all Gigabyte supported productsIntuitive user interface for an eased experienceModularized control components only for installed hardwareAuto update function to keep system up to date and support future products
LongProductName - PCIe 3.0x4, NVMe1.3, 2000GB
LongSummaryDescription - Gigabyte Gen3 2500E SSD 2TB. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 2400 MB/s, Write speed: 2000 MB/s, Component for: PC/Laptop
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package type - Box
ProductName - Gen3 2500E SSD 2TB
ShortSummaryDescription - Gigabyte Gen3 2500E SSD 2TB, 2 TB, M.2, 2400 MB/s
Title - Gigabyte Gen3 2500E SSD 2TB M.2 PCI Express 3.0 NVMe 3D NAND
URL - https://www.gigabyte.com/SSD/GIGABYTE-Gen3-2500E-SSD-2TB#kf
WarrantyInfo -
Weight & dimensions - Depth - 23 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Width - 80 mm
BrandPartCode - G325E2TB
Category - Internal Solid State Drives
Features - Component for - PC/Laptop
Features - Interface - PCI Express 3.0
Features - JEDEC standard - Yes
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - Read speed - 2400 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 480
Features - Write speed - 2000 MB/s
GTIN - 4719331856687
LongDesc - A worthy choice for your PC upgradeGIGABYTE Gen3 2500E SSD adopts Phison's controller and high-quality 3D NAND, delivers up to 2400 MB/s sequential read and 2000 MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. Furthermore, GIGABYTE Gen3 2500E SSD features TRIM, SMART, and Over-Provision support to secure your data and perform stably.Breaking the Barriers of SATA Limitations (2TB)Outstanding performanceGIGABYTE Gen3 2500E SSD provides performance for your daily computing tasks, boast of best controller & 3D NAND flash.Sequential read speeds up to 2400 MB/sSequential write speeds up to 2000 MB/sGIGABYTE Gen3 2500E SSD gives you faster data transferring experience compared to 2.5" SATA solid state driveHost Memory Buffer (HMB)The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.Power Saving While OperatingComparing with regular PCIe 3.0 x4 SSD, GIGABYTE Gen3 2500E SSD reduces about 40%+ power while operating. Power consumption of the GIGABYTE Gen3 2500E SSD is notably improved.SSD Tool BoxThe newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.GIGABYTE CONTROL CENTER (GCC)GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.Unified software platform for all Gigabyte supported productsIntuitive user interface for an eased experienceModularized control components only for installed hardwareAuto update function to keep system up to date and support future products
LongProductName - PCIe 3.0x4, NVMe1.3, 2000GB
LongSummaryDescription - Gigabyte Gen3 2500E SSD 2TB. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 2400 MB/s, Write speed: 2000 MB/s, Component for: PC/Laptop
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Package type - Box
ProductName - Gen3 2500E SSD 2TB
ShortSummaryDescription - Gigabyte Gen3 2500E SSD 2TB, 2 TB, M.2, 2400 MB/s
Title - Gigabyte Gen3 2500E SSD 2TB M.2 PCI Express 3.0 NVMe 3D NAND
URL - https://www.gigabyte.com/SSD/GIGABYTE-Gen3-2500E-SSD-2TB#kf
WarrantyInfo -
Weight & dimensions - Depth - 23 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Width - 80 mm
