ID: 917052
Product code: ALEG-700-256GCS
Can be ordered 17 units Availability: 14 days after order approval
Warranty: 3 years

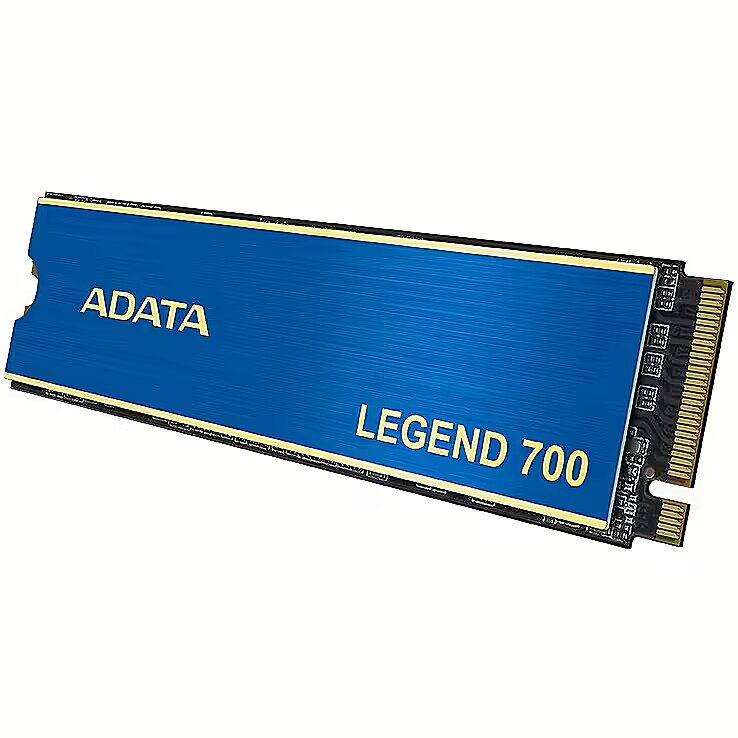

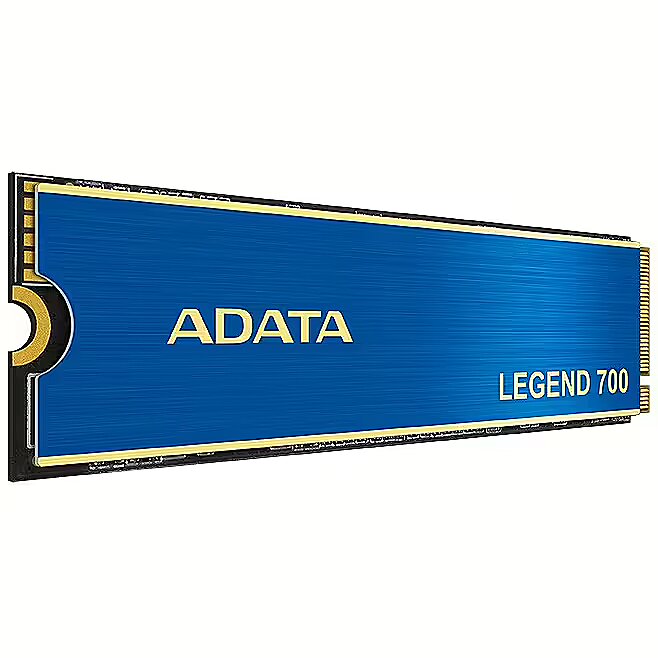

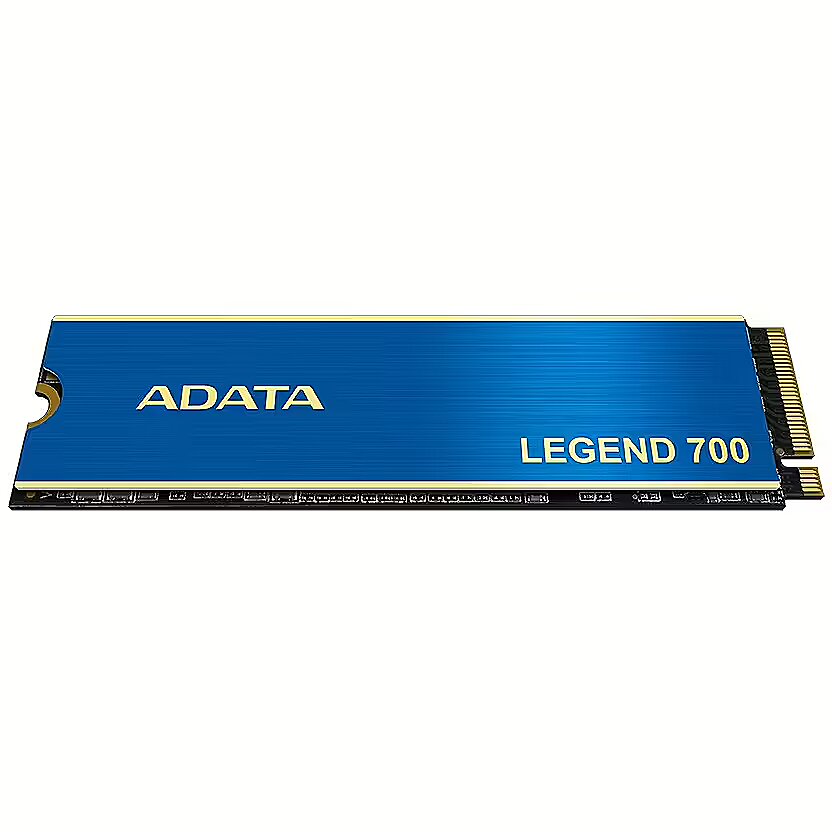

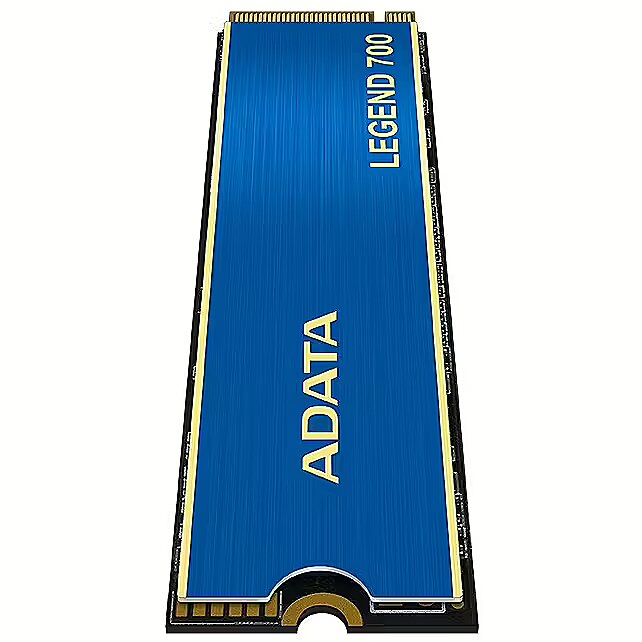

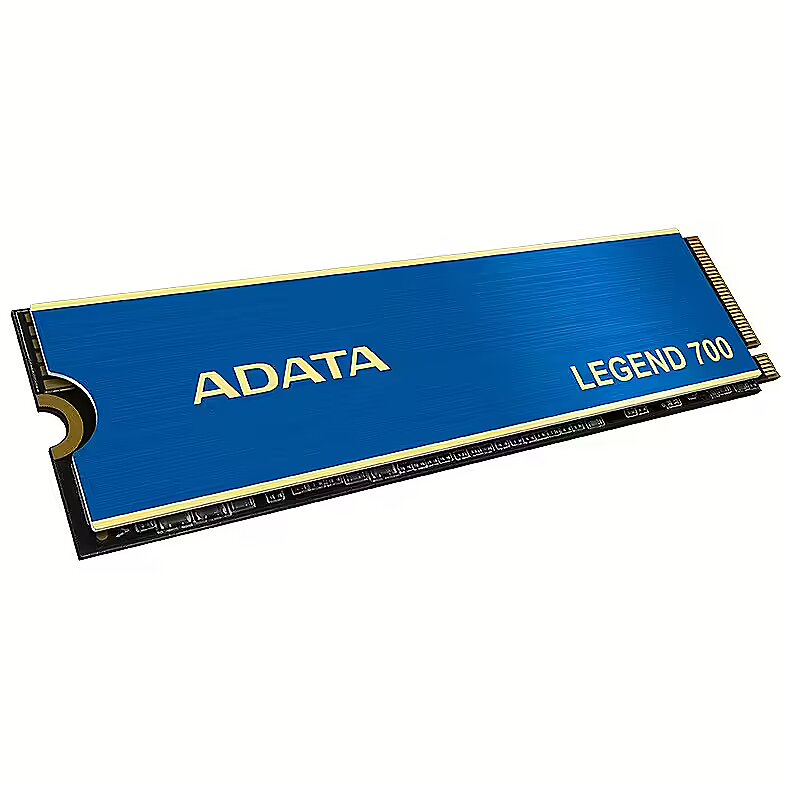

ADATA Legend 700, 256GB, M.2 Gen3 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 10.12.2024
- Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
- Capacity: 256 GB
- Type: NVMe
- Read speed (sequential): 1900 MB/s
- Write speed (sequential): 1000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 3.0 x4
Description
We offer to purchase a Adata M.2 80mm (2280) format SSD drive with a 256 GB capacity.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 1900 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
1000 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
A stable data reading and writing speed during prolonged work is ensured by a cooler or heat sink with which this SSD drive is equipped. It helps to maintain memory chips at an optimal temperature. There is no particular need to worry if you choose a "fast" disc without a heat sink, as almost always (99% of cases) the system board will be equipped with a built-in M.2 slot cooling solution.
This SSD drive has an M.2 80mm (2280) format.
The SSD drive has a PCIe 3.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
256 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
1900 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
1000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.ee section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 3.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not indicated
Random Write IOPS
: Not indicated
Endurance (TBW)
: 80 TB
More detailed specification
Brand - ADATA
BrandPartCode - ALEG-700-256GCS
Category - Internal Solid State Drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
EAN_code - 4711085938251
Features - Certification - CE, FCC, BSMI, KC, EAC, RCM, morocco,
UKCA, RoHS
Features - Component for - PC/Laptop
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - Random read (4KB) - 90000 IOPS
Features - Random write (4KB) - 280000 IOPS
Features - Read speed - 2000 MB/s
Features - Security algorithms - 256-bit AES
Features - Sequential read speed (AS SSD) - 1700 MB/s
Features - Sequential read speed (ATTO) - 1800 MB/s
Features - Sequential read speed (CDM) - 1900 MB/s
Features - Sequential write speed (AS SSD) - 1000 MB/s
Features - Sequential write speed (ATTO) - 1000 MB/s
Features - Sequential write speed (CDM) - 1000 MB/s
Features - SSD capacity - 256 GB
Features - SSD form factor - M.2
Features - TBW rating - 80
Features - Write speed - 1600 MB/s
GTIN - 4711085938251
LongDesc - Enhance Your CreativityThe LEGEND 700 utilizes PCIe Gen3 x4 and NVMe 1.3 to deliver sustained read and write speeds of up to 2,000/1,600 MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.Keeping Things CoolThe LEGEND 700's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden trimming. The heat sink works to keep temperatures down for optimal performance and stability. Create BetterCreativity can't wait! The LEGEND 700 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.Protect Your CreationsWith LDPC (Low Density Parity Check Code), the LEGEND 700 ensures accurate data transmissions and security.
LongProductName - 256GB, M.2 2280, 3D NAND, PCIe Gen3 x4, 2,000\1,600MB/s, TBW 320TB, heat sink, 80 x 22 x 3.13 mm
LongSummaryDescription - ADATA LEGEND 700 ALEG-700-256GCS. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 2000 MB/s, Write speed: 1600 MB/s, Component for: PC/Laptop
Manufacturer - ADATA
Manufacturer_code - ALEG-700-256GCS
Name - ADATA LEGEND 700 256 GB - SSD - M.2, PCIe 3.0 x4, blue/gold
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
ProductName - ALEG-700-256GCS
ShortSummaryDescription - ADATA LEGEND 700 ALEG-700-256GCS, 256 GB, M.2, 2000 MB/s
Title - ADATA LEGEND 700 ALEG-700-256GCS internal solid state drive 256 GB M.2 PCI Express 3.0 NVMe 3D NAND
URL - https://www.adata.com/uk/consumer/solid-state-drives-legend-700?tab=description
WarrantyInfo - 3 years
Weight - 0,03
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.13 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 22 mm
BrandPartCode - ALEG-700-256GCS
Category - Internal Solid State Drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD - M.2
EAN_code - 4711085938251
Features - Certification - CE, FCC, BSMI, KC, EAC, RCM, morocco,
UKCA, RoHS
Features - Component for - PC/Laptop
Features - Hardware encryption - Yes
Features - Interface - PCI Express 3.0
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.3
Features - Random read (4KB) - 90000 IOPS
Features - Random write (4KB) - 280000 IOPS
Features - Read speed - 2000 MB/s
Features - Security algorithms - 256-bit AES
Features - Sequential read speed (AS SSD) - 1700 MB/s
Features - Sequential read speed (ATTO) - 1800 MB/s
Features - Sequential read speed (CDM) - 1900 MB/s
Features - Sequential write speed (AS SSD) - 1000 MB/s
Features - Sequential write speed (ATTO) - 1000 MB/s
Features - Sequential write speed (CDM) - 1000 MB/s
Features - SSD capacity - 256 GB
Features - SSD form factor - M.2
Features - TBW rating - 80
Features - Write speed - 1600 MB/s
GTIN - 4711085938251
LongDesc - Enhance Your CreativityThe LEGEND 700 utilizes PCIe Gen3 x4 and NVMe 1.3 to deliver sustained read and write speeds of up to 2,000/1,600 MB per second. It's M.2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.Keeping Things CoolThe LEGEND 700's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden trimming. The heat sink works to keep temperatures down for optimal performance and stability. Create BetterCreativity can't wait! The LEGEND 700 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.Protect Your CreationsWith LDPC (Low Density Parity Check Code), the LEGEND 700 ensures accurate data transmissions and security.
LongProductName - 256GB, M.2 2280, 3D NAND, PCIe Gen3 x4, 2,000\1,600MB/s, TBW 320TB, heat sink, 80 x 22 x 3.13 mm
LongSummaryDescription - ADATA LEGEND 700 ALEG-700-256GCS. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 2000 MB/s, Write speed: 1600 MB/s, Component for: PC/Laptop
Manufacturer - ADATA
Manufacturer_code - ALEG-700-256GCS
Name - ADATA LEGEND 700 256 GB - SSD - M.2, PCIe 3.0 x4, blue/gold
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
ProductName - ALEG-700-256GCS
ShortSummaryDescription - ADATA LEGEND 700 ALEG-700-256GCS, 256 GB, M.2, 2000 MB/s
Title - ADATA LEGEND 700 ALEG-700-256GCS internal solid state drive 256 GB M.2 PCI Express 3.0 NVMe 3D NAND
URL - https://www.adata.com/uk/consumer/solid-state-drives-legend-700?tab=description
WarrantyInfo - 3 years
Weight - 0,03
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.13 mm
Weight & dimensions - Weight - 9 g
Weight & dimensions - Width - 22 mm
