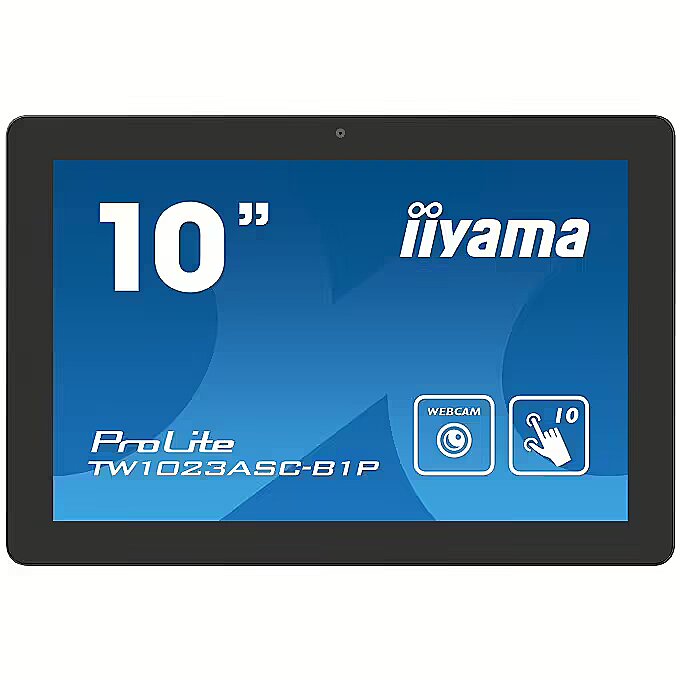

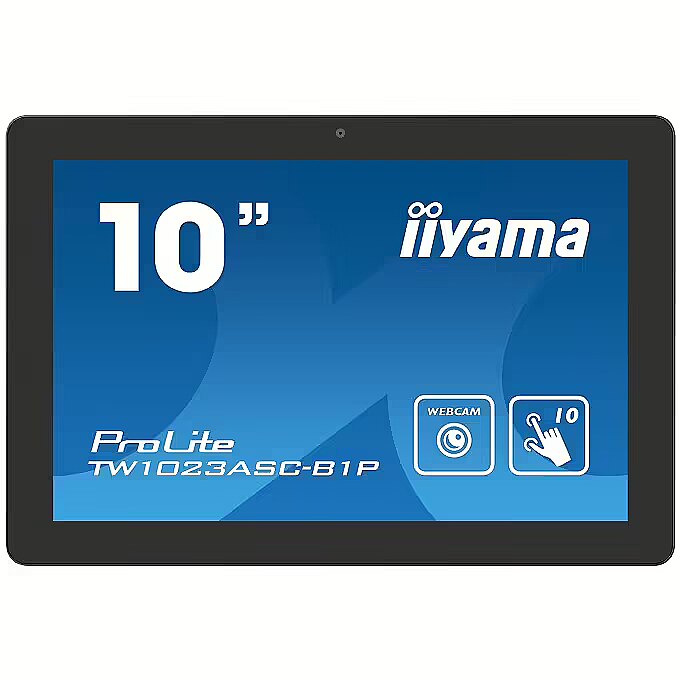

Iiyama ProLite TW1023ASC-B1P, 2GB/16GB, Black

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 595226 Product code: TW1023ASC-B1P
Can be ordered 11 units Availability: 14 days after order approval
Warranty: 3 years
272.91 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 10.12.2024
  • Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
  • Screen brightness, nits: 400
  • Screen size: 10.1"
  • Screen resolution: 1280 x 800
  • Bult-in memory: 16GB
  • Model: ProLite TW1023ASC-B1P
  • Weight (g): N/A
  • Processor (Chipset): Rockchip RK3288
  • RAM Memory: 2GB
  • Onboard OS: Android 11
  • 4G: Not
  • 5G: Nav
  • Main camera resolution: Nav
  • battery capacity: N/A
Display characteristics
Refresh rate : N/A
Screen brightness, nits : 400
Screen size 10.1"

The screen is the most important component of the tablet computer and its size determines the size of the tablet computer. Usually it is the diameter of the screen plus a couple of centimeters of the "holding part".

For convenient use we recommend approximately 10" tablet computers. 7" screen can be considered small and better suitable for children. If the tablet computer has the screen with the size exceeding 10" it means that the device is quite big and can seem inconvenient for an average user.

Screen resolution 1280 x 800

Indicates the number of dots the screen contains horizontally and vertically. The higher this parameter the better the sharpness of the image and the more pleasant use.

Display type IPS

This index indicates the colour compliance, brightness, viewing angle and other quality criteria. Any AMOLED, PLS and IPS type device can be considered a high quality screen panel.

Basic information
Color : Melna
Bult-in memory 16GB

Nosaka, cik daudz vietas ir planšetnieka "Cietajā diskā". Ja iekārtai nav pieejams atmiņas karšu paplašināšanas spraudnis, tad šis ir ļoti būtisks parametrs, kuru noteikti vajadzētu izvēlēties iegādes brīdī ar pietiekamu rezervi, jo bez paplašināšanas iespējām, ar šo apjomu nāksies sadzīvot visu iekārtas lietošanas laiku.

Vidusmēra filma aizņem ap 1GB vietas. Vidusmēra Android vai iOS spēle vai aplikācija aizņem ~100 Mb. Mūzikas un bilžu faili aizņem vidēji ap 5 Mb, jeb 0.05 Gb (par vienu failu).

Weight (g) : N/A
Processor parameters
CPU cores 4

This is a very important parameter because due to quite high resolution the tablet computer is quite demanding as to the CPU resources. Therefore, if you want to use several applications at once you should consider a possibility of buying a tablet with at least 2 core CPU.

Processor (Chipset) Rockchip RK3288

It determines the type of CPU the particular tablet has. Currently several competing models of CPUs are available on the market.

NVIDIA Tegra - the processors of this series have good graphics and processing performance as well as quite good energy efficiency indices. In any case, this is a strong competitor.

SnapDragon - this processor is highly energy efficiency, however, from the point of view of capacity it is more suitable for smartphones.

AMD Fusion - this processor comes from the environment of portable computers, therefore it has excellent performance as regards both graphics and processing, still the architecture of this processor unfortunately is intended only for the use in the Windows, Linux and other desktop computer environments.

Atom - Intel mobile processor with average capacity indices. Similar to AMD Fusion, for the time being it can be used only with the operating systems of desktop computers.

Apple A5 - specialised processor developed by Apple that can be found in iPad tablet computers only. From the capacity point of view - among the leaders.

Random-access memory (RAM)
RAM Memory : 2GB
Graphics card
Graphics card : Nav norādīts
Operating system
Onboard OS Android 11

This is among the most important parameters in choosing the tablet computer.

iOS - the tablet computers manufactured by Apple are equipped with the iOS operating system that is very convenient and high-speed, however, this is a closed system where no special configurations and extensions are possible. However, within the iOS currently most applications (apps) are available. iOS is compatible with Apple cloud services for which a fee is charged in most cases.

Android is a free of charge operating system developed by Google, similar to the iOS, however with all the possibilities to make a lot of changes therein. Besides, the Android offers good compatibility with the Google free cloud services - Gmail, Picasa, Youtube, Maps, Google+, Contacts, Calendar etc. The number of the Andoid users is growing most rapidly, therefore, this is a very perspective operating system.

Windows - the classic Microsoft Windows system that allows to use the convenient .EXE applications in the tablet computer. It has to be admitted that currently they are better suited to desktop computers, therefore you should choose this operating system only in cases when there is a Windows application without which you cannot do.

Other (Bada, MeeGo, WebOS, BrewMP, Symbian) - currently on the market of the mobile operating systems also several exotic operating systems are available besides the above listed, still, you should take into account that the biggest fight over this market share is over, therefore you should take care if you choose an operating system which is not iOS, Windows or Android, because, contrary to the classic computers, in most tablet computers it is not possible to change the operating system after buying the tablet.

Ports and equipment
Connection for charging : Other
Wi-Fi Wi-Fi 4 (802.11n)

Although no tablet computer with the WiFi function has been seen we have included this parameter just for calming everybody down. Via WiFi the tablet computer can be connected to the Internet router to have the Internet access.

If there is no WiFi router and the Internet connection the sense of buying the tablet computer is quite questionable.

Memory card slot : Nav
Wireless connections
4G : Not
5G : Nav
NFC : Not
GPS : Nav
Bluetooth Ir

Bluetooth allows to connect a keyboard, headphones, microphone, printers and other devices supporting this technology without any wires.

Camera properties
Front camera resolution : Nav
Main camera resolution : Nav
Battery
battery capacity N/A

This is an approximate indicator of the number of hours the device can operate with a fully charged battery pack, low CPU loading and the minimum screen brightness setting.

Depending on the loading and use possibilities - sound, wifi, 3G, copying of files, Bluetooth, etc., this index can change downwards very rapidly.

More detailed specification
ARTIKEL1 - TW1023ASC-B1P 25.65CM 10.1IN
ARTIKEL2 - PCAP ANDROID 8.1 2GB 16GB
Audio - Yes
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of speakers - 2
AudioFeatures - 2 x 1.5W
Brand - iiyama
BrandPartCode - TW1023ASC-B1P
Brightness - 385 cd/m2
Camera - No
Camera - Built-in camera - Yes
Category - Meeting Room Displays
Category_1 - Monitors and TV
Category_2 - Touchscreen
ContrastRatio - 1000:1
ContrastRatioDynamic - -
Depth - 30.5 mm
Design - Certification - CE, REACH
Design - Panel mounting interface - 75 x 75 mm
Design - VESA mounting - No
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 450 cd/m²
Display - Display diagonal - 25.6 cm (10.1")
Display - Display resolution - 1280 x 800 pixels
Display - Display technology - LED
Display - Maximum refresh rate - 60 Hz
Display - Number of simultaneous touchpoints - 10
Display - Pixel pitch - 0.1692 x 0.1692 mm
Display - Response time - 25 ms
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
DisplayCaseColour - Black
DisplayFeatures -
  • Edge to edge glass
  • Android 8.1 without GMS
  • CPU: Rockchip RK3288, quad-core Cortex A17 (1.8GHz)
  • GPU: Cortex A17
  • Storage: 16GB eMMC
  • Memory: 2GB DDR3
  • Extra: auto-rotation, webcam (2 megapixel), microphone, SD card slot, anti-fingerprint coating
  • Glass thickness: 1.25 mm
  • Glass hardness: 7H

  • DisplayFormat - 16:10
    DisplayNativeResolution - 1280 x 800
    DisplayPort - No
    DisplaySizecm - 25.5 cm
    DisplayType - LED IPS
    DisplayViewingArea - 216.6 x 135.4 mm
    EANCode - 4948570117116
    EAN_code - 4948570117116
    EmissionStandard - -
    EPEAT - -
    Ethernet - Yes
    Frequency - -
    FrequencyV - 60 Hz
    GrossWeight - 11.900 kg
    GRUPPE1 - Displays
    GRUPPE2 - Lcd Touchscreen
    GTIN - 4948570117116
    HDMI - 1
    Height - 172 mm
    HeightAdjustment - No
    HERSTELLER - IIYAMA CONSIGNMENT
    HSTNUMMER - TW1023ASC-B1P
    InputSignal -
  • HDMI
  • USB 2.0
  • micro USB
  • RJ-45

  • KensingtonLock - -
    LongDesc -
    LongDesc - 10.1” PCAP 10pt touch screen with Android and Power over Ethernet TechnologyThe ProLite TW1023ASC-B1P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications.This 10.1” PCAP 10-point touchscreen with Android allows users to directly connect and operate the monitor from any device. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera and speakers it offers limitless interactive installation possibilities.BUILT-IN WEBCAM & SPEAKERSMaking the screen a perfect solution for semi or fully automated reception solutions allowing businesses to track and manage visitor traffic at the front desk lobby without compromising on the safety and security of your staff, visitors and company assets.
    LongProductName - 10.1", 1280x800, 16:10, IPS, Projectiv kapazitiv, HDMI, USB, RJ-45, PoE, RMS 2x 1.5W, Android 8.1, 255x172x30.5 mm
    LongSummaryDescription - iiyama TW1023ASC-B1P. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, Display technology: LED. Panel mounting interface: 75 x 75 mm, Certification: CE, REACH. Operating system installed: Android. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Package width: 398 mm, Package depth: 68 mm, Package height: 223 mm
    Manufacturer - Iiyama
    Manufacturer_code - TW1023ASC-B1P
    MANUFDATASHEET - https://iiyama.com/gl_en/products/prolite-tw1023asc-b1p/
    MonitorControls -
  • Touch technology: projective capacitive
  • Touch points: 10
  • Touch method: finger, glove (latex), capacitive stylus

  • MonitorSize - 10.1"
    MonitorType - Touch
    Name - iiyama TW1023ASC-B1P, LED monitor (black, HD +, touchscreen, webcam)
    Network - Bluetooth - Yes
    Network - Bluetooth version - 4.0
    Network - Ethernet LAN - Yes
    Network - Wi-Fi - Yes
    Network - Wi-Fi standards - 802.11b, 802.11g, Wi-Fi 4 (802.11n)
    PackageContents -
  • Quick start guide
  • safety guide
  • AC adapter
  • Cable cover

  • Packaging data - Package depth - 68 mm
    Packaging data - Package height - 223 mm
    Packaging data - Package weight - 1.36 kg
    Packaging data - Package width - 398 mm
    Performance - Built-in processor - Yes
    Performance - Operating system installed - Android
    Pivot - No
    Pixelpitch - 0.1692 mm
    Ports & interfaces - HDMI ports quantity - 1
    ProdDesc - 10,1", Android, PoE, PCAP, Touch, 1280 x 800, Speakers, HDMI-Out, 385 cd/m², 1000:1, 25ms, Android OS v8.1
    ProductName - TW1023ASC-B1P
    ProductPicture - http://www.tdbaltic.ee/images/ds4/TW1023ASC-B1P-01.jpg
    ProductPicture2 - http://www.tdbaltic.ee/images/ds4/TW1023ASC-B1P-02.jpg
    ProductPicture3 -
    ProductPicture4 -
    ResponseTime - 25 ms
    Rotate - No
    ShortSummaryDescription - iiyama TW1023ASC-B1P, 25.6 cm (10.1"), 1280 x 800 pixels, LED, 0.1692 x 0.1692 mm, 60 Hz, 25 ms
    Stck_Kart - 4
    Stck_Pal - 4
    Storno - Y
    Tilt - No
    Title - iiyama TW1023ASC-B1P meeting room display 25.6 cm (10.1") 1280 x 800 pixels LED 802.11b, 802.11g, Wi-Fi 4 (802.11n) Bluetooth
    URL - https://iiyama.com/gb_en/products/prolite-tw1023asc-b1p/
    USB - No
    USBTypeC - No
    VESACompatible - Yes
    VESAStandard - 75 x 75
    ViewingAngle - 160
    ViewingAngleV - 160
    Warranty - 3 years
    WarrantyInfo -
    Weight - 0.800 kg
    Weight - 1,15
    Width - 255 mm
    Wireless - Yes
    WirelessFeatures -
  • WiFi IEE802.11b/g/n
  • Bluetooth 4.0

  • 272.91 €
