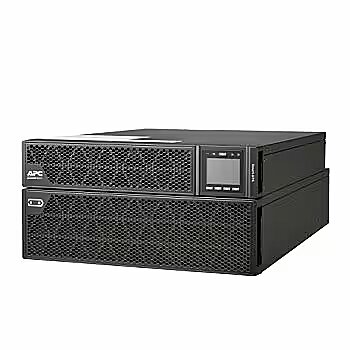

APC Smart-UPS SRTG8KXLI, 8000VA, 8000W, IEC, 5U

ARTIKEL1 - APC SMART-UPS RT 8KVA 230V
ARTIKEL2 -
Battery - Automatic battery test - Yes
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 4 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 96 V
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 2
Battery life (max), years - 3 - 5
Battery recharge time, h - 4
Battery voltage, V - 96
Brand - APC
BrandPartCode - SRTG8KXLI
Breite - 0
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EN/IEC 62040-1
Connections - RJ-45 Serial
Connections - USB
Depth, mm - 620
Description - APC SMART-UPS ON-LINE 8KVA/8KW 230V RACK/TOWER, NETWORK CARD, W/O RAIL KIT
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - International Protection (IP) code - IP20
Design - LED indicators - Yes
EANCode - 0731304411840
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Auto-restart - Yes
Features - ECO mode - Yes
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 285 V
Features - Input operation voltage (min) - 100 V
Features - Noise level - 55 dB
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 8000 W
Features - Output power capacity - 8 kVA
Features - Output voltage Total Harmonic Distortion (THD) - 2%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Rack / Tower
Frequency range, Hz - 40 - 70
Gewicht - 131
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304411840
GTIN - 731304411840
Height - 540.000000
Height, mm - 217
HERSTELLER - APC
Hoehe - 0
HSTNUMMER - SRTG8KXLI
IP classification - IP20
Laenge - 0
Length - 600.000000
LongDesc - This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 2x IEC 320 C13, 1x IEC 320 C19 and Hard wire 3-wire (H+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
LongProductName - Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
LongSummaryDescription - APC Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Hardwire, AC outlets quantity: 3 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 96 V, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Display type: LCD, International Protection (IP) code: IP20. Certification: CE, EN/IEC 62040-1
Manufacturer - APC
ManufacturerPartNumber - SRTG8KXLI
Nominal input voltage, V - 160 - 285
Nominal output voltage, V - 220 - 240
Operational conditions - Non-operating altitude - 0 - 15240 m
Operational conditions - Operating altitude - 0 - 2011.68 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Output power, W - 8000
Output power capacity (VA) - 8000
Packaging data - Package depth - 790 mm
Packaging data - Package height - 414 mm
Packaging data - Package weight - 83.1 kg
Packaging data - Package width - 590 mm
PeriodofWarranty - 3 Y

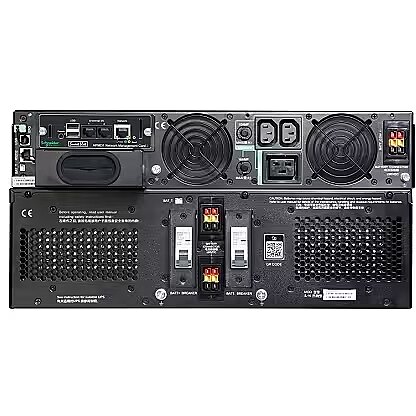

Ports & interfaces - AC outlets quantity - 3 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Power plug - Hardwire
Ports & interfaces - Serial interface - Yes
Ports & interfaces - USB port - Yes
ProductName - Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
ShortSummaryDescription - APC Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 285 V
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Title - APC Smart-UPS On-Line, 8kVA/8kW, Rack/Tower, 230V, 2x IEC C13+1x IEC C19+Hard wire 3-wire (H+N+E) outlets, Network Card, W/O rail kit
UPS devices and accessories - Yes
URL - https://www.apc.com/
WarrantyInfo -
Weight - 126.820000
Weight & dimensions - Depth - 620 mm
Weight & dimensions - Height - 217 mm
Weight & dimensions - Weight - 81.1 kg
Weight & dimensions - Width - 440 mm
Weight, kg - 81.12
Width - 790.000000
Width, mm - 440
