Accessories included - PR3000ERTXL2U UPS Rack rails Rack holders Rail set Screw set Power cord USB cable Serial cable EPO cable User manual
Active power - 3000 W
Apparent power - 3000 VA
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Number of batteries supported - 4
Battery - Replacement battery cartridge - RBP0129
Battery - Typical backup time at full load - 1.7 min
Battery - Typical backup time at half load - 7.1 min
Brand - CyberPower
BrandPartCode - PR3000ERTXL2U
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2
Certificates - Compliance certificates - RoHS
Charging time - 3 h
Chassis type - Rack

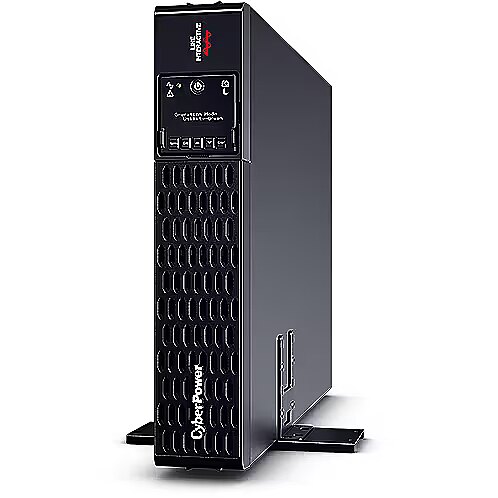

Chassis type - Tower
Color - Black

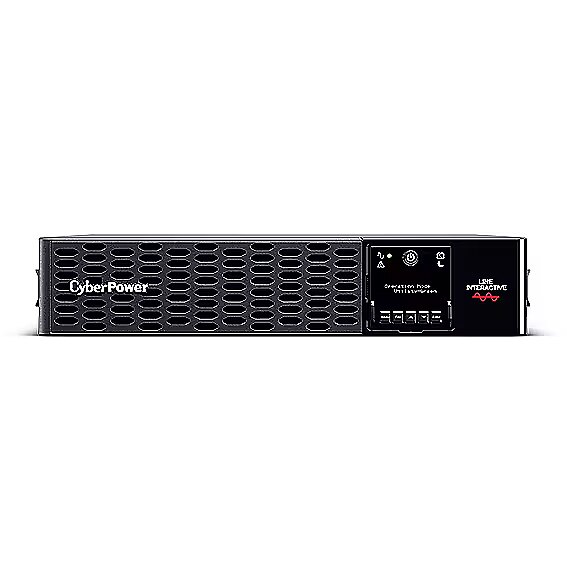

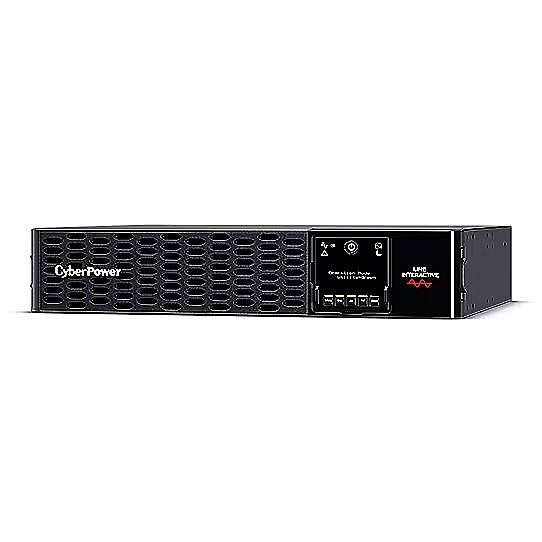

Description - UPS PR3000ERTXL2U uninterruptible power supply CyberPower PR3000ERTXL2U with rack-mount design guarantees power protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/storage devices, telecommunications devices, network devices and surveillance systems. The UPS uses a line-interactive topology with an automatic voltage regulator (AVR) and offers a stabilized pure sinusoidal voltage at the output to ensure high power quality. The output power factor of the UPS is 1, which means it can connect to larger loads than a conventional UPS. It also features Battery Management Technology, which helps batteries achieve optimal durability by balancing battery string voltage. Two-phase battery charging enables fast and safe battery charging. Hot-swappable battery packs allow for easy maintenance without interrupting power. The multi-function matrix LCD display supports intuitive operation and quick configuration. The LCD panel can be rotated to suit the installation method. UPS Line-interactive topology Active PFC compatible Tool-free battery replacement High output power factor Overload protection Fast charging technology Extended Battery Module (EBM) EMI and RFI filtering USB connectivity port Emergency Power Off (EPO) Port SNMP/HTTP remote management (optional) Energy Saving Technology Pure sine wave output Battery management technology Automatic voltage regulation (AVR) Key/non-key workloads Hot-swap batteries Protection against interference and surges LCD status display Serial communications port PowerPanel management software Adaptation to the rack/tower mounting system
Design - Cable length - 2.4 m
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - Housing material - Metal
Design - LED indicators - Error, Operation
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimension depth - 600 mm
dimension height - 290 mm
Dimensions - 433 x 86,5 x 500 mm
dimension weight - 41000 g
dimension width - 550 mm
ean - 4712856277579
Environment requirements - Operating Temperature: 32 ~ 104 (°F) Operating temperature: 0 ~ 40 (°C) Relative operating humidity (non-condensing): 0 ~ 95 (%) Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters) Storage Temperature: 5 ~ 113 (°F) Storage temperature: -15 ~ 45 (°C) Relative storage humidity (non-condensing): 0 ~ 95 (%) Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters) Online heat dissipation: 120.8 (BTU/hr) Audible noise from 1.0 M from the device surface: 38.5 ~ 57.5 (dbA)
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 288 V
Features - Input operation voltage (min) - 159 V
Features - Management protocols - SNMP/HTTP
Features - Maximum current - 16 A
Features - Number of input phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 3000 W
Features - Output power capacity - 3 kVA
Features - Power factor - 1
Features - Power Factor Correction (PFC) type - Active
Features - Power protection features - Overload, Short circuit
Features - Response time - 4 ms
Features - Socket circuit breaker - Yes
Features - Surge energy rating - 2430 J
Features - Surge protection - Yes
Features - Transfer time (Line Mode to Battery Mode) - 4 ms
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Features - Web-based management - Yes
Filters / protection - Overload
Filters / protection - Suppression
Filters / protection - Surge
GTIN - 4712856277302
GTIN - 4712856277579
guarantee - 24
guarantee_type - external

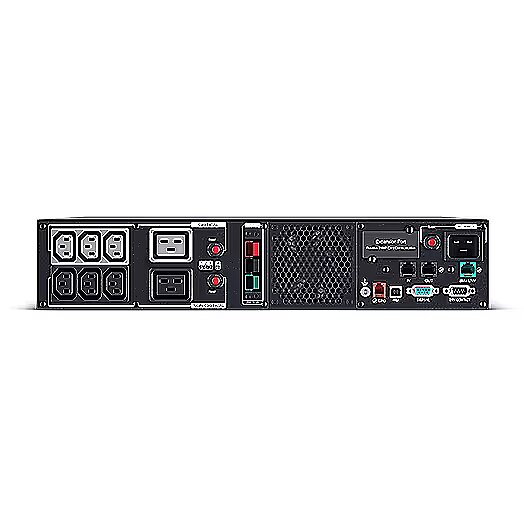

I/O connectors - 1 x EPO
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-11/RJ-45
I/O connectors - 2 x RS-232 (COM)
Input power ports - IEC-C20
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 8504408590
LongDesc - CyberPower PR3000ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
LongProductName - 3000 VA, 3000 W, 2430 J, Single Phase, Line-interactive, Pure Sine Wave, IEC C13 x 6, IEC C19 x 2
LongSummaryDescription - CyberPower PR3000ERTXL2U. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1.7 min, Typical backup time at half load: 7.1 min. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Metal. Compliance certificates: RoHS, Certification: CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2
name - UPS PR3000ERTXL2U
Number of phases input - 1 (230V)
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Bypass - GreenPower UPS
Output power ports - 2 x IEC-C19
Output power ports - 6 x IEC-C13
Packaging data - Package depth - 620 mm
Packaging data - Package height - 275 mm
Packaging data - Package volume - 40800 cm³
Packaging data - Package weight - 41 kg
Packaging data - Package width - 560 mm
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler, C19 coupler
Ports & interfaces - Cabling technology - 10/100/1000Base-T(X)
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB port - Yes
producer - CyberPower
ProductName - PR3000ERTXL2U
ShortSummaryDescription - CyberPower PR3000ERTXL2U, Line-Interactive, 3 kVA, 3000 W, Pure sine, 159 V, 288 V
Software - PowerPanel Business
Special functions -
Sustainability - Sustainability certificates - ENERGY STAR
The shape of the output voltage - Full sine wave
Title - CyberPower PR3000ERTXL2U uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 8 AC outlet(s)
Transfer time (max) - 4 ms
UPS Architecture - line-interactive
URL - https://www.cyberpower.com/eu/en/product/sku/PR3000ERTXL2U#
vendpn - PR3000ERTXL2U
WarrantyInfo -
Weight - 32.8 kg
Weight & dimensions - Depth - 500 mm
Weight & dimensions - Height - 86.5 mm
Weight & dimensions - Weight - 32.8 kg
Weight & dimensions - Width - 433 mm
